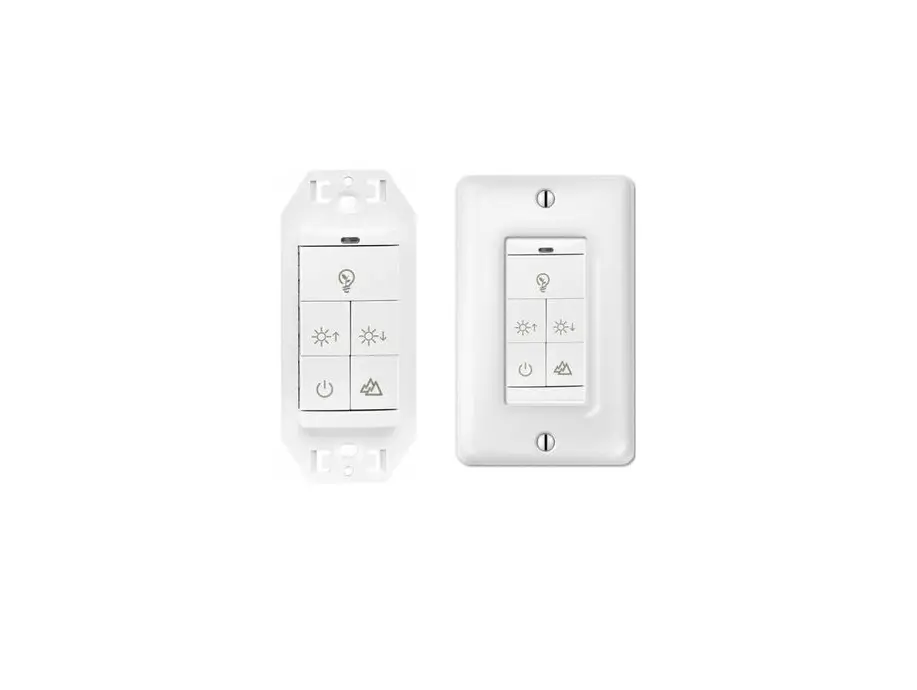

EarthTronics ECWSBP 5 Key Battery Powered Wall Switch Instructions
INSTRUCTIONS
- Install 2pcs CR2032 battery by opening the back cover.

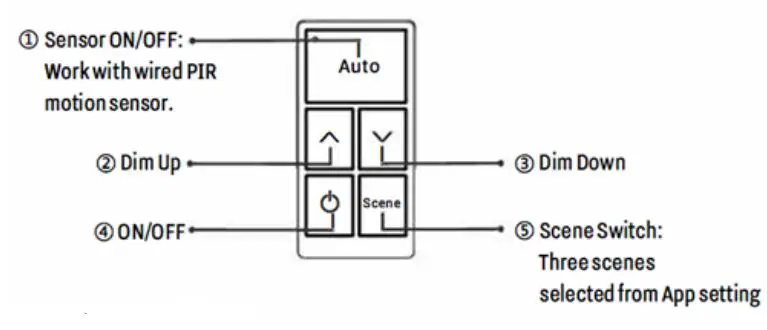

- Press button(1) and (2) together over 2 seconds to enter pairing mode or achieve reset function. This switch can be scanned in next 30 seconds.
- In Earth Connect App “Switch” page, click to add the switch.
- Select the light/light group to be controlled by this switch.
- Select 3 scenes to be controlled by this switch.
IMPORTANT: Battery model is CS2032.
The battery can be used for 5 years based on the usage of twice a day.

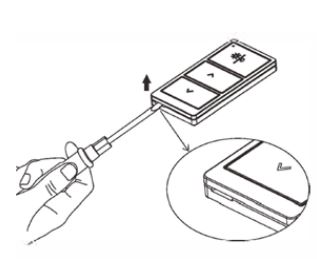

Step 1: Open the cover of the remote control with a flat screw driver.

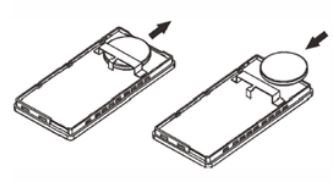

Step 2: Replace the battery (CS2032) with a new one.
Step 3: Attached the cover.
WALL SURFACE INSTRUCTIONS

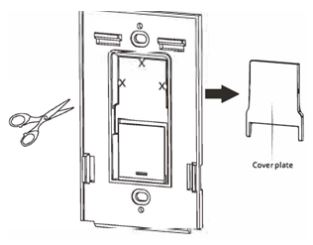

Step 1: Remove the cover plate carefully with scissors.

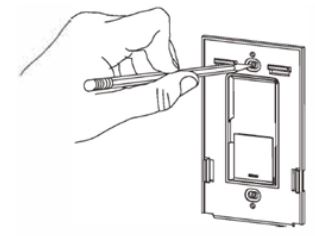

Step 2: Mark the position you want to install.
Step 3: Drill two holes with power drill.

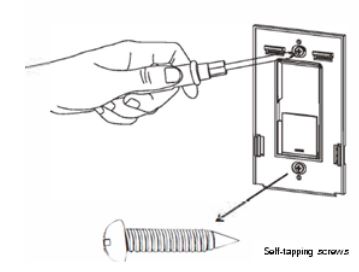

Step 4: Attach the bracket with the supplied self-tapping screws.
Step 5: Slide remote controller into the bracket.

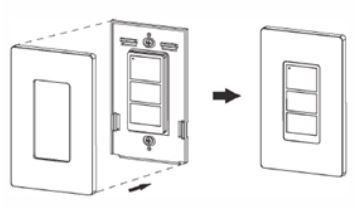

Step 6: Attach the wall plate.
Download the Earth Connect App
LEARN MORE: Earth Connect www.earthtronics.com/earthconnect
Download the app instructions
EarthTronics, Inc. | Norton Shores, MI 49441 | www.earthtronics.com | Email: [email protected]
Toll Free: 866.632.7840
Rev. 4.26.23 | EC11808
