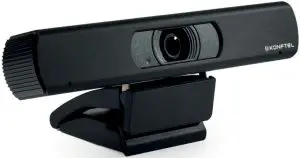

KONFTEL Cam20 4K Ultra HD USB Conference Camera User Guide
SAFETY PRECAUTIONS
Carefull installation
This product should be placed stable and securely. The product should not come in contact with any liquid, gas or solid material that may cause corrosion to the shell.
Unauthorized disassembly
This product has no parts which can be repaired by the user. Damage caused by the user’s own disassembly is not covered by warranty
Warning!
Electromagnetic fields at specific frequencies may affect the image.
Warning!
Do not expose the Konftel Cam20 to water or moisture.
Warning!
Do not open the casing of the Konftel Cam20.
Konftel AB hereby declares that this conference camera is in conformity with all the essential requirements and other relevant provisions of Directive 1999/5/EC.
Please visit www.konftel.com to view the complete declaration of conformity
PACKING LIST
Konftel Cam20
Remote Control
2x Batteries AAA

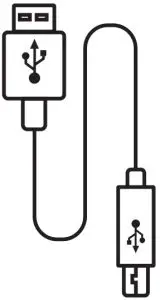

5 m USB 2.0 Type-A/Type-B
Quick Guide
Safety declaration
INSTALLATION

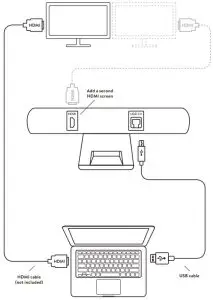

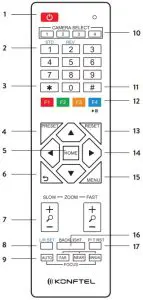

REMOTE CONTROL
No. | Name | Function Description |
| 1 | Standby Button | Enter into standby mode (not supported) |
| 2 | Position Buttons | To set preset or call preset |
| 3 | * Button | Used with other buttons |
| 4 | Set Preset Button | Store a preset position. [PRESET] + Numeric button (0-9): Setting a corresponding numeric key preset position. |
| 5 | Pan-Tilt Control Button | Press [HOME] back to the middle position. |
| 6 | Back Button | Press to return to previous |
| 7 | Zoom Buttons | Slow Zoom: Zoom In [+] or Zoom Out [-] slowly Fast Zoom: Zoom In [+] or Zoom Out [-] fast |
| 8 | Set Pan Left/Right | Setting the direction of the pan.
|
| 9 | Focus Buttons | Used for focus adjustment. Press [AUTO] to adjust the focuses on the center of the object automatically. Press [MANUAL] to adjust the focus on the center of the object manually. Adjust it with [FAR] (Focus on far object) and [NEAR] (Focus on near object). |
| 10 | Camera Select Buttons | Press the button corresponding to the camera you want to operate with the remote controller. |
| 11 | # Button | Used with other buttons |
| 12 | Set Camera IR Address Buttons | [*]+[#]+[F1]: Address 1 [*]+[#]+[F2]: Address 2 [*]+[#]+[F3]: Address 3 [*]+[#]+[F4]: Address 4 |
| 13 | Clear Preset Buttons | Clear preset: Erase a preset position. [RESET] + Numeric button (0-9) |
| 14 | Pan/Tilt Control Buttons | Press arrow buttons to perform panning and tilting. Press [HOME] button to return to original position. |
| 15 | Menu Button | Press [MENU] to enter or exit menu. |
| 16 | BLC (Backlight Compensation) ON/OFF Button | Press [BLC ON/OFF] to enable the backlight compensation. Press it again to disable the backlight compensation. NOTE
|
| 17 | PTZ Reset Button | Not supported |
SERVICE AND WARRANTY
Warranty
We give a two-year warranty on our conference devices.
Service
Service is offered after the expiration of the warranty. Please contact your reseller and ask for a cost estimate.
Konftel support
If you have any questions about the warranty and service, please contact your Konftel support centre.
Europe
+44 1483 308 003 (Monday-Friday 8.00 AM-5.00 PM GMT-1)
+46(0)90-706 489 (Monday–Friday 8.00–17.00 GMT+1)
E-mail: [email protected]
Website: www.konftel.com/contact-support
USA and Canada:
+1 866-606-4728 (Monday–Friday 08.00–17.00 GMT-8)
E-mail: [email protected]
Website: www.konftel.com/contact-support
