GUNGNYR PRO
QUICK GUIDE

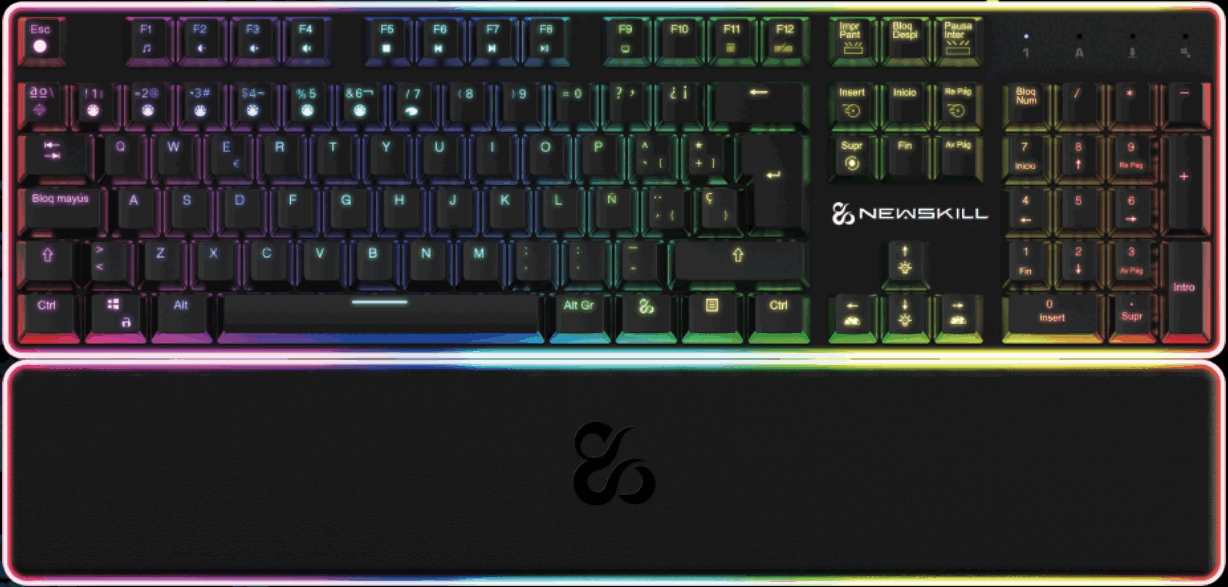

PROFESSIONAL OPTO-MECHANICAL RGB GAMING KEYBOARD
How to change switch
 |  |  |

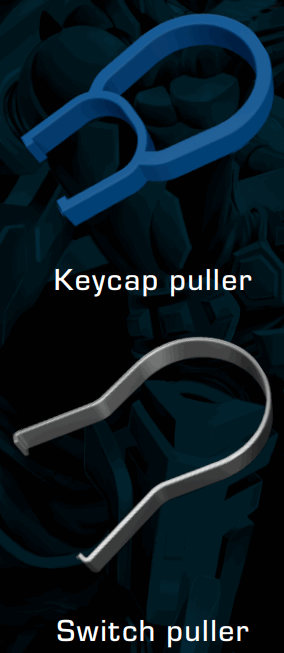

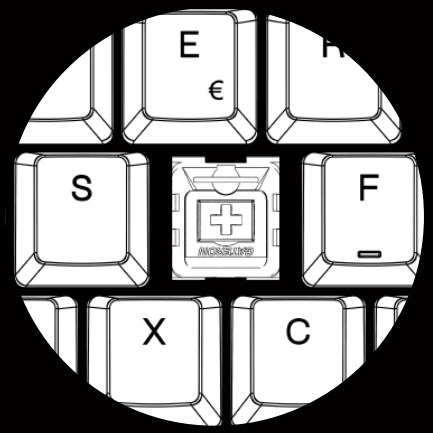

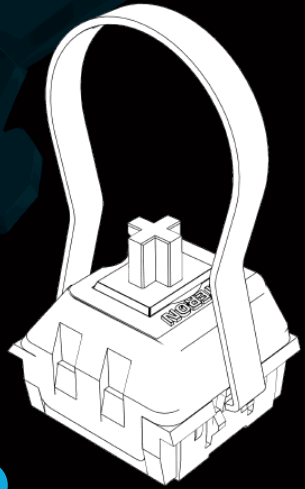

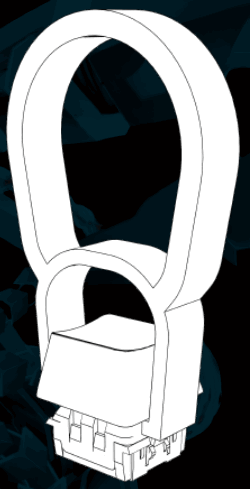

| Insert the keycap puller and pull out the key cap | Insert the switch puller, align the hole and pull out the switch | Insert the switch and press down until it “clicks”, please note that the word GATERON should be facing down |

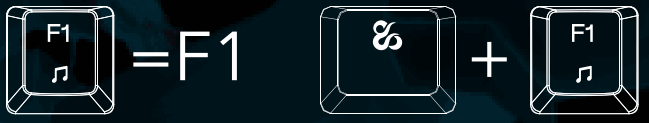

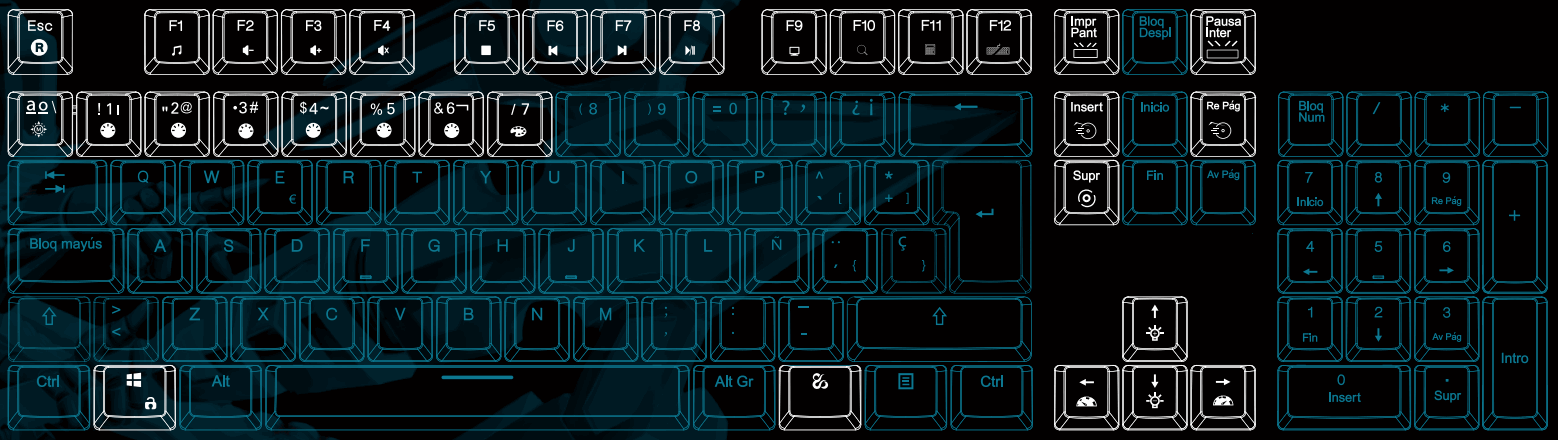

Fn combination keys E.g.
Open the music
 | + F1 | Open the music |
| + F2 | Volume – |
| + F3 | Volume + |
| + F4 | Mute |
| + F5 | Stop |
| + F6 | Last song |
| + F7 | Next song |
| + F8 | Play/pause |
| + F9 | My computer |
| + F10 | Search |
| + F11 | Calculator |
| + F12 | Lock/open keyboard |
| + Esc | Restore to default(hold 3s) |
| + 1~6 | Light mode |
| +7 | Light color switch |
| + ↑/↓ | Increase/reduce light intesity |
| + ← / → | Light speed reduce/increase |
| + PrtSc | Swich ambient light mode |
| + Ins | Peripheral light speed adjustment |
| + Pause | Arm rest light mode switch |
| + Pgup | Arm rest light speed adjustment |
| + WinLock | Open/close the windows |
| + `~ | Key area light mode cycle switch |
| + Del | Five sets of custom lighting mode recording functions: A. Press Fn+8*/9(/0)/-_/=+ to select any group: B. Press Fn+Del again and the light flashes. C. Choose your own light color. D. Press Fn+De to save the Settings |
