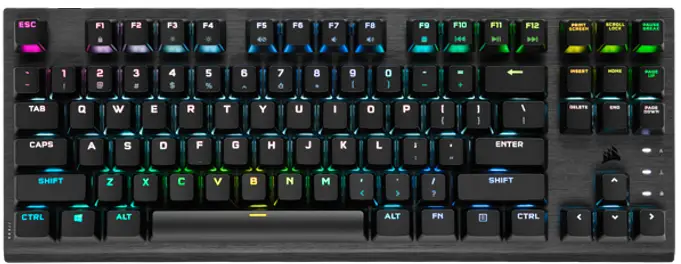

K60 PRO TKL RGB Optical-Mechanical Gaming Keyboard
User Guide

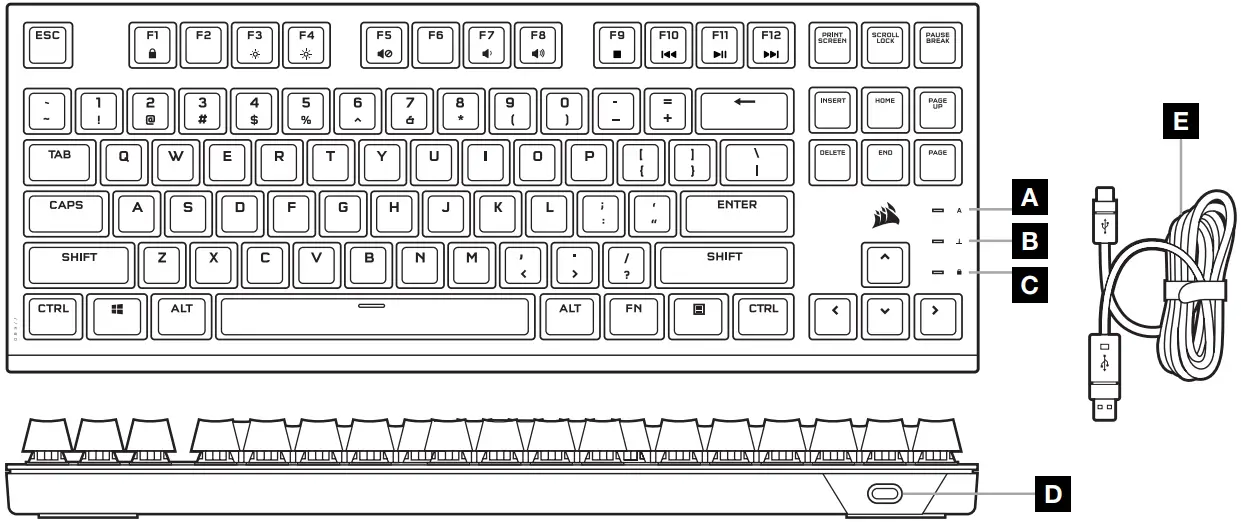

GETTING TO KNOW YOUR KEYBOARD
A. CAPS LOCK INDICATOR
B. SCROLL LOCK INDICATOR
C. WIN LOCK INDICATOR
D. USB TYPE-C PORT
E. DETACHABLE USB TYPE-C TO A CABLE
SETTING UP YOUR KEYBOARD
Connect the detachable USB cable (E) to the keyboard USB Type-C port (D) and to an available USB 3.0 or better Type-A port on your Windows® PC, Apple Mac®, or Microsoft Xbox.*
*corsair.com/xbox-support
SOFTWARE MODE
When iCUE is running the keyboard operates in software mode and is controlled by iCUE.
When playing iCUE-integrated games your RGB lighting dynamically reacts to in-game actions and events in real time. Learn more at corsair.com/icue.
Install iCUE on a Windows PC or Apple Mac to connect all of your CORSAIR iCUE-compatible products together in a single interface, giving you complete control of everything from lighting to powerful macros. Download iCUE from corsair.com/downloads.
ONBOARD LIGHTING
Keyboard lighting effects can be controlled via the onboard shortcuts below when iCUE is not running or the keyboard is connected to a device that does not support iCUE.
| SHORTCUT | LIGHTING EFFECT |
| FN + 1 | Spiral Rainbow |
| FN + 2 | Rain |
| FN + 3 | Rainbow Wave |
| FN + 4 | Visor |
| FN + 5 | Type Lighting (Per-key) |
| FN + 6 | Type Lighting (Ripple) |
| FN + 7 | Color Shift |
| FN + 8 | Color Pulse |
| FN + 9 | Color Wave |
| FN + 0 | Static Color |
| SHORTCUT | FUNCTION |
| FN + ` | Reset to onboard stored effect |
| FN + – | Reduce effect speed* |
| FN + = | Increase effect speed* |
| FN + [ | Rotate effect left* |
| FN + ] | Rotate effect right* |
*Functions supported on select effects. With iCUE, you can program vivid and dynamic custom multi-layered lighting effects.
FUNCTION SHORTCUTS
| SHORTCUT | FUNCTION |
| FN + F1 | Toggle Win Lock* |
| FN + F3 | Decrease Backlighting Brightness |
| FN + F4 | Increase Backlighting Brightness |
| FN + F5 | Mute |
| FN + F7 | Decrease Volume |
| FN + F8 | Increase Volume |
| FN + F9 | Stop Playback |
| FN + F10 | Last Track |
| FN + F11 | Play / Pause |
| FN + F12 | Next Track |
* Disables the Windows key to prevent accidental keypresses and can be programmed in iCUE to also disable other contextual menu key presses.
FACTORY RESET
To clear the onboard memory, hold the ESC key while plugging in the USB cable (E) from the keyboard to your system, then release the ESC key after two seconds. The keyboard will then power on normally and be reset to factory defaults.
