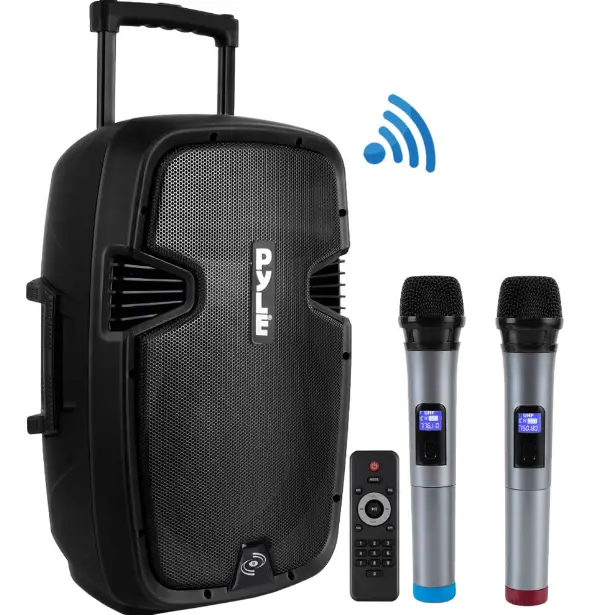

PYLE PHP1599WU Active PA Speaker System

PYLE-PHP1599WU-Active-PA-Speaker-System

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER [OR BACK]
NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

OPERATION

Prior to switching ON, turn volume down to minimum.
Connect the audio source to the appropriate input socket.
Connect to the mains supply.
Switch ON the audio source followed by the active speaker.
Set the volume with the applicable control.
Adjust the bass + treble.
When using the speaker using the built-in battery, if you find the MP3 screen flickering which indicates the battery voltage is low, turn OFF the speaker box and charge battery.
If you don’t use the unit frequently, please do remember to charge the unit every three months to keep the battery in good condition.

Note: Please turn OFF the product when fully charged.

INSTRUCTIONS

Do not overload the box to avoid damage to the speakers.
Do not place to an open fire (candles etc) on top or next to the box- FIRE HAZARD
Only connect to an earthed mains outlet of 110Vac/60Hz.
For indoor use only. If the box will be used outdoors, you need to make sure that no humidity can enter the box.
When not in use, unplug the unit from the mains.
Unplug the unit from the mains prior to checking or replacing the fuse.
Make sure that the box is placed on a stable, strong surface.
The boxes can be hung. Use only strong and approved mounting material
During the mounting, make sure that nobody is standing below the mounting area.
Do not place liquids on the box and protect it against humidity. Humidity can shorten thelife time considerably.
Only use suitable means of transportation if you want to move the box-

USE EXTRA CAUTION HANDLING THE BACK PANEL.

Always unplug the unit during a thunderstorm or when it is not in use.
If the unit has not been used for a long period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
Never try to repair the unit yourself.
It does not contain any user serviceable parts.
Run the mains lead in such a way that nobody can fall over it and nothing can be put in it
Set the unit to the lowest volume prior to switching it on.
Keep the unit out of the reach of children.

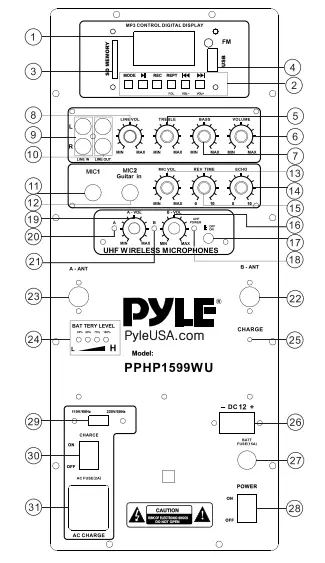

CONTROLS AND CONNECTIONS

LED Screen
Mp3 control
SD Card Slot
USB PORT
Treble Control
Volume Control: It is used to adjust the signal level from the Mp3/Line input/Microphone
Bass control
Line Vol: It Is used to adjust the signal level from the RCA line input
RCA line input
RCA line output
Mic input: 6.35mm Jack for microphone input
6.35mm Guitar input
Mic Vol: It is used to adjust the signal level from the Mic/guitar inp
ECHO EFFECT FOR MICROPHONE
ECHO Time
B-VOL: It is used to adjust the signal level of B wireless microphone
Wireless microphone select: Press it to power ON/OFF the wireless microphone
Wireless Mic power LED
A-VOL: It is used to adjust the sign. level of A wireless microhpne
Chanel A wireless Mic power LED
Chanel B wireless Mic power LED
Batterry Electric quantity Instructions
Battery Electric quantity LED
External Power DC 12V Input
FUSE
ON/OFF Power switch
Voltage switch
Battery charge
AC power: Connect the incorporated
Ac power cord

CONTROLS AND CONNECTIONS

PHP1599WU
Active PA Speaker SystemWireless BT Powered Loudspeaker Full Range Stereo Sound, Includes (2) Wireless Microphones, MP3/USB/SD Readers, FM Radio, 15-Inch Woofer, 1600 Watt

Features:

Versatile PA Loud Speaker Sound System
Bluetooth Wireless Music Streaming Ability
Active 2-Way Full Range Stereo Sound
Heavy Duty, Rugged &Reliable
Built-in Rechargeable Battery
FM Radio with Automatic Station Recognition
USB Flash &SD Memory Card Readers
Includes (2) Wireless Microphones
(2) 1/4″ Microphone/Guitar Inputs
Independent Adjustable Mic/Guitar Volume Controls
RCA (L/R) Line Input Connector Jacks
Ability to Connect External Devices
RCA (LR) Line Output Connector Jacks
Ability to Connect to Additional Speaker Systems
Rear Panel Button& Rotary Knob Control Center
Volume, Bass and Treble Adjustment
Wired Microphone Compatible
12 Volt Inlet for Car /RV Use
Digital LCD Display
ID3 Tag Song Readout Info
Battery LED Indicator Lights
Engineered Fortified Molded Cabinet
35mm Speaker Stand Mount
Convenient Rolling Wheels and Extendable Carry Handle
Used for Public Gatherings, Crowd Control, Karaoke

Bluetooth Wireless Streaming:

Instantly Stream Music from Your Bluetooth Devices
Works with All Your Favorite Bluetooth Devices (GIPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
Bluetooth Version: 4.0
Bluetooth Wireless Range: 30’+ Feet

What’s in the Box:

Bluetooth PA Speaker
(2) Wireless Handheld Microphones
Attachable Mic Holders
Attachable Rolling Wheels
Remote Control
Power/Charging Cable

Technical Specs:

Max Power Output: 1600 Watt
RMS Power Output: 800 Watt
Battery Life: Up to 4 Hours
Battery Charge Time: Approx. 8 Hours
Subwoofer Frequency:75-18kHz
Subwoofer: 15″
Tweeter: 1.34″ -inch
Impedance: 4 Ohm
Sensitivity: 96dB (+/-2dB)
S/N Ratio:>50dB
T.H.D: 0.3%, 25 Watt
Frequency Response: 55-18kHz
Power: 110-220 Volt Switchable
Maximum USB/SD Card Support: 16GB
Digital Audio File Support: MP3, WMA, AVI
Dimensions (Lx Wx H): 17.3″ x 14.6″ x 26.8″

VISIT US ONLINE:
Have a question?
Need service or repair? Want to leave a comment?
PyleUSA.com/ContactUs

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radiator and your body: Use only the supplied antenna.
