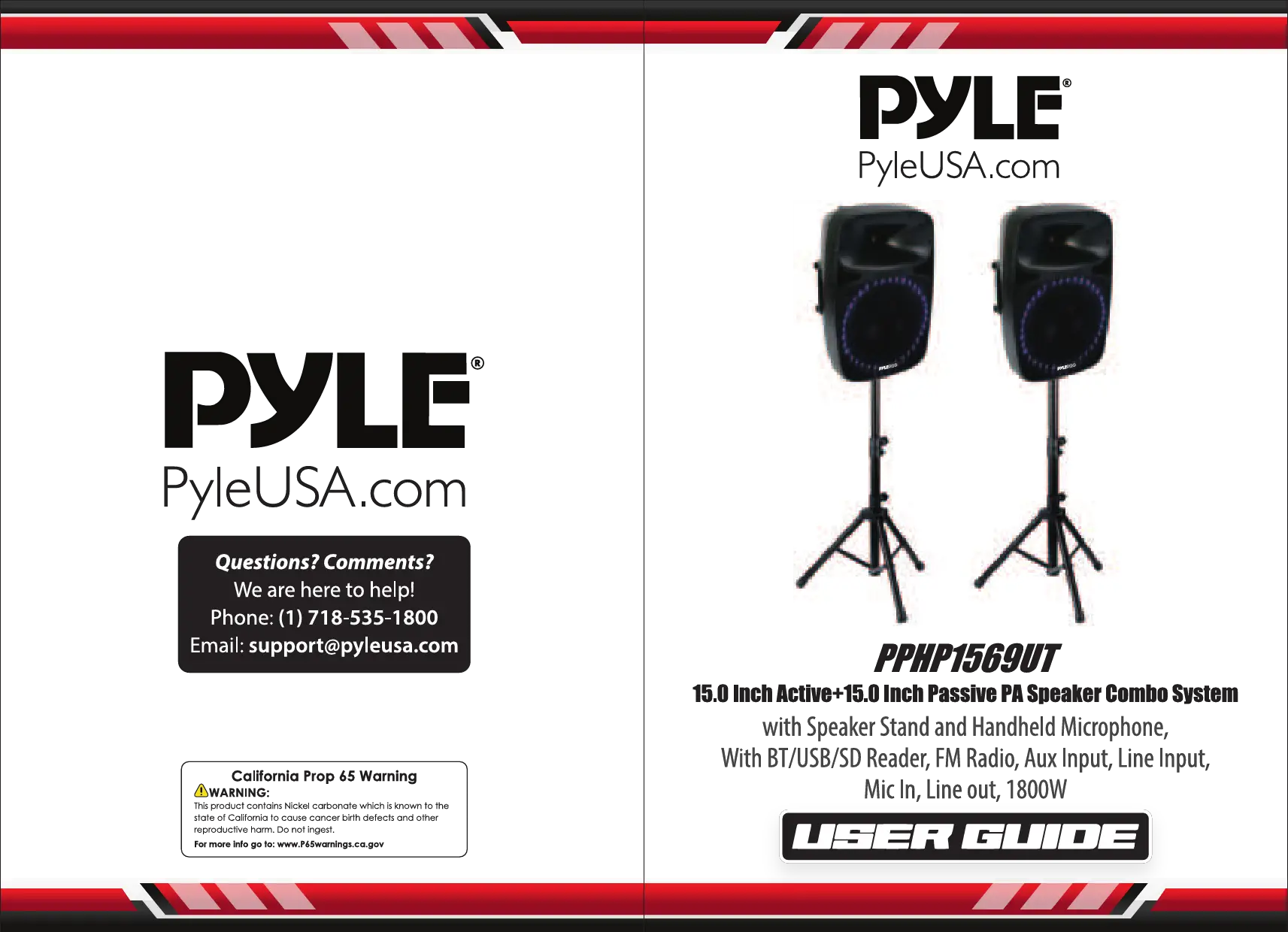

PPHP1569UT PA Speaker Combo System
Product Information
This product is a wireless Bluetooth streaming device that
allows you to stream audio from various devices such as iPhones,
Android smartphones, iPads, tablets, PCs, and more. It features a
woofer and tweeter for enhanced sound quality. The device also has
an LCD screen and MP3 control for easy navigation and playback
control.
The product is designed to comply with FCC radiation exposure
limits and should be operated with a minimum distance of 20cm
between the radiator and your body. It also complies with part 15
of the FCC Rules, meaning it does not cause harmful interference
and accepts any interference received.
Product Usage Instructions
- To use the device, first make sure to read the manual
carefully. - Ensure that the device is charged or connected to a power
source. - Turn on the device by pressing the power button.
- To connect your device via Bluetooth, enable Bluetooth on your
smartphone, tablet, or PC. - Search for available Bluetooth devices and select the device
name associated with this product. - Once connected, you can start streaming audio wirelessly from
your device to the product. - Use the LCD screen and MP3 control buttons to navigate through
your music library. - To switch between different modes (USB/SD/BT/FM), press the
MODE button. - Use the previous and next song buttons to skip to the previous
or next track. - Press and hold the fast rewind or fast forward buttons to
quickly navigate within a track. - Press the repeat button to choose between repeat one, repeat
all, or random playback modes. - Press the play/pause button to start or pause playback.
- Use the SCAN button to scan through tracks.
Please note that any changes or modifications to the device that
are not approved by the responsible party may void your authority
to operate the equipment.
[pdfjs-viewer url=”https://static-data1.manualsee.com/2/pdf/471/8770915/30340c6f09fe1966506137eac51ef0c5dbaa8f9cc46a79ff553cbc4753a22b4f.pdf” viewer_width=100% viewer_height=800px fullscreen=true download=true print=true]
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
Features:
· Loudspeaker PA System · Rugged, Durable & Reliable Sound · Wireless BT Streaming Ability · Wireless BT Music Streaming Ability · Speaker System: 2×15.0” woofer,2x 1.0” Tweeter · Compression Driver with PEI Diaphragm · 2-Way Full Range Audio Projection · Built-in Analogue Audio Amplifier · 1/4” Jack Microphone Input · 3.5mm Stereo Line Input, RCA(L/R) Out · Connect & Stream Audio from External Devices · USB Flash Drive & SD Memory Card Readers · Digital LCD Display · Rear Panel Rotary Dial & Button Control Center · Master Volume, Mic Volume, Line Volume, Treble, Bass Adjustable · Integrated Carry Handles · 35mm Speaker Stand Mount Compatible
Wireless BT Streaming:
· Instantly Stream Music from Your BT Devices · Works with All Your Favorite BT Devices
(iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
· Wireless BT Version: 5.3 · Wireless BT Range: 100’+ Feet · Wireless BT Network Name: ‘Pyle’
What’s in the Box:
· 15” Wireless BT Active PA Speaker · 15” Passive Passive PA Speaker · (2) Stand · Power Cable · Audio Cable 5M (Both sides are speakON) · Microphone · Remote Control
2 www.PyleUSA.com
Woofer:
· Size: 15” -inch · Material: Stamped Steel Basket · Impendence: 8 Ohm · Magnet: 40 oz. · Voice Coil: 50.8mm, 2” -inch · Sensitivity: 95dB · Frequency Response: 45Hz-3kHz
Tweeter:
· Size: 1.0” -inch · Material: PEI · Impendence: 8 Ohm · Sensitivity: 104dB · Voice Coil: Kapton · Frequency Response: 800Hz-20kHz
Technical Specs:
· Max Power Output: 500 Watt · RMS Power Output: 120 Watt · Amplifier Class: AB · Digital Audio File Compatibility: MP3, WMA · Maximum SD/USB Flash Memory Support: 32GB · Inputs/Outputs 3.5mm TRS/Stereo Input with RCA Input · T.H.D.:10% · Crossover Frequency: 3.3kHz · Power: AC110/220V 50/60HZ · Product Dimensions (L x W x H): 16.5” x 14.6” x 27.2” -inches
www.PyleUSA.com 3
Function Description 1. LCD screen 2. MP3 control
MODE: USB/SD/BT/FM convertor : Previous Song
Press and hold for fast rewind : Next Song
Press and hold for fast forward : Repeat one / Repeat all / Random : Play / Pause/SCAN
SCAN: Press and hold to auto search under FM radio FOL: When playing USB/SD songs, Press and hold to enter folder mode 3. SD card input 4. USB input 5. Master Volume control 6. Treble control for high frequencies 7. Bass control for low frequencies 8. MIC input level control 9. Line input level control 10. 6.35 mm microphone input 11. (R+L) Iine outputs 12. 3.5 mm line input 13. (R+ L) line inputs 14. Clip LED indicator 15. Power LED indicator 16. Speaker out 8 Ohm 17. Fused IEC mains inlet 18. 110V/220V switch 19. Main power switch 20. IR: Remote control receiver 21. LED Light switch
4 www.PyleUSA.com
Function Description
www.PyleUSA.com 5
FCC warning:
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
6 www.PyleUSA.com
www.PyleUSA.com 7
