AIGOSTAR 10JNL LED Light Strip
Assembly Instructions
Important Notes:
- Always unplug the rope light before installing, cutting, or modifying in any way.
- Unroll strip light before attaching to a power source.
- Cut only at designated marks.
- The end cap must be attached before attaching to a power source.
- Cutting or damaging outer plastic tubing can present an electrical/fire hazard.

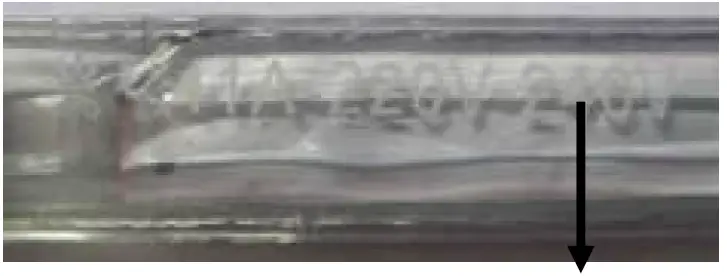

Cutting Strip Light
Cutting the strip to the length which you need from the cutting mark here ( or from the space between every 1 meter); sometimes the strips are not with the cutting mark, but it must have obvious spacing which is wider than other points.

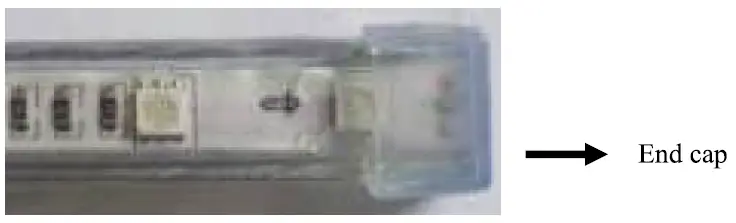

Secure the end cap

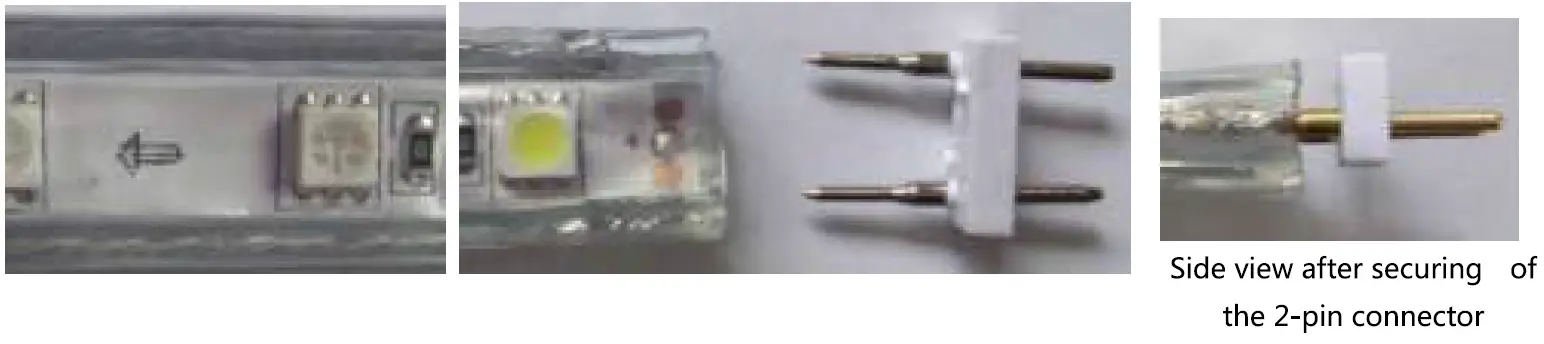

Attach the 2-pin Connector
Secure the 2-pin connector to the strip first. Pay attention that the 2 pins touch tightly to the 2 wires of the strip.

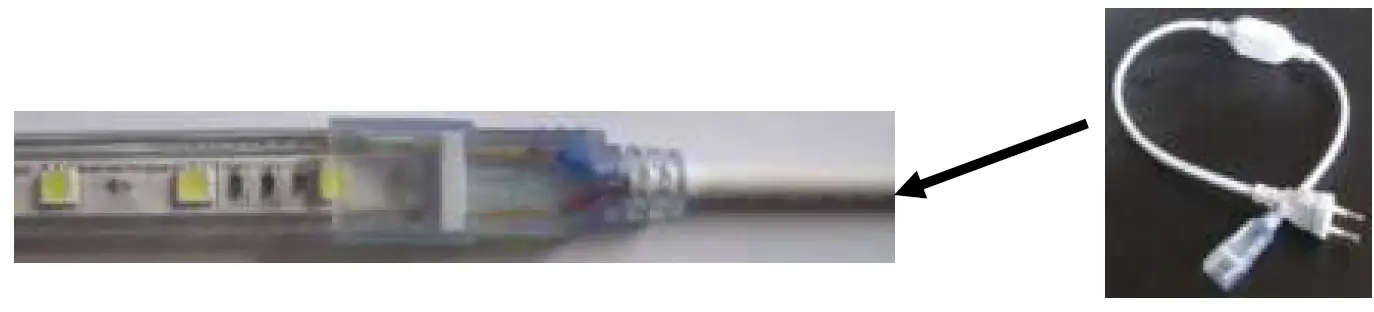

Connect the Power Cord
Attach the adaptor of the power cord to the 2-pin connector. If the light is still off, please try another end of the strip to attach the 2-pin connector or tum/reverse the adaptor of the power cord by 180 degree to try again.
Now it is ready to plug the power cord to enjoy the strip light
