BARN DOOR HARDWARE
THE TOWNHOUSE
Soft-Closing hardware kit for sliding single wood door.
304 Grade Stainless Steel
MODEL No. SDH-SW03-SS-SC-NR
INSTALLATION MANUAL
SDH-SW03-SS-SC-NR Soft Closing Townhouse Barn Door Hardware

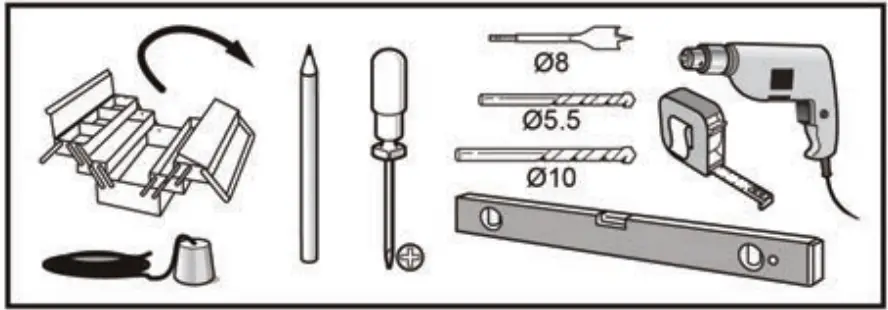

TOOLS REQUIRED
- Plumb Line
- Pencil
- Phillips Head Screwdriver
- 8mm Routing Drill Bit
- 5.5mm Drill Bit
- 10mm Drill Bit
- Level
- Tape Measure
- Power Drill

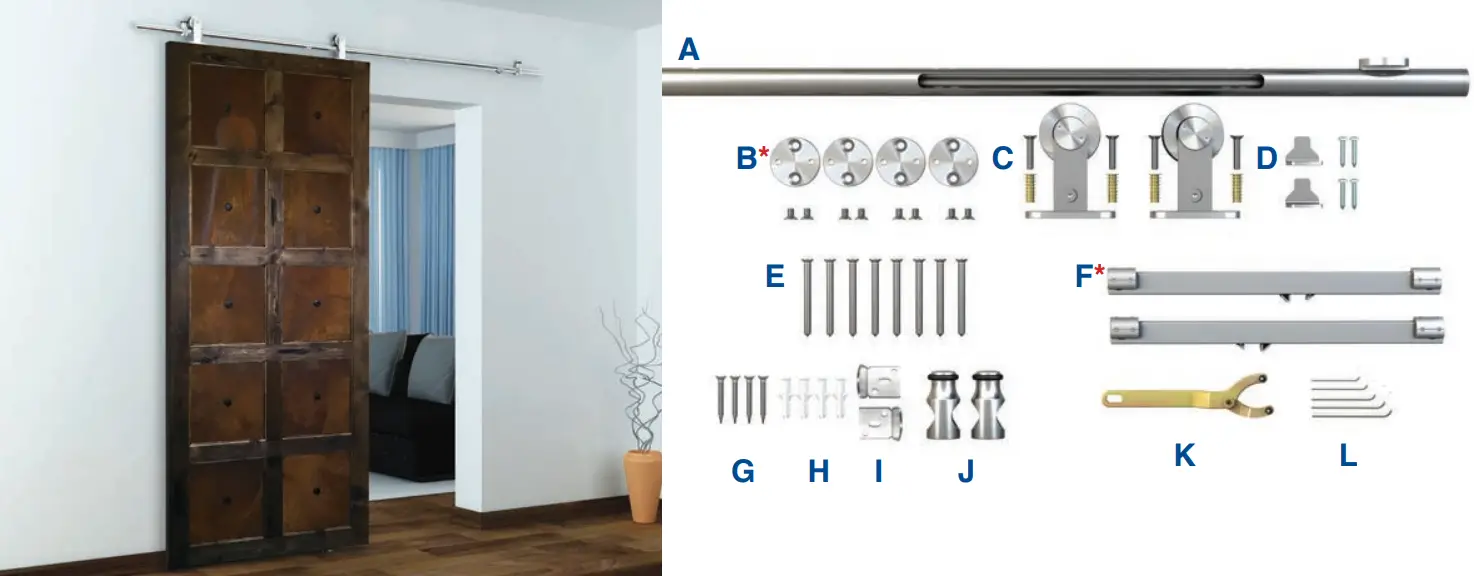

INCLUDED IN KIT
| A | 78-3/4″ Rail | x1 |
| B | Wall Bracket* | x4 |
| C | Door Roller Hardware | x2 |
| D | Soft Close Trigger Hardware | x2 |
| E | M6x70 Bolt | x8 |
| F | Soft Close Mechanism* | x2 |
| G | ST5.5×32 Screw | x4 |
| H | Floor Anchor | x4 |
| I | Non-Routed Floor Guide | x2 |
| J | Door Stops | x2 |
| K | Adjustable Installation Wrench | x1 |
| L | Allen Keys | x1 |
* Soft Closing Mechanisms and wall brackets are pre-attached to rail.
SOFT-CLOSING TOWNHOUSE
NOTES

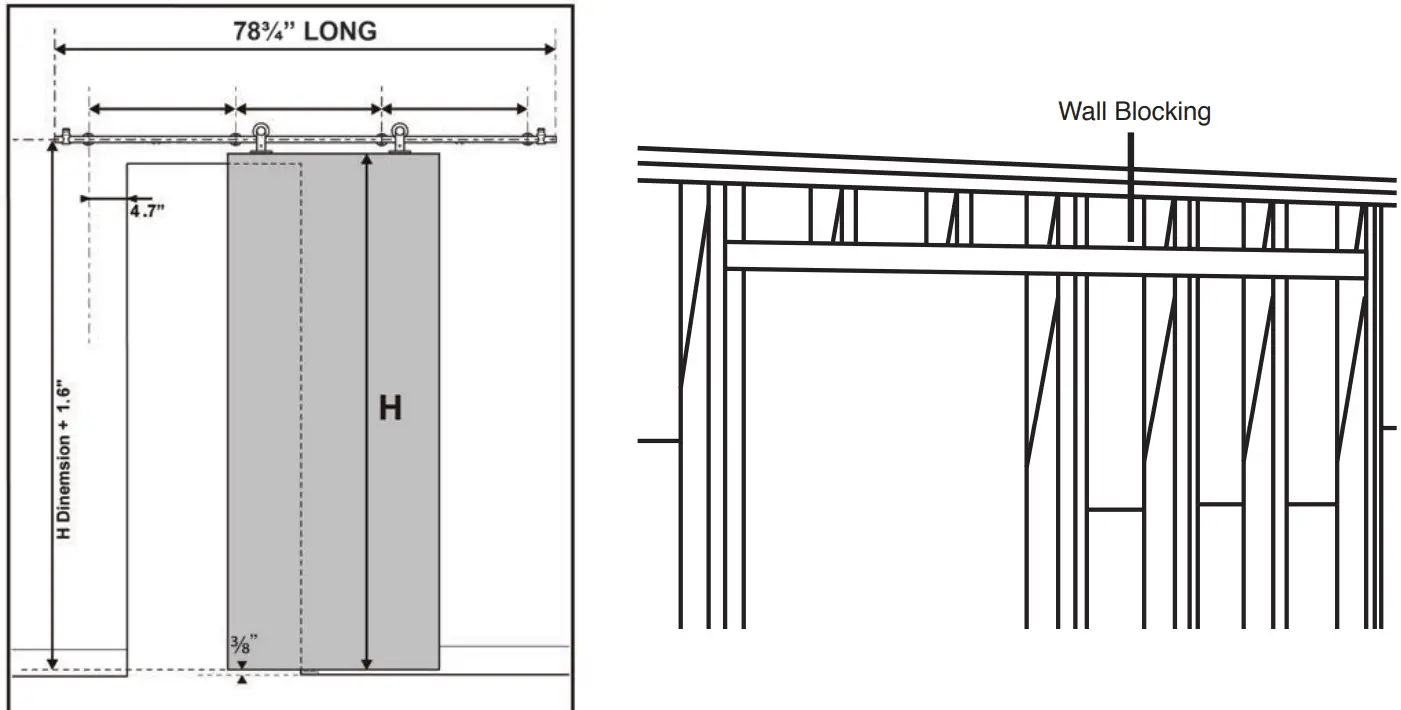

- To obtain maximum weight capacity, all fasteners must be mounted into solid wood studs or wall blocking or mounted to a header board.

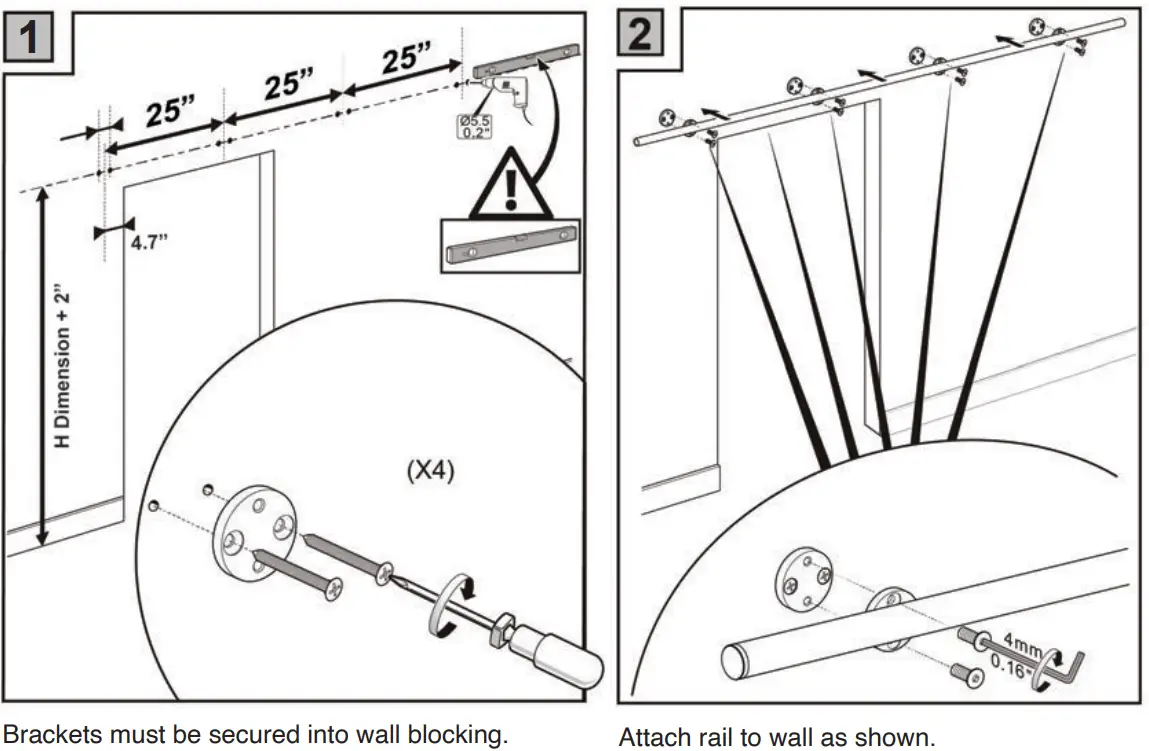

- Find the centerline of the track. Using a level, mark a horizontal line twice the door width long. Mark the bracket screw locations into the wall blocking.
Attach the wall portion of the brackets as shown. Consult a structural engineer if you have questions about what type of wall blocking is required.

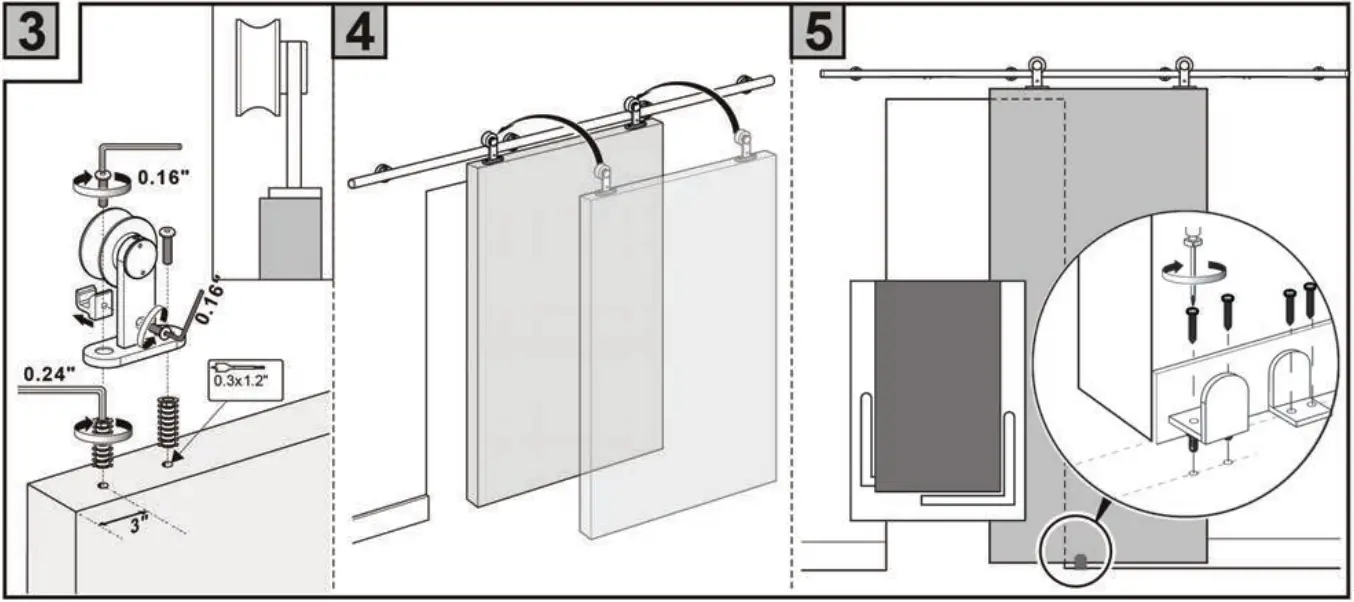

- Remove the anti-rise pin using the provide Allen key. Drill holes in the top of the door from the edge as pictured to accommodate the door rollers.
- Position the door to the rail
- Plumb the door and fastem the metal floor guides to the floor using the screws and anchors provided. The opening will depend on the thickness of your door. The guides are adjustable and will accept any thickness.

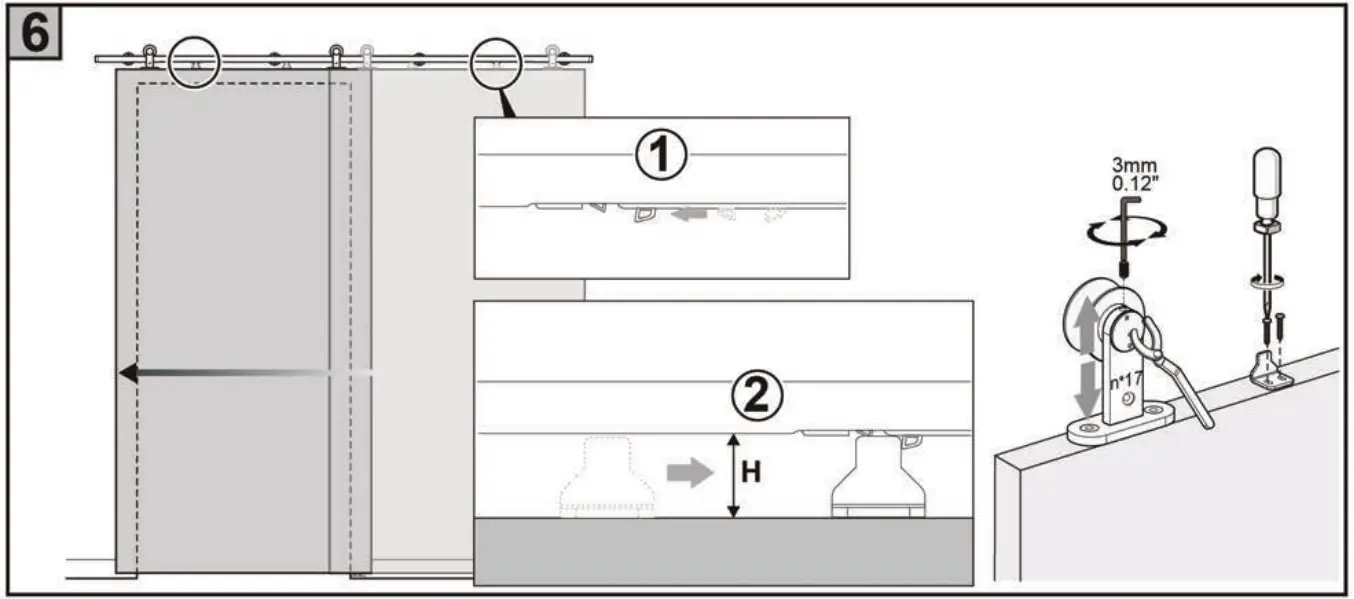

- Set the catches on the soft-closing mechanism to the open position. To determine the positioning of the soft-close triggers, it is recommended that the doors be moved to the fully open position. Determine where the soft-close trigger would engage the soft-close mechanism and mark your drill holes on the top of the door. Move the door to the fully closed position and repeat to determine the placement of the second soft-close trigger.
It may be necessary to adjust the height of the door roller hardware in order to accommodate the soft-close trigger.
Make any adjustments with the provided adjustable installation wrench then mount the soft-close triggers to the door.

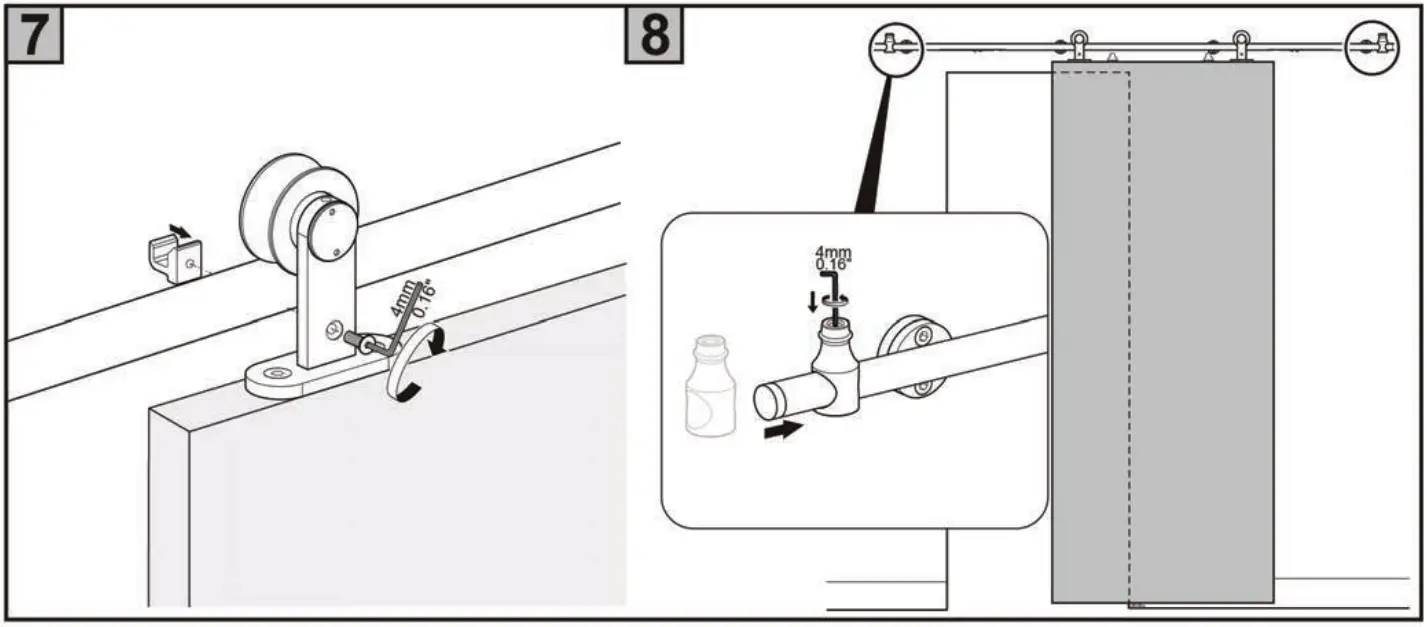

- Reattach the anti-rise pin to the door rollers
- Adjust the door stops accordingly. Tighten the set screw with sufficient force to drive the set screw into the bar after making the final adjustment.
Architectural Products by Outwater assumes no liability for improper installation.
