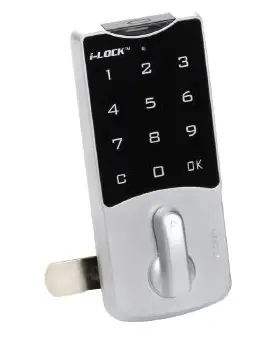

ILLINOIS E902 Electronic Cam Lock
INTRODUCTION

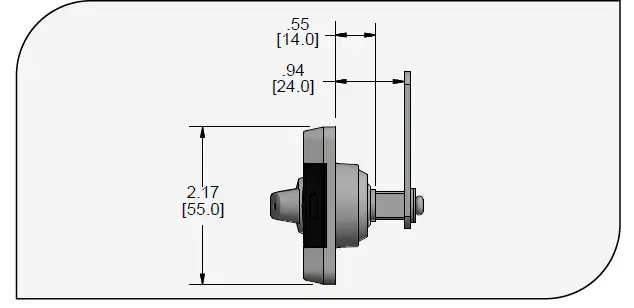

| Horizontal | ||
| Part Number | Use | Color |
| E902RSS | Standard | Silver |
| E902R1S | One-Time | Silver |
- 10-button electronic lock
- Simple touch screen entry
- 1 to 15-digit user-defined code
- Clutch Knob
- Two Versions
Standard use
Enter a user code and it remains until reset
One time use
- Enter code to lock and unlock only once
- Button cell battery with up to one year life (CR2032)
- Optional battery pack
- Audible alarm when incorrect code is entered 4 times
- Low power alarm – Audible signal sounds when 300 cycles remain
Material and Finish
- Housing: Zinc Diecast
- Silver Powder Coat
- Housing: Silver ABS plastic
- Zinc diecast

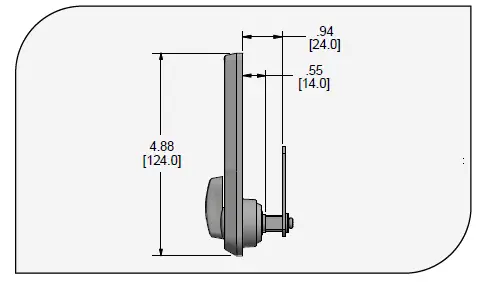

| Vertical | ||
| Part Number | Use | Color |
| E902VSS | Standard | Silver |
| E902V1S | One-Time | Silver |

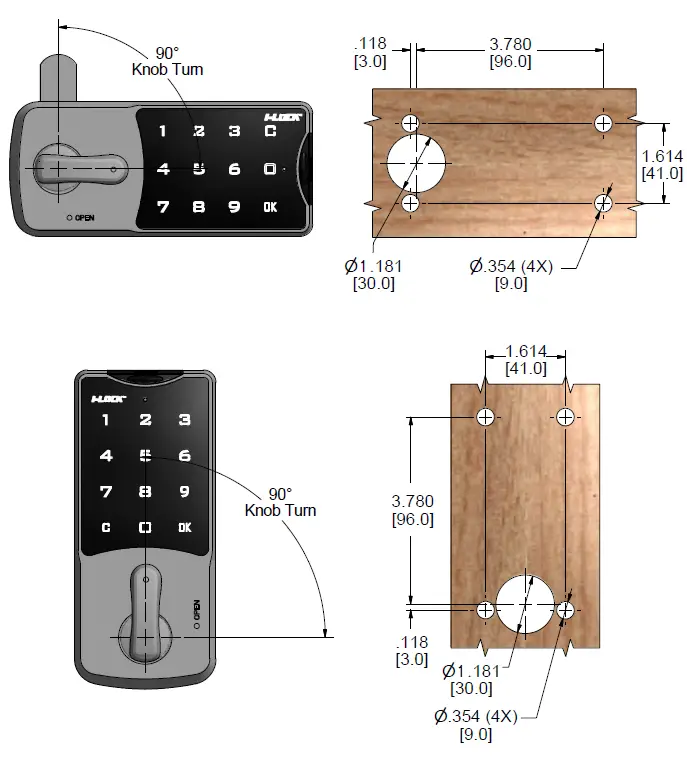

Lock Models, Rotations & Application Sizing
Cam Types

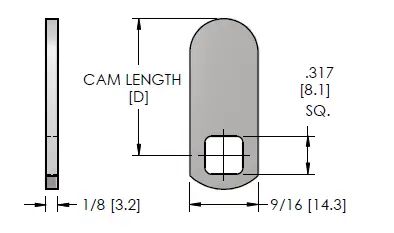

| Straight Cams | ||
| Part Number | Cam Length [D-Dim] | |
| Inches | Millimeters | |
| 142F6280002G | 5/8 | 15.9 |
| 026F1780002G | 7/8 | 22.2 |
| 142F6380002G | 1-1/8 | 28.6 |
| 168F4380002G | 1-1/4 | 31.7 |
| 234F7280002G | 1-17/32 | 38.9 |
| 119F8780002G | 1-21/32 | 42.1 |
.

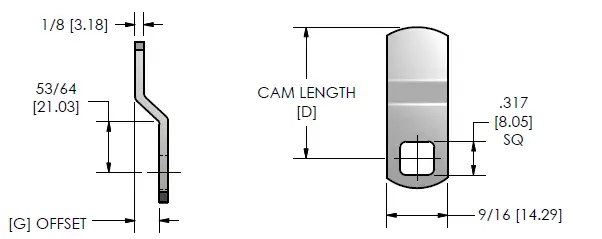

| Offset Cams | ||||
| Part Number | Cam Length [D-Dim] | Offset Length [G-Dim] | ||
| Inches | Millimeters | Inches | Millimeters | |
| 026F1880002G | 7/8 | 22.2 | 1/8 | 3.2 |
| 026F2080002G | 7/8 | 22.2 | 1/4 | 6.4 |
| 026F1980002G | 1-1/4 | 31.8 | 1/8 | 3.2 |
| 026F1780002G | 1-1/4 | 31.8 | 1/4 | 6.4 |
| 234F7180002G | 1-7/16 | 36.5 | 1/4 | 6.4 |

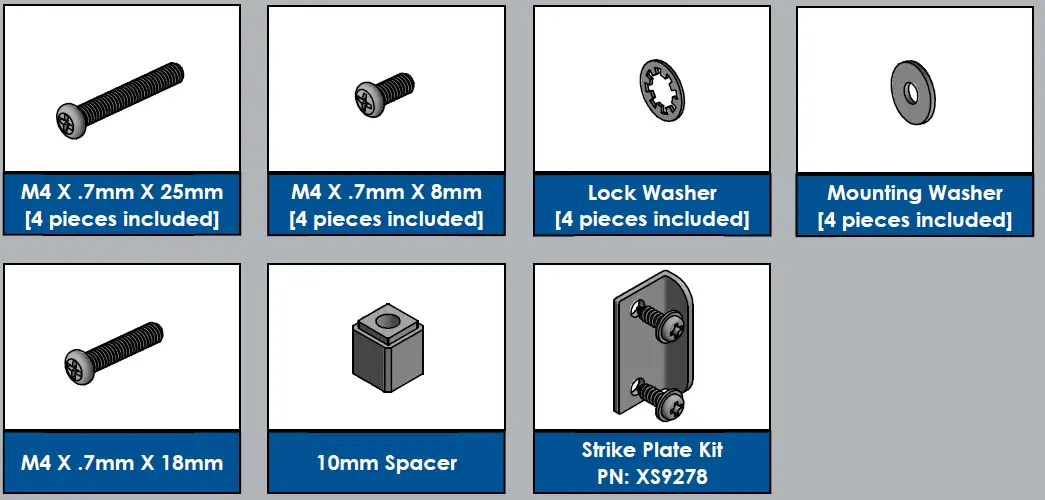

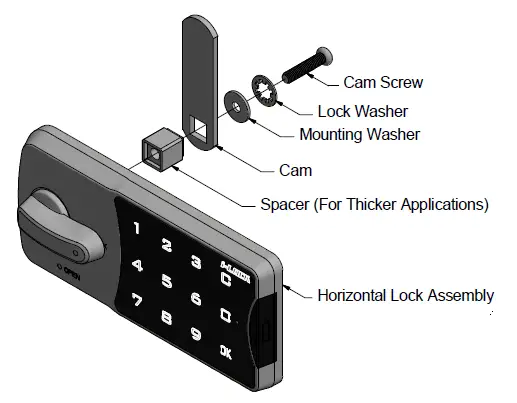

Accessories/Replacement Parts
In-Stock Cam Locks
All In-Stock Cam Locks Supplied with the following Hardware
| Part Number | Use | Color |
| E902VSS | Standard | Silver |
| E902V1S | One-Time | Silver |
| E902RSS | Standard | Silver |
| E902R1S | One-Time | Silver |

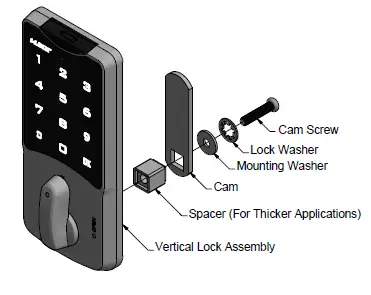

- Lock Mounting Nut
- Cam Mounting Screw
- 1-1/4’’ straight cam
- Long Mounting Screw
- Short Mounting Screw
- Strike Plate Kit
CONTACTS
- www.illinoislock.com
- [email protected]
- TEL: 847-537-1800
