Electronic Lock
User Manual – SL35E
Special Attention:
- This lock has a mechanical key override from the outside. Please ensure keys are kept in a safe place in case of complete battery failure. This key can be used to access the door from the outside.
- Please replace the battery when low battery alarm activates.
- Please read this instruction manual fully before installing.
Introduction

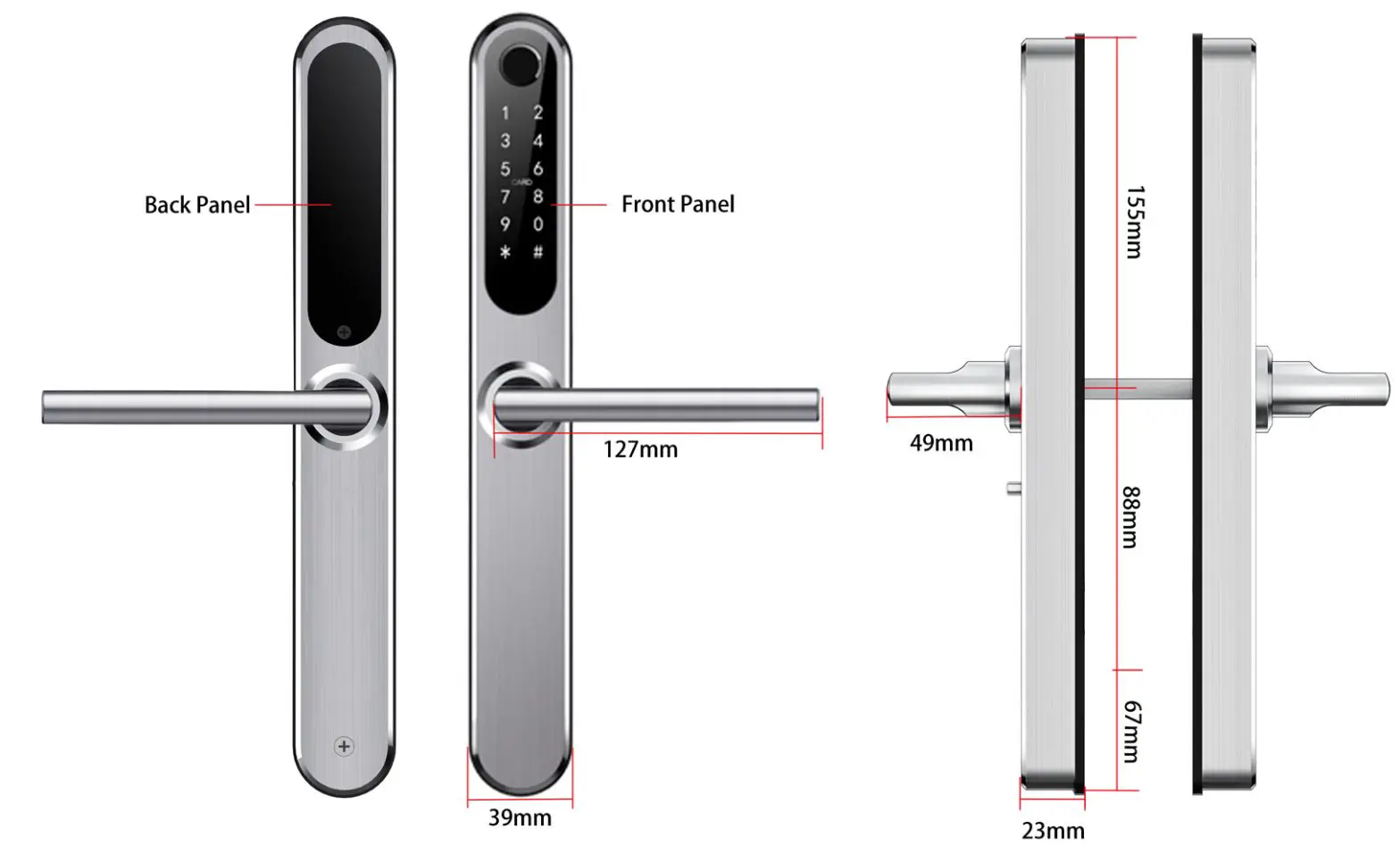

Lock Structure
Packing List
| NO | NAME | OTY |
| 1 | Outside Lever | 1 |
| 2 | Inside Lever | 1 |
| 3 | Mortice 5135 | 1 |
| 4 | Card | 3 |
| 5 | Mechanical Key | 2 |
| 6 | Waterproof Rubber Seal | 2 |
| 7 | Split Pin | 1 |
| 8 | User Manual | 1 |
| 9 | Strike & Strike Box | 1+1 |
| NO | NAME | OTY |
| 10 | Screw Threaded Posts: 35’8mm | 2 |
| 11 | T Screws: 16x5mm | 2 |
| 12 | Mortice Screws:10’5mm (for aluminum doors) | 4 |
| 13 | Mortice Screws: 25’4mm (for wooden doors) | 1 |
| 14 | M5’30mm Screw for Door Thickness 30-65mm | 1 |
| 15 | M5’50mm Screw for Door Thickness 50-65mm | 1 |
| 16 | M570mm Screw for Door Thickness 50-65mm | 1 |
| 17 | Square Spindle for Door Thickness 35-55mm | 1 |
| 18 | Square Spindle for Door Thickness 45-65mm | 1 |
Specifications
| Suitable for models | SL35E | Doors Applicable | Aluminum Door Wooden Door |
| Materials | Handle: SS304 Panel: SS304 | Working Voltage | 35-65mm |
| Lock Weight | 3KG | Door Thickness | 35-65mm |
| Unlocking Way | Bluetooth Fingerprint(option) Password Card Mechanical key Gateway(option) | Data Capacity | Fingerprint: 200 Password: 150 Card: 150 |
| Color | Silver Black | Working Temperature | -10°C – 55°C |
| Low Wattage Alarm | Less than 4.8v | Working Humidity | 0-95% |
SYSTEM INITIALISATION

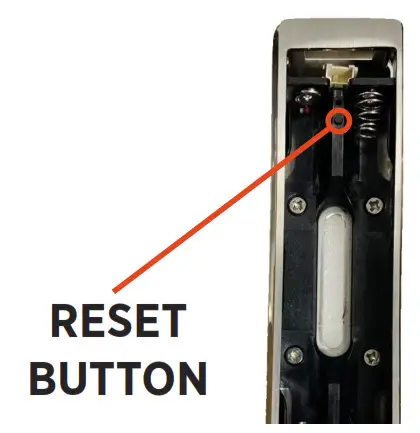

Open the cover plate of the front panel, long press and hold the “Reset” button on the back panel for 5s, press “000#”, and the
initialisation is complete
Installation
Turn the Handle
Notice: Adjust the handle according to the direction you open the door.

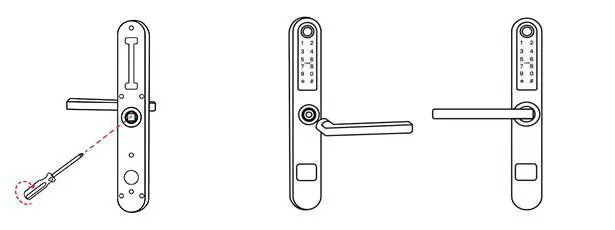

Outside handle:
- From the back face of the lock, loosen the inner hexagon screw of the handle in a clockwise direction.
- Remove the handle
- After adjusting the direction of the handle, insert it into the handle seat and re-lock the hexagon screw of the handle to complete the turning.

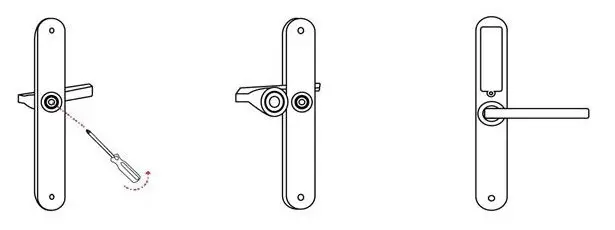

Inside handle:
- Turn the handle on the back panel, Loosen the inner hexagon screw of the handle counterclockwise
- Remove the handle
- After adjusting the direction of the handle, insert it into the handle seat and re-lock the hexagon screw of the handle to complete the turning.
Installation Diagram
Step 1: Install Mortice
Using drilling template provides

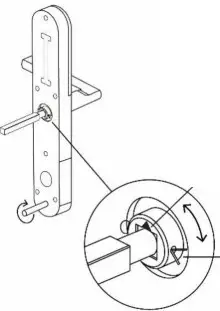

Step 2: Install Spindle
IMPORTANT:
If the handle points to the left,
Turn the triangle point to the left.
If the handle points to the right,
Turn the triangle point to the right.
Insert the split pin into the hole and bend its front end to fix to the square shaft.
Step 3: Install Sliding Screw Casing
Adjust upper through-bolt fixing from 55-100mm from the spindle by sliding the screw casing far from the square shaft. Depending on the location of the hole drilling or the old door hole.
Slot T-Screw in the back face of the lock. When incorrect position, tighten depending on hole position indoor.
Step 4: Connect Front and Back Panel Wires

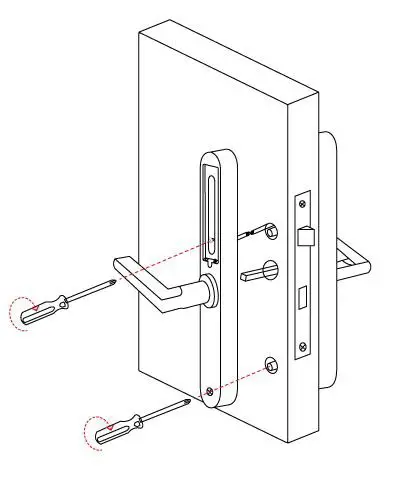

Step 5: Install Back Panel

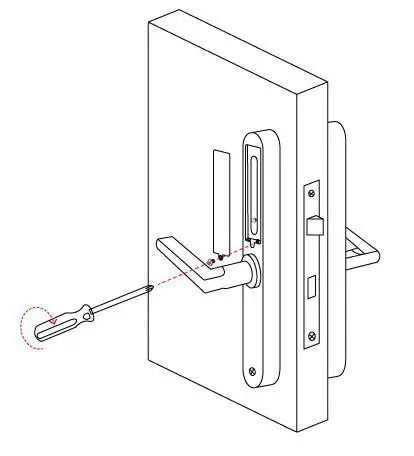

Step 6: Install Batteries
Operation
Registration
http://a.app.qq.com/o/simple.jsp?pkgname=com.tongtongsuo.app&fromcase=40003
The software (iOS version) can be downloaded from the app store, and the Android version can be downloaded from the application store of Google play, Yingyongbao, Baidu, Ali, 360, Huawei, and Xiaomi.
Connect lock to Device
- Please scan the QR code to download the app
- You can also search for TTLock in the APP store (Google Play) to download
- Register a new account (phone number or email) or login with an existing account.
- Touch the lock screen to light, click “+ Add Lock” 6) The lock nearby will appear on the phone screen, Click “+”
- Re-name the lock
- The lock was added successfully

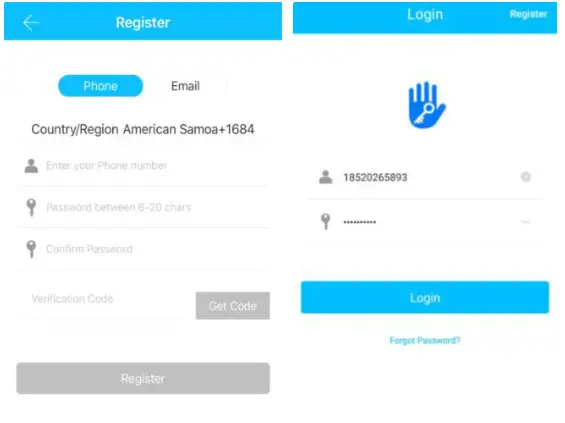

TTlock users can register their account by mobile phone and Email which currently support 200 countries and regions on the world. The verification code will be sent to the user’s mobile phone or email, and the registration will be successful after the verification.

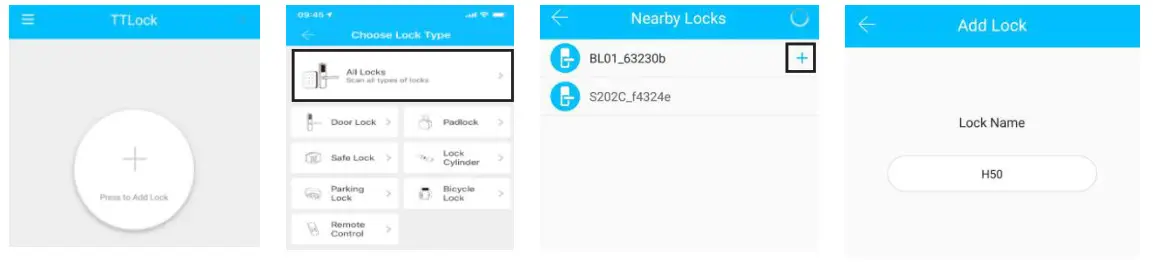

Add Locks
TTLock supports multiple types of lock devices. The lock needs to be added by the app after entering the add mode. Generally, a lock that has not been added, as long as the lock keyboard is touched, it will enter the add mode. The default password is 123456 of not added by the phone
User Management
- Bluetooth Management
Make sure there is no problem with Bluetooth communication. After connecting the phone to the door lock as above, Click “
“to unlock. (the phone is within 5meters from the door lock) - Setting Passcode
Passcodes are also a way to unlock. After entering the passcode on the locked keyboard, press the unlock button in the lower right corner to unlock. Passcodes are divided into permanent, time-limited, single, clear, cycle, and custom.(You can share the Passcode to another user via WeChat, SMS, Email, Messenger, WhatsApp)

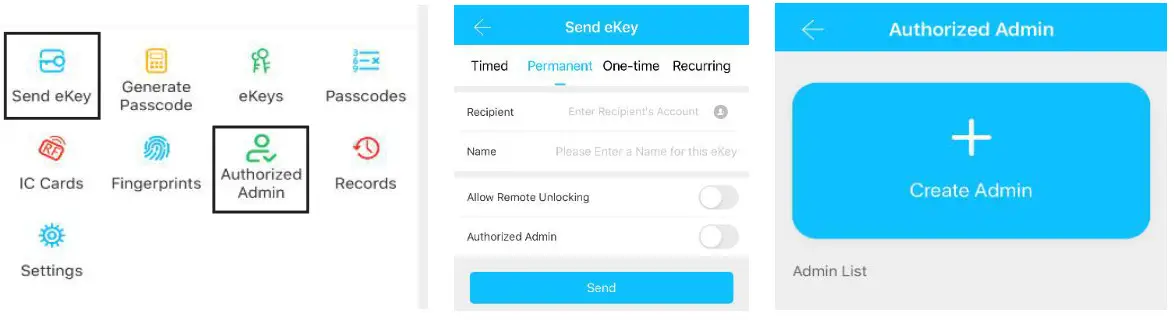

- Send E-Key
Click on the “
“ as shown in the figure, you can send the eKey to other users of TTlock to authorize the unlock(the receiver must download the APP and set up an account, Select e-key format (Timed, permanent, One-time, Recurring). Enter recipient’s account of TTlock set the name and effective time of the key, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure “Send” The recipient’s account has Bluetooth unlock permission

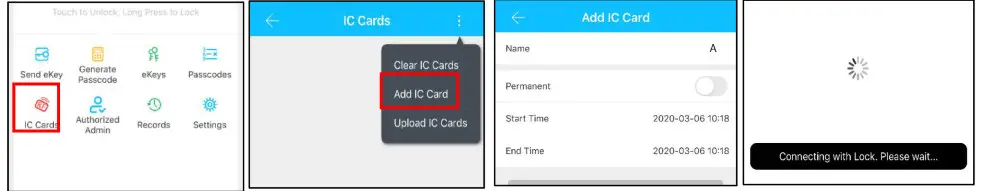

- Add Card
Supports opening doors through various IC cards. Before an IC card is used to open the door, it needs to be added first. The adding process needs to be performed by the app besides the lock. The validity period of the IC can be set, it can be permanent, or it can be limited in time.

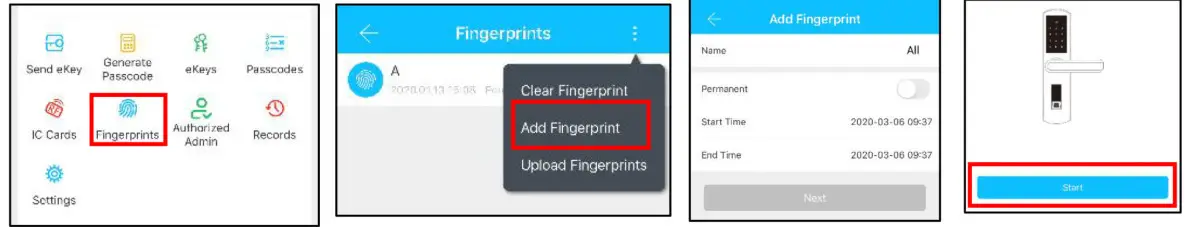

- Add fingerprint
The function that a fingerprint can be used to open a door is that it needs to be added first. The adding process needs to be performed by the APP beside the lock. The fingerprint expiration date can be set, it can be permanent, or it can be limited. After setting, you can modify its validity period.
- e-Key management
Click “eKeys“ The manager can delete ekey, reset key, send and adjust the key, meanwhile he can search the lock record. - Passcode Management
Click “ Passcodes“. All generated passwords can be viewed and managed in the password management module. This includes a password change, password deletion, password reset, and password unlock the record. - Unlock Records

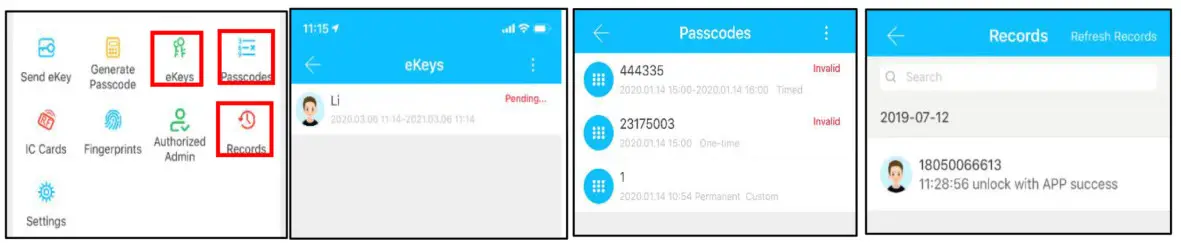

Click “Records“ you can query your unlock record as shown in the figure.
“to unlock. (the phone is within 5meters from the door lock)
“ as shown in the figure, you can send the eKey to other users of TTlock to authorize the unlock(the receiver must download the APP and set up an account, Select e-key format (Timed, permanent, One-time, Recurring). Enter recipient’s account of TTlock set the name and effective time of the key, Can choose to allow remote unlocking or disallowing, authorized administrator or not authorized, as shown in figure “Send” The recipient’s account has Bluetooth unlock permission
Gateway Management (optional)
The TT lock is directly connected via Bluetooth, so is not able to be hacked. The gateway is a bridge between smart locks and home WIFI networks. Through the gateway, the user can remotely view and calibrate the lock clock, read the unlock record. Meanwhile, it can remotely delete and modify the password.

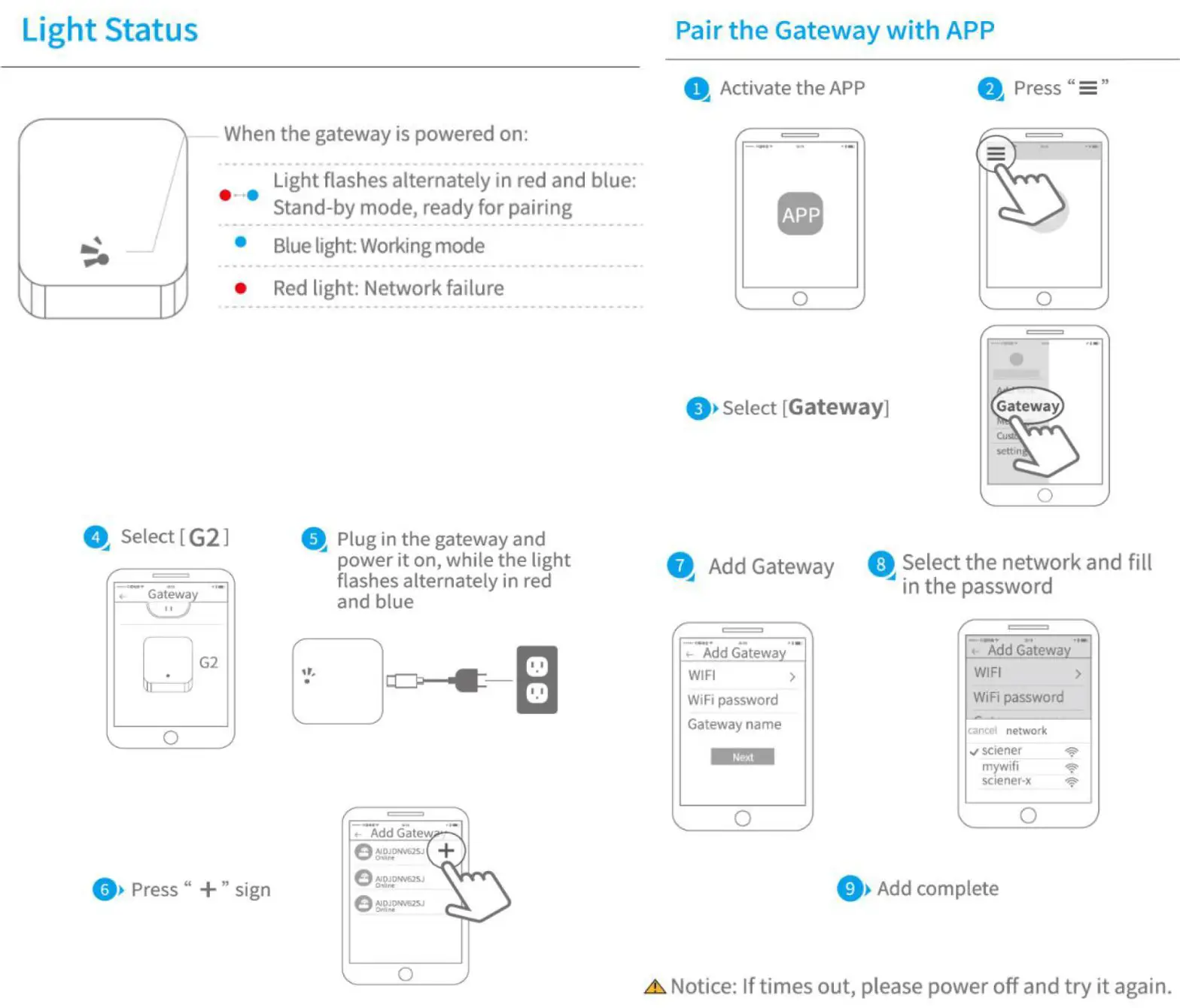

- Add Gateway
- Manual
After a short period of time, you can see which locks are in their coverage in the app. Once the lock is bound to the gateway, the lock can be managed through the gateway.
FAQ
| 1) How to read operation records? | In the Records of the main interface.. |
| 2) Why can’t I unlock it after opening the passage mode | You need to perform an unlock verification in any method. than the passage mode will take effect. |
| 3) What is the purpose of Auto-Lock | You can set how long to lock after unlocking |
| 4) After installation, touch sensing keyboard, screen no respond | a)In this case. first check that the positive and negative electrodes of the battery have been installed upside down. whether the battery has enough power b)Remove the back panel and see if it’s connected. c)To eliminate the above situation. you need to remove the lock .check whether the wires of the lock body are squeezed. and the re-wire. |
| 5) Unable to register fingerprint | Check fingers for dirt or wear. check the fingerprint head on the lock for dirt and oil stains. etc. Check to see if the fingerprint is working properly (Press to see if there is any responses. |
| 6) What is the reason why the smart lock consumes fast power? | a)Large standby power consumption b)Short circuit |
| 7) There is no response to pressing the handle on outside the door, and there is unlock normally on inside the door, but the verification is normal, and the motor is normal. | It may be the triangle direction on the clutch. please check fixing was positioned correctly as per fitting instructions. |
| 8) How many times will the passcode be locked? How long is it locked? | Enter the wrong password more than 5 times in a row. the keyboard is locked for 5 mins. Other ways to can open the door |
PRODUCT WARRANTY
Customer Name:………..
Customer Phone:…………..
Purchase Date:………….
Store Name:……………
Receipt #:…………….
Product Name:…………..
Product Model:……….
Note:
- Please keep this card so that you can use it when you need warranty service.
- We provide you with a two-year warranty from the date of purchase.
