Liebherr Fully Integrated Under Bench Freezer User Guide

Liebherr Fully Integrated Under Bench Freezer User Guide

LIEBHERR logoINTEGRATED APPLIANCES
UIG 1313

LIEBHERR Fully Integrated Under Bench Freezer

LIEBHERRQr
http://www.andico.com.au/liebherr/liebherr-underbench-fridges-uig-1313

LIEBHERR Fully Integrated Under Bench Freezer 1313

LIEBHERR Fully Integrated Under Bench Freezer 13130LIEBHERR Fully Integrated Under UIG 1313

Whilst every effort is made to ensure all specifications and information in this flyer are correct at time of printing, Andi-Co Australia Pty. Ltd. reserve the right to make changes without notification. Where actual appliance measurements, specifications and ratings are crucial, we recommend that the actual appliance installation instructions that accompany each appliance be checked. Andi-Co Australia will not be liable for any loss.LIEBHERR Fully Integrated Under warrenty

ModelUIG 1313
TypeU13-F1
FinishOwn cabinetry
Energy consumption (kWh/yr)star rating169kWh I 3.5
Compressors1
Total capacity liters (L) – Gross I Net96 195
Freezer gross (L) I net (L)96 195
MagicEye control system I DisplayI LED
The childproof setting for display & temp.
SoftSystem hinge – assists closure
115° door opening
Temperature alarm
Malfunction warning signal

Freezer Features

Freezer defrostingManual

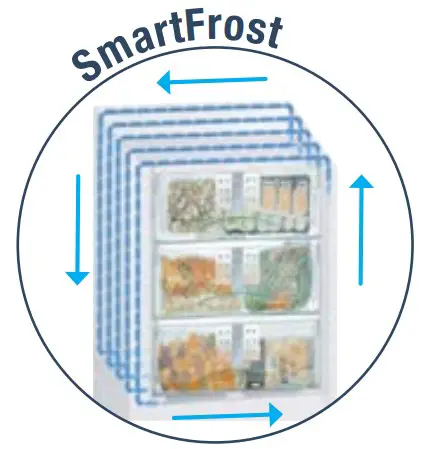

Transparent drawersSmartFrost
Freezer drawers3
SuperFrost
VarioSpace
24hr freezing capacity (kg)12
Cold storage accumulators2

Technical Information

 Default hingeRight
Voltage (V) I Rated Current (A)220-240 1.3
Made inGermany

KEY: UB = Underbench, FI = Fully Integrated.
Door hinging either right or left hand must be nominated for this model.

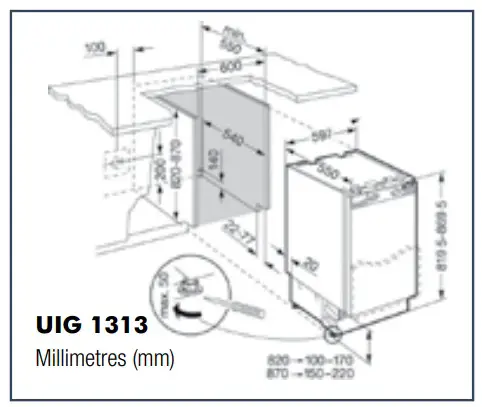

LIEBHERR Fully Integrated UIG 1313

HEAD OFFICE: 1 Stamford Road Oakleigh Vic 3166, T: 1800 685 899, E: [email protected], W: www.andico.com.au
LPF140218
