INSTRUCTION MANUAL

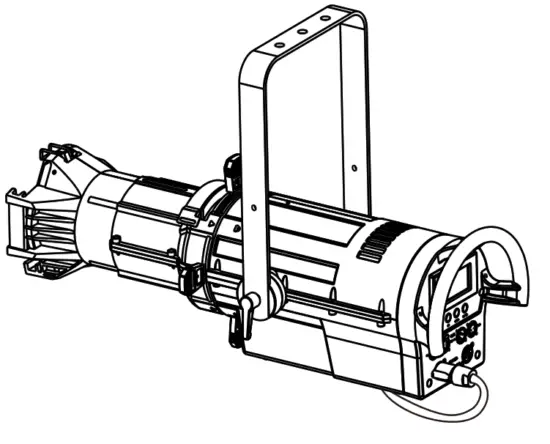

LED Profile
□6800-T34
□6800-D34
Please read this instruction manual carefully before use
FLY DRAGON LIGHTING EQUIPMENT CO., LTD
CHANNEL FUNCTION
| CHANNEL | DMX VALUE | % | FUNCTION |
| 1 | 0-255 | 0-100 | Dimmer |
| 2 | 0-255 | 0-100 | Dimmer fine |
| 3 | Strobe | ||
| 0-9 | 0-3.53 | NO function | |
| 10-49 | 3.92-19.22 | Slow closing,fast opening,slow —* fast | |
| 50-89 | 19.61-34.90 | Fast closing,slow opening,slow —> fast | |
| 90-119 | 35.29-46.67 | Slow closing,slow open,slow —> fast | |
| 120-179 | 47.06-70.20 | Random strobe,slow—>fast | |
| 180-249 | 70.59-97.65 | Synchronous strobe,slow—>fast | |
| 250-255 | 98.04-100 | NO function | |
