RP12
12-Channel DMX Relay Pack
Item ref: 154.113UK
User Manual
Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty
The 12CH DMX RELAY PACK can be controlled by DMX 512 console. Each output socket is controlled individually by one relay. It can be widely applied to entertainment halls, stages, social clubs, and indoor building decoration.
– LED digital display for DMX addressing and work mode setting
– universal DMX512 (1990) multiplexed digital control
– DMX and Stand-Alone operation modes
There are two modes of operation:
DMX: Either: 1, 2, 3, 6, or 12 channel.
Manual control mode.

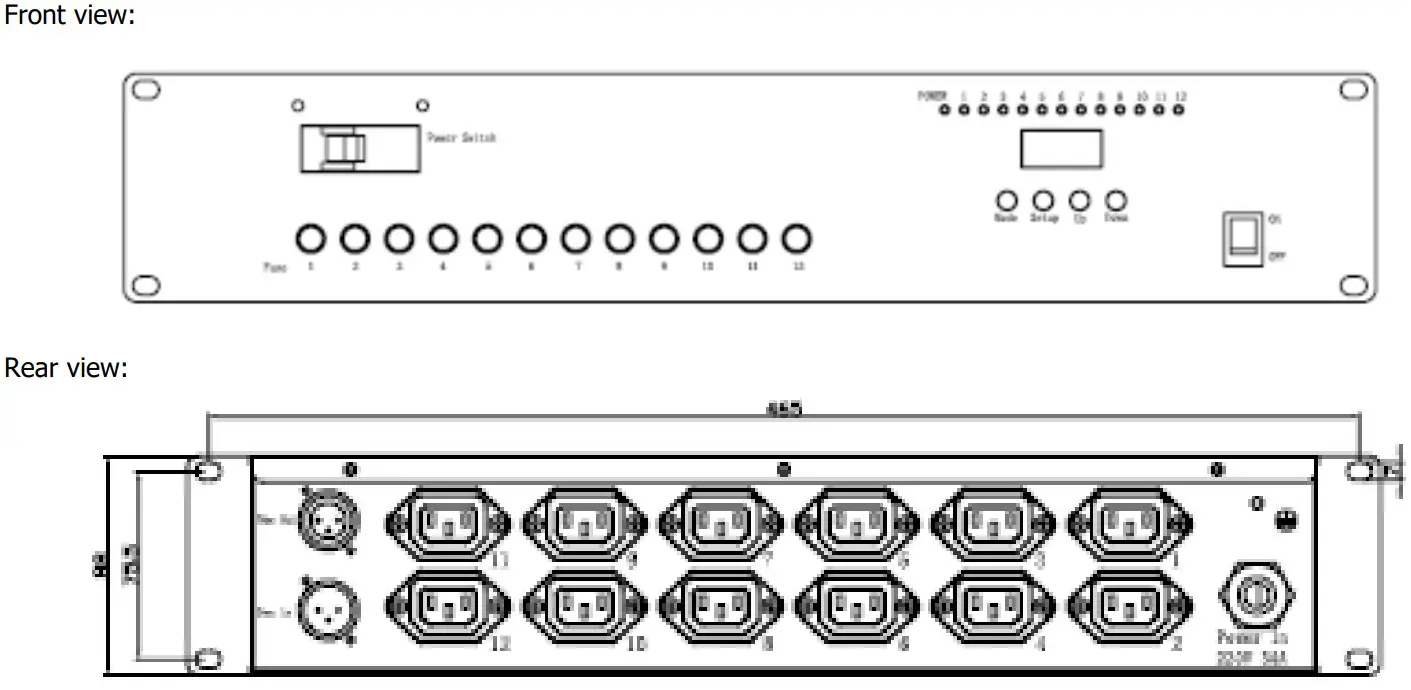

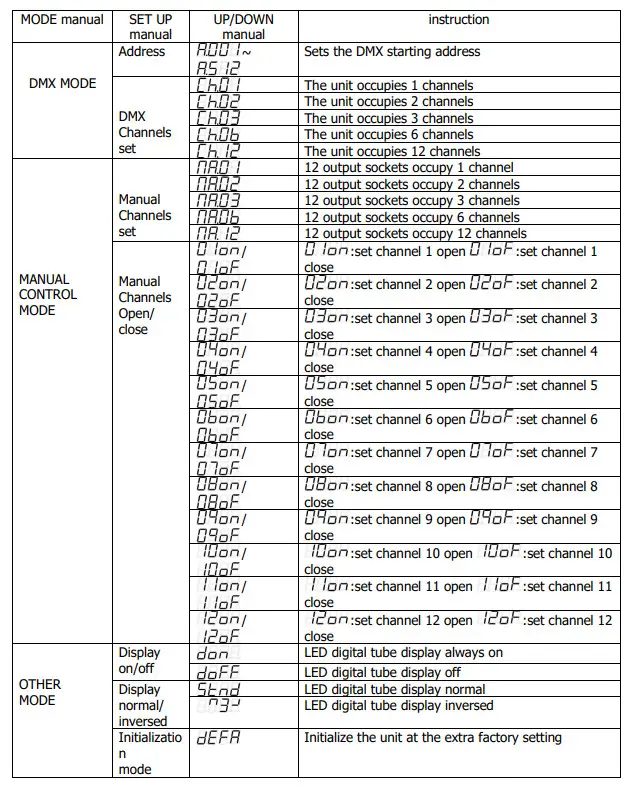

Each mode can be selected by first pressing the MODE button followed by the UP / DOWN buttons and SET to confirm. Each of the modes is displayed below:
DMX mode
You can control devices individually via the sliders on your DMX controller. Each of the values is listed below
CH01 :1 channel mode
CH No. | DMX value | Function |
| CH1 | 000~010 | CLOSE(No.1- 12 OUTPUT SOCKET) |
| 011~255 | OPEN(No.1-12 OUTPUT SOCKET) |
CH02:2 channels mode
CH No. | DMX value | Function |
| CH1 | 000~010 | CLOSE(No.1-6 OUTPUT SOCKET) |
| 011~255 | OPEN(No.1-6 OUTPUT SOCKET) | |
| CH2 | 000~010 | CLOSE(No.7-12 OUTPUT SOCKET) |
| 011~255 | OPEN(No.7-12 OUTPUT SOCKET) |
CH03:3 channels mode
| CH No. | DMX value | Function |
| CH1 | 000~010 | CLOSE(No.1-4 OUTPUT SOCKET) |
| 011~255 | OPEN(No.1-4 OUTPUT SOCKET) | |
| CH2 | 000~010 | CLOSE(No.5-8 OUTPUT SOCKET) |
| 011~255 | OPEN(No.5-8 OUTPUT SOCKET) | |
| CH3 | 000~010 | CLOSE(No.9-12 OUTPUT SOCKET) |
| 011~255 | OPEN(No.9-12 OUTPUT SOCKET) |
CH06:6 channels mode
CH No. | DMX value | Function |
| CH1 | 000~010 | CLOSE(No.1-2 OUTPUT SOCKET) |
| 011~255 | OPEN(No.1-2 OUTPUT SOCKET) | |
| CH2 | 000~010 | CLOSE(No.3-4 OUTPUT SOCKET) |
| 011~255 | OPEN(No.3-4 OUTPUT SOCKET) | |
| CH3 | 000~010 | CLOSE(No.5-6 OUTPUT SOCKET) |
| 011~255 | OPEN(No.5-6 OUTPUT SOCKET) | |
| CH4 | 000~010 | CLOSE(No.7-8 OUTPUT SOCKET) |
| 011~255 | OPEN(No.7-8 OUTPUT SOCKET) | |
| CH5 | 000~010 | CLOSE(No.9-10 OUTPUT SOCKET) |
| 011~255 | OPEN(No.9-10 OUTPUT SOCKET) | |
| CH6 | 000~010 | CLOSE(No.11-12 OUTPUT SOCKET) |
| 011~255 | OPEN(No.11-12 OUTPUT SOCKET) |
CH12:12 channels mode
| CH No. | DMX value | Function |
| CH1 | 000~010 | CLOSE(No.1 OUTPUT SOCKET) |
| 011~255 | OPEN(No.1 OUTPUT SOCKET) | |
| CH2 | 000~010 | CLOSE(No.2 OUTPUT SOCKET) |
| 011~255 | OPEN(No.2 OUTPUT SOCKET) | |
| CH3 | 000~010 | CLOSE(No.3 OUTPUT SOCKET) |
| 011~255 | OPEN(No.3 OUTPUT SOCKET) | |
| CH4 | 000~010 | CLOSE(No.4 OUTPUT SOCKET) |
| 011~255 | OPEN(No.4 OUTPUT SOCKET) | |
| CH5 | 000~010 | CLOSE(No.5 OUTPUT SOCKET) |
| 011~255 | OPEN(No.5 OUTPUT SOCKET) | |
| CH6 | 000~010 | CLOSE(No.6 OUTPUT SOCKET) |
| 011~255 | OPEN(No.6 OUTPUT SOCKET) | |
| CH7 | 000~010 | CLOSE(No.7 OUTPUT SOCKET) |
| 011~255 | OPEN(No.7 OUTPUT SOCKET) | |
| CH8 | 000~010 | CLOSE(No.8 OUTPUT SOCKET) |
| 011~255 | OPEN(No.8 OUTPUT SOCKET) | |
| CH9 | 000~010 | CLOSE(No.9 OUTPUT SOCKET) |
| 011~255 | OPEN(No.9 OUTPUT SOCKET) | |
| CH10 | 000~010 | CLOSE(No.10 OUTPUT SOCKET) |
| 011~255 | OPEN(No.10 OUTPUT SOCKET) | |
| CH11 | 000~010 | CLOSE(No.11 OUTPUT SOCKET) |
| 011~255 | OPEN(No.11 OUTPUT SOCKET) | |
| CH12 | 000~010 | CLOSE(No.12 OUTPUT SOCKET) |
| 011~255 | OPEN(No.12 OUTPUT SOCKET) |
Specifications
Power supply | 230Vac, 50Hz |
| Maximum current input | 30A |
| Maximum current per channel | 10A |
| IEC outputs | 12 |
| Dimensions | 440 x 205 x 88mm |
| Weight | 3.8kg |
This product is classed as Electrical or Electronic equipment and should not be disposed of with other household or commercial waste at
the end of its useful life. The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2021 AVSL Group Ltd, Unit 2 Bridgewater Park,
Taylor Road, Trafford Park, Manchester. M41 7JQ.
www.avsl.com
AVSL (Europe) Ltd, Unit 3D North Point House,
North Point Bus. Park, New Mallow Road, Cork, Ireland.
154.113UK User Manual
