qtx 154.101UK DMX-D4 4-Way DMX Booster/Distributor User Manual

Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty

Introduction

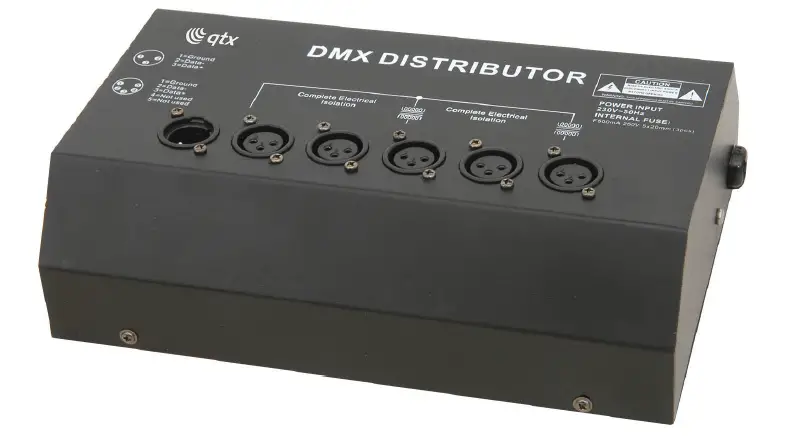

4 way DMX Booster/distributor with one input, loop through and four electrically opto-isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors, making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area or to isolating individual fixtures making it quick and easy to diagnose and fix faulty fixtures without the whole system failing.

• DMX Loop out or DMX terminated (supplied)
• 4 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
• Powered by mains to boost signal over a long distance.

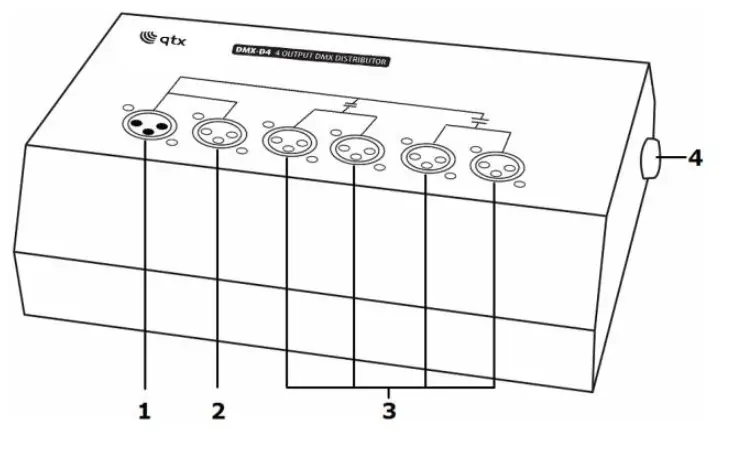

Layout

1. DMX Input
2. DMX Loop out
3. DMX Output
4. IEC Power input

WARNING: BEFORE USE

This item is for professional use only. Please take note of the following instructions before using this device.

• This unit must be earthed.
• Do not turn on the power until all connections are securely made.
• If you are not using the DMX LOOP out socket ensure you use the DMX XLR terminator supplied.
• Always disconnect from the mains before replacing the fuse
• There are no user-serviceable parts inside
