ROHM BM2PAB1Y-Z AC and DC Convertor Non-Isolated PWM Type Evaluation Board

AC/DC Converter

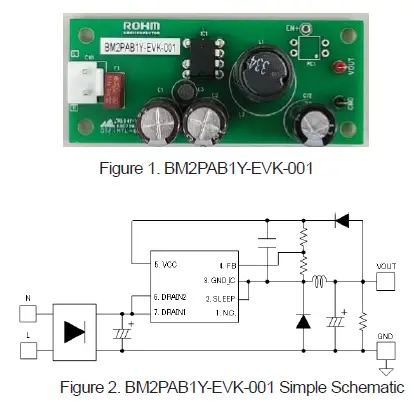

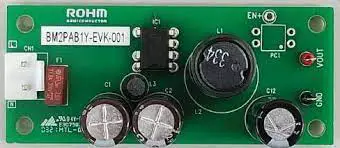

Non-Isolated Buck Convertor 12 V 7.2 W Output BM2PAB1Y-Z Evaluation Board

BM2PAB1Y-EVK-001

Feature

1. Adjustable Output Voltage with External Resistor

2. Low Switching Loss and Low EMI by frequency 25 kHz

3. Internal Start up Circuit 730 V(peak)

4. Internal Super Junction FET 730 V(peak) (Ron = 1.2 Ω)

5. Internal Current Sense Resistor (Detection Current 1.76 A)
6. Contributes to Low EMI by Internal Hopping Function

Specification

Table 2. Evaluation board specification
These are representative values and not a guarantee of the characteristics, unless stated otherwise use VIN = 230 Vac, IOUT = 0.6 A, Ta = 25 ° C.

(Note 1) Adjust the operating time so that surface temperature of no component exceeds 105 ° C (Note 2) Do not consider spike nois

Operation Procedure

1. Operation equipment
   (1) AC power supply 90 Vac to 264 Vac, 15 W or more
   (2) Electronic Load capacity 0.6 A
   (3) Multimeter

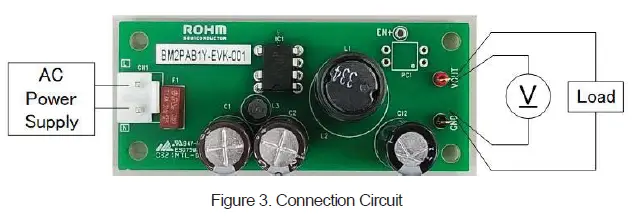

2. Connection Instruments
   (1) Turn off each power supply and connect the measuring instrument as shown below.
   (2) Turn on the power supply setting between 90 Vac to 264 Vac
   (3) Turn on the electrical load setting between 0 to 0.6 A.
   (4) Connect the multimeter directly to the output and check the voltage by sensing.

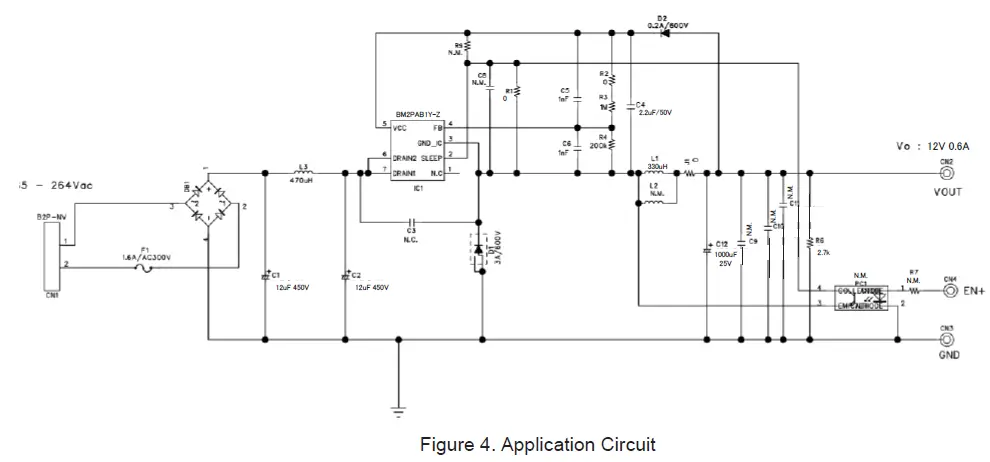

 Circuit

VIN = 90 to 264 Vac, VOUT = 12 V

 BOM List

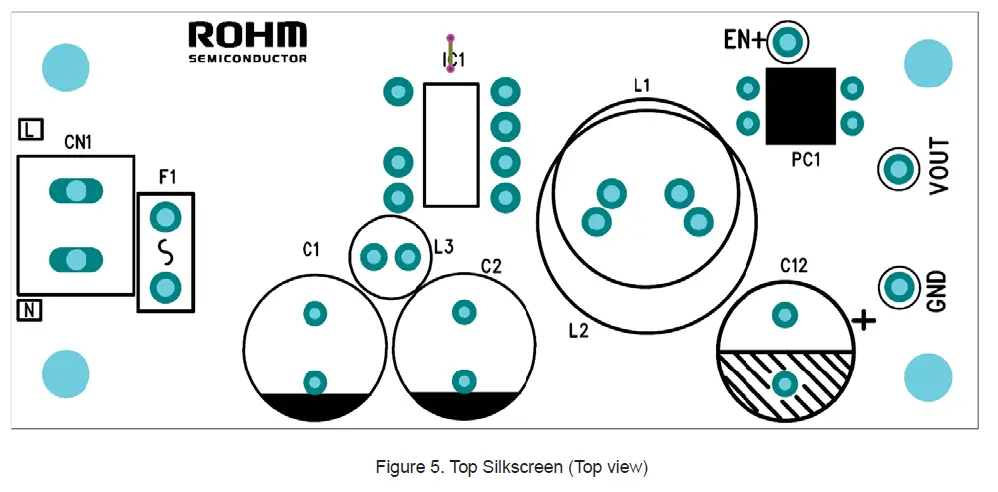

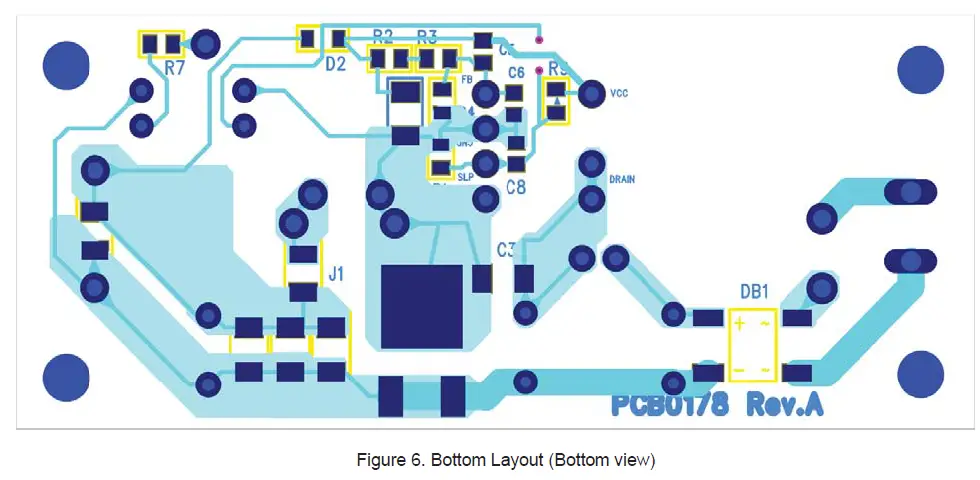

Layout

Size 70 mm x 30 mm

 BM2Pxx1Y Overview

Features

•  PWM Current Mode
•  Built-in Frequency Hopping Function
•  Burst Operation at Light Load
•  Built-in 730 V(peak) Starter Circuit
•  Built-in 730 V(peak) Super Junction MOSFET
•  VCC UVLO (Under Voltage Lockout)
•  VCC OVP (Over Voltage Protection)
•  Over Current Limiter Function per Cycle
•  Soft Start Function
•  Sleep Mode

Key Specifications

• Operating Power Supply Voltage Range
  VCC  11.10 V to 26.00 V
  DRAIN  730 V(peak) (Max)
• Operating Current (Normal): 650 μA (Typ)
• Operating Current (Burst): 350 μA (Typ)
•  Operating Current (Sleep): 65 μA (Typ)
•  Switching Frequency: 25 kHz / 65 kHz (Typ)
•  Operation Temperature: -40 °C to +105 °C
•  MOSFET ON Resistance: 1.2 Ω (Typ)

 Application

• Washing machine,
• Air conditioner,
• Other white goods

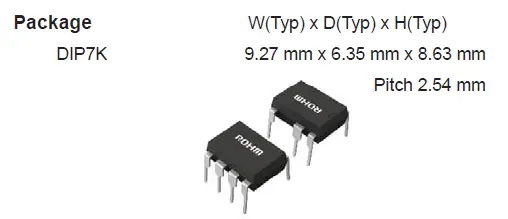

 Line Up

Table 3. BM2Pxx1Y-Z Pin Description

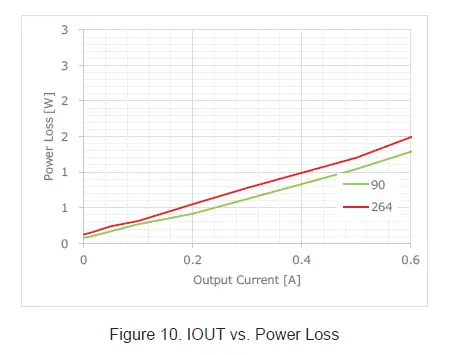

Measurement Data

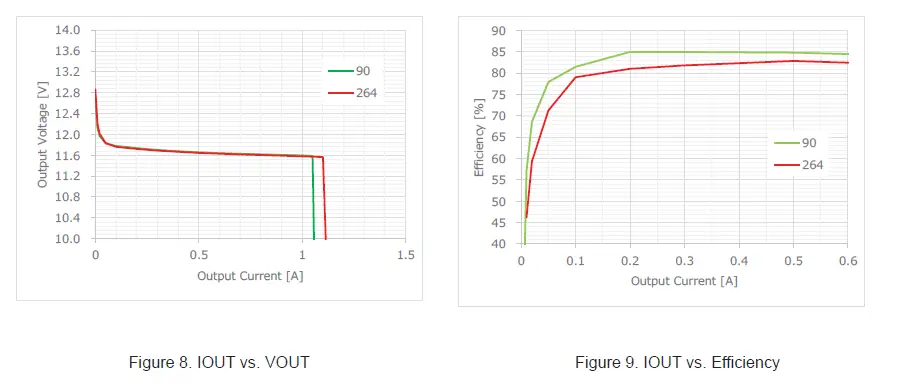

Constant Load Regulations

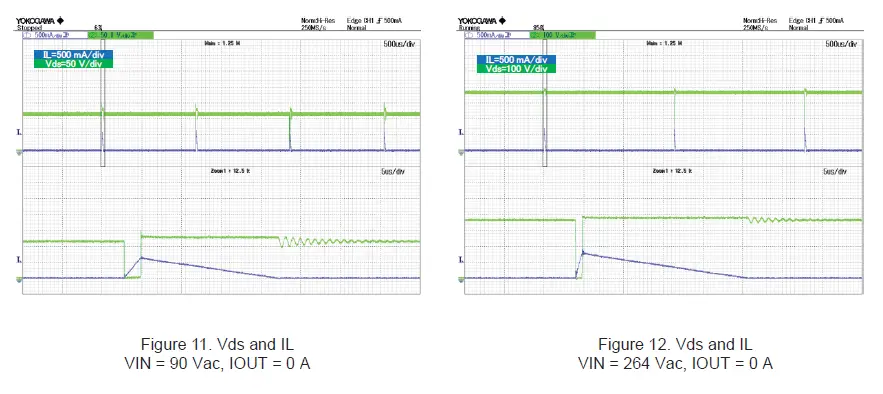

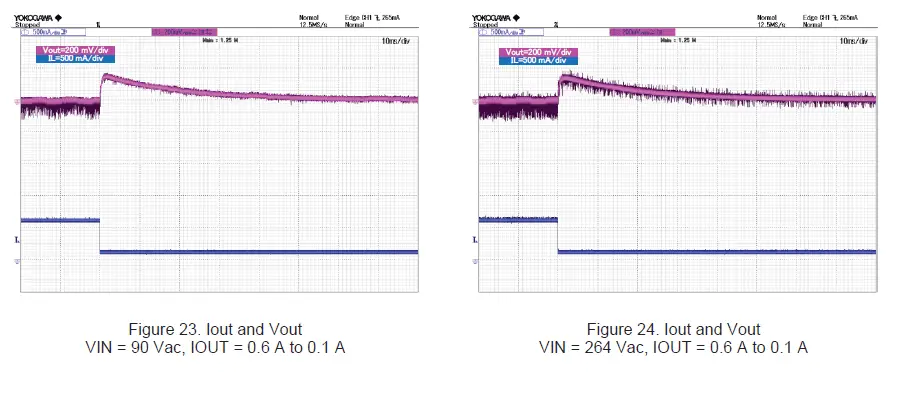

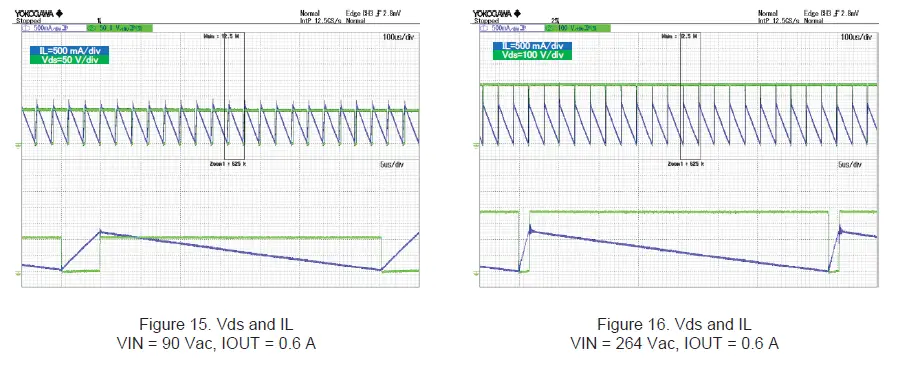

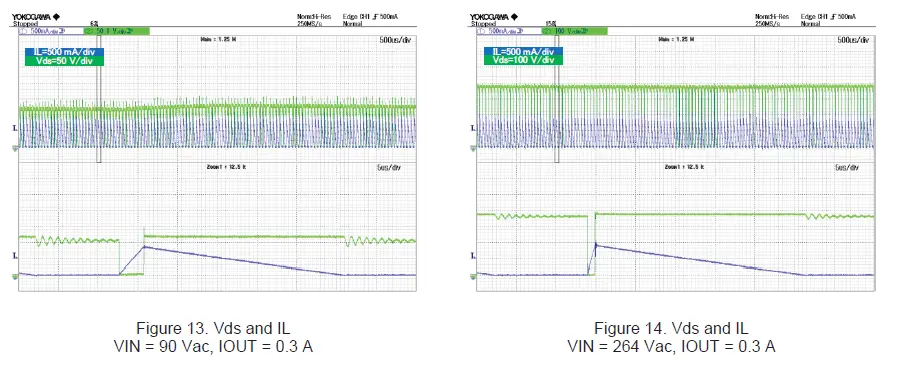

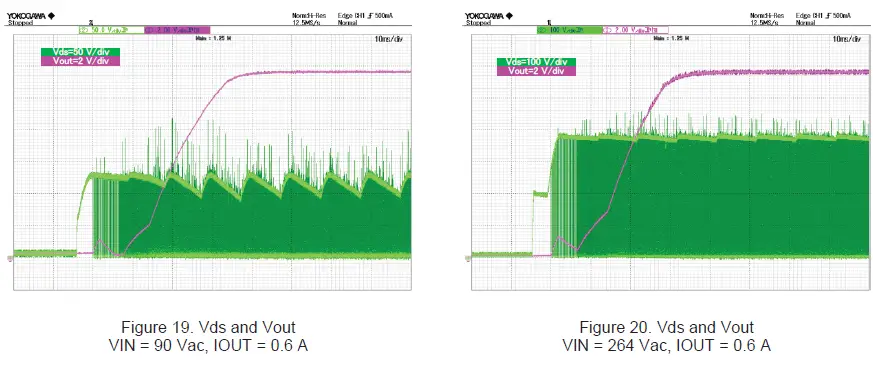

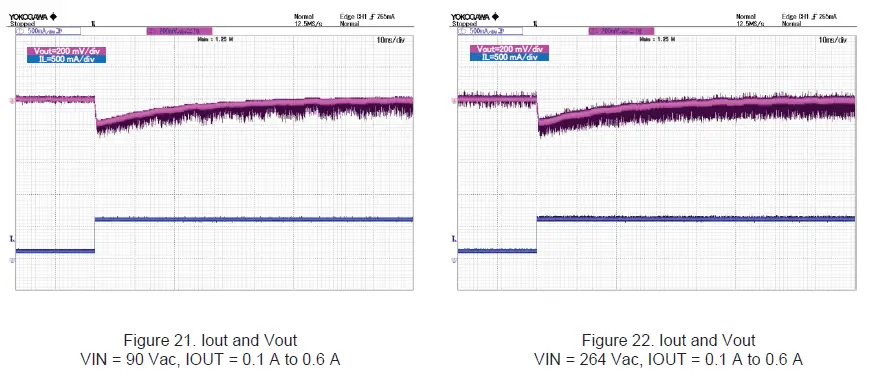

 Waveform  Waveform Start Up  Waveform Load Response

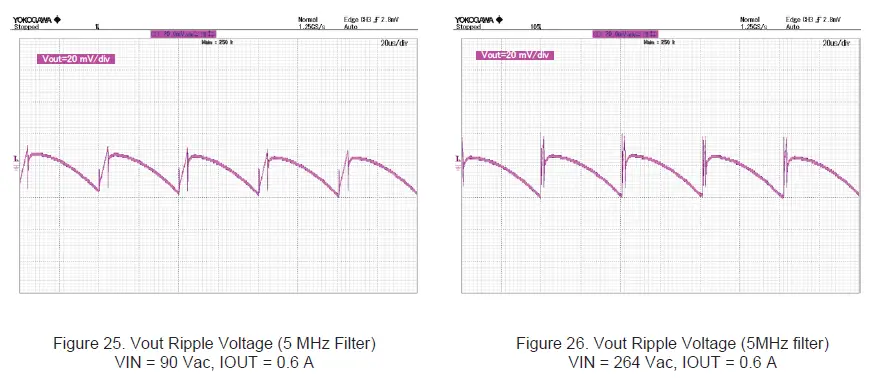

Waveform Ripple Voltage

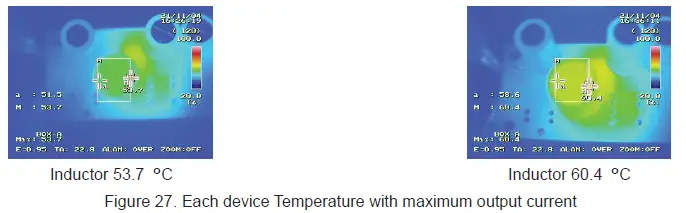

Operation Temperature

Condition Iout=0.6 A. 20 min

Consider selecting parts after checking the temperature range of the parts used.

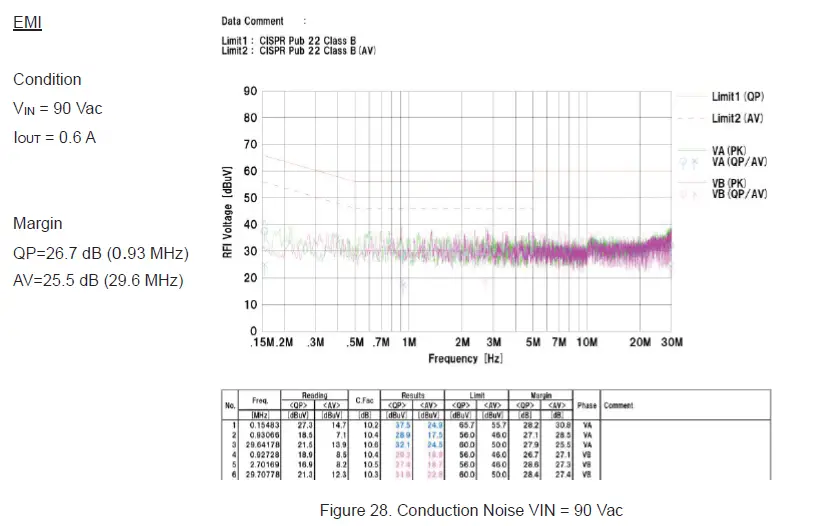

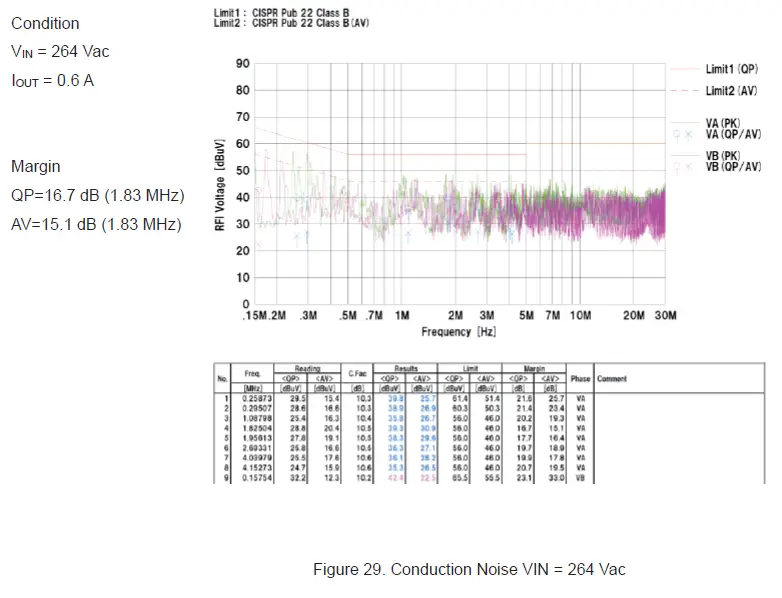

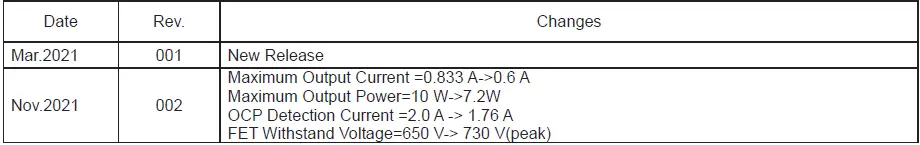

EMI   Revision History
