ETP48100-B1
The ETP48100-B1 applies to configuring in an IMB03 AC cabinet.
Function
The ETP48100-B1 converts AC power into DC power and distributes power. The height of an ETP48100-B1 is 1 U.
Appearance

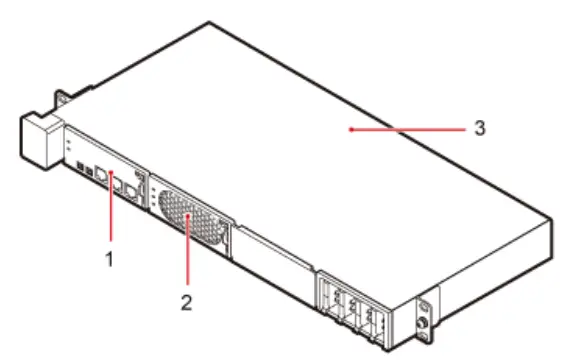

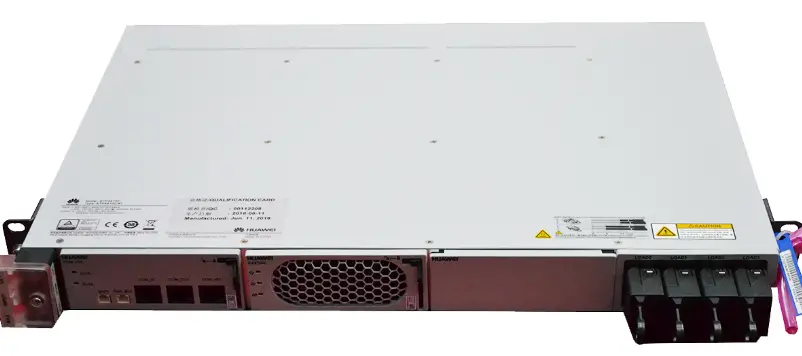

- Figure 1 shows the ETP48100-B1 components.
- Figure 1 Appearance of the ETP48100-B1
| 1 PMU | 2 Power supply unit (PSU) | 3 ETP48100-B1 subrack |
Ports

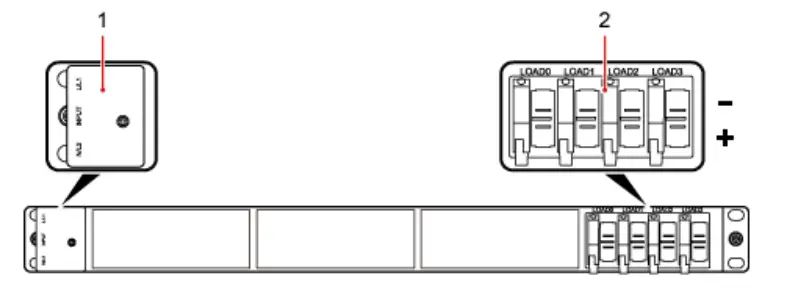

- Figure 2 shows the ETP48100-B1 ports.
- Figure 2 ETP48100-B1 ports
Table 1 lists ports on the ETP48100-B1.
| Table 1 ETP48100-B1 ports | |||
| Port | Silkscreen | Connector Type | Description |
| (1) AC input terminal | INPUT | OT terminal | The terminals are used for the connection of input power cables. |
| (2) DC output terminal | OUTPUT | EPC5 connector | LOAD 0 and LOAD 1 are used to supply power to the DCDU-12B using the power cable delivered with the DCDU-12B. LOAD 2 and LOAD 3 are reserved for capacity expansion. |
Technical Specifications
Table 2 lists technical specifications of the ETP48100-B1.
| Table 2 ETP48100-B1 technical specifications | |
| Item | Specifications |
| Input voltage | Input voltage range of 220 V AC single-phase power: 176 V AC to 290 V AC |
| Input voltage frequency | 45 Hz to 65 Hz |
| Output voltage | Voltage range: -42 V DC to -58 V DC |
| Output current | 30 A |
| Rated power | 3000 W × 2 |
| Surge protection capability | 2 kV in differential mode 4 kV in common mode |
| IP rating | IP20 |
Parent topic:
AC/DC Converters
