Olivar 547618 Montessori Wardrobe

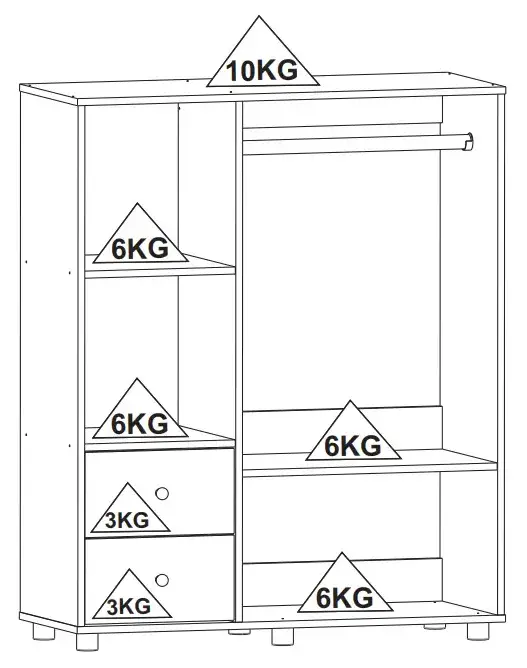

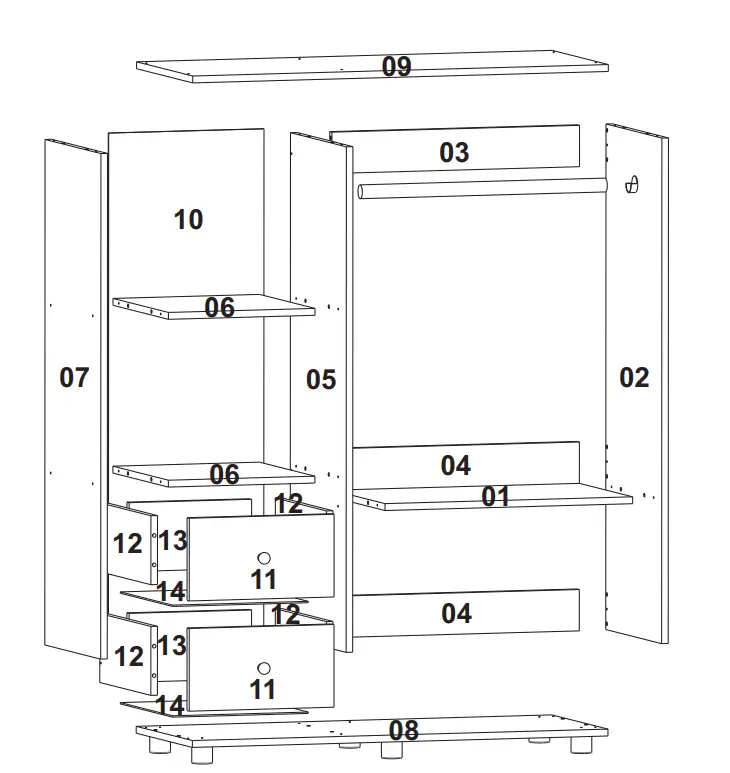

PRODUCT DIMENSIONS
ATTENTION
Never use oils, furniture polish, abrasive products, soaps, steel sponge and others.
SPECIAL CARE
- Avoid exposing the furniture to the sun, and in damp places.
- Clean with dry flannel or lightly cloth moistened with water.
SETUP THE PRODUCT ON TOP OF THE PACKAGING, AVOIDING DAMAGE TO THE PAINT.
WE RECOMMEND THAT THE INSTALLATION IS DONE BY A PROFESSIONAL.
Necessary tools (not provided)

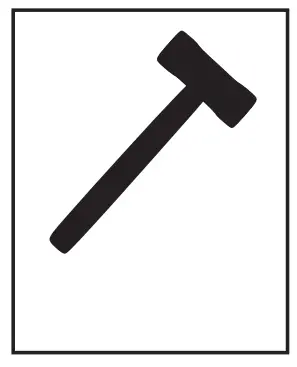

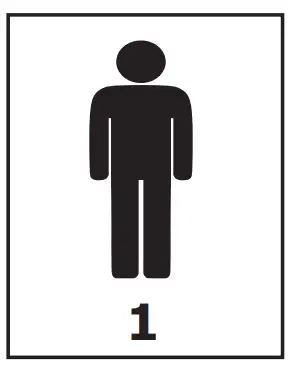

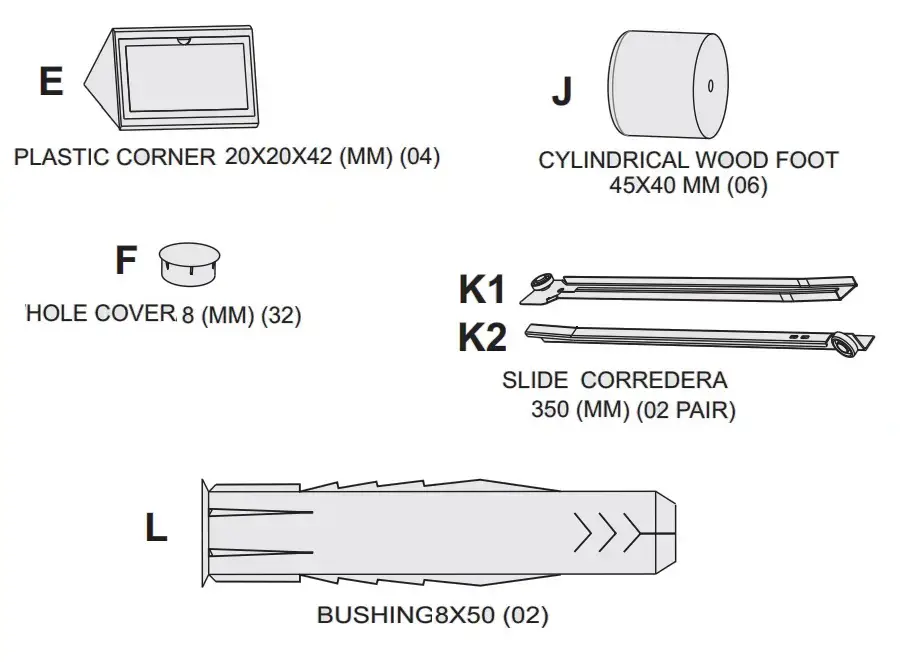

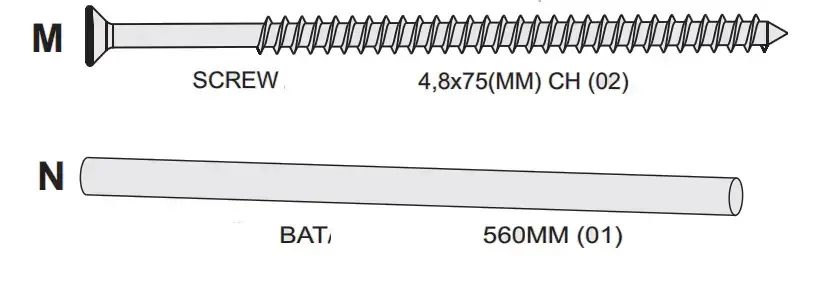

PARTS
UNIT MEASURE USED IS MILLIMETERS (MM)
| ITEM | DESCRIPTION OF PARTS | COLORS | |||||
| CODE | Nº | NAME | MEASURES (MM) | TYPE | AMOUNT | WHITE | PINUS |
| 15346 | 1 | RIGHT SHELF | 566X380X15 | MDP | 01 | 01/05 | 01/11 |
| 15349 | 2 | RIGHT SIDE | 1100X383X15 | MDP | 01 | 02/05 | 02/11 |
| 15348 | 3 | UPPER REAR REINFORCEMENT | 566X90X15 | MDP | 01 | 03/05 | 03/11 |
| 15347 | 4 | LOWER CENT. REAR REINFORCEMENT | T 566X90X15 | MDP | 02 | 04/05 | 04/11 |
| 15345 | 5 | CENTRAL DIVIDER | 1100X383X15 | MDP | 01 | 05/05 | 05/11 |
| 15350 | 6 | LEFT SHELF | 380X335X15 | MDP | 02 | 06/05 | 06/11 |
| 15351 | 7 | LEFT SIDE | 1100X383X15 | MDP | 01 | 07/05 | 07/11 |
| 15353 | 8 | BASE | 950X385X15 | MDP | 01 | 08/05 | 08/11 |
| 15352 | 9 | TOP | 950X385X15 | MDP | 01 | 09/05 | 09/11 |
| 15354 | 10 | BACK | 1120X355X3 | TRI | 01 | 10/05 | 10/11 |
| 15357 | 11 | DRAWER FRONT | 331X180X15 | MDP | 02 | 11/05 | 11/11 |
| 15355 | 12 | LEFT RIGHT DRAWER SIDE | 350X150X15 | MDP | 04 | 12/05 | 12/11 |
| MDP | |||||||
| 13356 | 13 | FRONT AGAINST DRAWER | 280X150X15 | MDP | 02 | 13/05 | 13/11 |
| 15358 | 14 | DRAWER BACKGROUND | 358X310X3 | TRI | 02 | 14/05 | 14/11 |
| 438 | A | Screw | 44 | ||||
| 12774 | B | Screw | 02 | ||||
| 986 | C | Screw | 46 | ||||
| 137 | D | Wooden Dowel | 44 | ||||
| 11923 | E | Plast. corner with lid 20X20X42(MM) | 04 | CINZA | CINZA | ||
| 7687 | F | Hole Cover | 32 | BCO | |||
| 253 | MARFIM | ||||||
| 11135 | G | Wool handle | 02 | MEL | MEL | ||
| 15389 | H | Stand Holder | 02 | CINZA | CINZA | ||
| 248 | I | Nail | 20 | ||||
| 14154 | J | Cylindrical Wood Foot | 06 | MEL | MEL | ||
| 12175 | K | Metallic Slid 350(MM) (02 Pair) | 02 | ||||
| 2922 | L | Bushing | 02 | ||||
| 8 | M | Screw | 02 | ||||
| 15390 | N | Bat 560MM | 01 | PINUS | PINUS | ||
| Warranty Certif. | 01 | ||||||

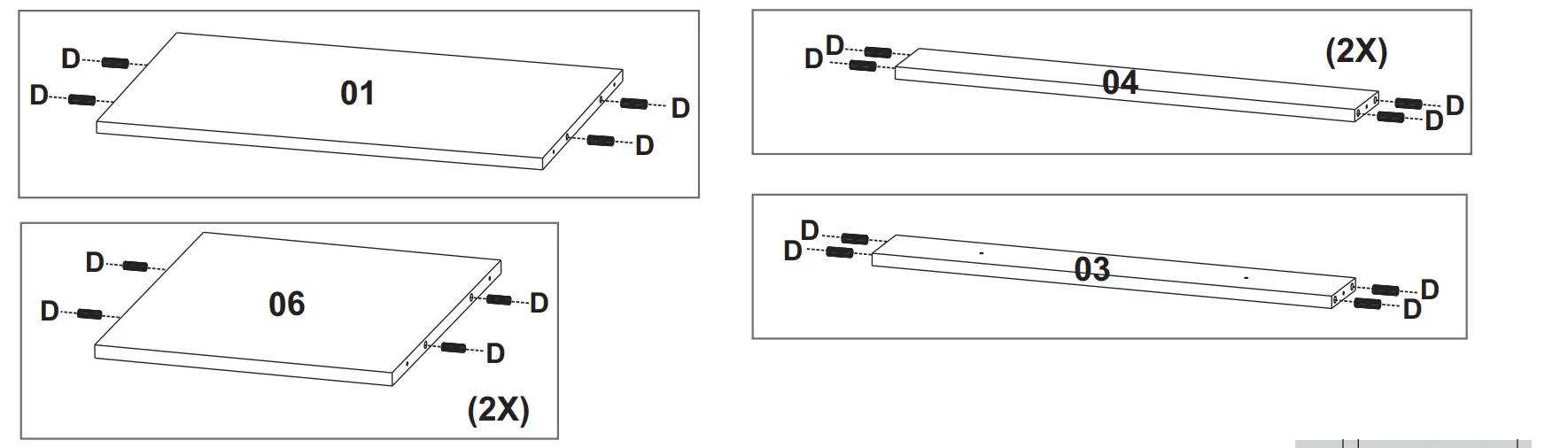

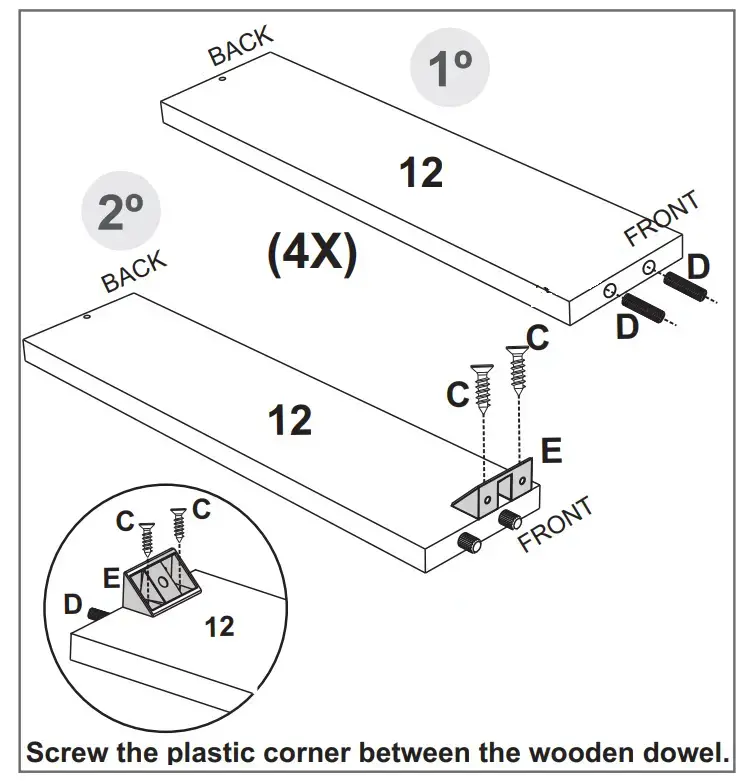

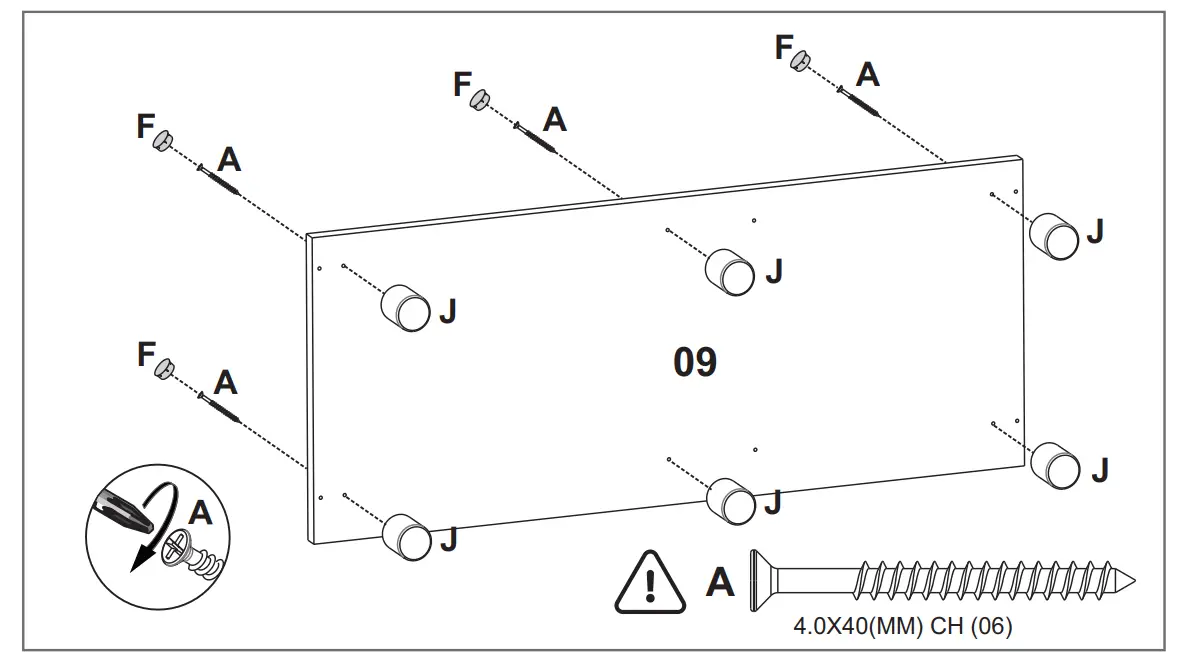

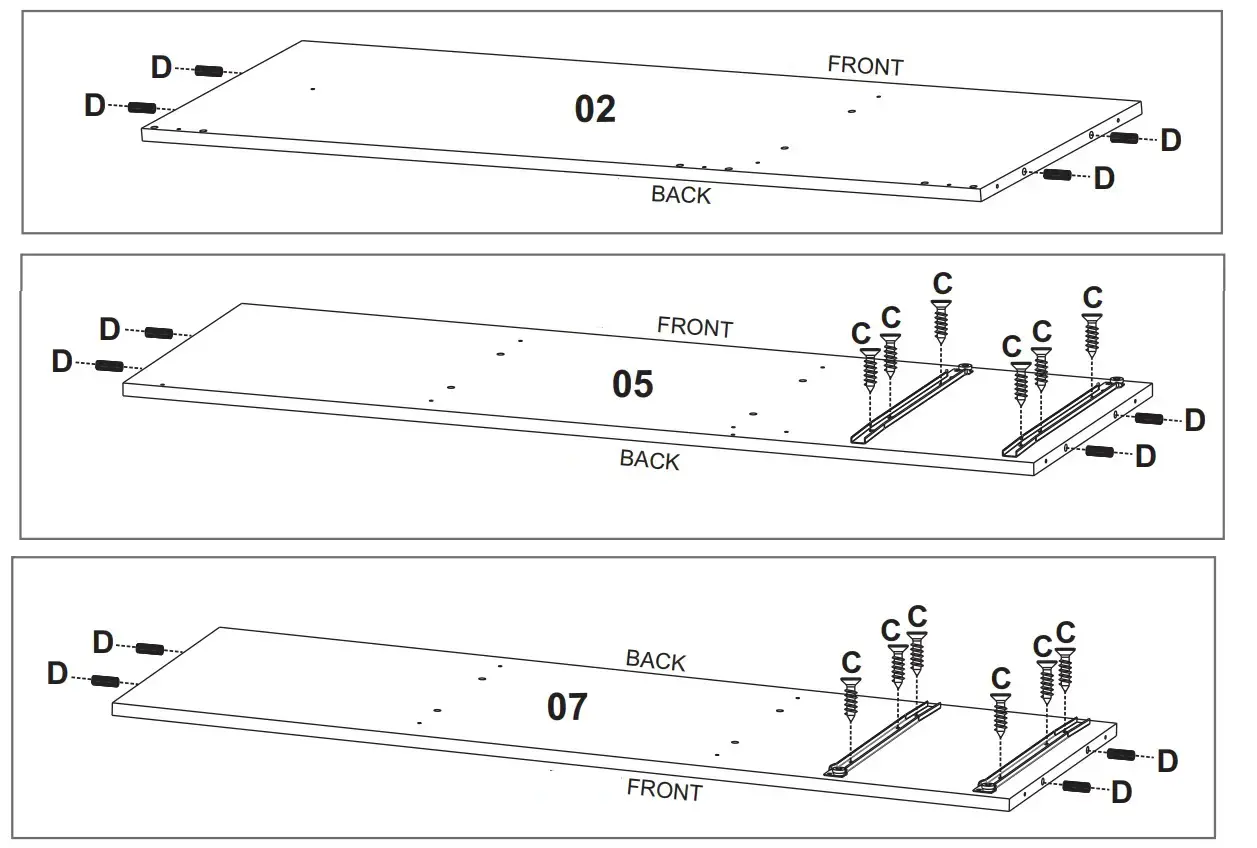

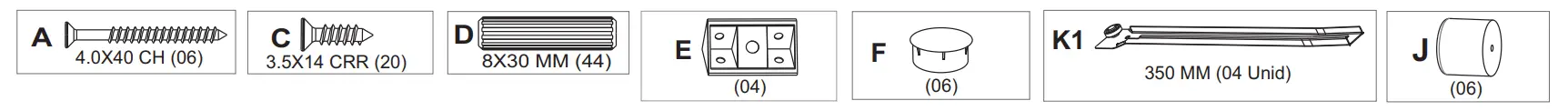

PARTS PREPARATION

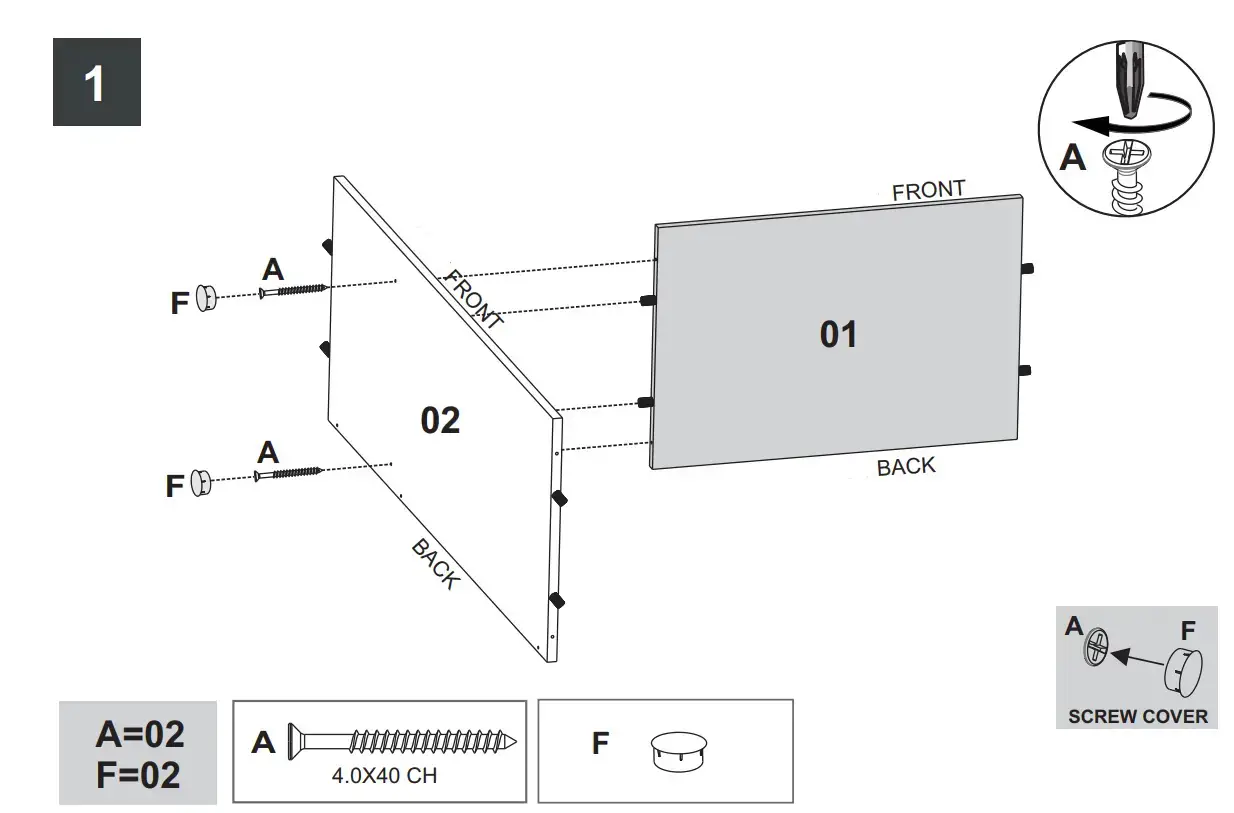

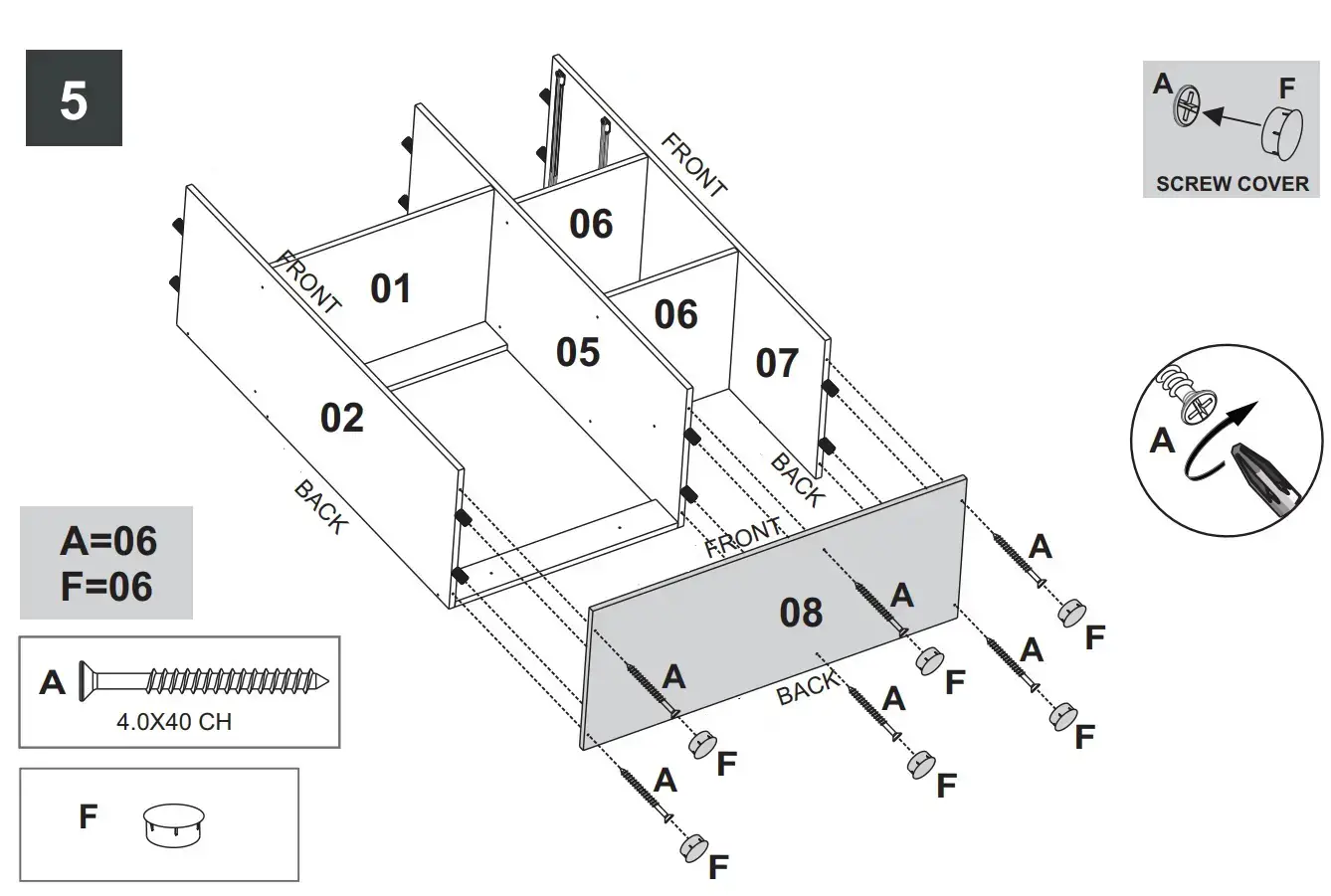

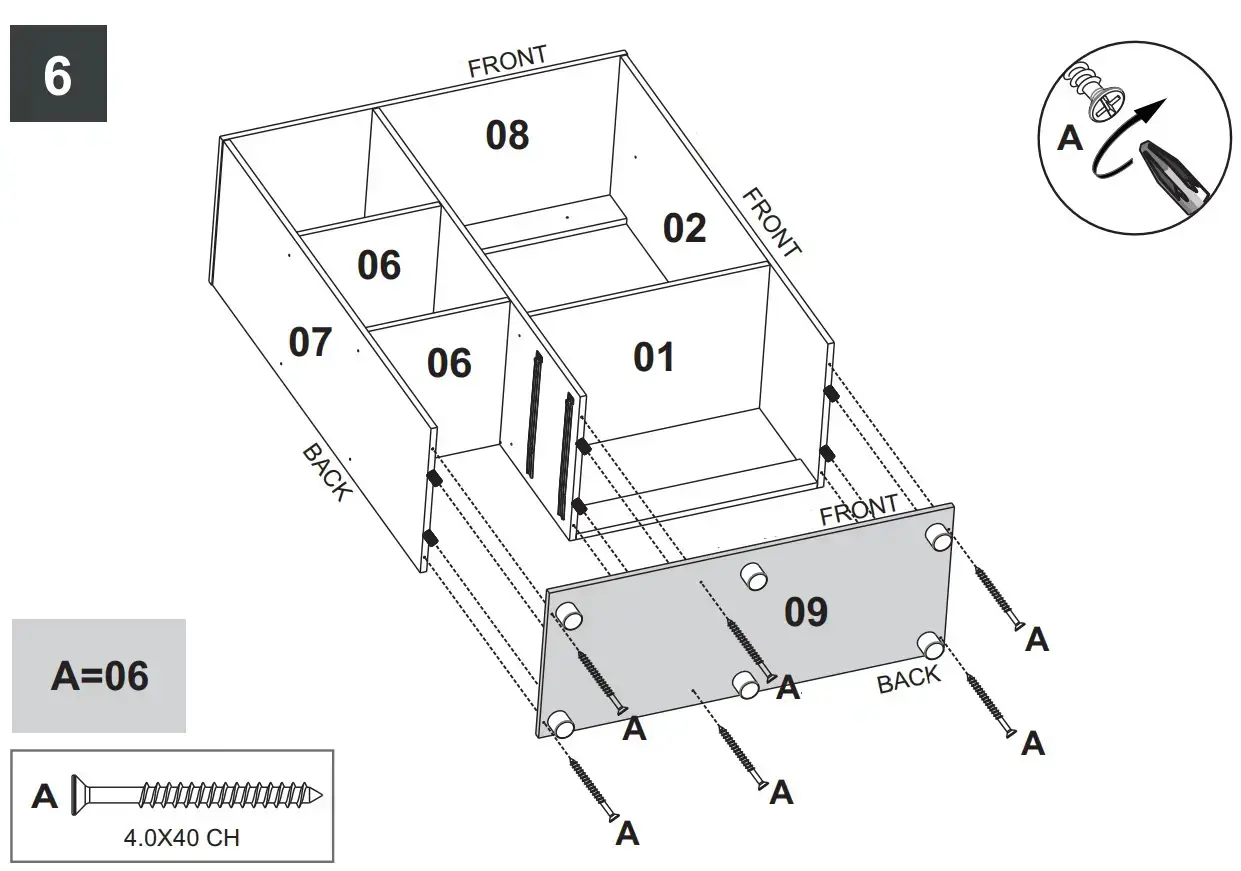

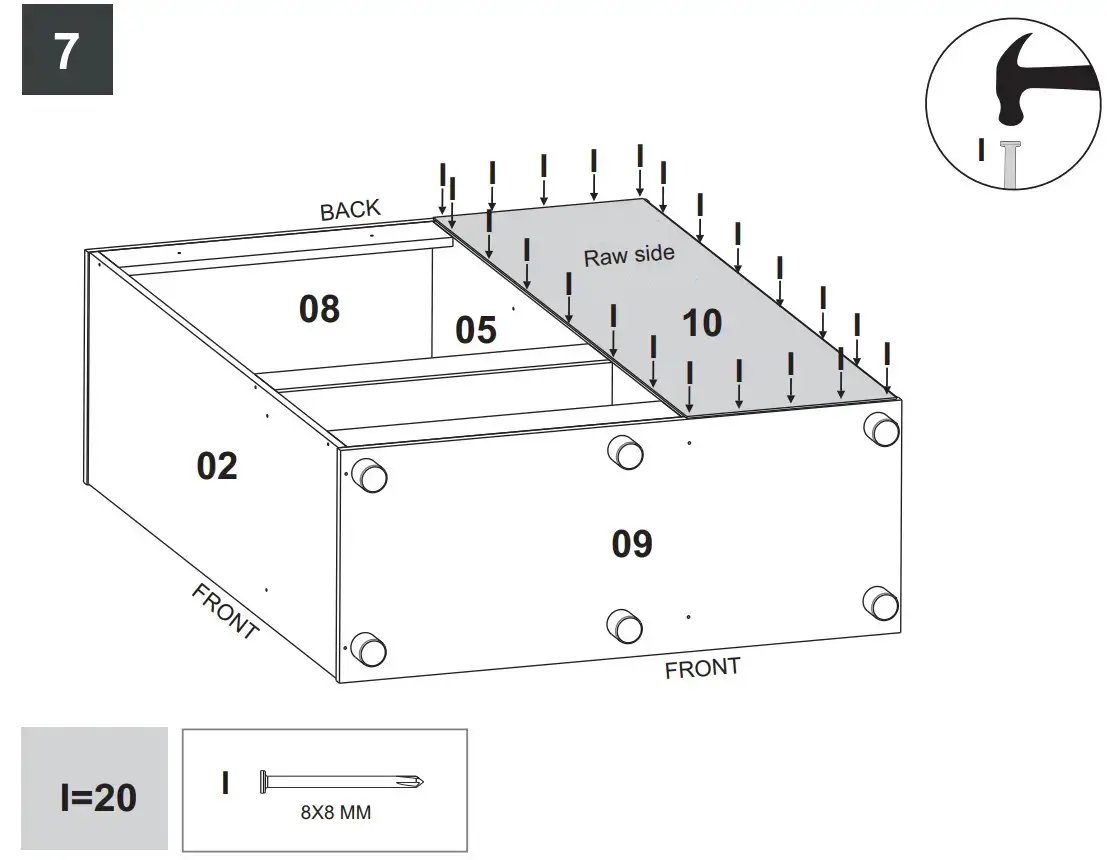

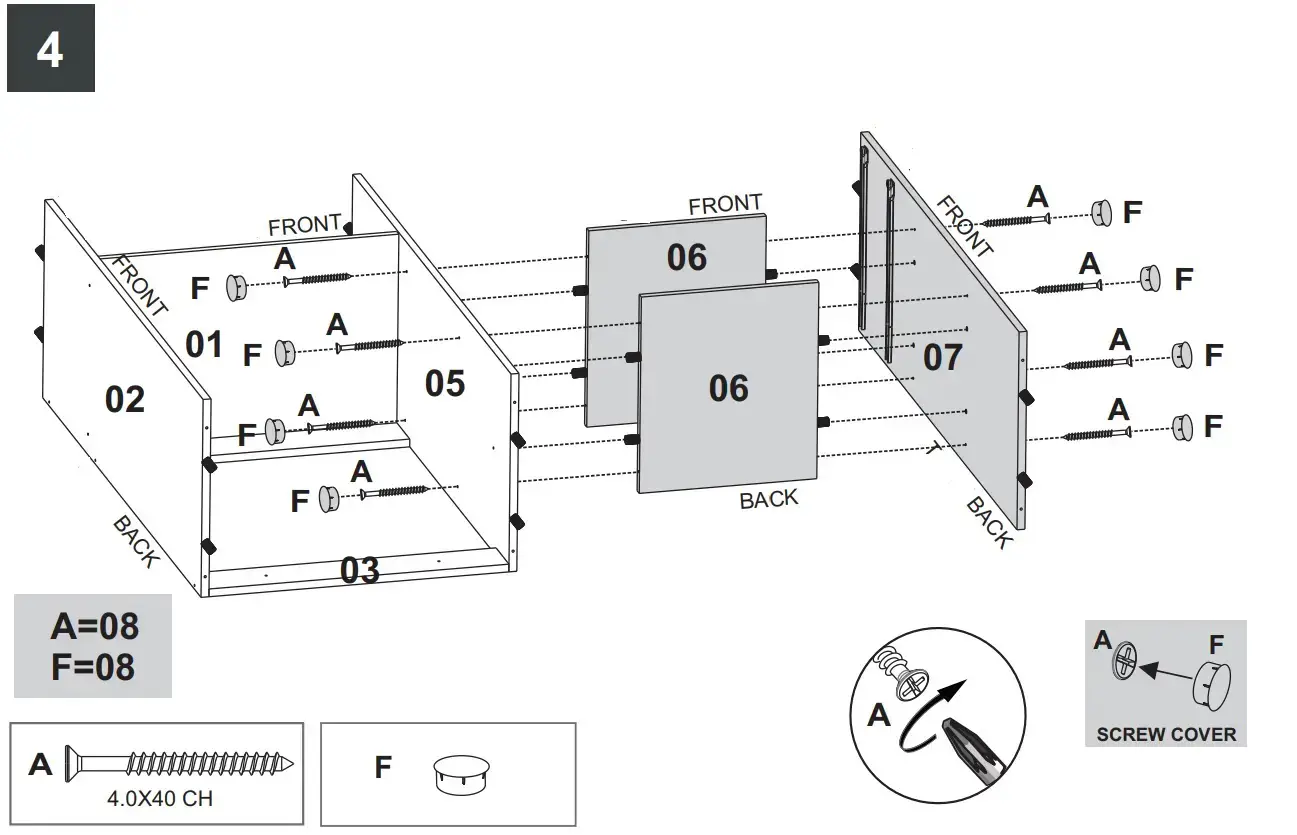

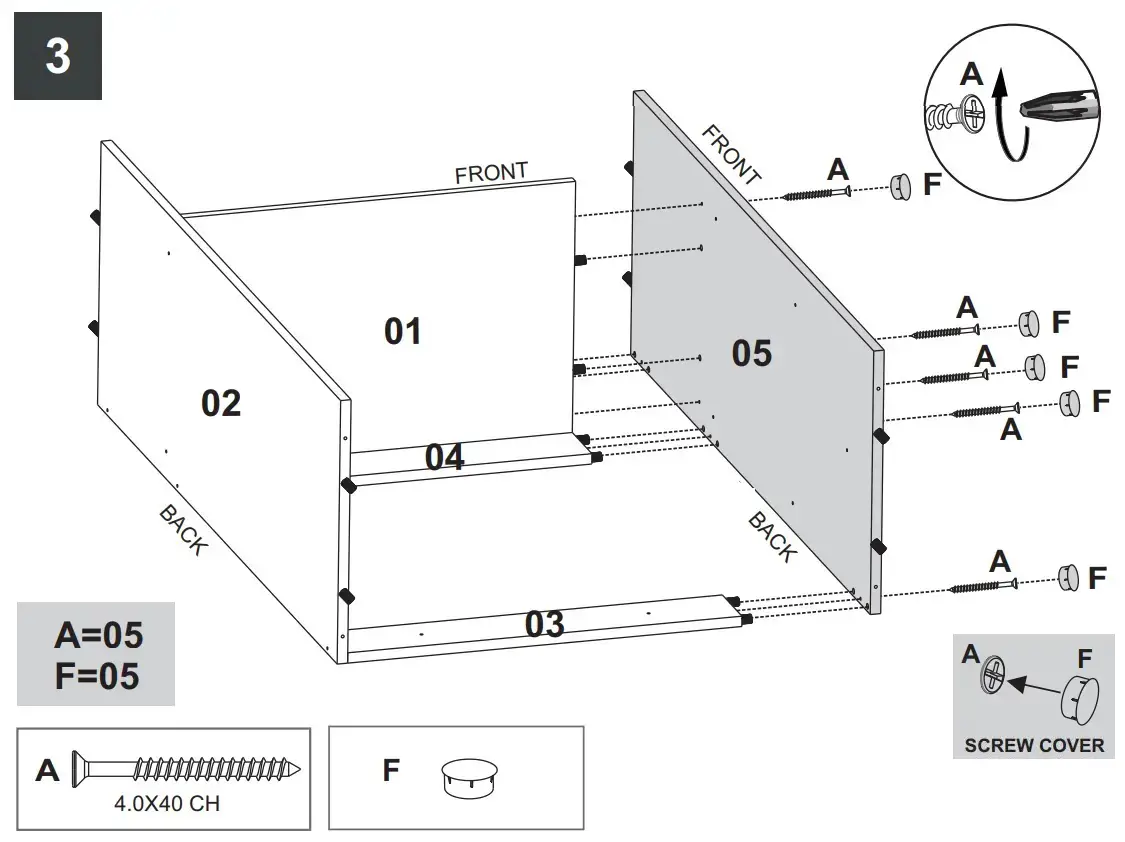

ASSEMBLY

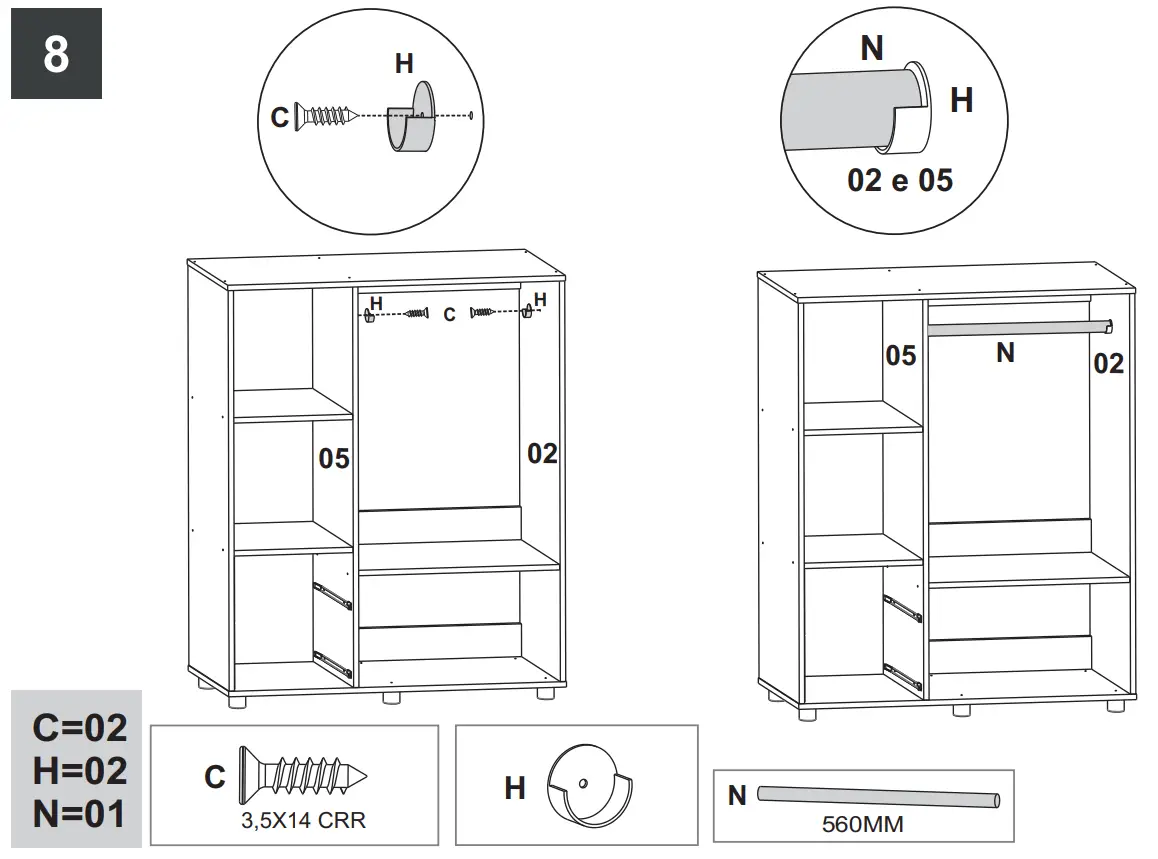

The parts painted in the steps are illustrative only.

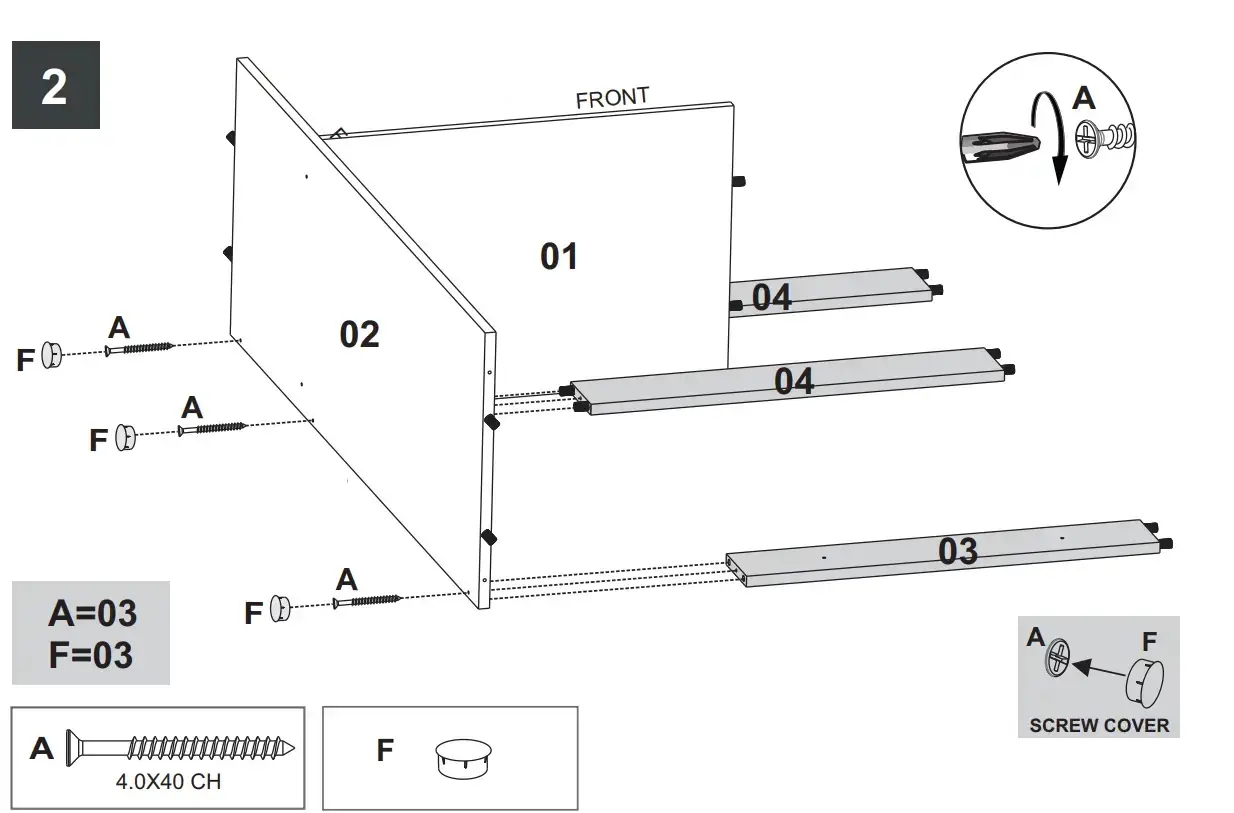

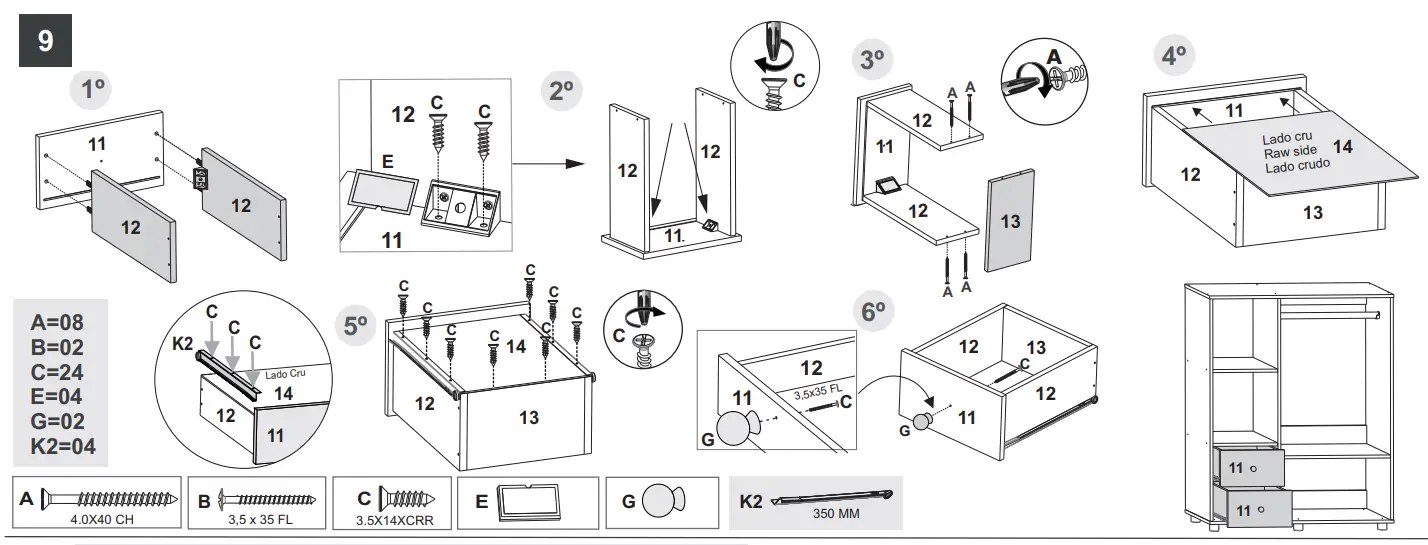

ASSEMBLY OF THE DRAWER

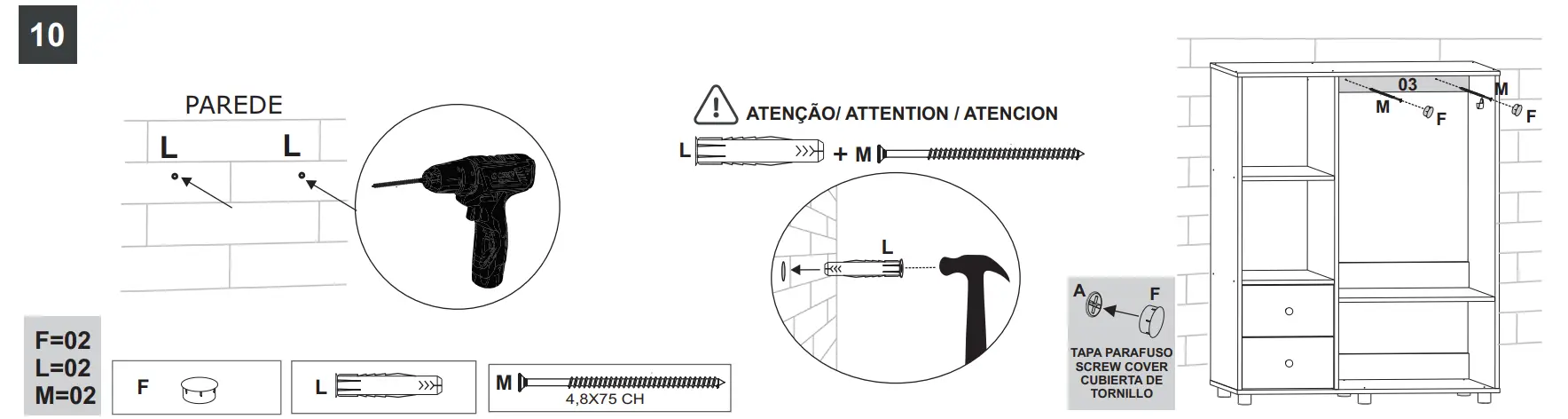

NOTA: ANDO ES. WE ADVISE SCREW THE PRODUCT ON THE WALL
NOTE
We are not responsible for accidents if the installation of the furniture is not in accordance with the procedures in this Manual and is not carried out by a qualified person.
