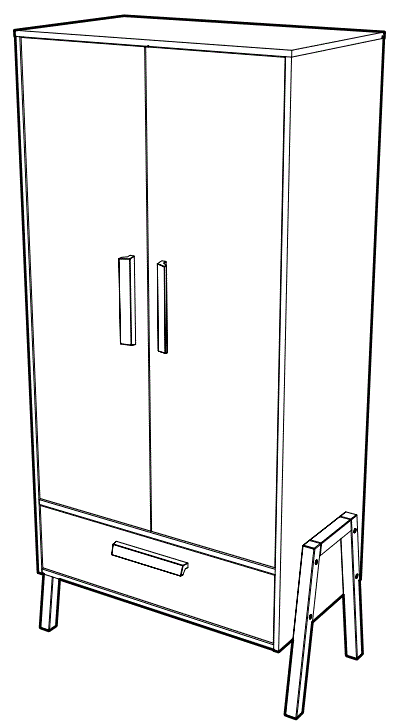

BabyStyle Arendelle Double Wardrobe

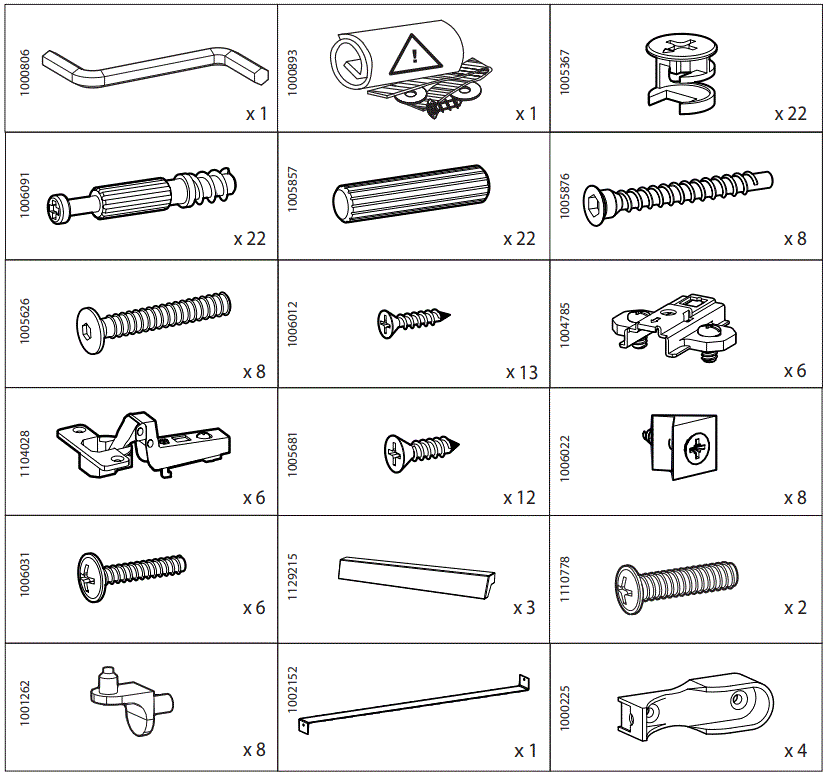

PARTS
BabyStyle Arendelle Double Wardrobe
PARTS
Arendelle Wardrobe
Unpack all components and panels and identify them against the parts listed. If any parts are missing or damaged please contact your retailer. Do not discard any packing until you are sure you have all the components listed. Please allow plenty of time and ensure you have plenty of space when constructing the wardrobe. Construction of the wardrobe is easiest with two people.
Construction of this dresser/ changing unit requires two people.
| ARTIKELNUMMER ITEM NUMER ARTIKELNUMMER |
| IND.4021241 | AANTAL QUANTITY ANZAHL | AFTMETINGEN [mm] DIMENSIONS [mm] ABMESSUNGEN [mm] | ||
| 1 | 1/4 | 2219471 | 1 | 850 | 500 | 16 |
| 2 | 1/4 | 2219472 | 2 | 816 | 483 | 16 |
| 3 | 3/4 | 2219473 | 1 | 1609 | 498 | 16 |
| 4 | 3/4 | 2219474 | 1 | 1609 | 498 | 16 |
| 5 | 2/4 | 2219475 | 1 | 816 | 216 | 16 |
| 6 | 2/4 | 2219476 | 2 | 816 | 464 | 16 |
| 7 | 4/4 | 2219477 | 2 | 1354 | 404 | 16 |
| 8 | 4/4 | 2219462 | 1 | 811 | 209 | 16 |
| 9 | 2/4 | 2219463 | 1 | 400 | 160 | 16 |
| 10 | 2/4 | 2219464 | 1 | 400 | 160 | 16 |
| 11 | 4/4 | 2219465 | 1 | 759 | 139 | 16 |
| 12 | 2/4 | 2219466 | 1 | 772 | 405 | 2,5 |
| 13 | 4/4 | 2219017 | 1 | 1382 | 828 | 2,5 |
| 14 | 1/1 | 2219022 | 2 | 500 | 414,2 | 38 |
| 15 | 2/4 | 2 | 816 | |||
In case of complaint please advise index number, which is given in the list of furniture components and fittings.

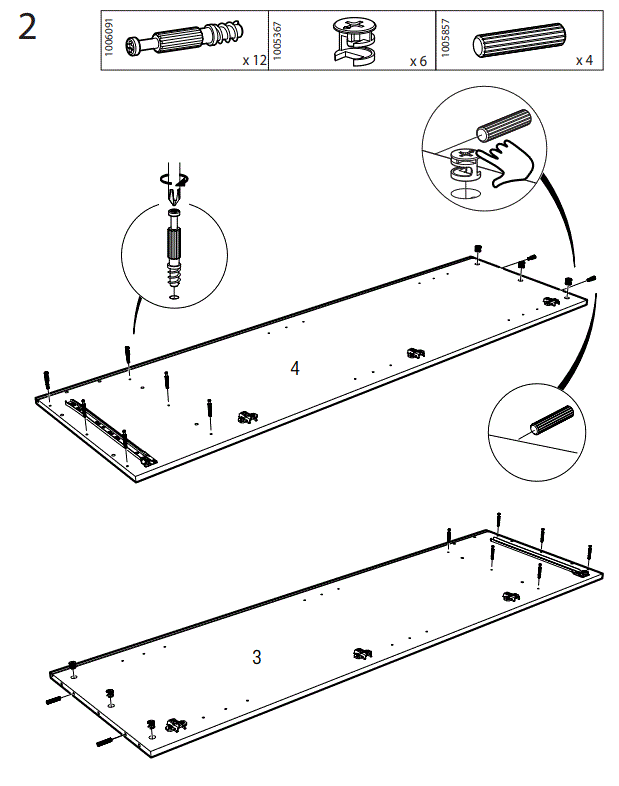

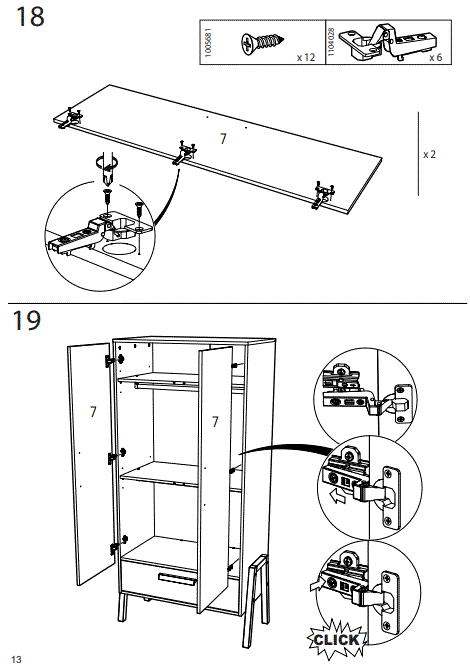

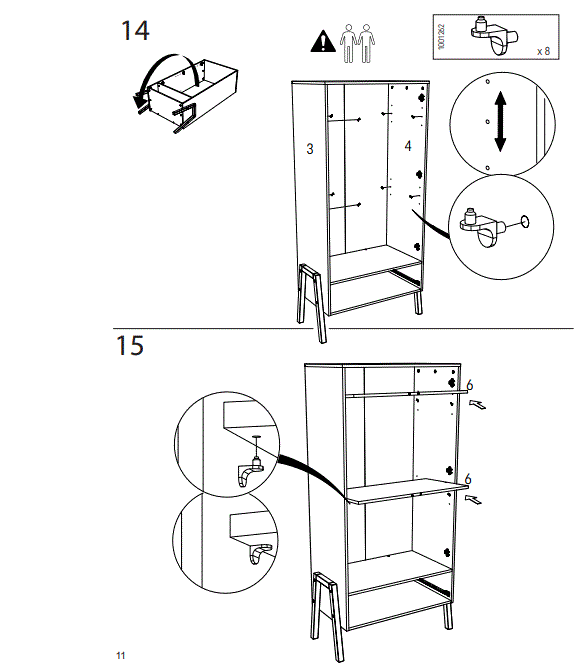

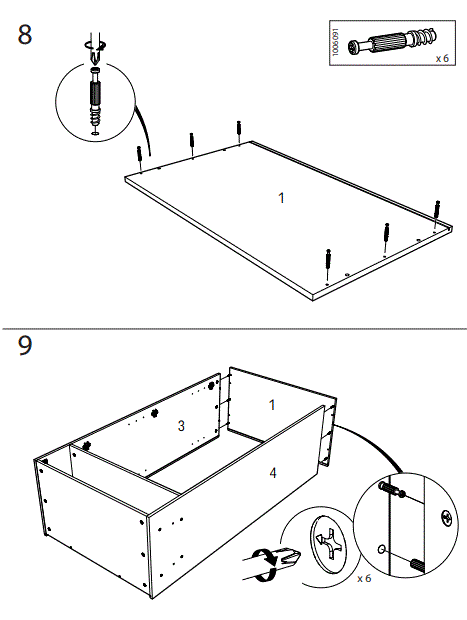

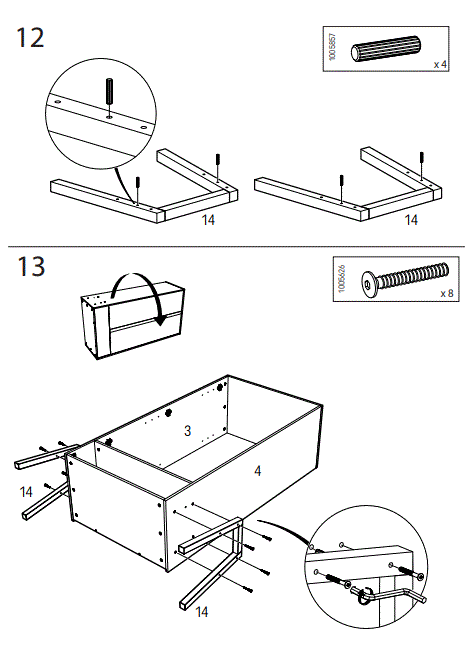

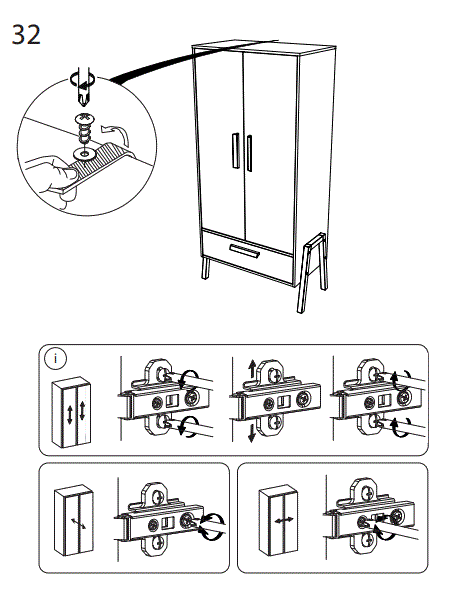

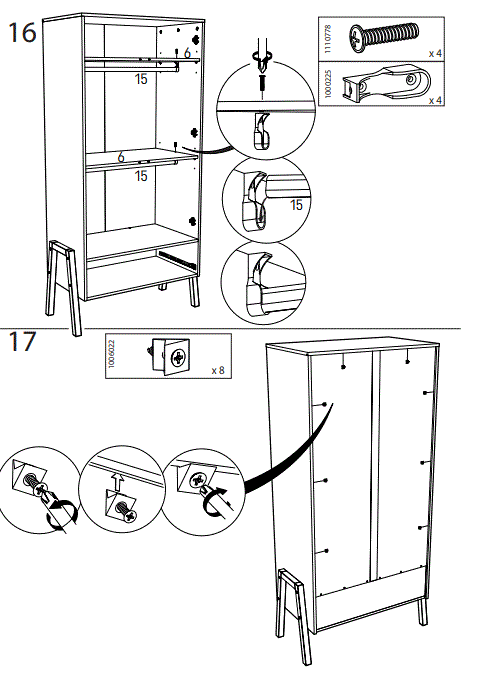

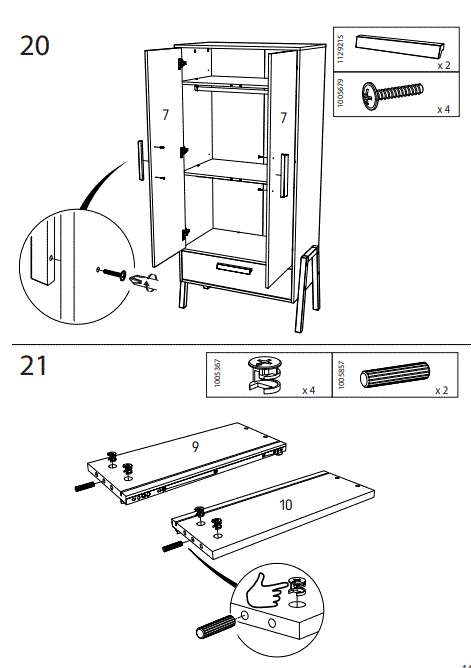

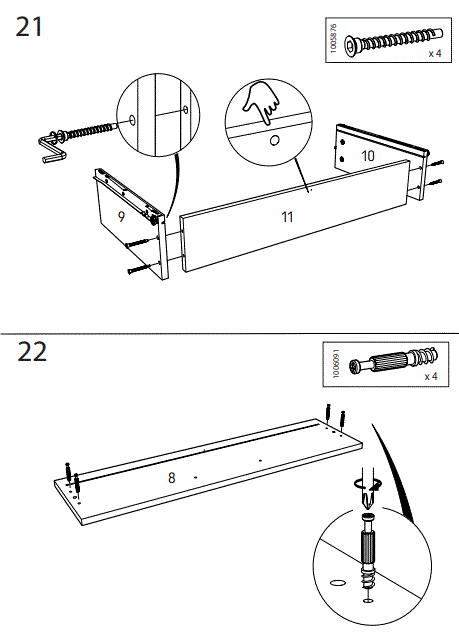

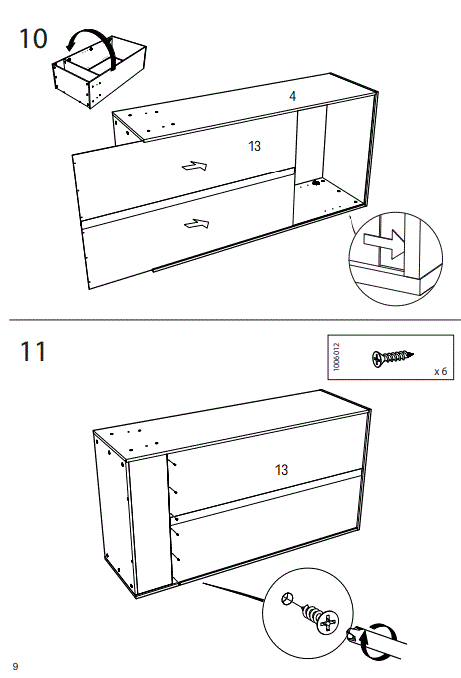

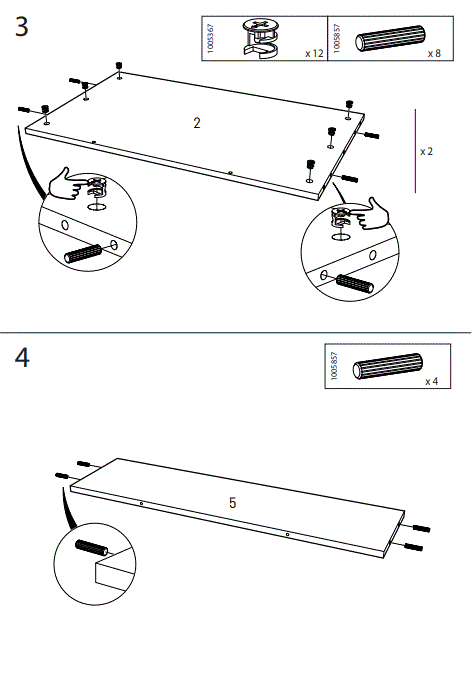

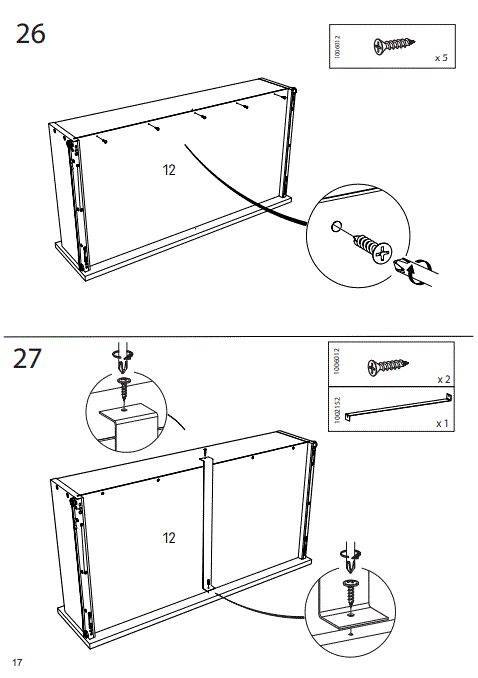

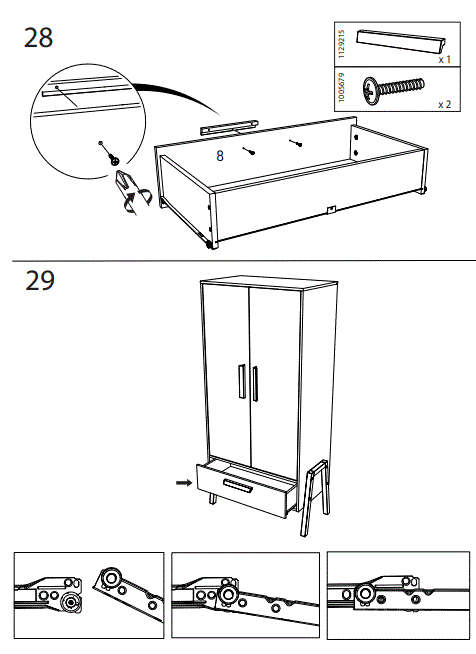

INSTALLATION
INSTALLATION

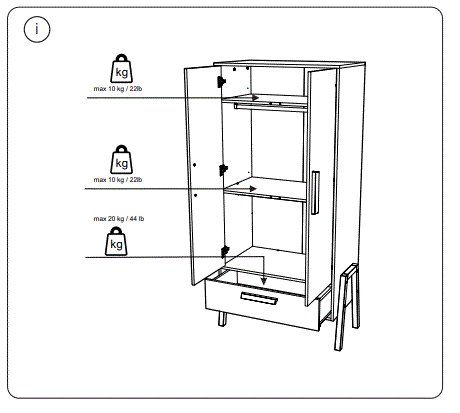

INSTRUCTIONS FOR SAFE USE AND MAINTENANCE
INSTRUCTIONS FOR SAFE USE AND MAINTENANCE- WARNING: NEVER LEAVE YOUR CHILD UNATTENDED. THE SAFETY OF YOUR CHILD IS YOUR RESPONSIBILITY.
- Do not allow children to climb on or in the wardrobe.
- Make sure the wardrobe is situated on a clear firm and level surface
- Never use the wardrobe if it is broken or damaged or there are parts
- Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. That are in the near vicinity of the wardrobe.
- The wardrobe can be cleaned with a clean damp cloth. Do not use aggressive cleaning agents such as bleach or strong detergents.
- Check on a regular basis that all fittings and screws are correctly tightened and are not damaged. Loose screws can pinch parts of the body and clothing resulting in the risk of strangulation.
- Do not twist or pivot the wardrobe, if the wardrobe is to be moved always lift with at least two people.
Product development dictates that components may occasionally differ from the ones shown in the diagrams of these instructions. The right to change the specifications and design of the furniture without prior notice remains with the manufacturer.
Guarantee
All our products are produced from the finest quality materials and are manufactured under the strictest quality controls. We guarantee all our products or part there of against faulty manufacture; for a period of six (6) months from the date of purchase. This guarantee is not effective against accidental damage or damage caused by incorrect use or neglect. This does not affect your statutory rights.
Babystyle UK Ltd, Sileby , Leicestershire, LE12 7RJ, United Kingdom www.babystyle.co.uk
