BabyStyle Arendelle Dresser

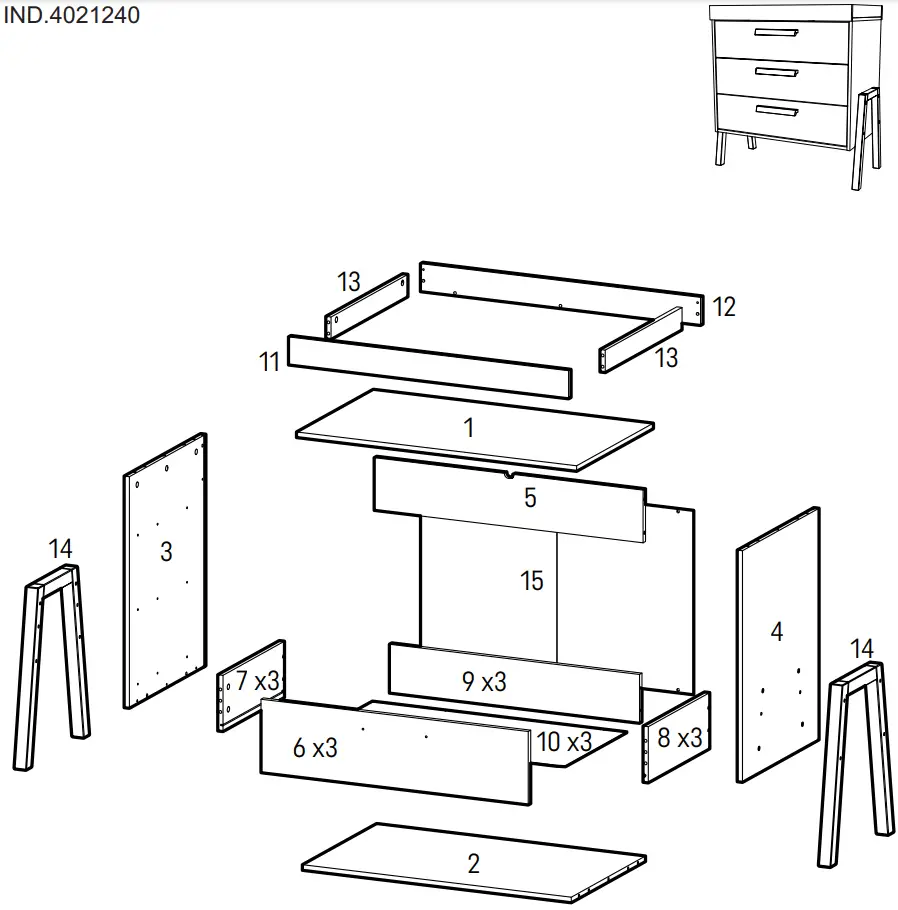

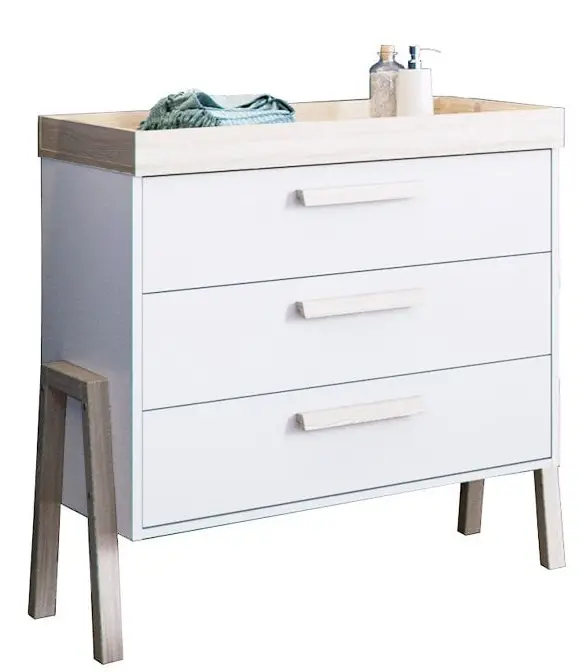

Product Overview

Arendelle Dresser

Unpack all components and panels and identify them against the parts listed. If any parts are missing or damaged please contact your retailer. Do not discard any packing until you are sure you have all the components listed. Construction of this dresser/ changing unit requires two people.

ITEM NUMER		IND.4021240	QUANTITY	DIMENSIONS [mm]
1	2/2	2219457	1	850	500	16
2	1/2	2219458	1	816	483	16
3	1/2	2219459	1	659	498	16
4	1/2	2219460	1	659	498	16
5	2/2	2219461	1	816	150	16
6	2/2	2219462	3	811	209	16
7	1/2	2219463	3	400	160	16
8	1/2	2219464	3	400	160	16
9	2/2	2219465	3	759	139	16
10	1/2	2219466	3	772	405	2,5
11	2/2	2219467	1	850	80	16
12	2/2	2219468	1	850	80	16
13	2/2	2219469	2	500	64	16
14	2/2	2219017	2	500	414,2	38
15	2/2	2219021	1	828	524	2,5

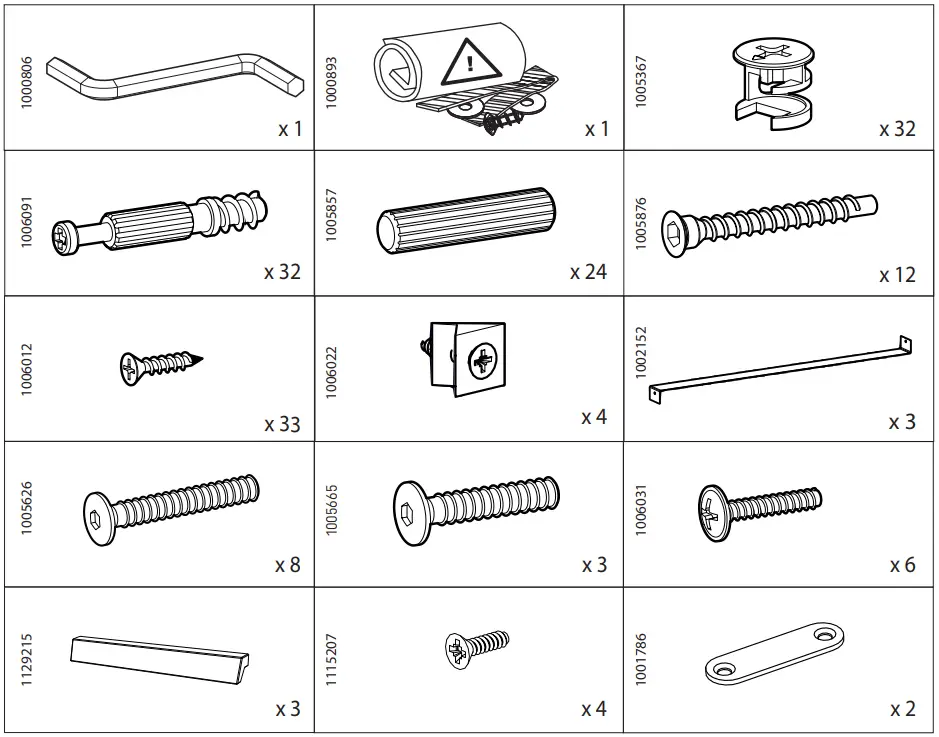

Fittings

In case of complaint please advise index number,which is given in the list of furniture components and fittings.

What in the Box

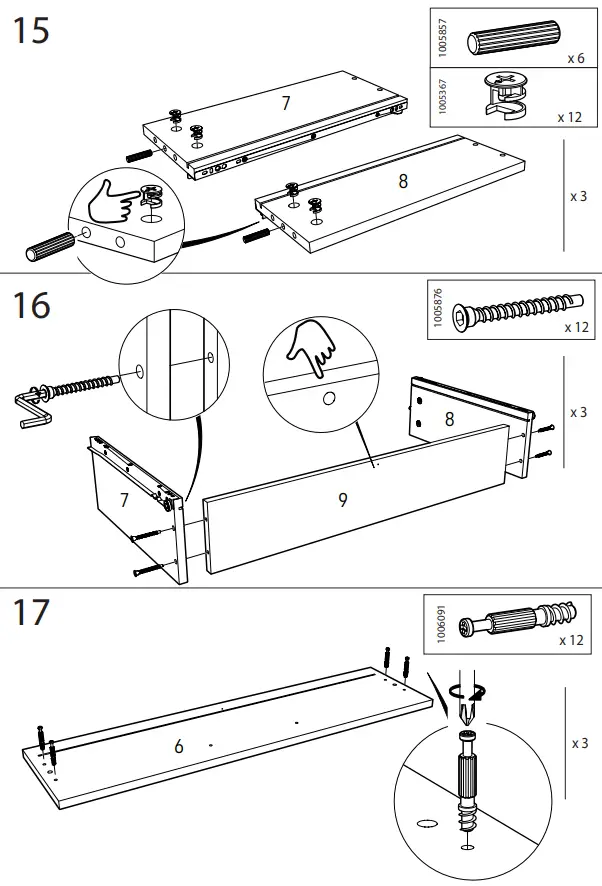

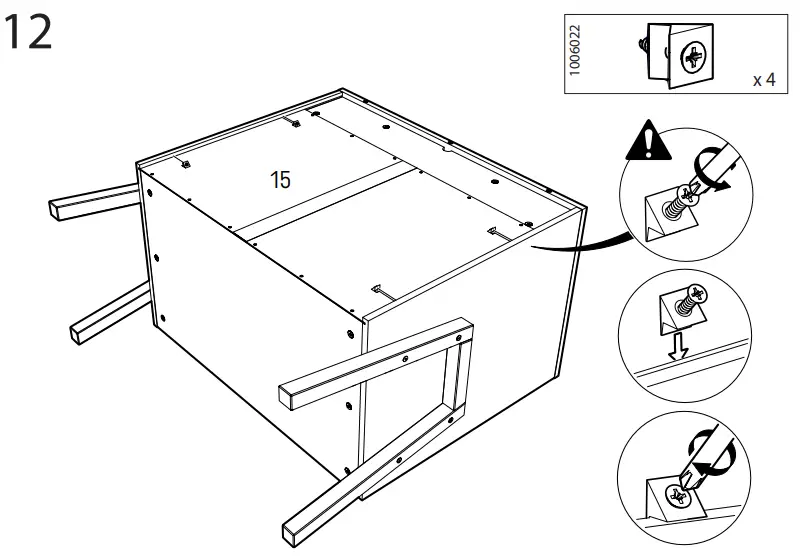

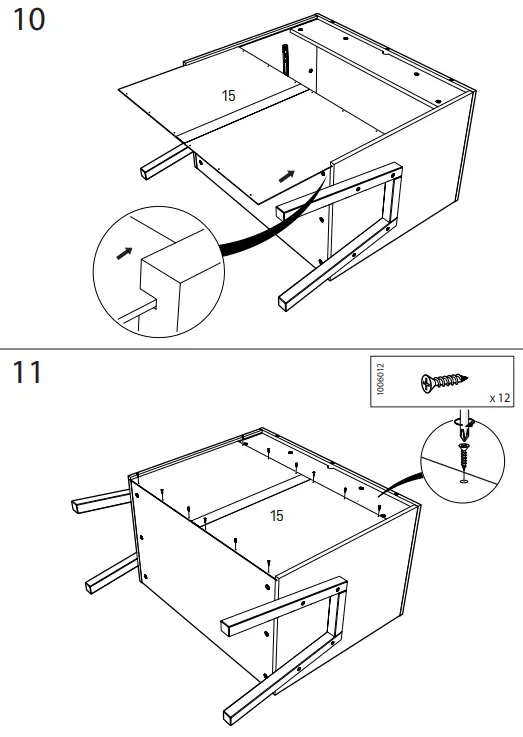

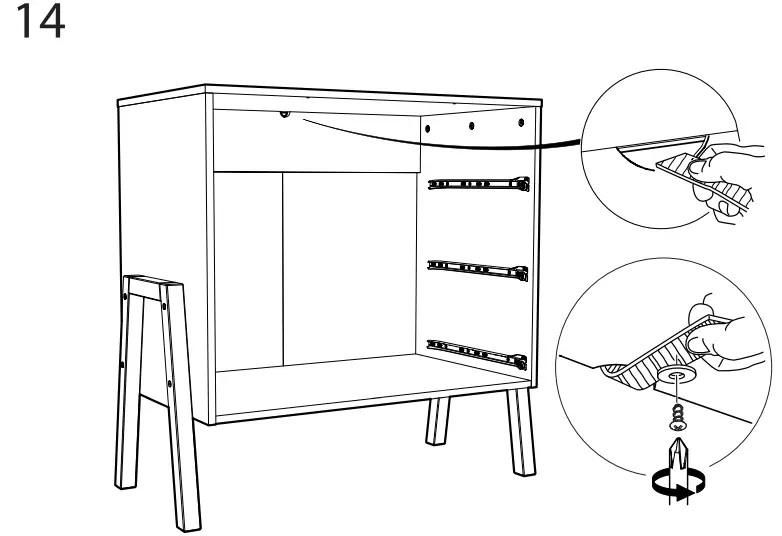

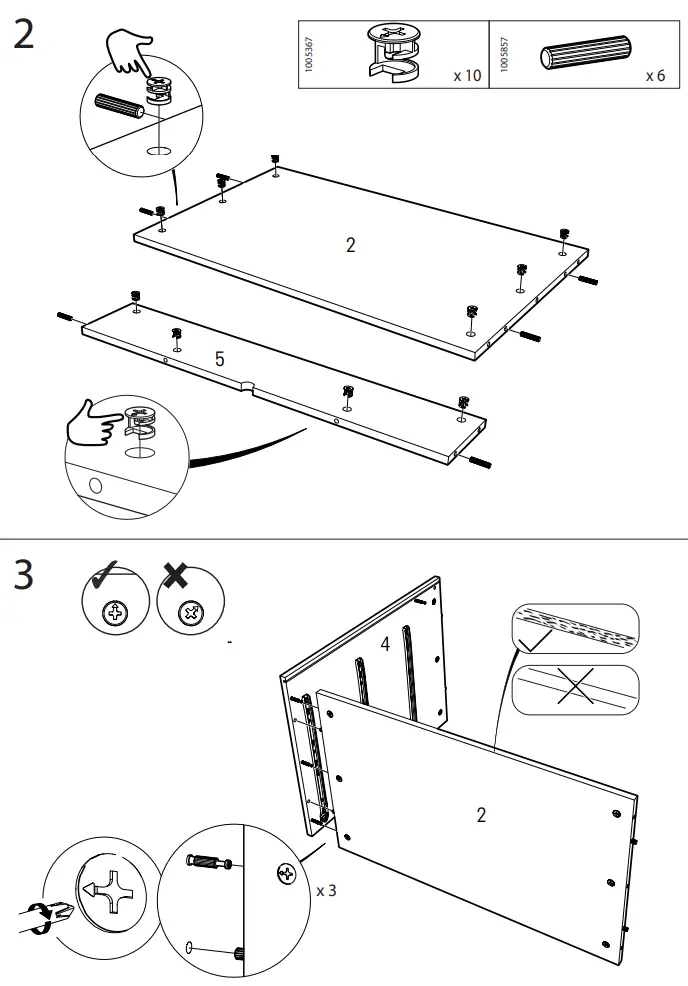

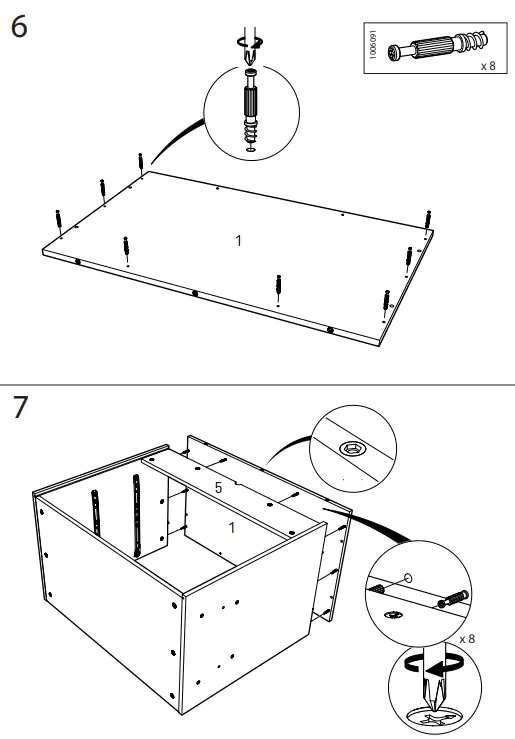

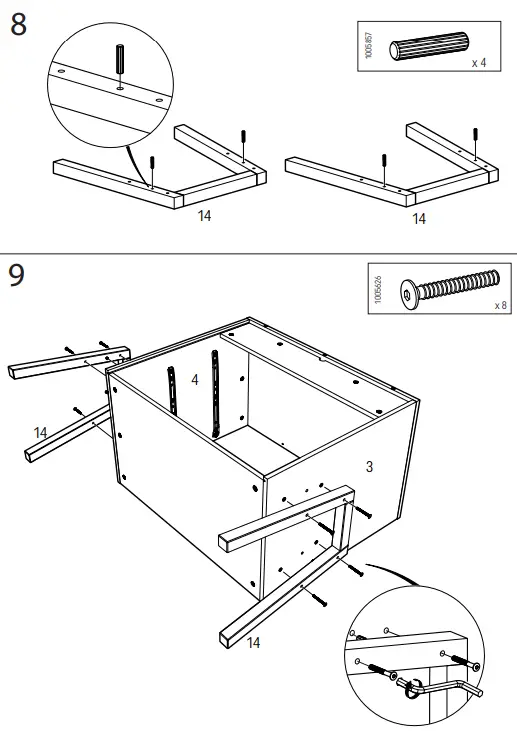

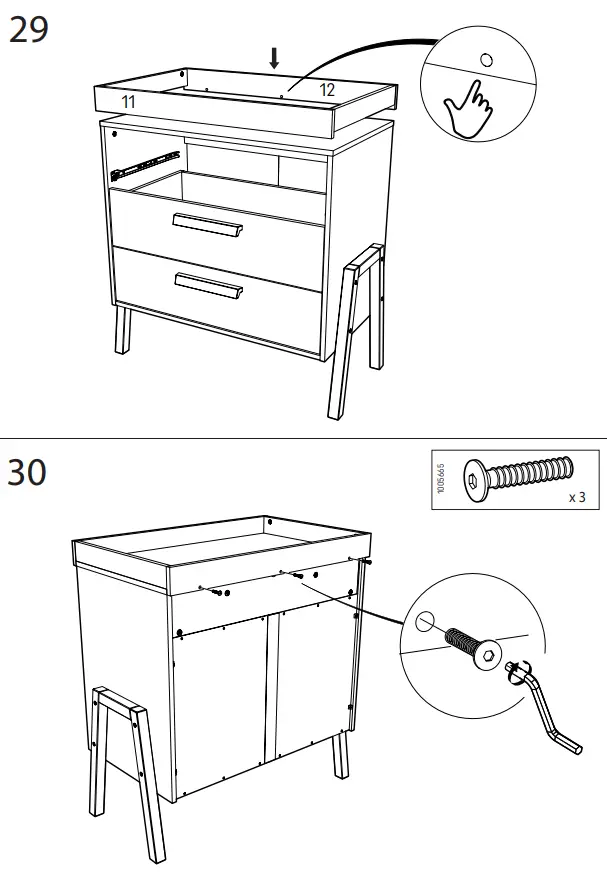

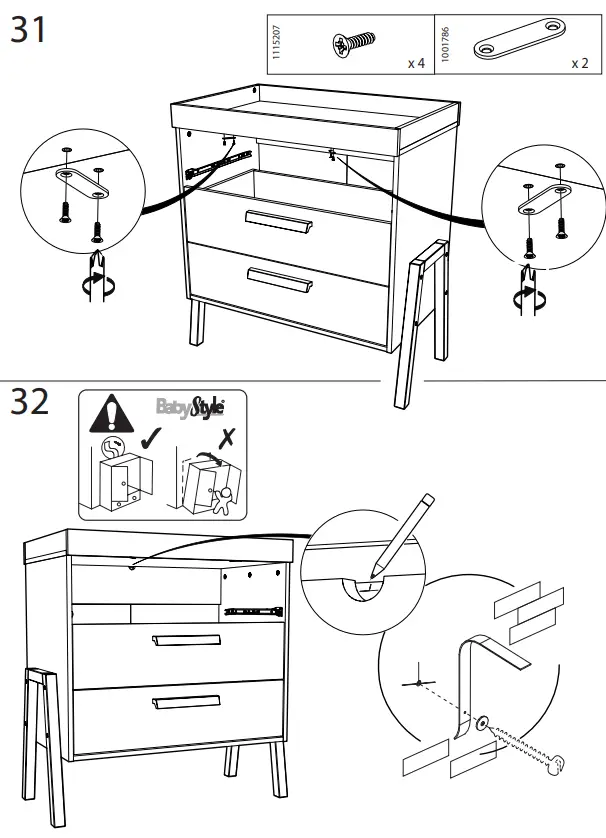

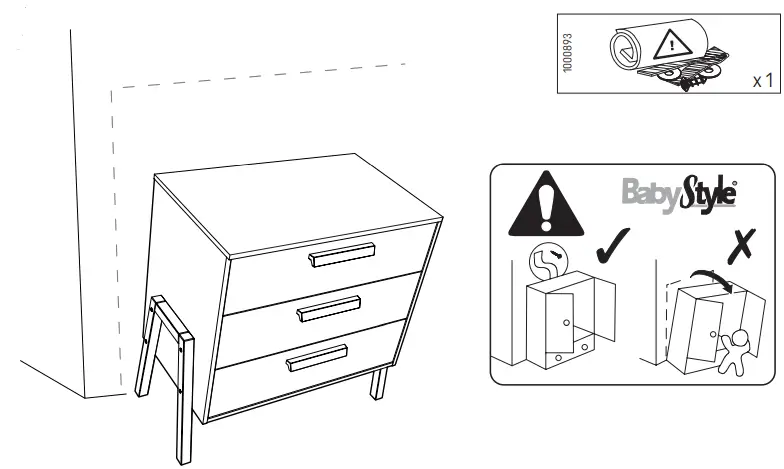

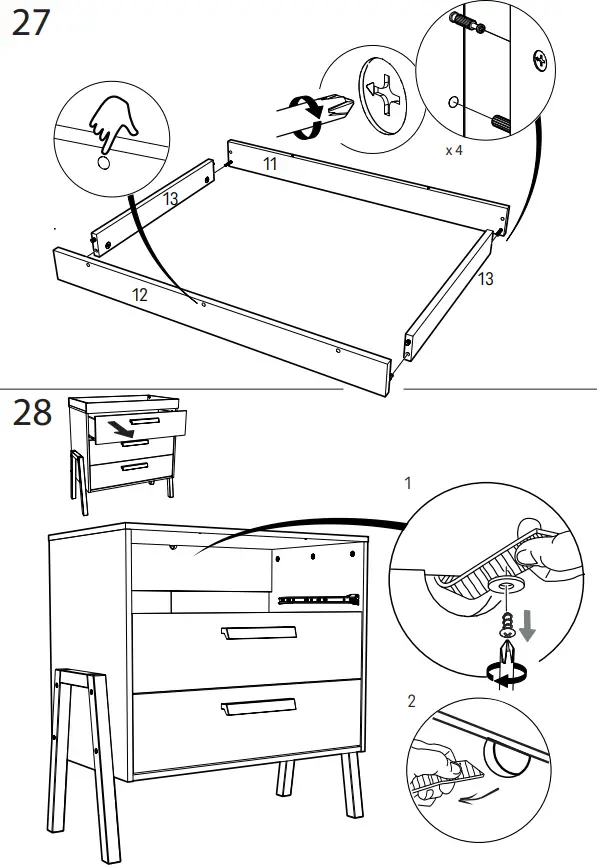

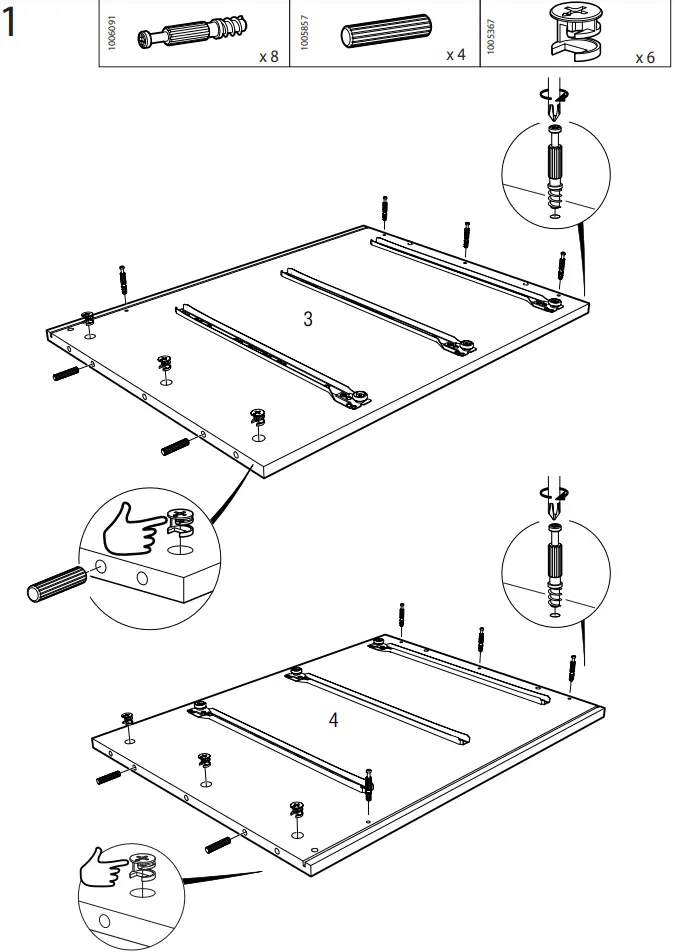

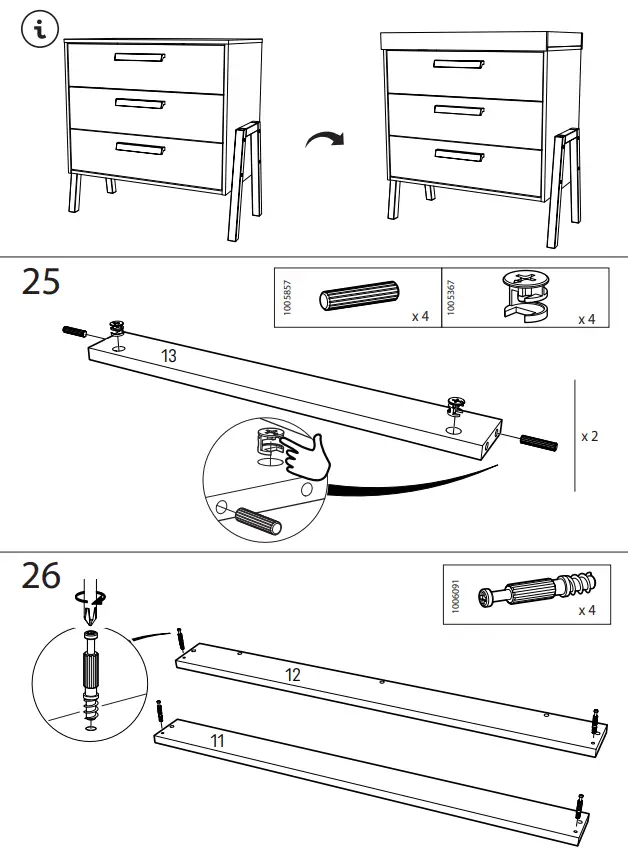

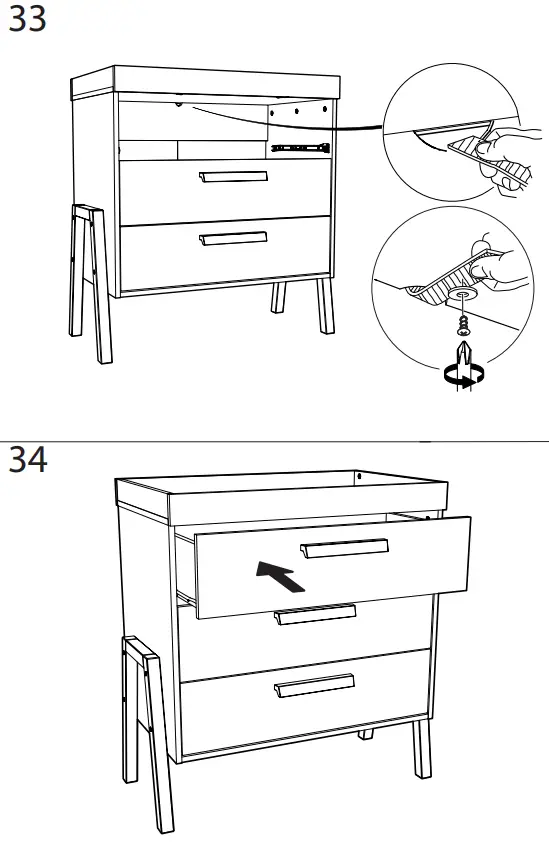

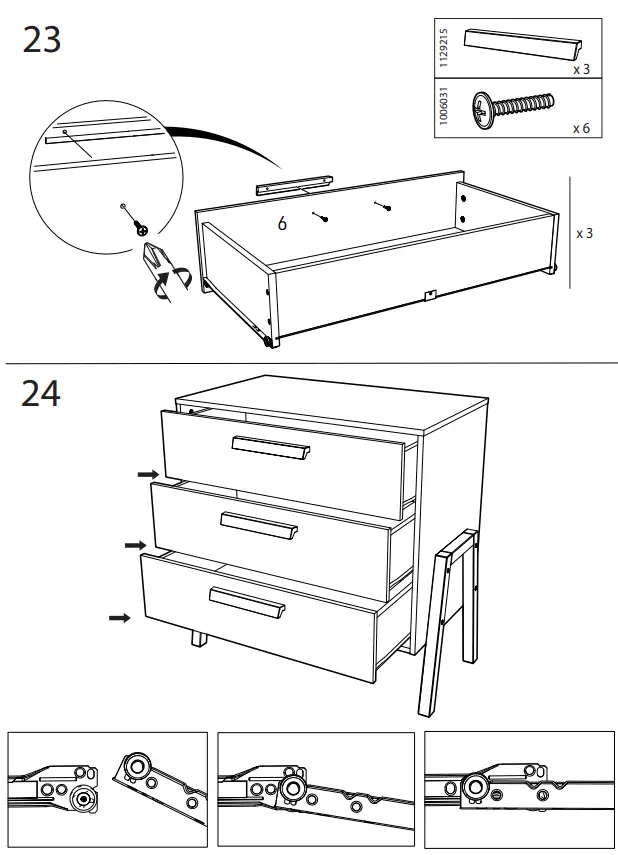

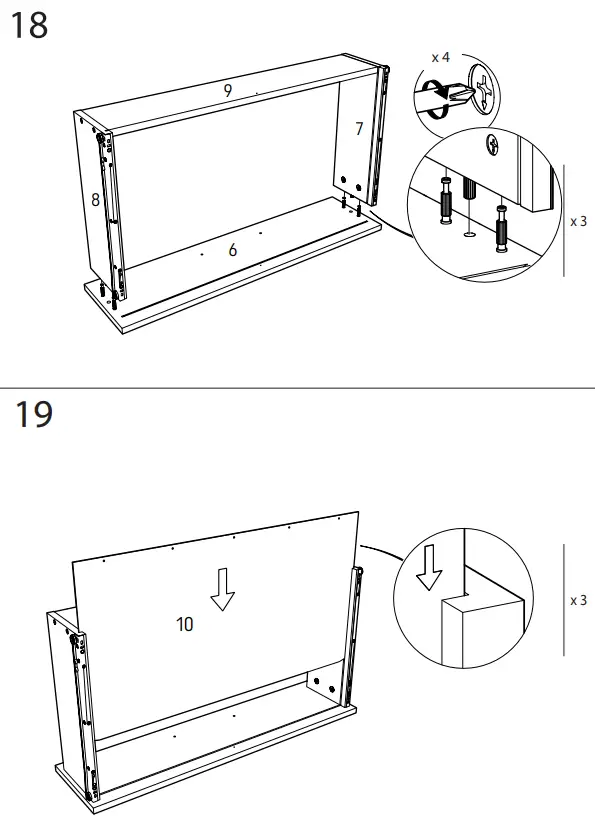

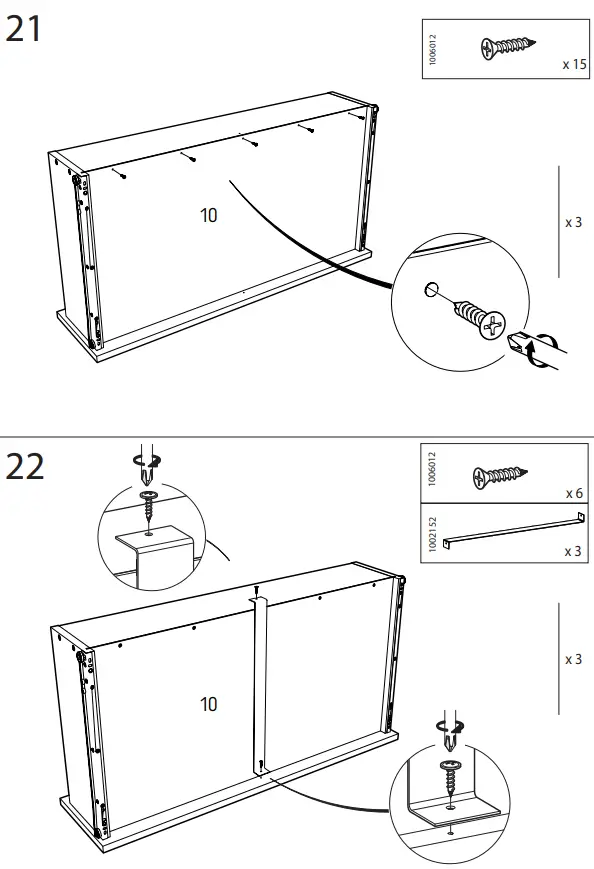

Assembly Instructions

INSTRUCTIONS FOR SAFE USE AND MAINTENANCE

WARNING: NEVER LEAVE YOUR CHILD UNATTENDED. THE SAFETY OF YOUR CHILD IS YOUR RESPONSIBILITY.
Do not allow children to climb on the dresser.
Never leave your child unattended on the dresser.
Never use the dresser if it is broken or damaged or there are parts missing.
Always leave the dresser clean and dry. Wipe away any spillage straight away. The dresser can be cleaned with a clean damp cloth. Do not use aggressive cleaning agents such as bleach or strong detergents.
Check on a regular basis that all fittings and screws are correctly tightened and are not damaged.
Loose screws can pinch parts of the body and clothing resulting in the risk of strangulation.
A changing pad is not supplied with this product. Lay the changing pad on the changing surface within the retaining walls.
Suitable for children up to : 12 months, or 11kg .
Use only spare parts approved by BabyStyle.

Product development dictates that components may occasionally differ from the ones shown in the diagrams of these instructions. The right to change the specifications and design of the furniture without prior notice remains with the manufacturer.

Guarantee

All our products are produced from the finest quality materials and are manufactured under the strictest quality controls. We guarantee all our products or part thereof against faulty manufacture; for a period of six (6) months from the date of purchase. This guarantee is not effective against accidental damage or damage caused by incorrect use or neglect. This does not affect your statutory rights.
Babystyle UK Ltd, Sileby, Leicestershire, LE12 7RJ, United Kingdom www.babystyle.co.uk Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires, etc. That are in the near vicinity of the changing unit.
