babyletto M4216 Hudson 6-Drawer Assembled Double Dresser User Manual
hey there,
It’s time to bring that dream nursery to life with babylet to. We are here to help with all the tools and resources you need to design
a space that feels like you. Our babylet to community is important to us so we’re always sharing styling tips, ideas to try, and unique inspiration. Share your style with us at #babyletto
Welcome to the baby let to family
getting started
If you need help or have questions, please let us know! nous le faire savoir!
BABYLETTO.COM/SUPPORT
(323) 282-5163

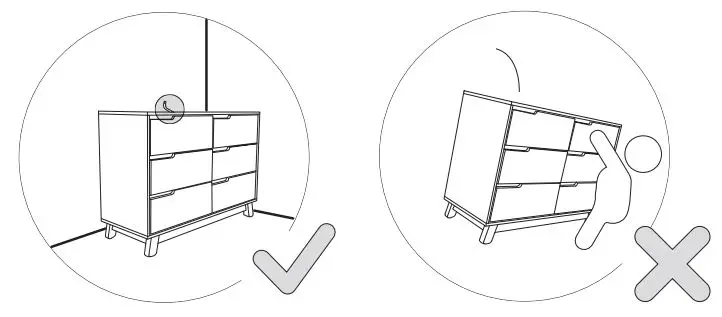

Anti-tip kit installation contra

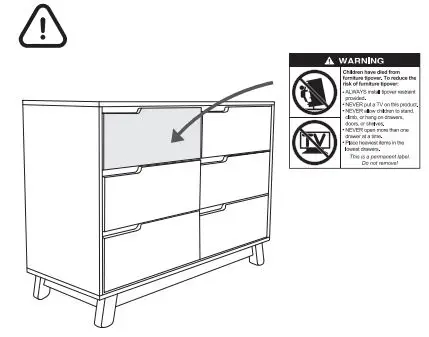

Children have died from furniture tip over. To reduce the risk of furniture tip over, ALWAYS install tip over restraint provided.

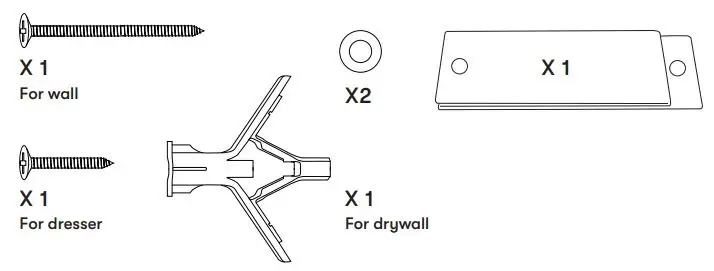

hardware actual size
Find your wall material and follow Determine el material de la pared your wall.
Drywall or plaster with available wood stud:
– Mark the attachment point with a pencil, 1″ to 2″ (25-50 mm) below top of dresser, positioned over a wood stud.
– Drill 1/8-inch (3 mm) diameter pilot hole into the wood stud, on the pencil mark.
– Following the appropriate pictogram instructions on the following pages, drive the screw with washer through the textile strap and tighten screw firmly into the wood.
Drywall without available wood stud:
– Mark the attachment point with a pencil, 1” to 2” (25-50 mm) below top of dresser.
– Drill 3/8-inch (9 mm) diameter hole through the wall, on the pencil mark.
– Drive the plastic anchor into the hole, using a hammer if needed.
– Following the appropriate picto- gram instructions on the following pages, drive the screw with washer through the textile strap and tighten screw firmly into the plastic anchor in the wall. Do not over-tighten.
If your wall material is not listed here, or if you have any questions, consult your local hardware store.
Assembly Instructions

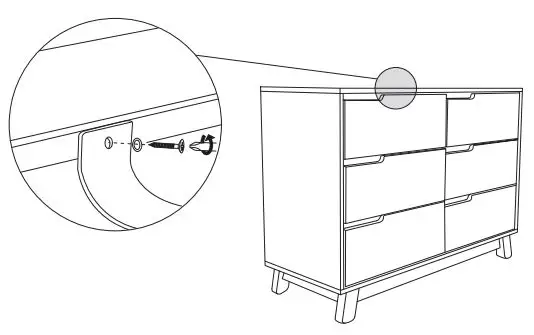

Fasten strap to back of dresser.

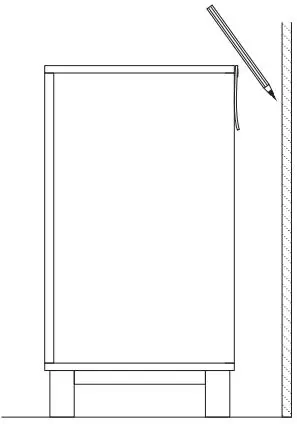

Mark spot on wall 1-2” (25-50mm) below the top of the dresser.

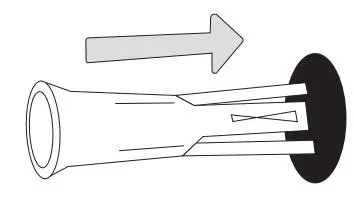

Follow the “Find Your Wall Material” instructions on the previous page. Drill a 3/8″ (9 mm) hole and insert plastic anchor into hole (If needed).

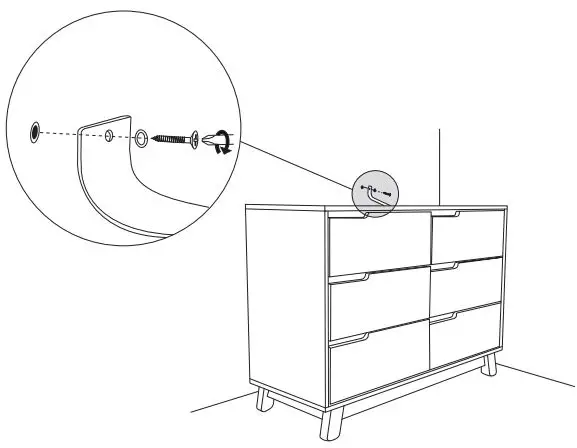

Fasten strap/bracket by screwing into plastic anchor or wood stud.
Complete!
* Drywall without available wood stud.
* Drywall or plaster with available wood stud.
Voila!
* CHANGER TRAY IS NOT INCLUDED, SOLD SEPARATELY.
CHANGER TRAY M0219 OR M0619 IS RECOMMENDED.
READ ALL INSTRUCTIONS BEFORE USING THE PRODUCT. KEEP THE INSTRUCTIONS FOR FUTURE USE.
KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. Recheck all screws and bolts to be sure they are fastened securely. Do not overtighten.
Storage
Because materials respond to temperature and humidity, it is important to store furniture in controlled environments. Furniture should not be placed in direct sunlight or near air-conditioning outlets, radiators, heaters, or humidifiers. Any changes such as extreme heat or cold, dampness, or dryness, may cause noticeable shrinkage or swelling of wood. Direct sunlight may affect the colouring of materials over time.
