Babystyler Vancouver Dresser And Baby Changer Instructions

BabyStyler Vancouver Dresser and Baby Changer

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY

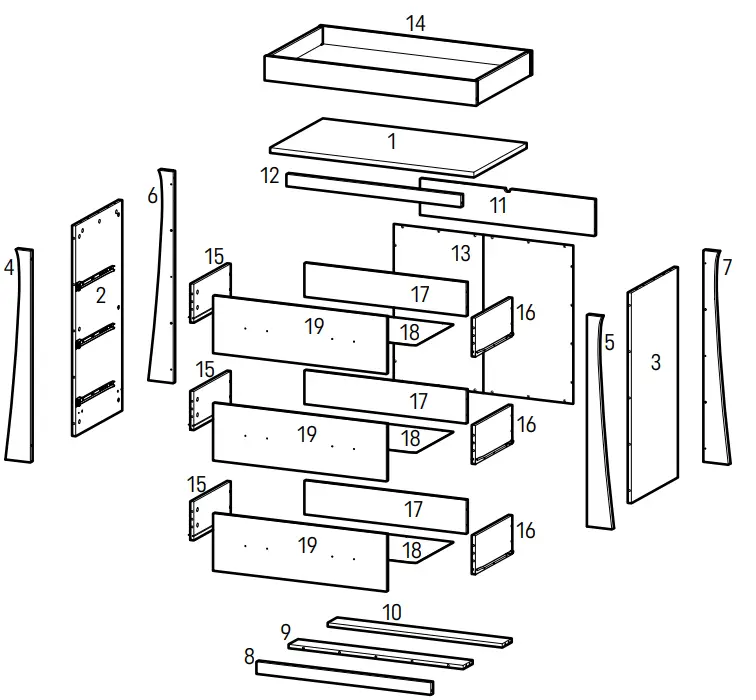

PART LIST

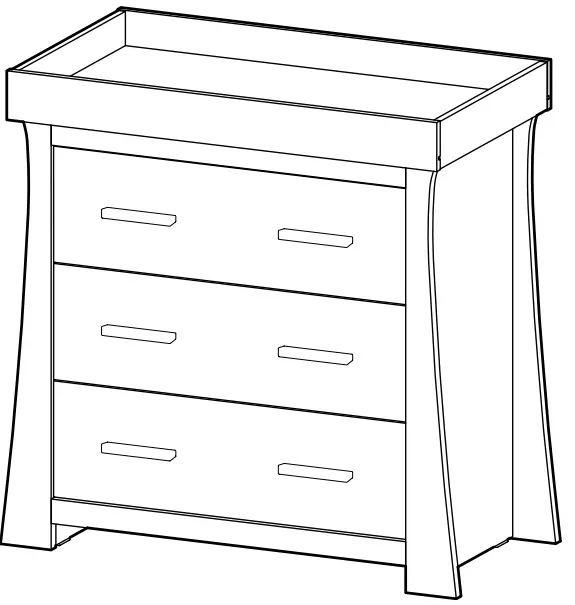

Vancouver Dresser

• Unpack all components and panels and identify them against the parts listed. If any parts are missing or damaged please contact your retailer. Do not discard any packing until you are sure you have all the components listed.

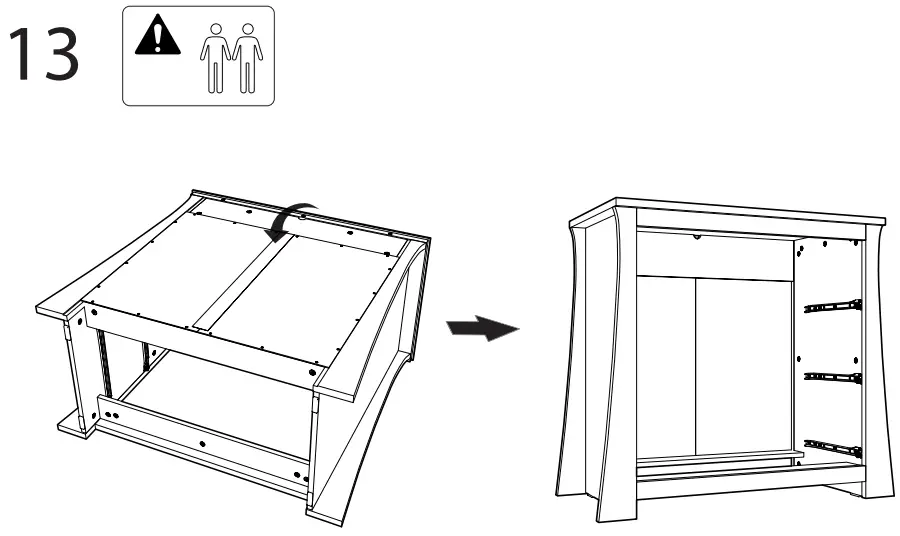

• Construction of this dresser/ changing unit requires two people.


  ITEM NUMER		IND.4021163	QUANTITY	DIMENSIONS [mm]
  1	1/3	2218154	1	900	500	22
  2	2/3	2218147	1	872	441	16
  3	2/3	2218148	1	872	441	16
  4	2/3	2218150	1	876	110	22
  5	2/3	2218151	1	876	110	22
  6	2/3	2218152	1	876	110	22
  7	2/3	2218153	1	876	110	22
  8	2/3	2218156	1	770	50	22
  9	2/3	2218145	1	771	90	16
  10	2/3	2218146	1	771	90	16
  11	2/3	2218149	1	770	150	16
  12	2/3	2218155	1	770	50	22
  13	2/3	2217004	1	792	656	2,5
  14	3/3	2217005	1	934	532	100
  15	1/3	2218158	3	350	160	16
  16	1/3	2218159	3	350	160	16
  17	1/3	2218160	3	714	139	16
  18	1/3	2218161	3	727	355	2,5
  19	1/3	2218157	3	765	237	16

  In case of complaint please advise index number,which is given in the list of furniture components and fittings.

SCREWING INSTRUCTION

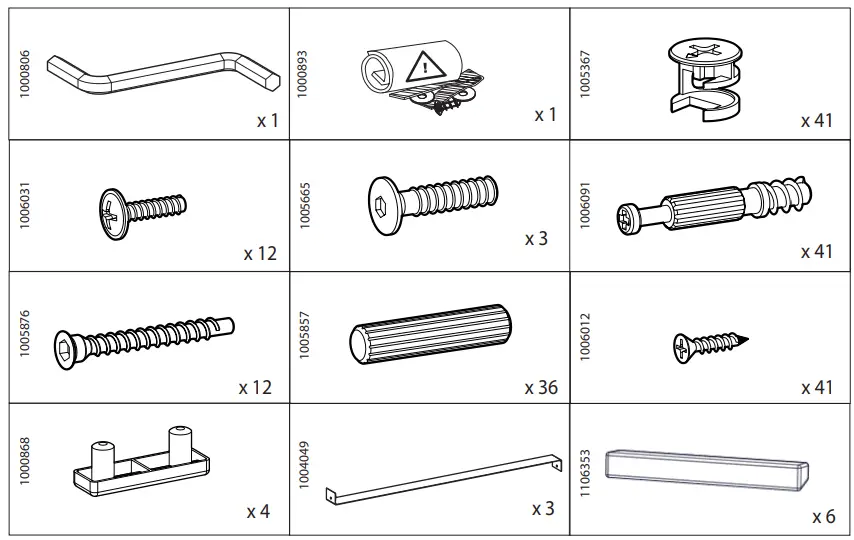

HARDWARE LIST

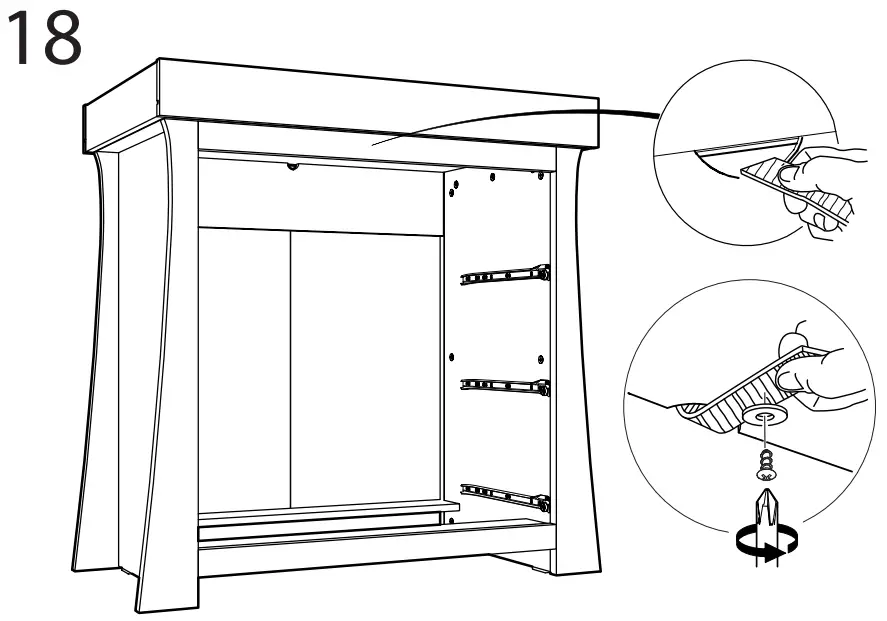

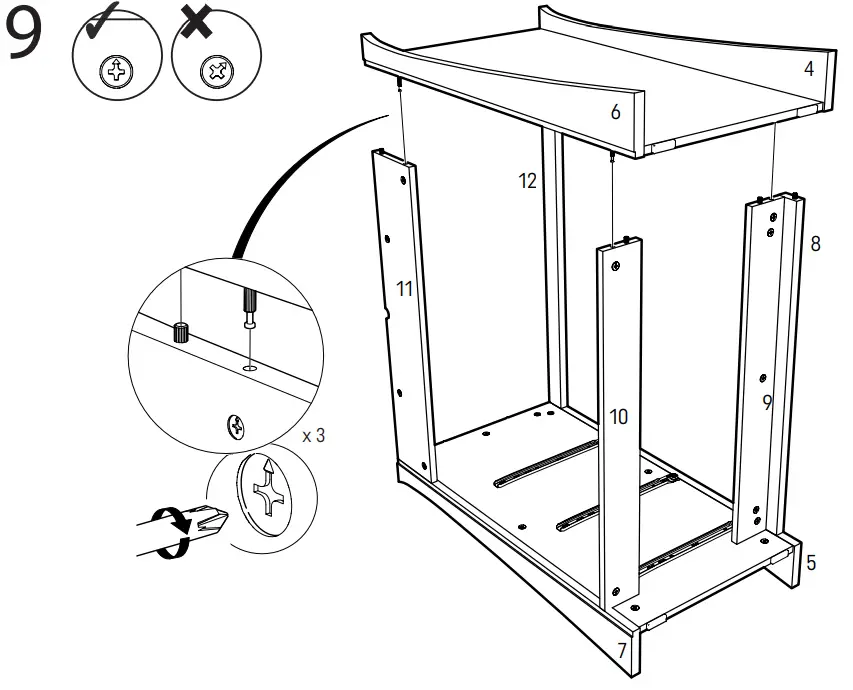

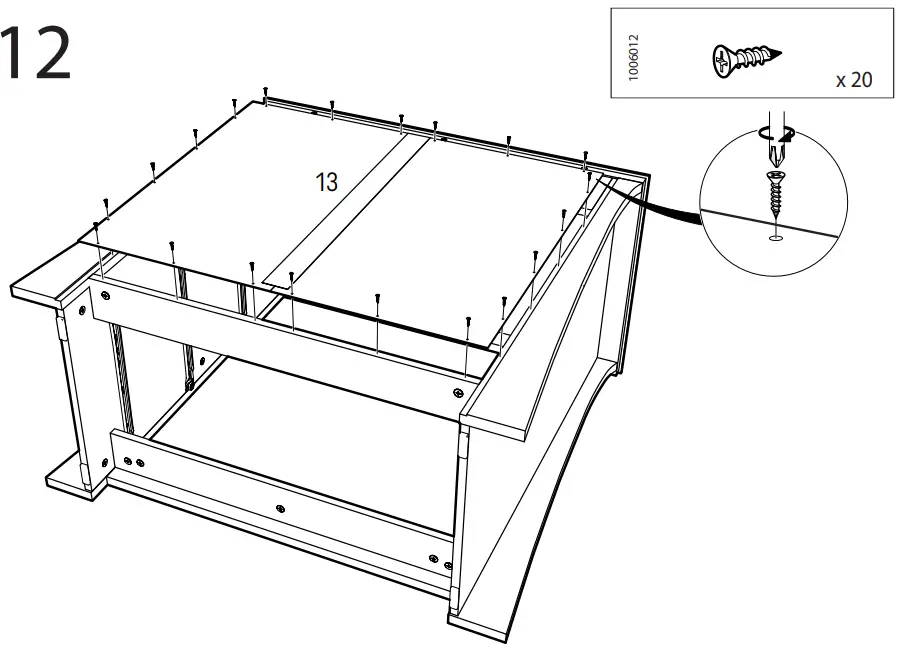

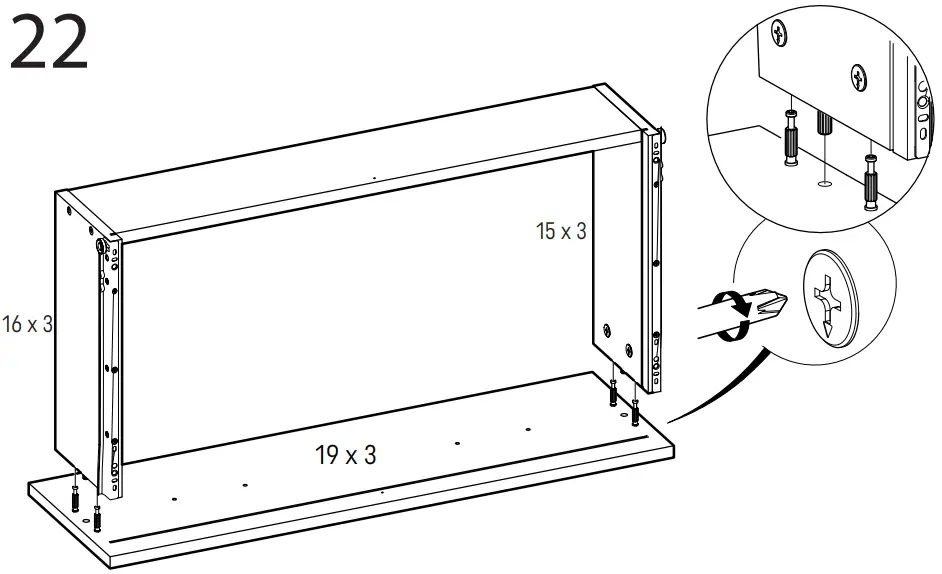

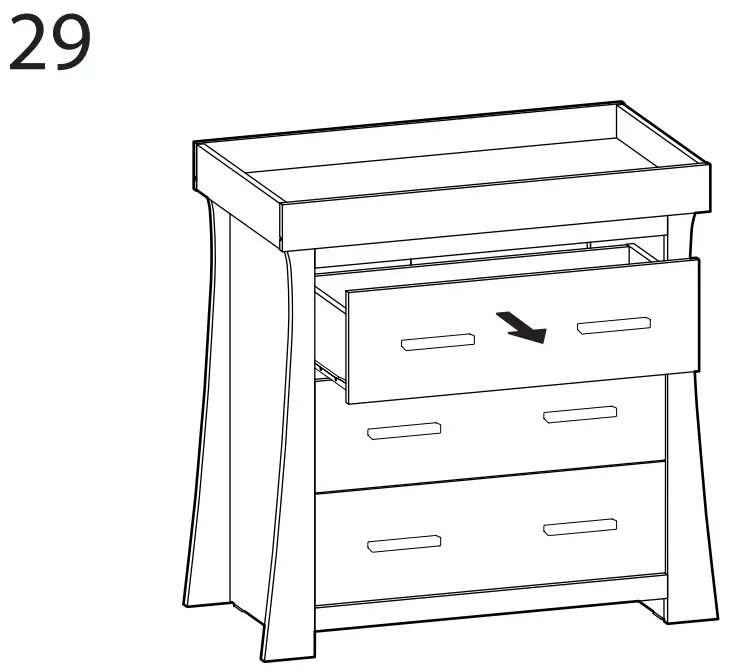

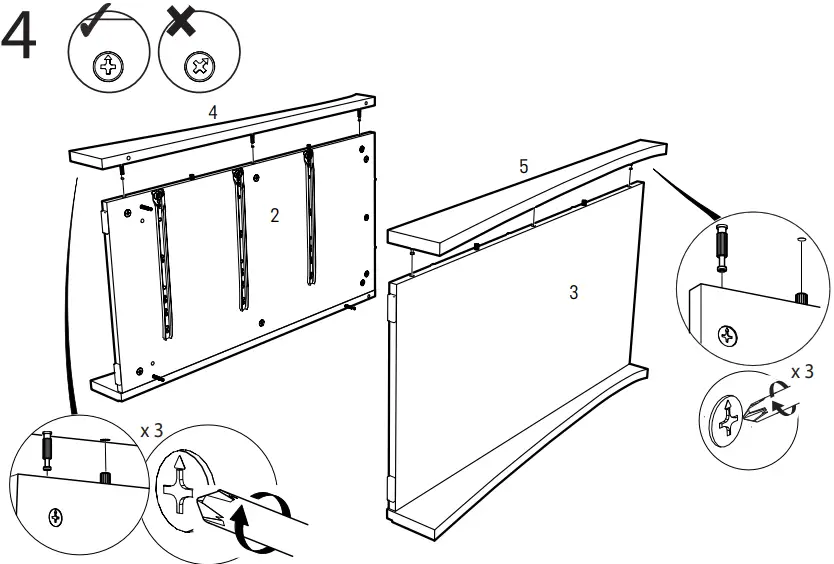

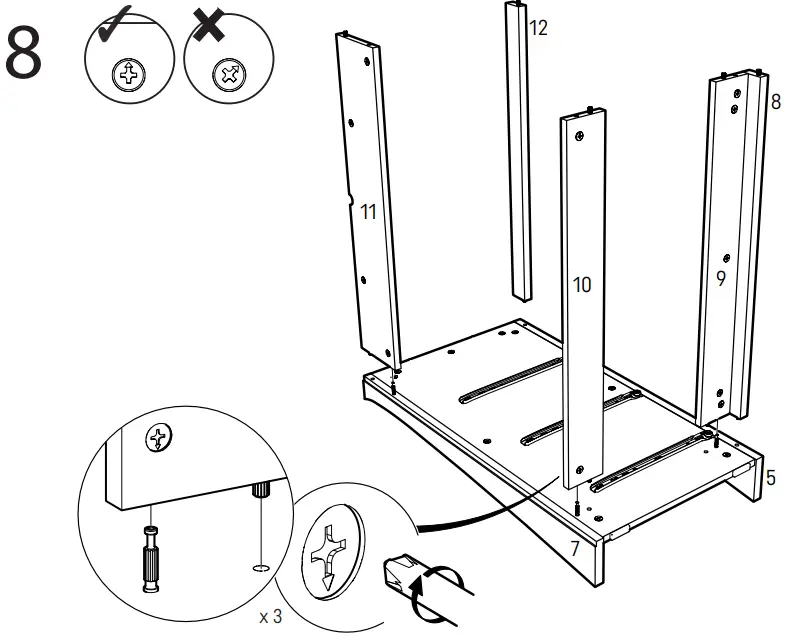

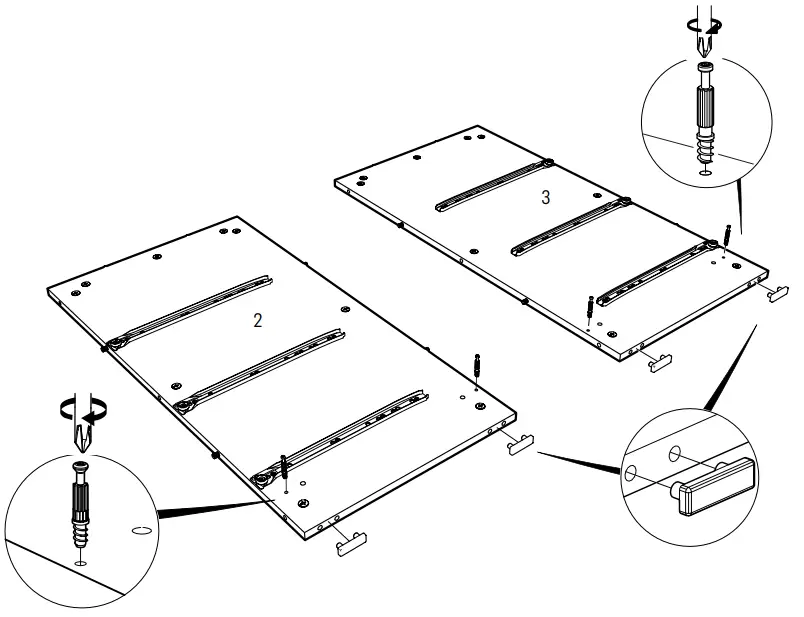

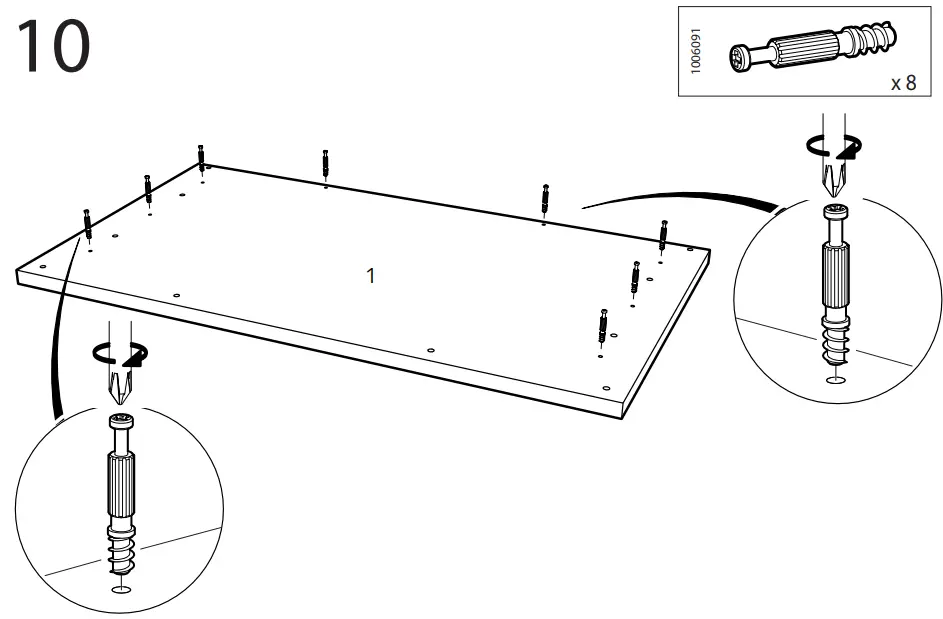

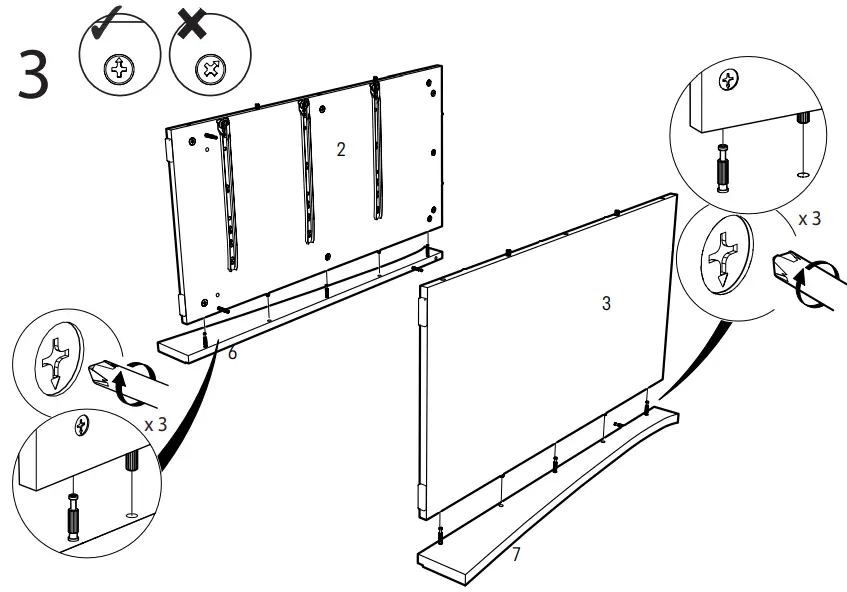

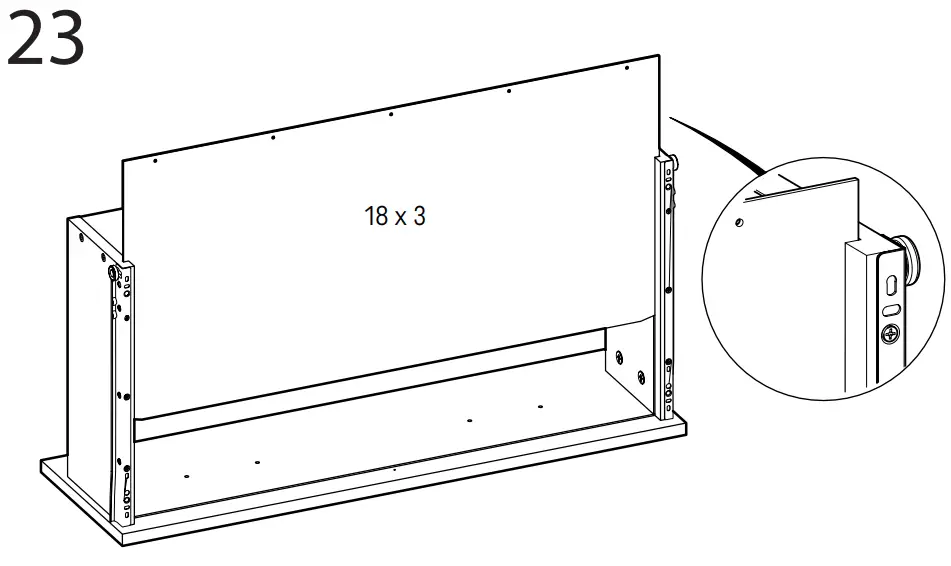

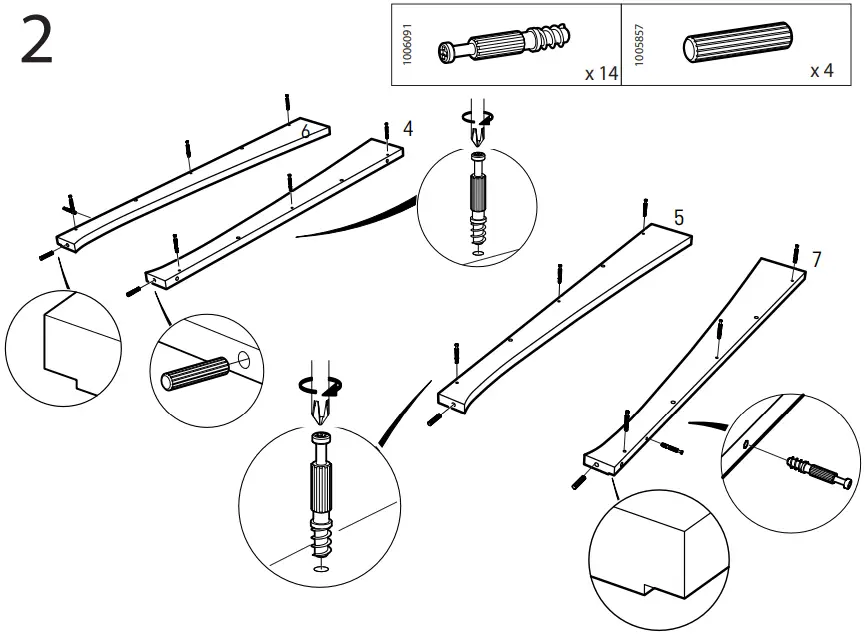

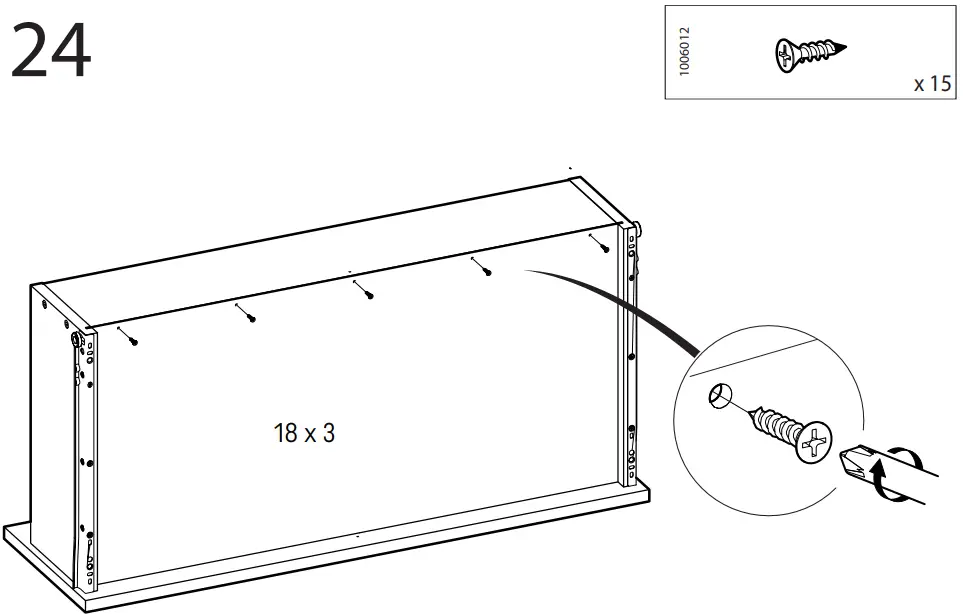

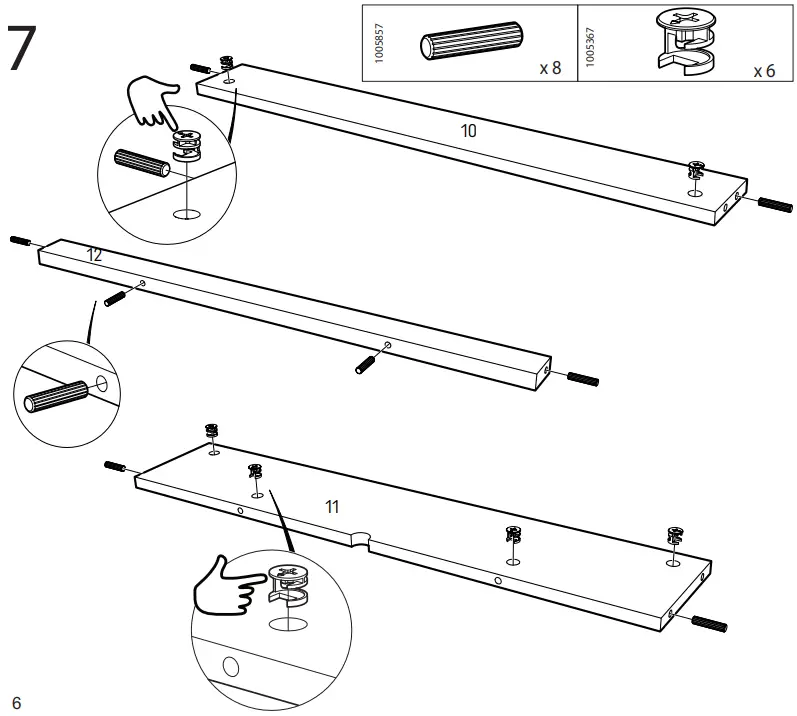

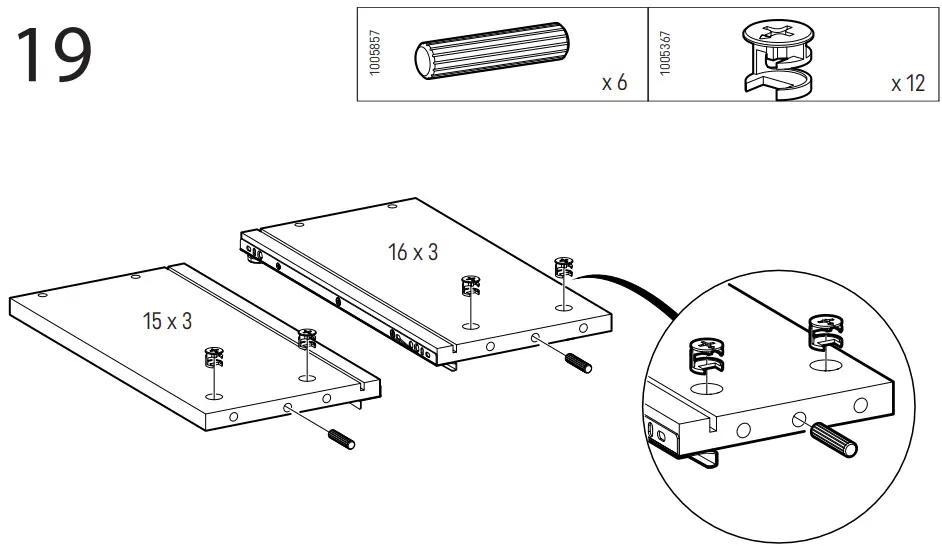

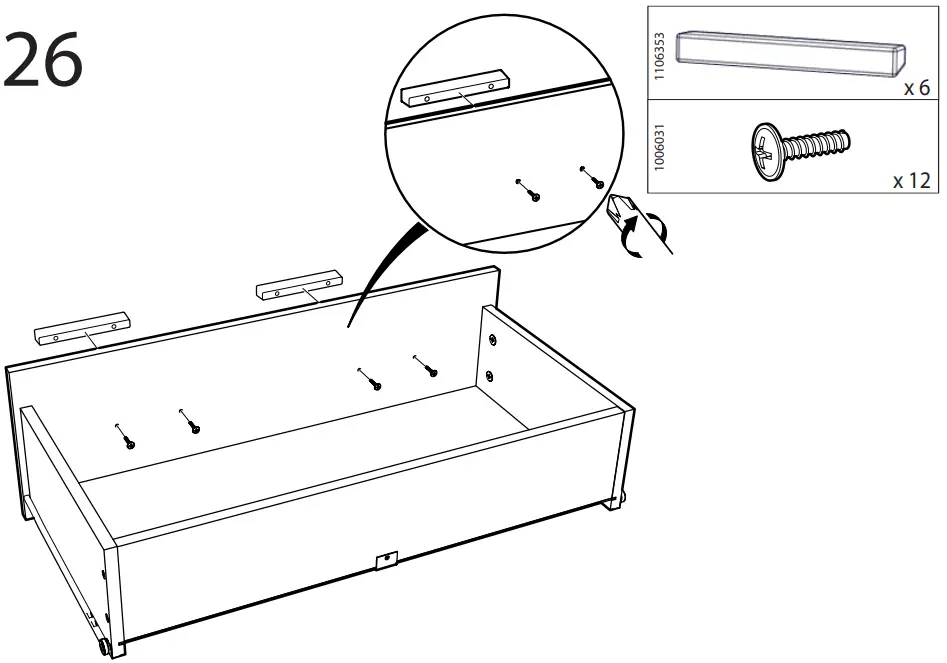

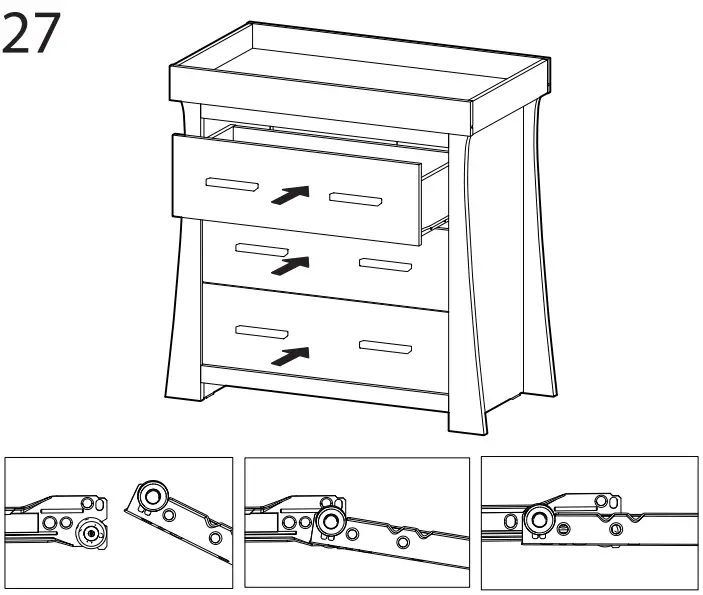

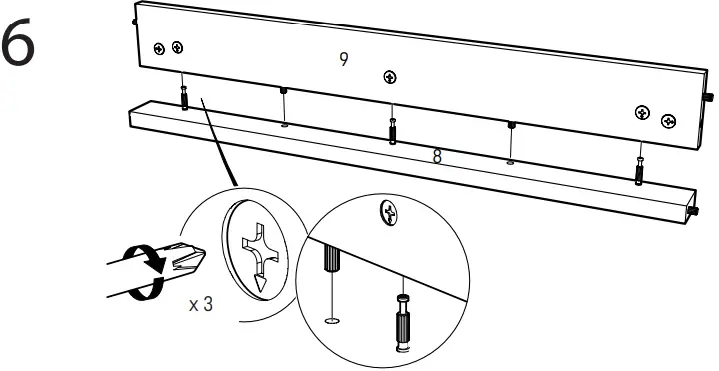

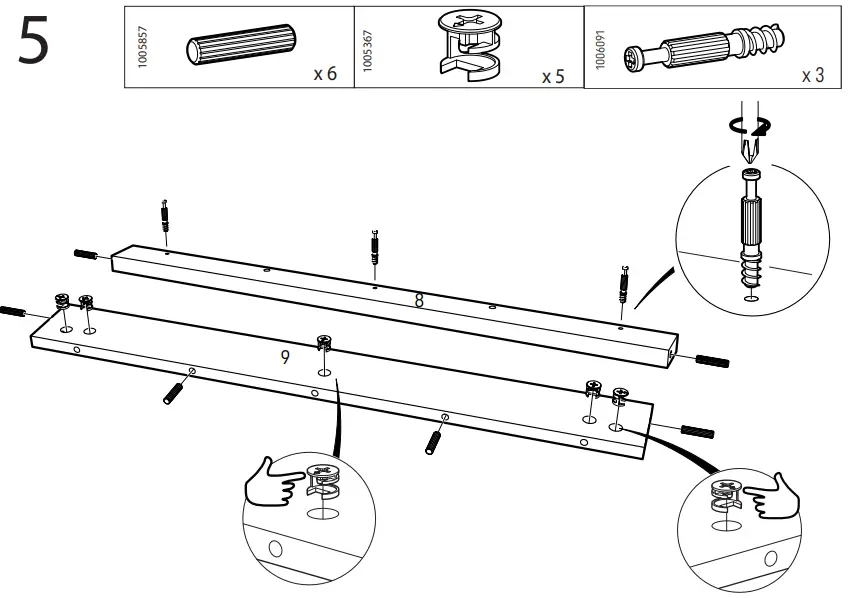

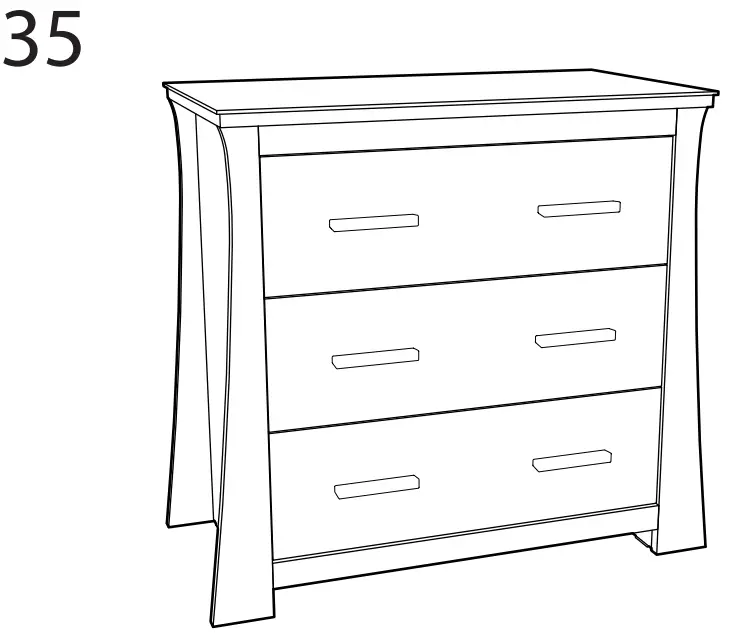

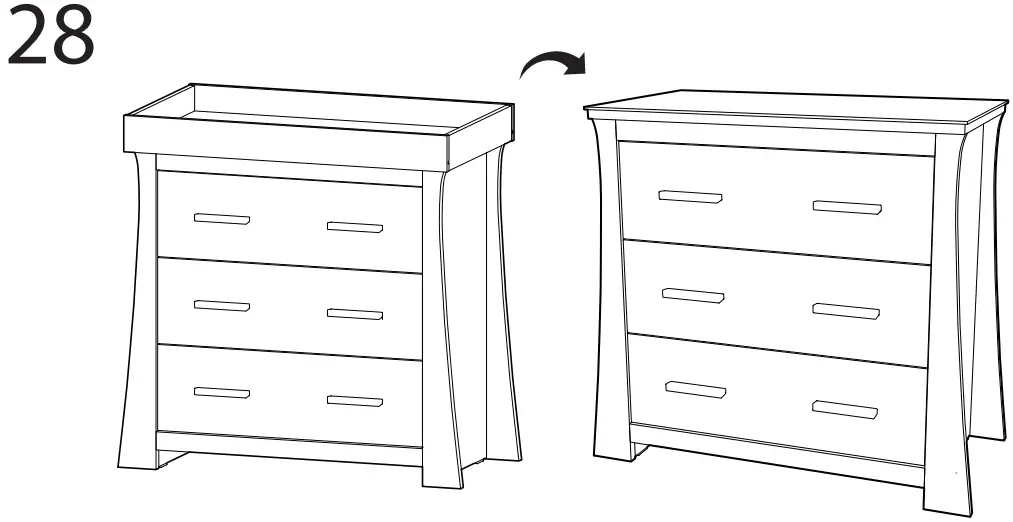

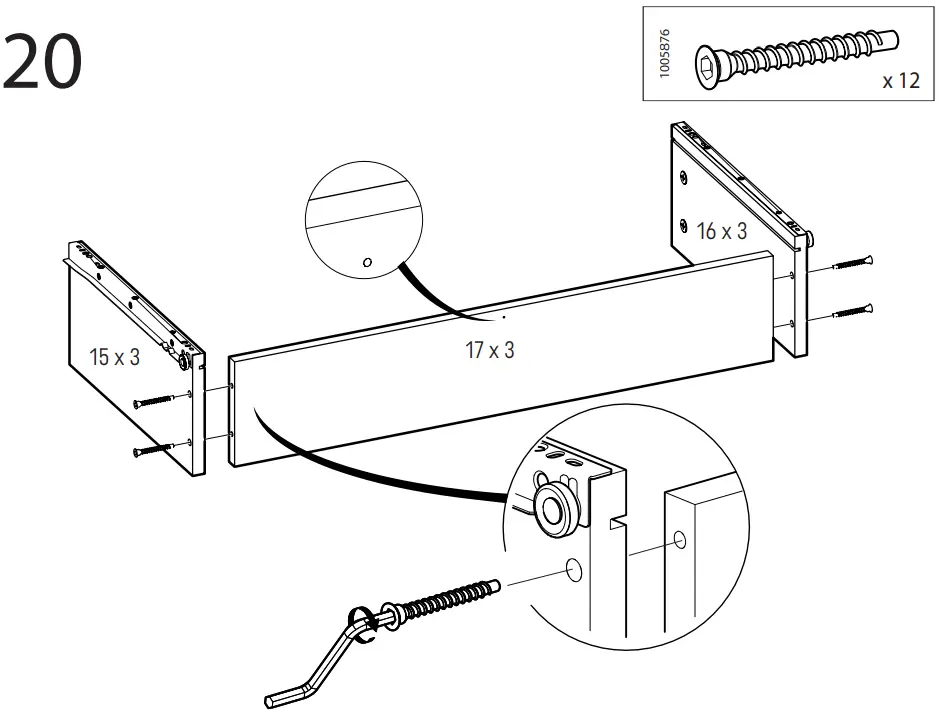

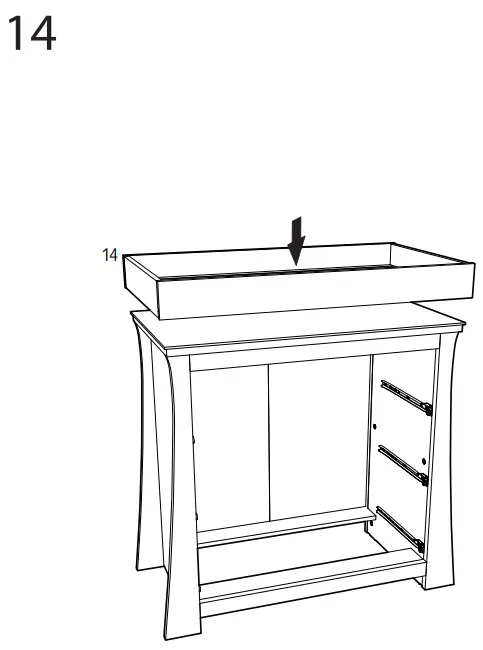

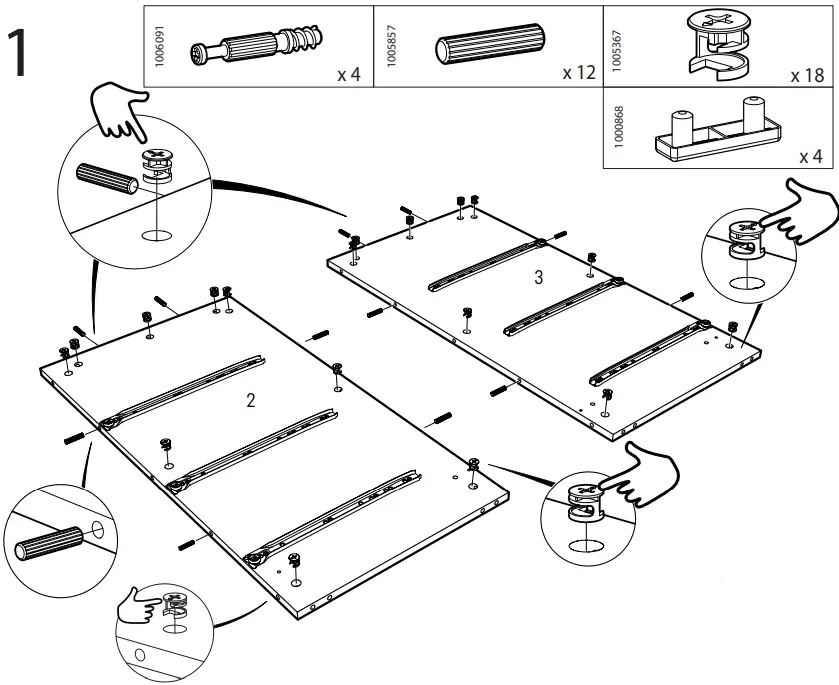

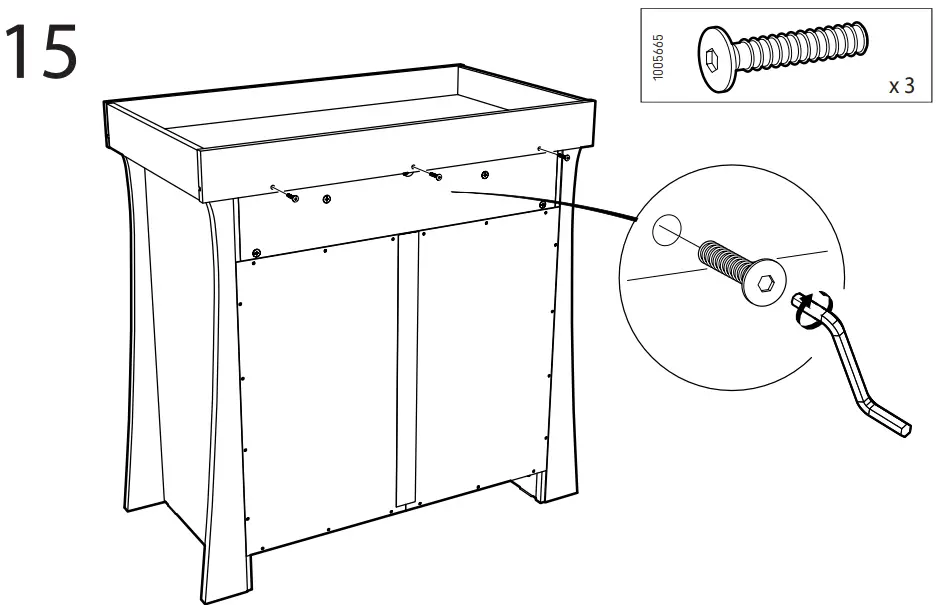

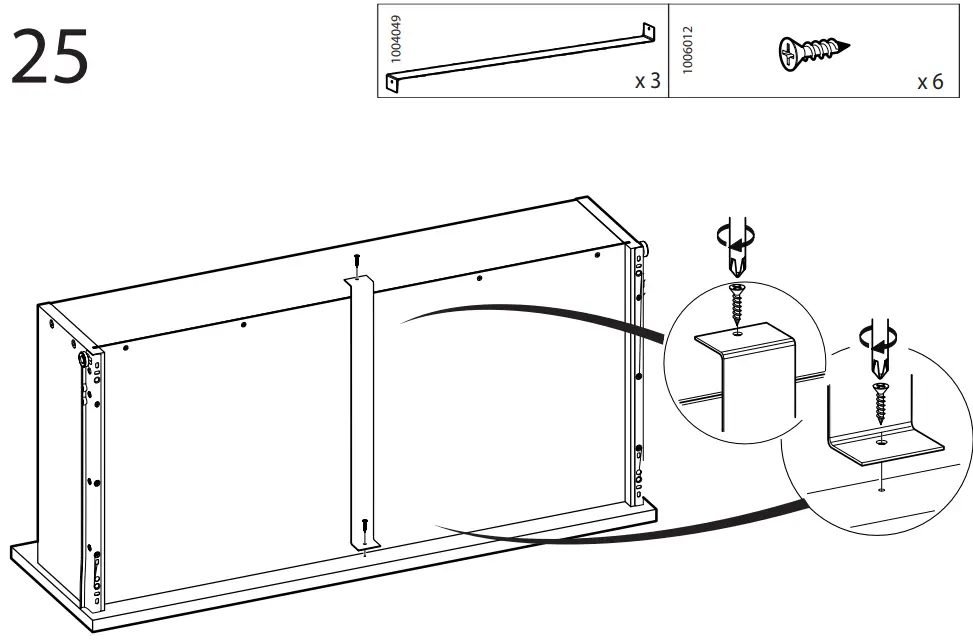

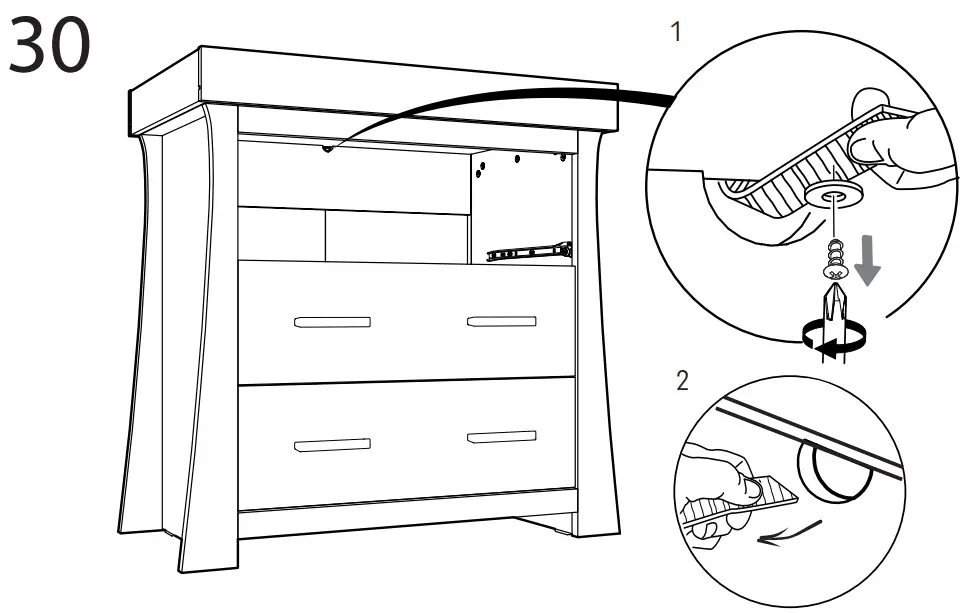

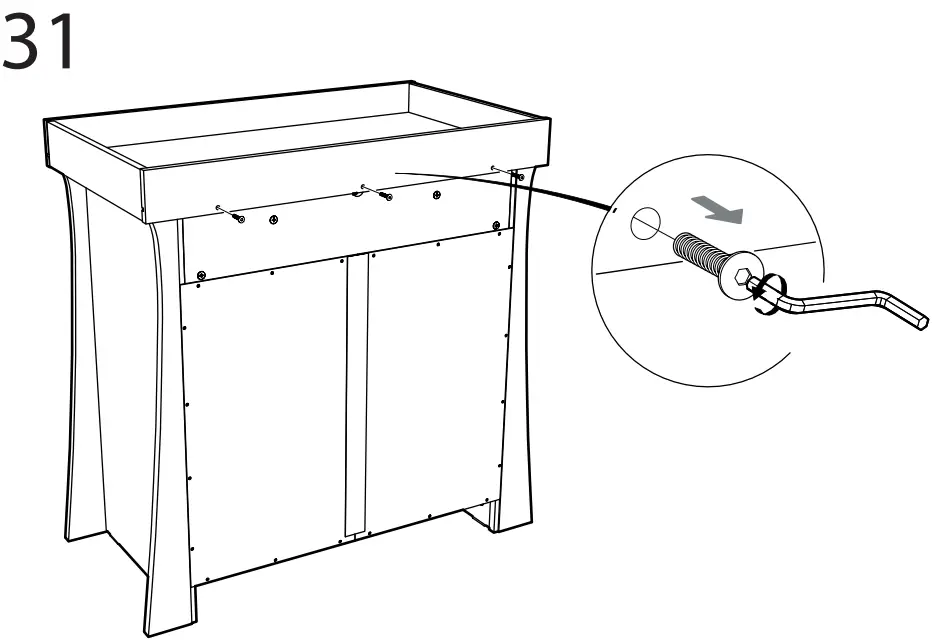

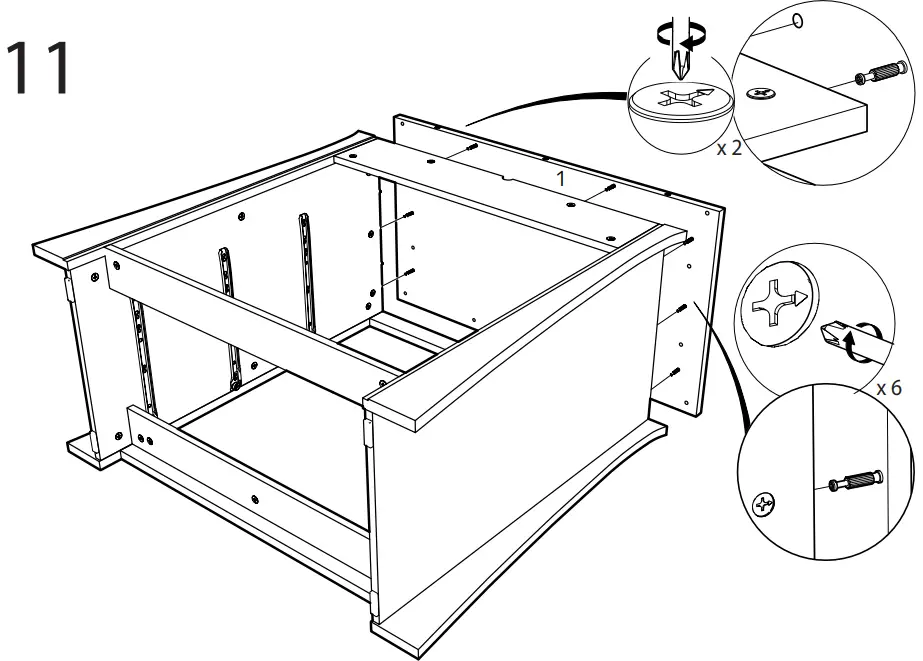

ASSEMBLING INSTRUCTION

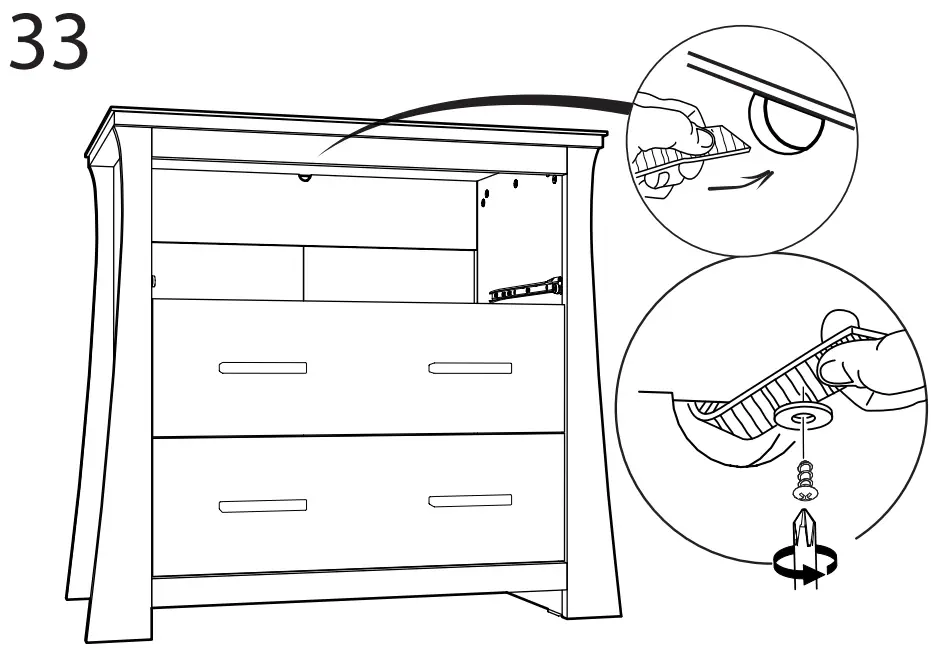

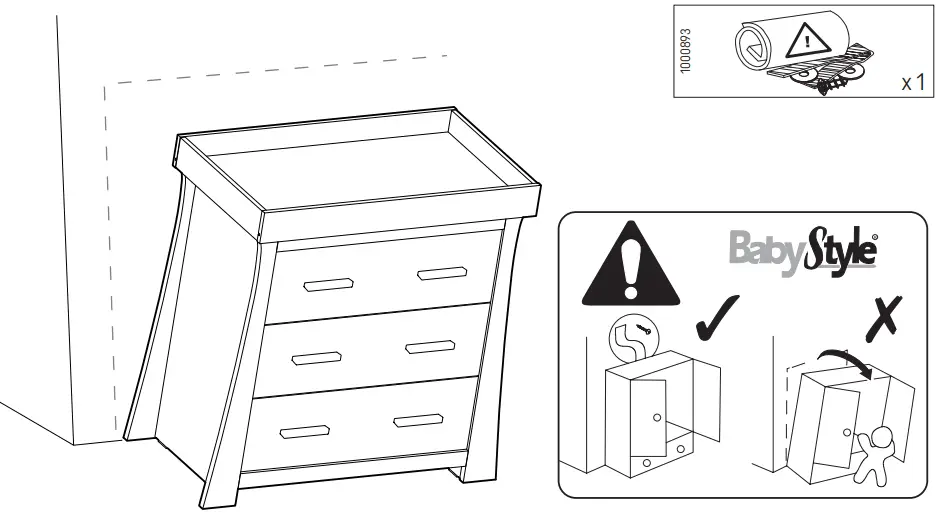

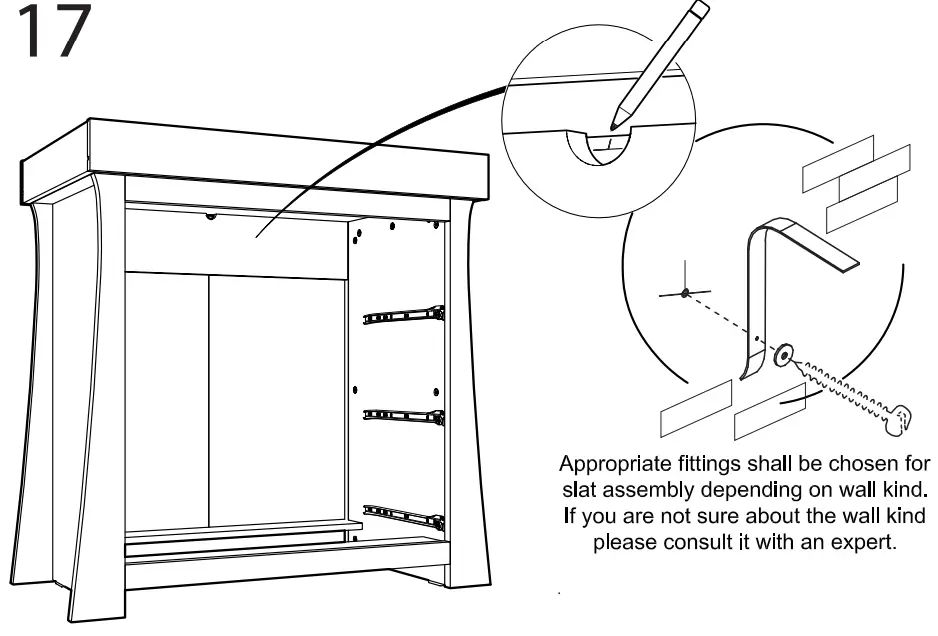

ATTENTION! Furniture shall be fixed to the wall to prevent it from falling over during the use. Fixing the furniture to the wall shall be carried out in accordance to instruction attached to the fitting

INSTRUCTIONS FOR SAFE USE AND MAINTENANCE

1. WARNING: NEVER LEAVE YOUR CHILD UNATTENDED. THE SAFETY OF YOUR CHILD IS YOUR RESPONSIBILITY.
2. Do not allow children to climb on the dresser.
3. Never leave your child unattended on the dresser .
4. Never use the dresser if it is broken or damaged or there are parts missing.
5. Be aware of the risk of open fires and other sources of strong heat, such as electric bar fires, gas fires, et c . That are in the near vicinity of the changing unit.
6. Always leave the dresser clean and dry. Wipe away any spillage straight away. The dresser can be cleaned with a clean damp cloth. Do not use aggressive cleaning agents such as bleach or strong detergents.
7. Check on a regular basis that all fittings and screws are correctly tightened and are not damaged. Loose screws can pinch parts of the body and clothing resulting in the risk of strangulation.
8. A changing pad is not supplied with this product. Lay the changing pad on the changing surface within the retaining walls.
9. Suitable for children up to : 12 months, or 11kg .
10. Use only spare parts approved by BabyStyle. Product development dictates that components may occasionally differ from the ones shown in the diagrams of these instructions. The right to change the specifications and design of the furniture without prior notice remains with the manufacturer.

Guarantee

• All our products are produced from the finest quality materials and are manufactured under the strictest quality controls .
• We guarantee all our products or part there of against faulty manufacture; for a period of six (6) months from the date of purchase. This guarantee is not effective against accidental damage or damage caused by incorrect use or neglect. This does not affect your statutory rights .
• Babystyle UK Ltd, Sileby, Leicestershire, LE12 7RJ, United Kingd om www.babystyle.co.uk
