Herva Ph-1720 6 Door Wardrobe Instruction Manual

Herva PH-1720 6 Door Wardrobe

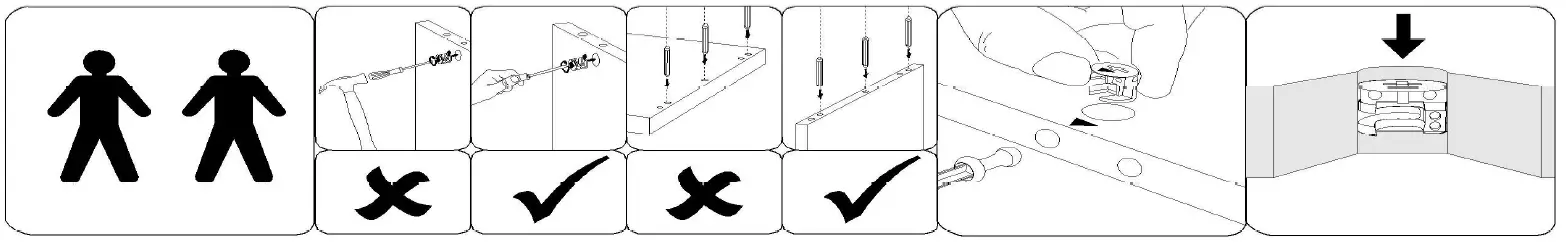

Assembly
Before the assembling is recommended to read carefully the assembly instruction by professional assemblers.

Assistence
If happen problems with any component, underline the same, identify the problem and send back this relation immediately, by fax or other way.

Attention

Herval reserves the right to effect modifications in the products, without previous advice, when understand necessary.

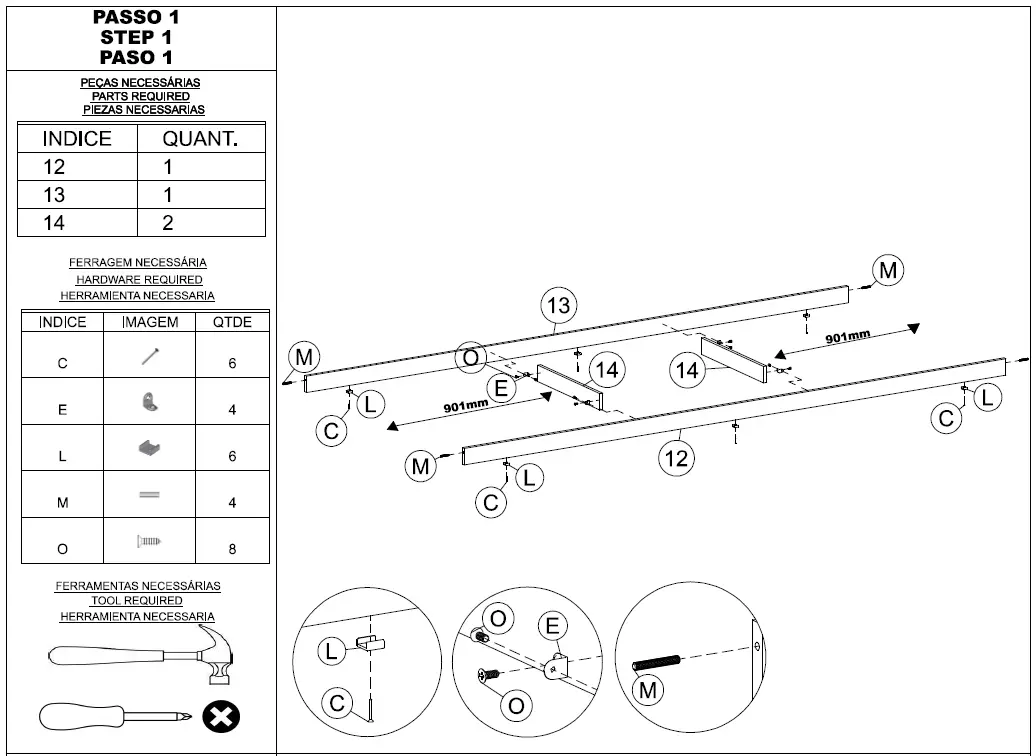

STEP 1

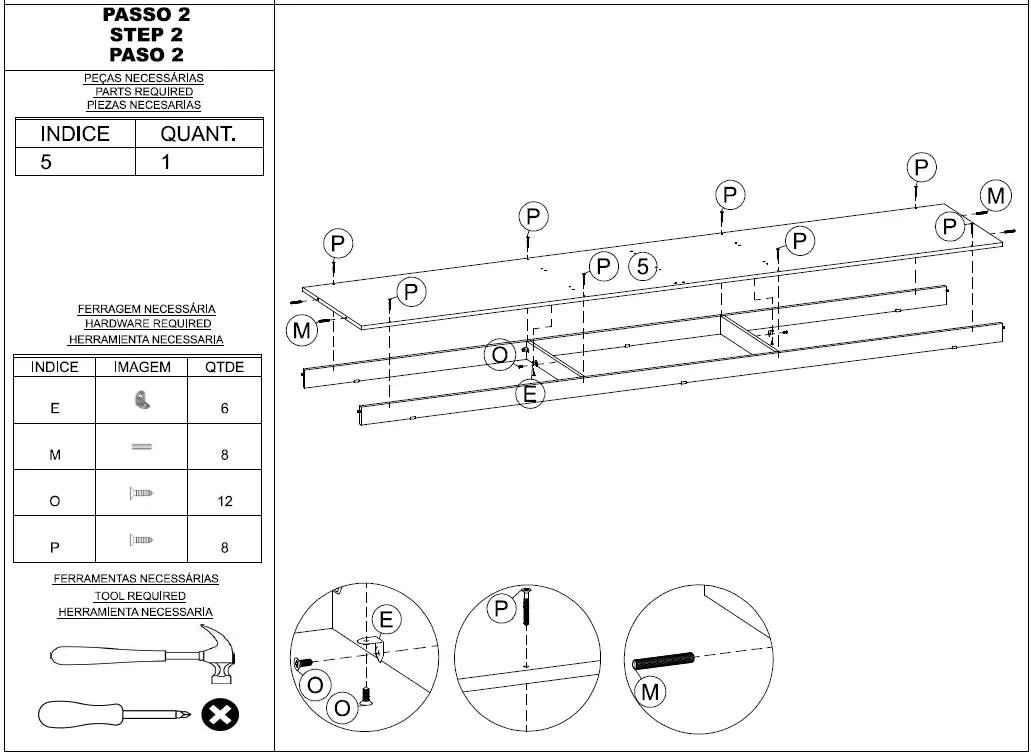

STEP 2

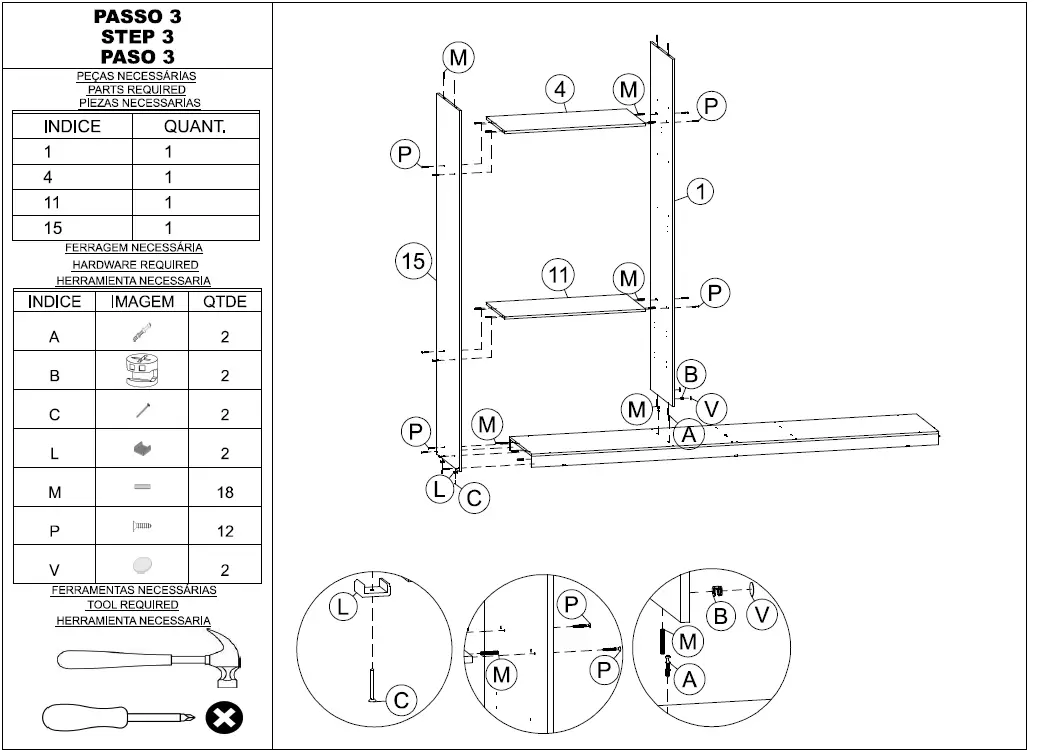

STEP 3

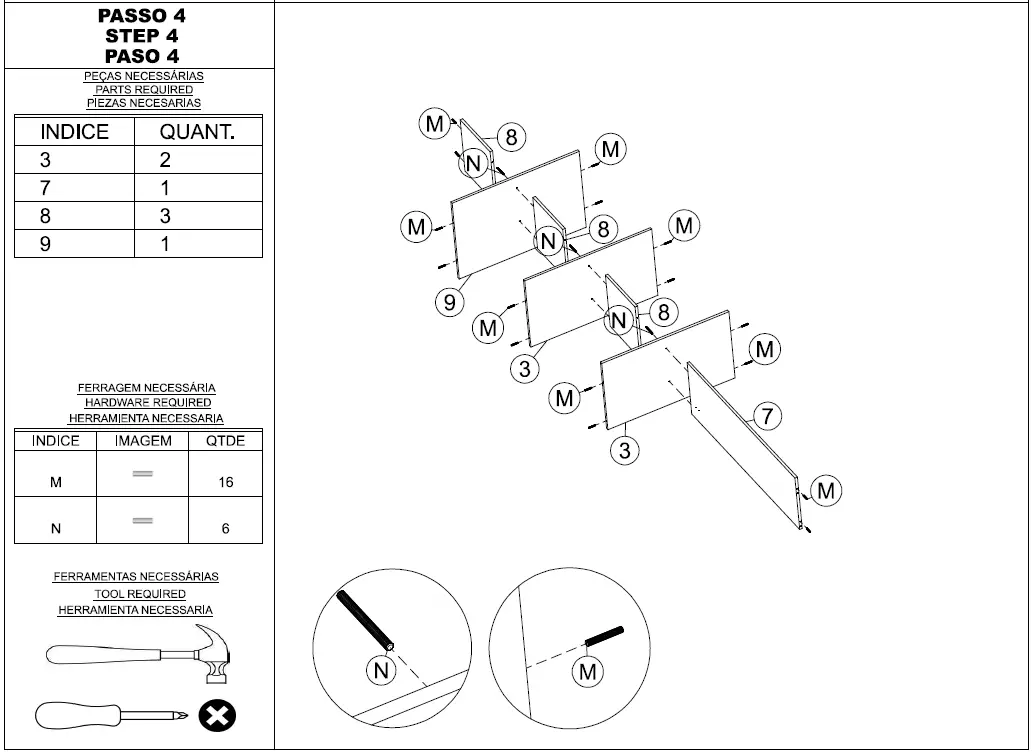

STEP 4

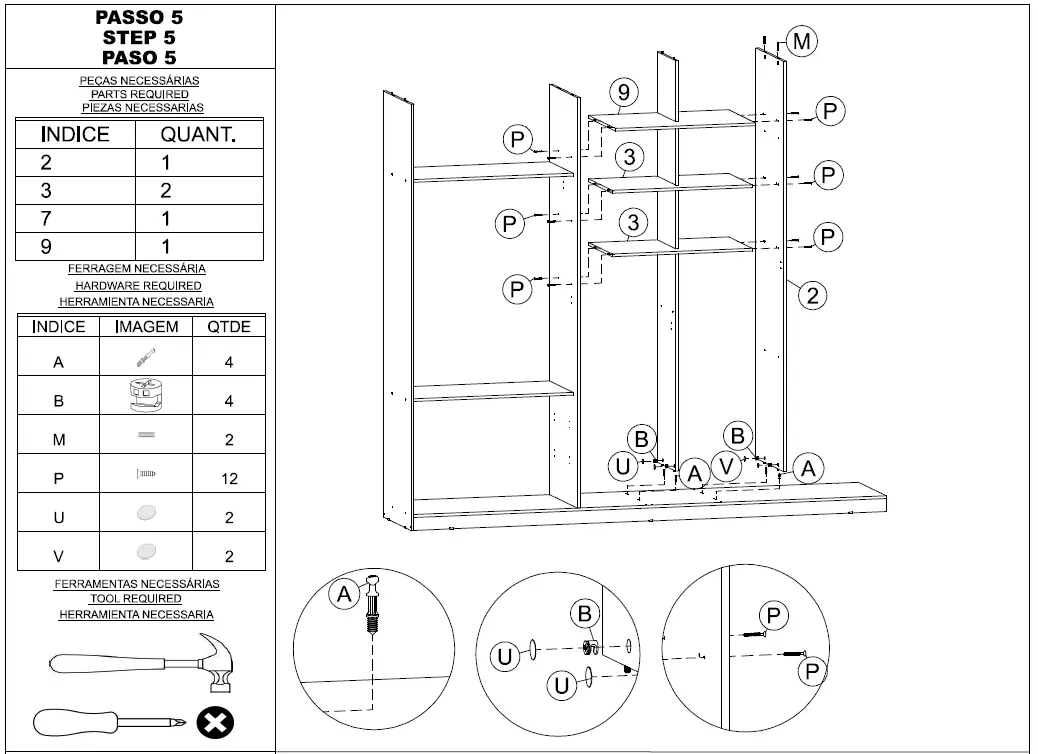

STEP 5

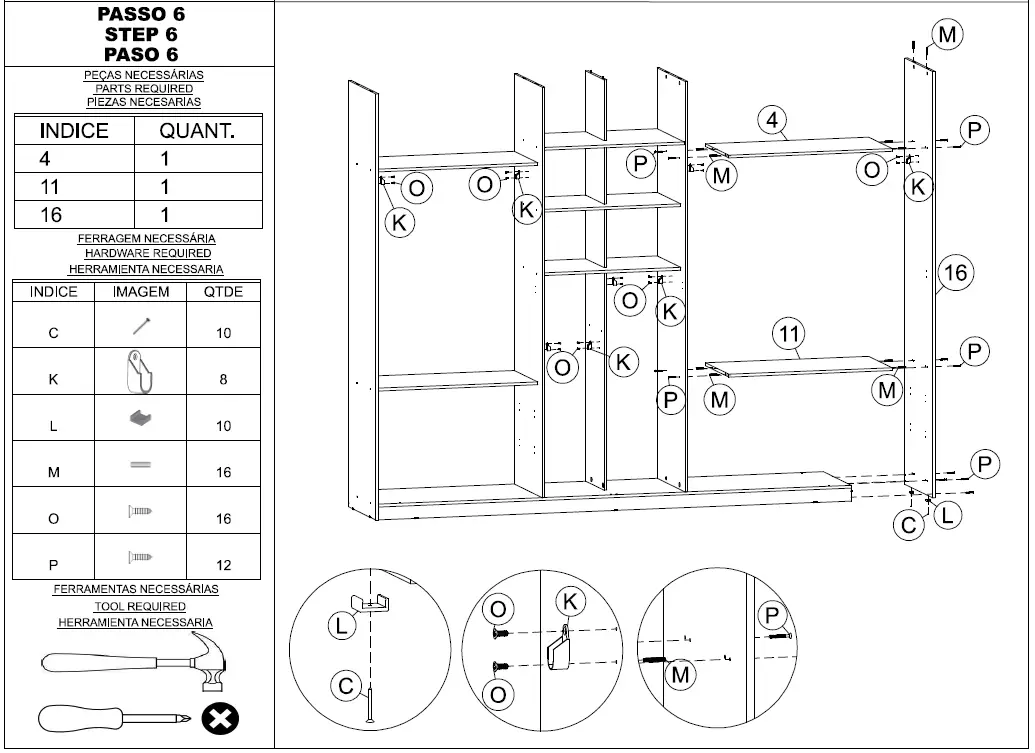

STEP 6

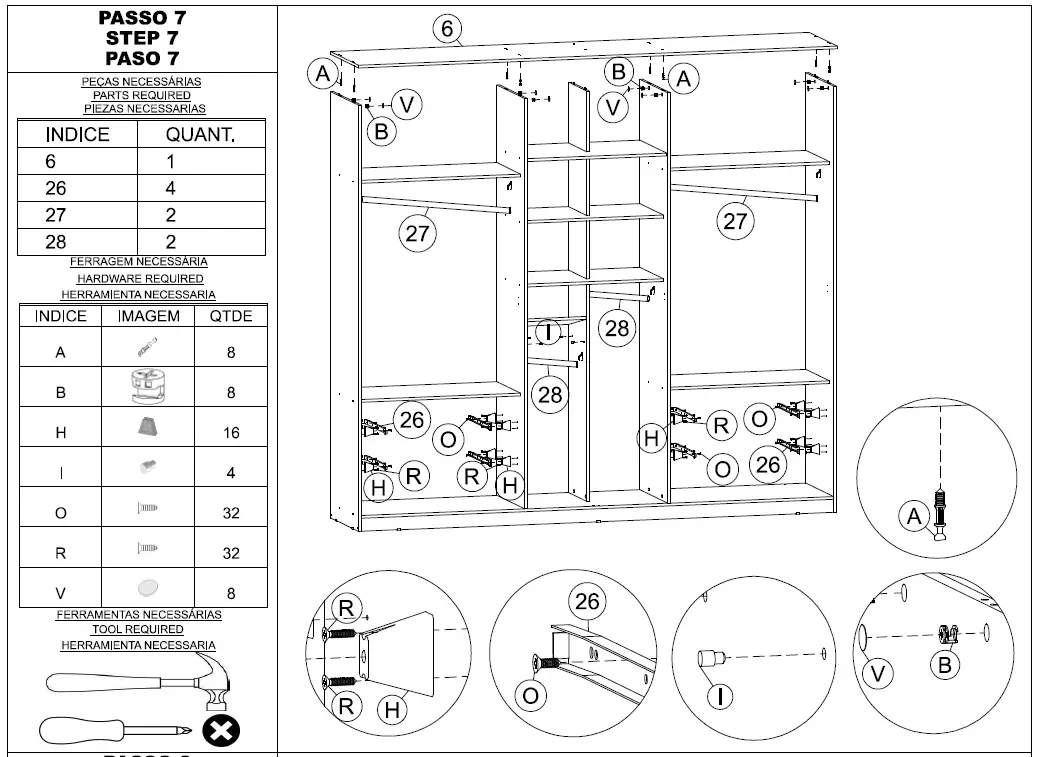

STEP 7

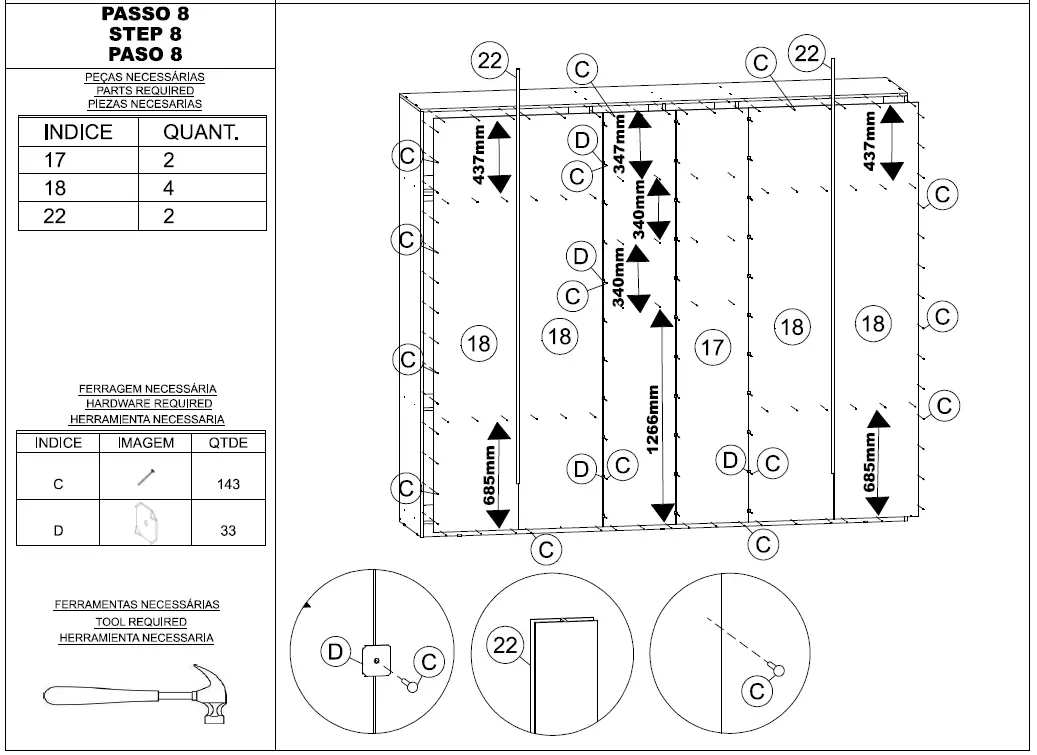

STEP 8

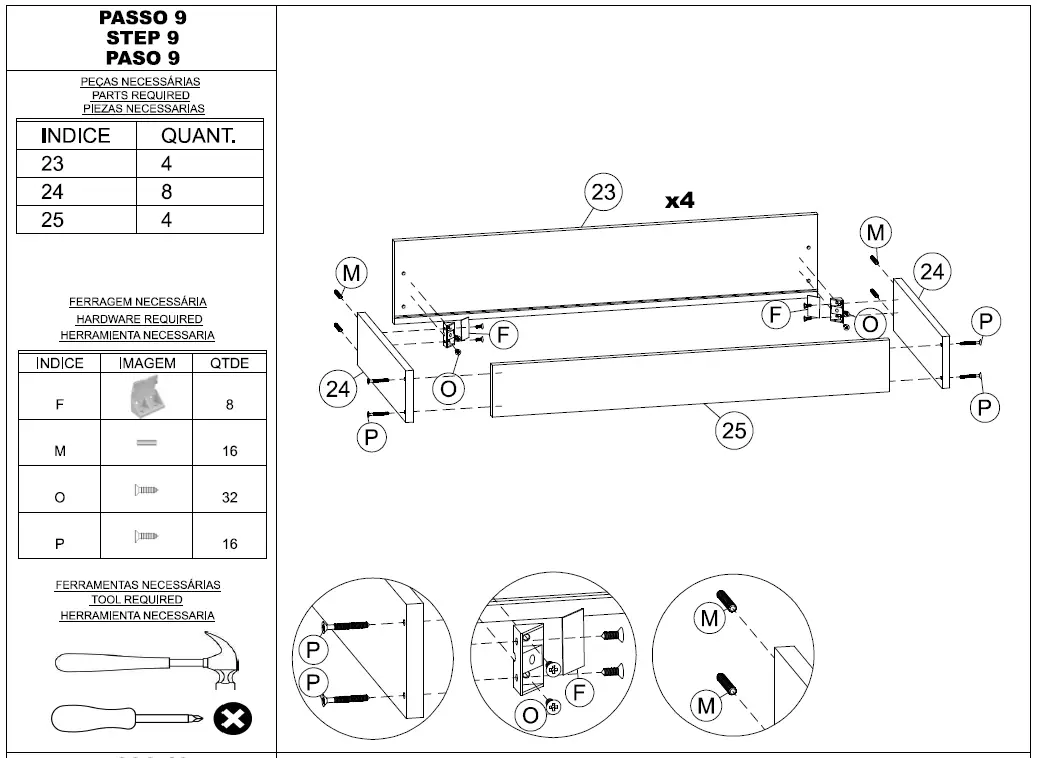

STEP 9

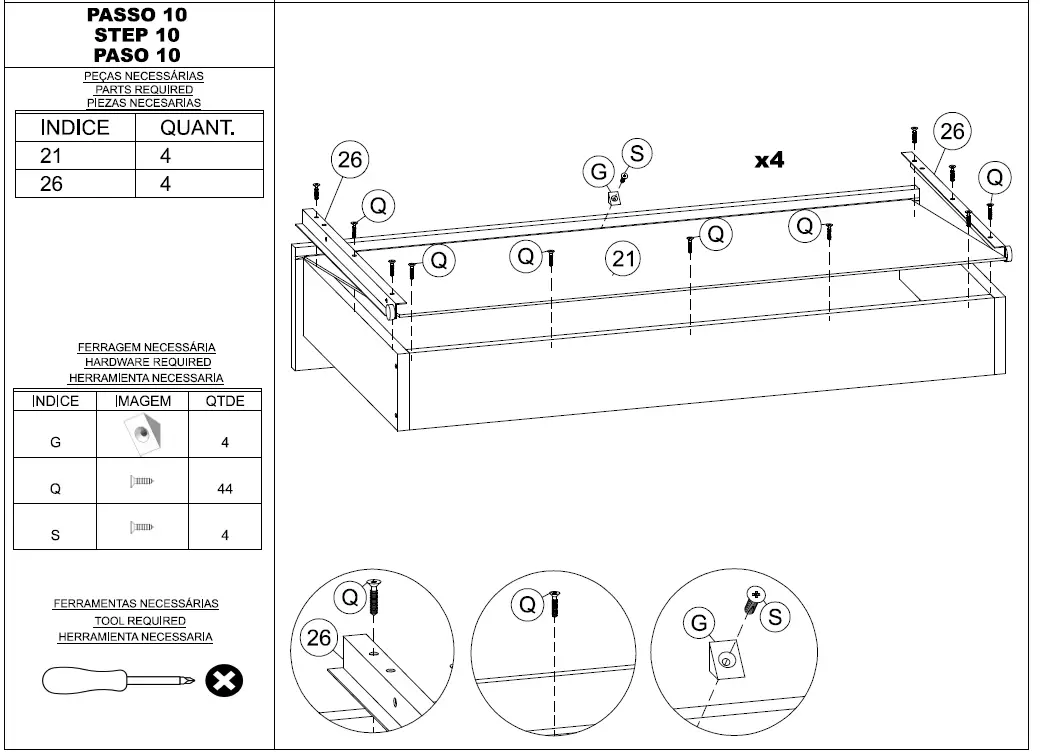

STEP 10

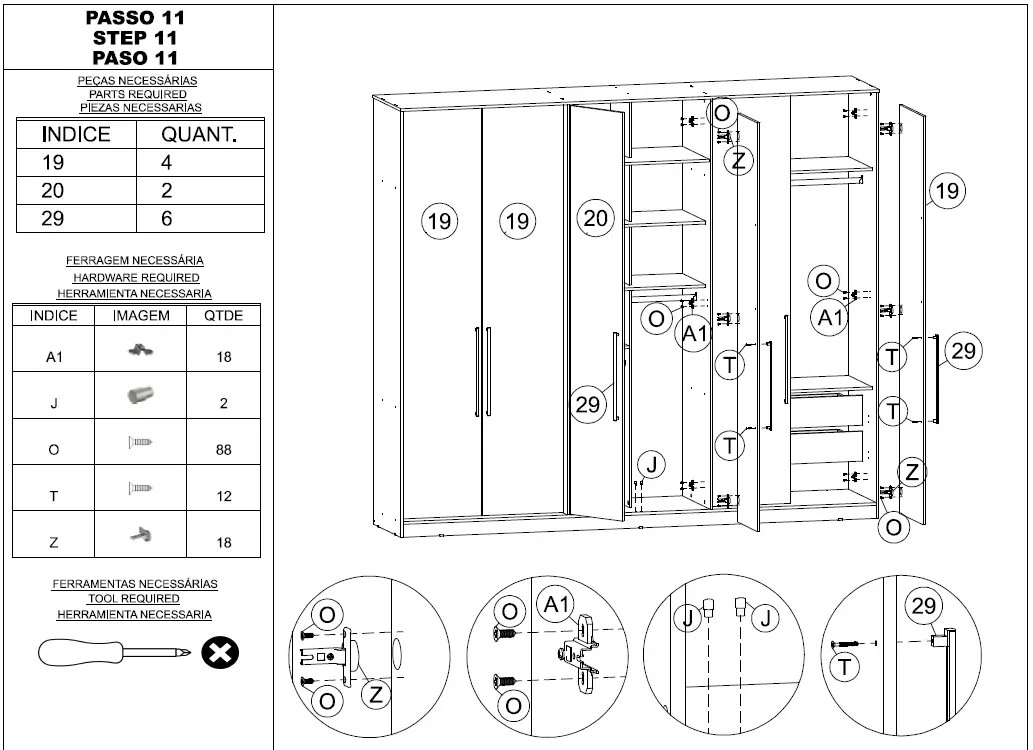

STEP 11

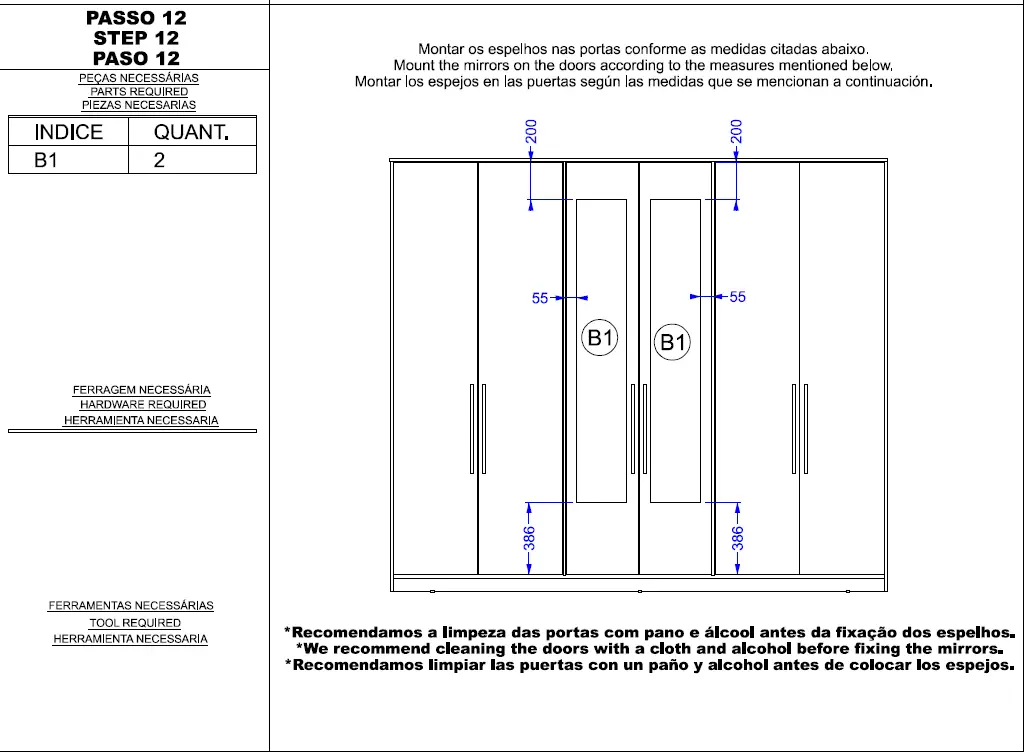

STEP 12
