Kirk
Wardrobe
Spare Parts Customer Support
www.argos-support.co.uk
0345 640 2020
[email protected] 0370 112 1928
Issue 1 – 10/05/22
Safety and Care Advice
Safety and Care AdviceProduct Details

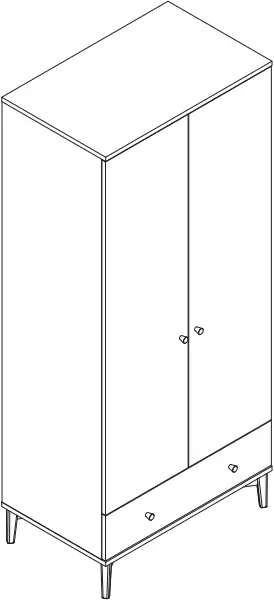

Kirk Wardrobe 3125157 Walnut
Kirk Wardrobe 4013756 Oak
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
- Keep children and animals away from the work area, small parts could choke if swallowed.
- Make sure you have enough space to layout the parts before starting.
- This product has been constructed to be used in the domestic environment only and not for commercial purposes.
- Assemble the item as close to its final position (in the same room) as possible.
- Assemble on a soft level surface to avoid damaging the unit or your floor.
- We do not recommend the use of power drill/drivers for inserting screws as this could damage the unit. Only use hand screwdrivers.
- Parts of the assembly will be easier with 2 people.
- Dispose of all packaging carefully and responsibly.
Care and maintenance
- Only clean using a damp cloth and mild detergent. Do not use abrasive cleaners.
- Use a dry cloth to clean the product, furniture polish is not recommended.
- From time to time check that there are no loose screws, nuts or bolts. If there are please re-tighten.
- This product should not be discarded with household waste. Take to your local authority waste disposal centre.
Additional Guidance
- Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts.
- Regularly check and ensure that all bolts and fittings are tightend properly.
- Maximum loading weight 60kg.
- This product is compliant EN14749,BS4875-7.
- Any additional or replacement parts are obtained from the manufacturer.
Argos Limited, 489-499 Avebury Boulevard, Milton Keynes, MK9 2NW. Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Belfast, United Kingdom, BT8 6FX. Argos Distributors (Ireland) Limited, Unit 7, Ashbourne Retail Park, Ballybin Road, Ashbourne, County Meath, Ireland.
Fittings (Shown to scale)
Bag 1
(A)
(B)
32mm Metal Dowel x24 Locking Nut x24
(C)
(D)
30mm Wooden Dowel x16 35mm Screw x4
(E)
(F)
30mm Screw x6 16mm Screw x52
(G)
(H)
16mm Screw x2 Wall Connector x2
(I)
(J)
20mm Handle x4 Plastic Cleat x12
(K)
(L)

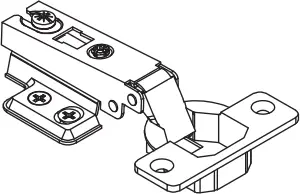

Hinge x6 Clothes Rail Bracket x2
(M)
(N)
Wooden Stopper x1 20mm Bolt x4
(O)
(P)
Allen Key x1 Silicone Pad x4
(Q)
Ø15mm Foot Pad x 4
Tools required
Phillips screwdriver (small & medium)
Phillips screwdriver (small & medium)
Large hammer Pencil
Ruler/tape measure Power Drill
Drill Heads Ladder

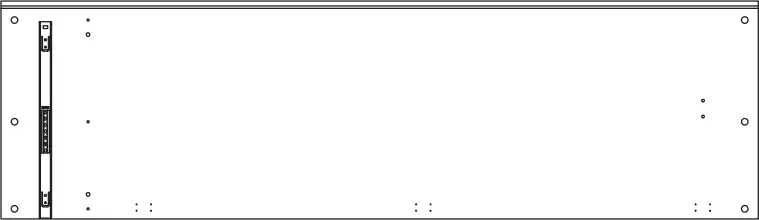

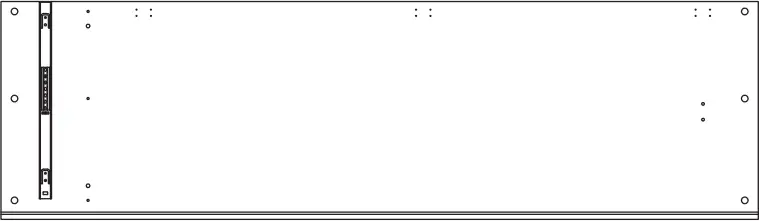

Panels
[1] Top Panel x1
(800 x 500mm)
[2] Left Side Panel x1
(1669 x 480mm)
[3] Right Side Panel x1
(1669 x 480mm)
[4] Bottom Panel x1
(800 x 500mm)
[5] Shelf Panel x1
(762 x 464mm)

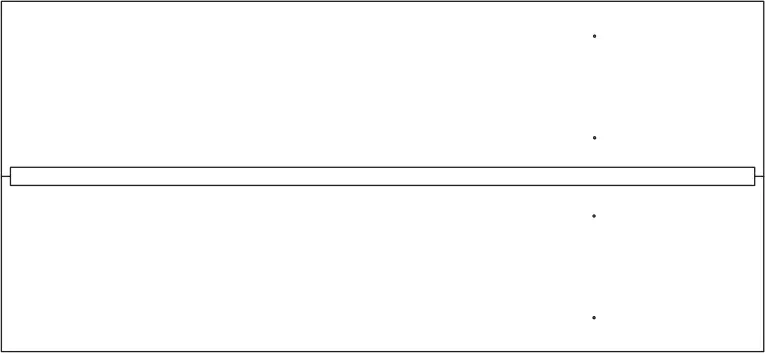

[6] Back Panel x1
(1680 x 772mm)
[7] Clothes Rail x1
(760 x 35mm)
[8] Left Door x1
(1472 x 397mm)
[9] Right Door x1
(1472 x 397mm)
[10] Drawer Front x1
(798 x 187mm)
[11] Drawer Left Side x1
(450 x 150mm)
[12] Drawer Right Side x1
(450 x 150mm)

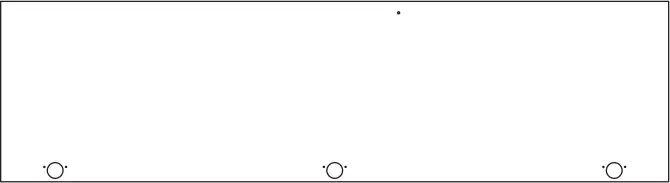

[13] Drawer Back x1
(712 x 150mm)
[14] Drawer Base Rail x1
(432 x 50mm)
[15] Drawer Bottom Panel x1
(722 x 443mm)

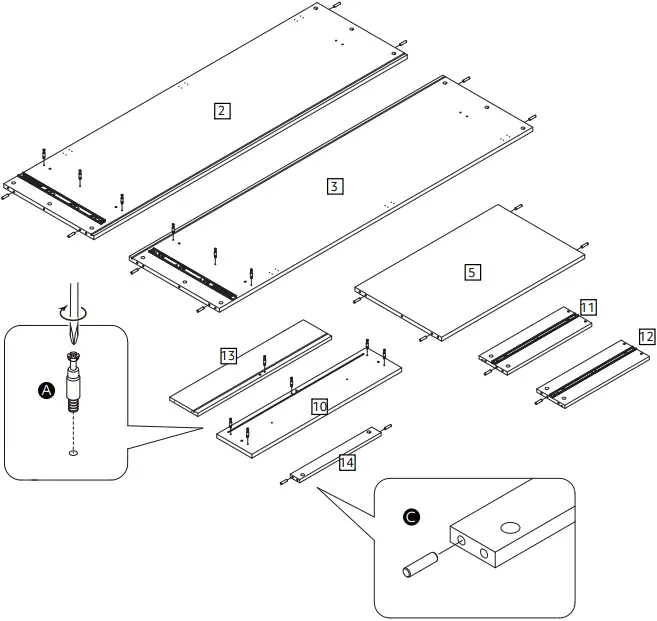

1
(A) (B)
32mm Metal Dowel x24 Locking Nut x24
(C) (D)
30mm Wooden Dowel x16 35mm Screw x4
(E) (F)
30mm Screw x6 16mm Screw x52
(G) (H)
16mm Screw x2 Wall Connector x2
(I) (J)
20mm Handle x4 Plastic Cleat x12
(K) (L)
Hinge x6 Clothes Rail Bracket x2
(M) (N)
Wooden Stopper x1 20mm Bolt x4
(O) (P)
Allen Key x1 Silicone Pad x4
(Q)
Ø15mm Foot Pad x 4
(A)
32mm Metal Dowel x12
(C)
30mm Wooden Dowel x16

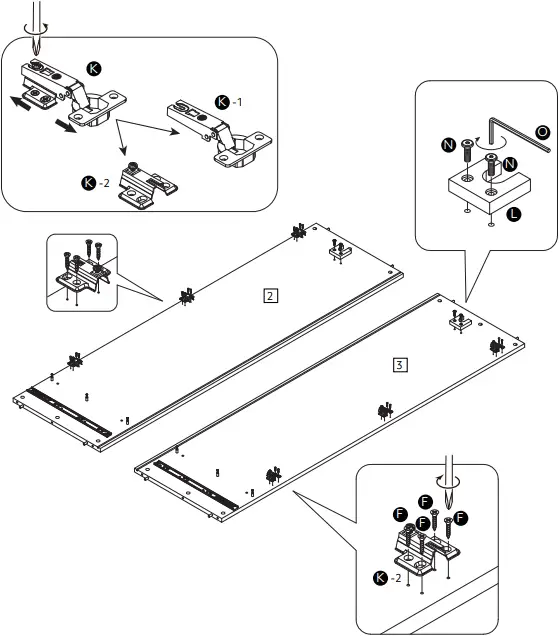

2
(F) (K) (L)
16mm Screw x24 Hinge x6 Clothes Rail Bracket x2
(N) (O)
20mm Bolt x4 Allen Key x1

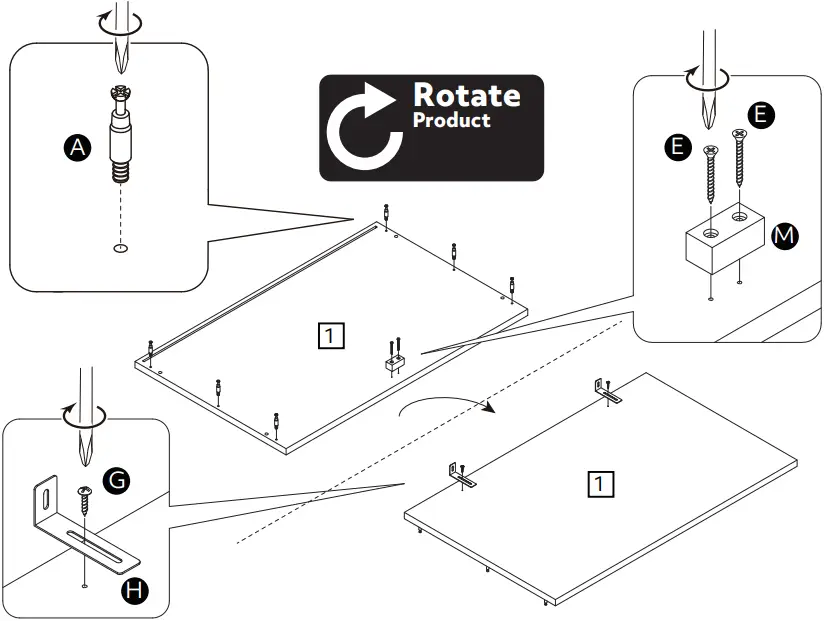

3
(A) (E) (G)
32mm Metal Dowel x6 30mm Screw x2 16mm Screw x2
(H) (M)
Wall Connector x2 Wooden Stopper x1

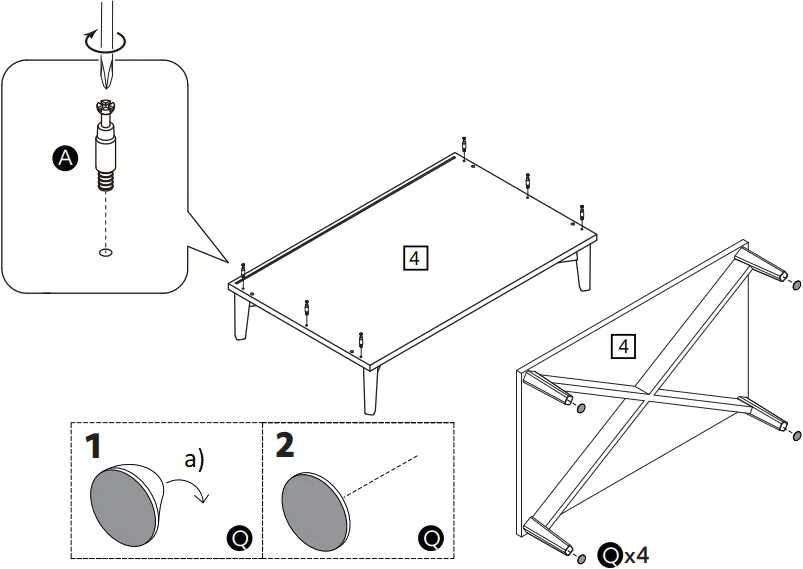

4
(A) (Q)
32mm Metal Dowel x6 Ø15mm Foot Pad x 4
a) Peel off the back

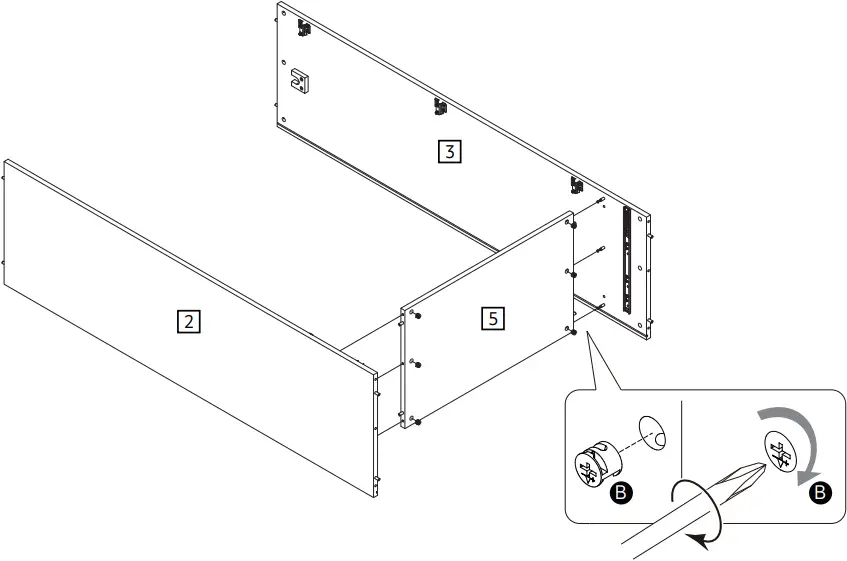

5
(B)
Locking Nut x 6
6
(B)
Locking Nut x 6

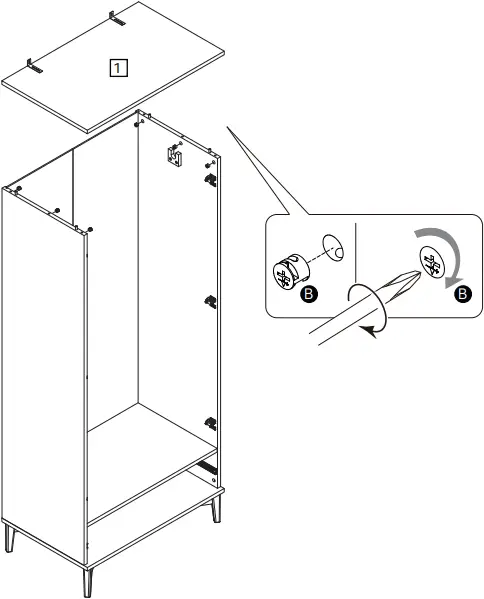

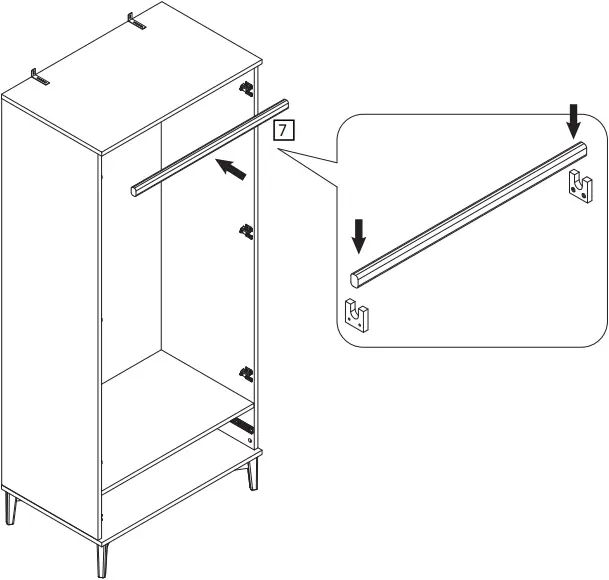

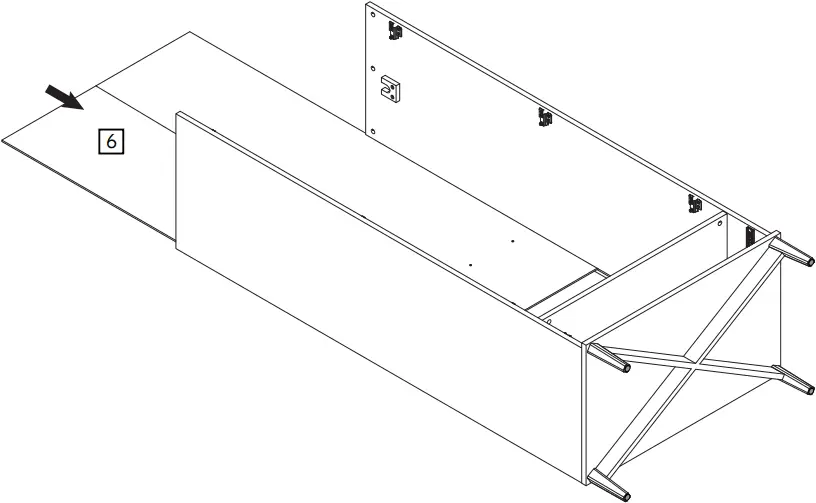

7
8
(B)
Locking Nut x 6

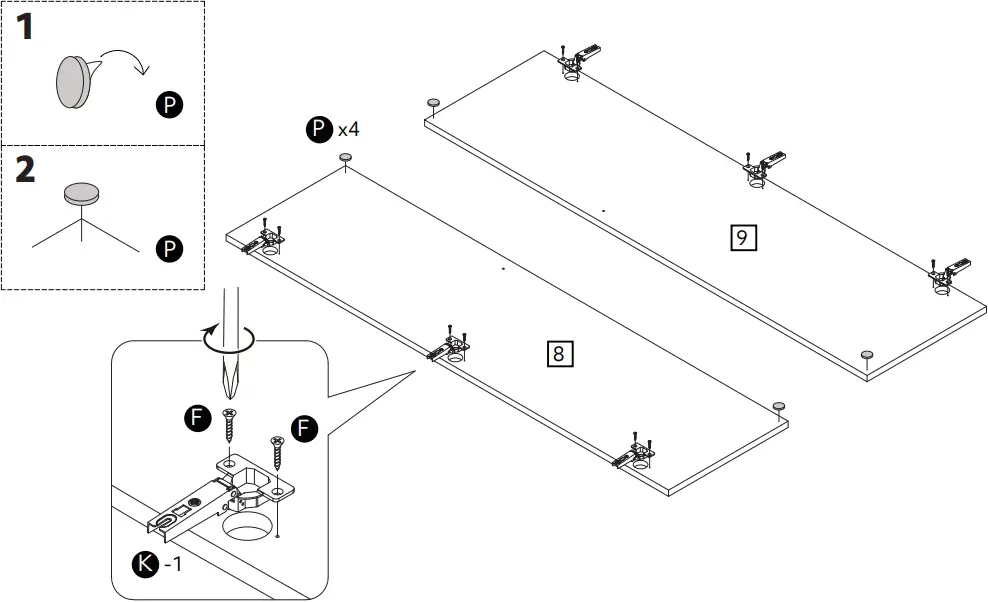

9
10
(F) (K)-1 (P)
16mm Screw x12 Hinge x6 Silicone Pad x4

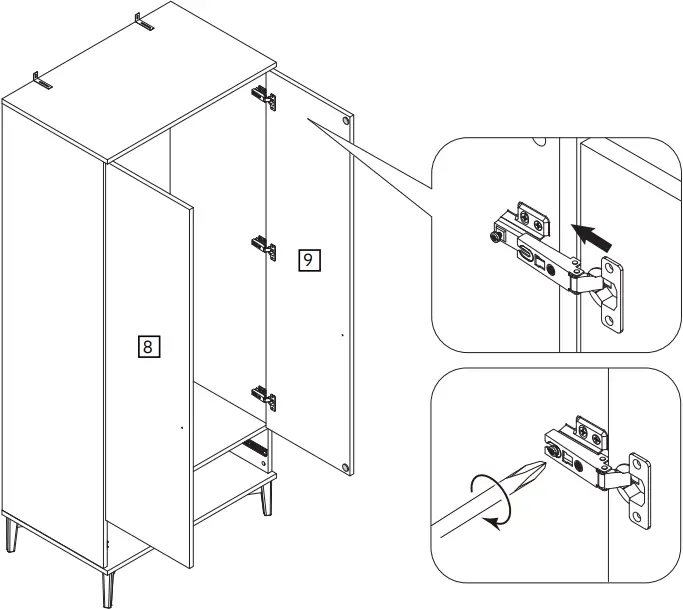

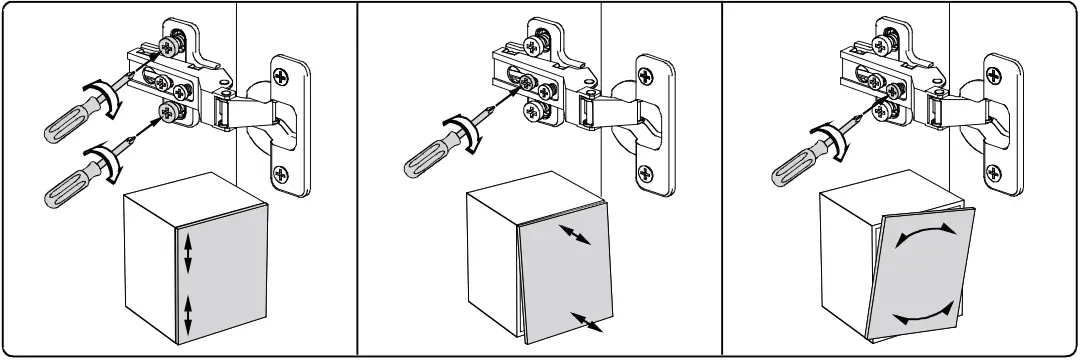

11
Please Note!
Adjusting Push-To-Open Door Mechanism If door does not open when pushed in it could be because the push-to-open mechanism needs adjustment. Simply turn the magnetic end of the mechanism to screw it out further so that it makes better contact with the metal strike plate.

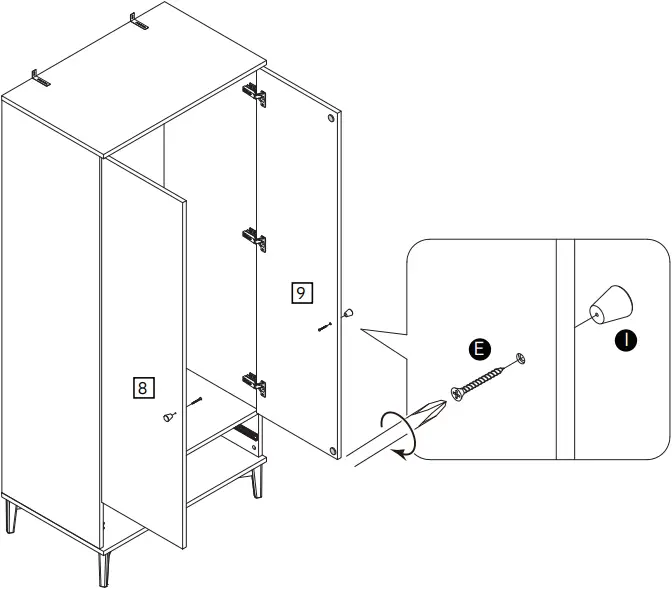

12
(E) (I)
30mm Screw x2 20mm Handle x2

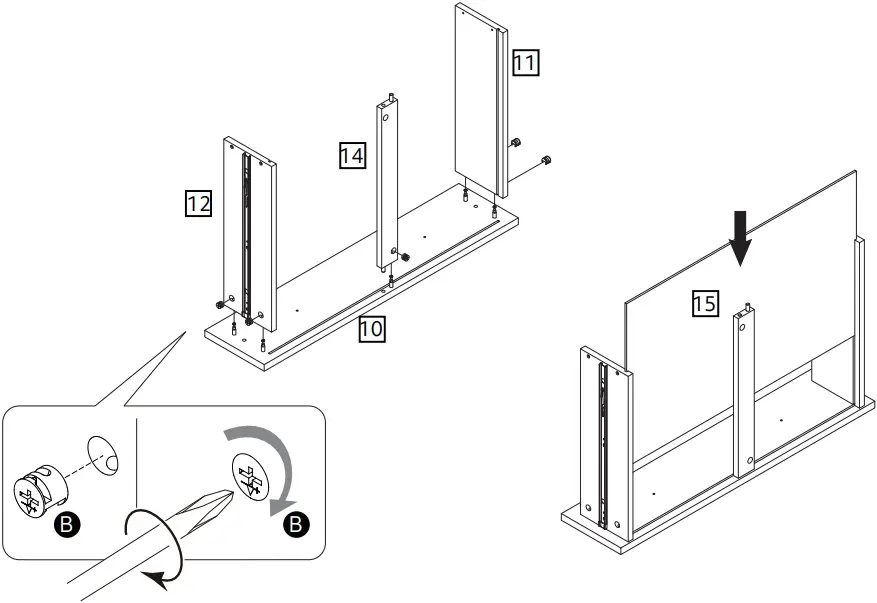

13
(B)
Locking Nut x 5

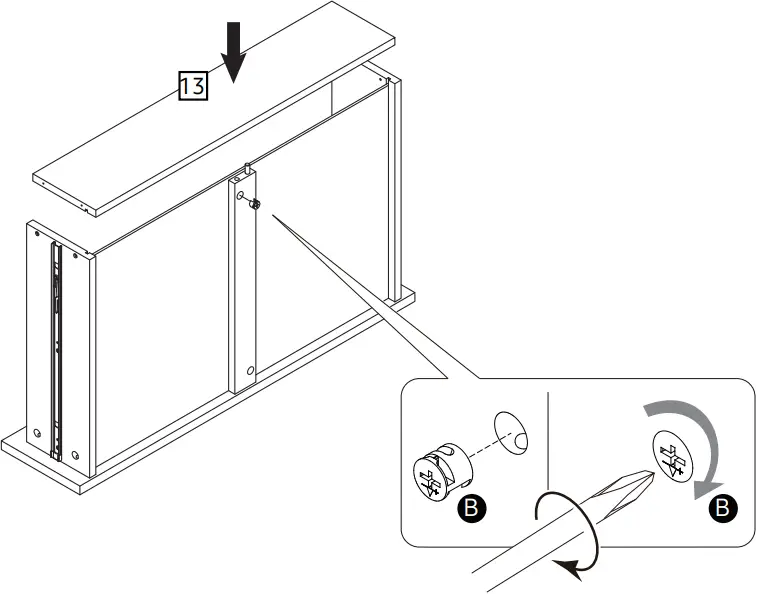

14
(B)
Locking Nut x1

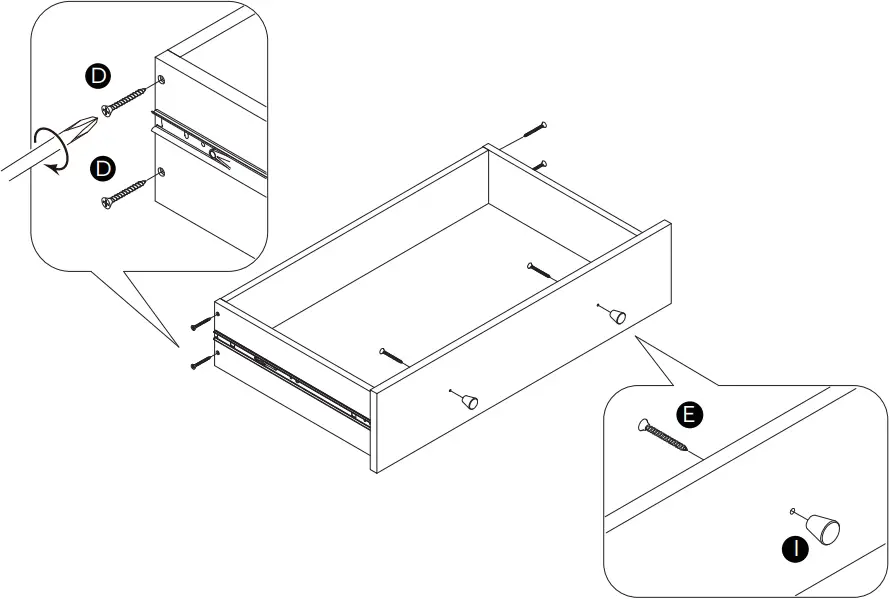

15
(D) (E) (I)
35mm Screw x4 30mm Screw x2 20mm Handle x2

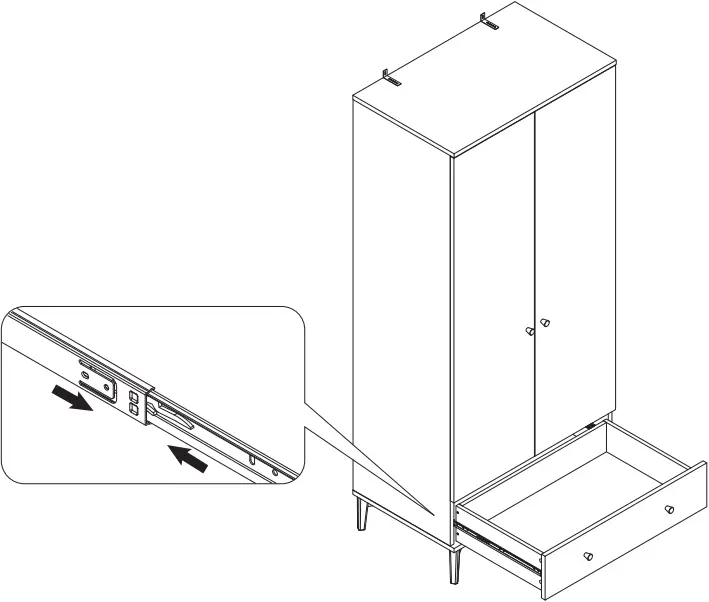

16

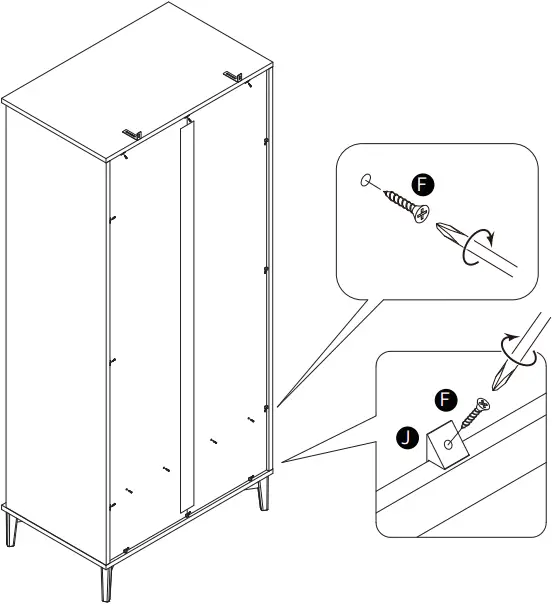

17
(F) (J)
16mm Screw x 16 Plastic Cleat x 12

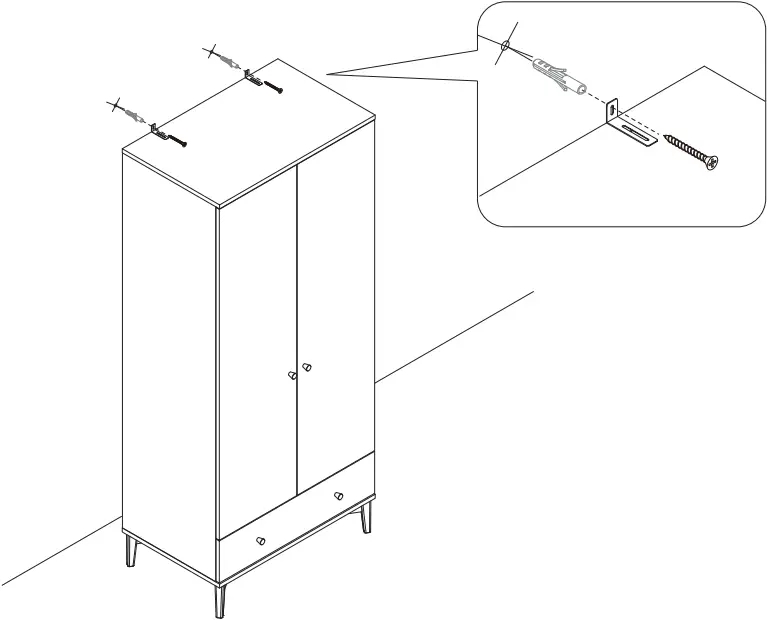

18
WARNING!
In order to prevent overturning this product must be used with the wall attachment device provided.
Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over :-
-Use the wall attachment devices provided
-Never allow children to climb or hang on drawers
-Do not overload the drawer beyond maximum recommended loading.
-Place heaviest items in the lower drawers or shelves.
-Unless specifically designed to accommodate, do not set TV’s or other heavy objects on top of this product
– Never open more than one drawer at a time
An attachment device is provided with your product, however you will need to source suitable fixings for your wall type. If in doubt consult a qualified trades person.
Always ensure that the wall to be drilled into is free from hidden electrical wires, water and gas pipes.

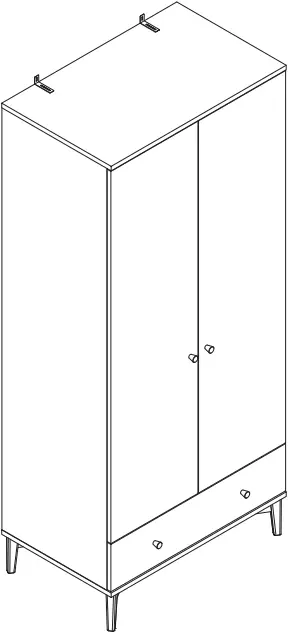

19
Assembly is complete.
A Guide to – Wall Mounting & Fixings
Important note:
Wall Fixings:
– because of the variety of different wall types, Habitat cannot provide you with the exact fixings you will need to fix this product to the wall.
You must first identify the type of wall you intend to fix product onto and then contact your local hardware store to get the appropriate fixings.
Important: When drilling into walls always check that there are no hidden wires or pipes etc.
Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.
Hints:
1: General rule: Always use a larger screw and wall plug if you are not sure.
2: Ensure you use the recommended drill bit to match the wall plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the drilled hole.

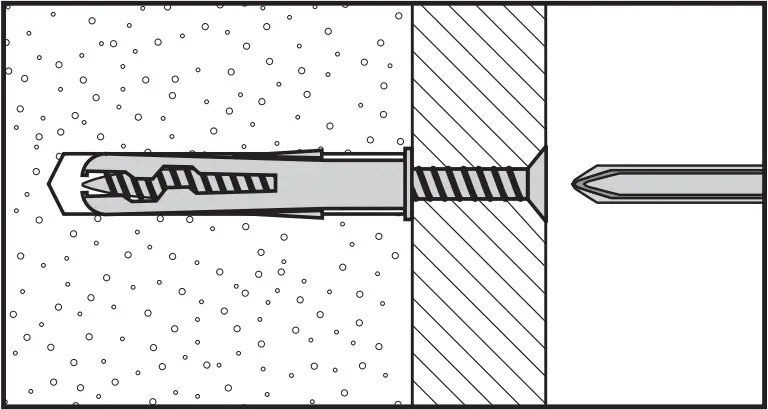

Types of walls
You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.

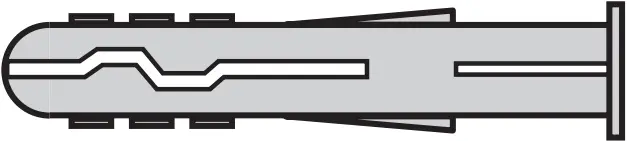

No.1 “General Purpose” wall plug
Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.

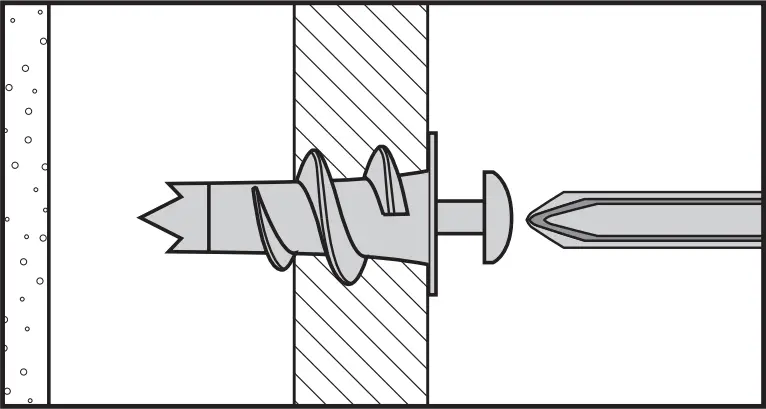

No.2 “Plasterboard” wall plug
For use when attaching light loads on to plasterboard partitions.

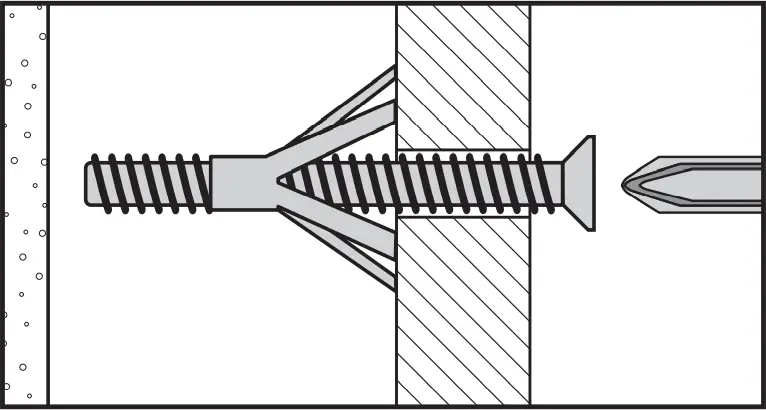

No.3 “Cavity Fixing” wall plug
For use with plasterboard partitions or hollow wooden doors.

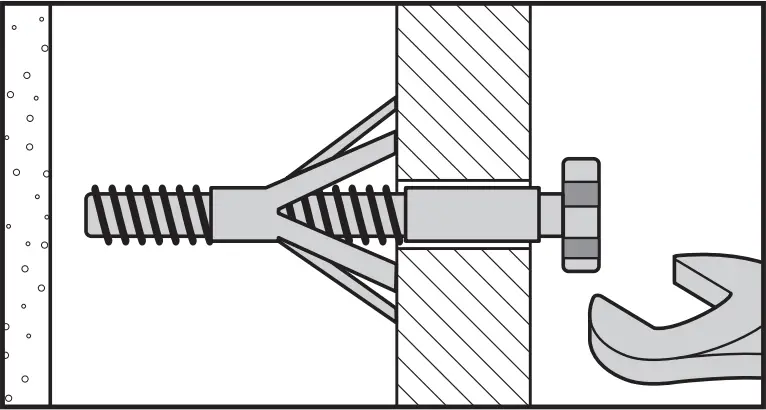

No.4 “Cavity Fixing-Heavy Duty” wall plug
For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.
No.5 “Hammer Fixing” wall plug
For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.

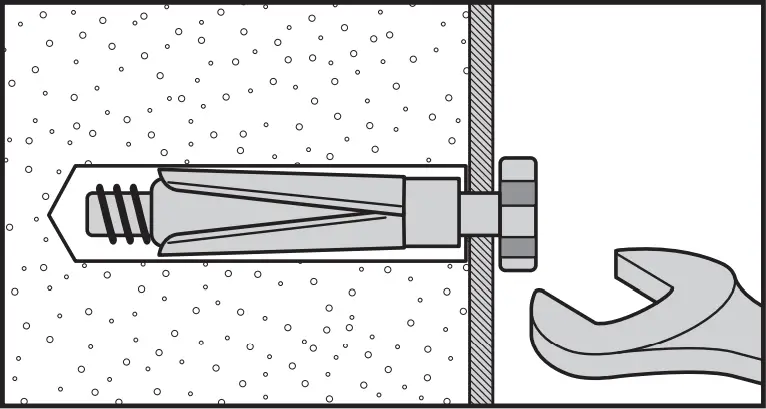

No.6 “Shield Anchor” wall plug Heavy loads
For use with heavier loads such as TV & HiFi speakers and satelite dishes etc.
Care & Maintenance
Safety: Always check the fitting and location to ensure your safety in and around the home.
Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
