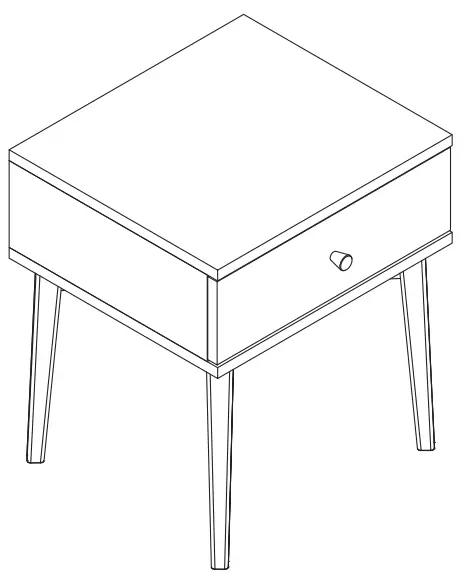

habitat Kirk 2 Bedside Table Set

Spare Parts

www.argos-support.co.uk
[email protected]
0370 112 1928

Customer Support

0345 640 2020

Safety and Care Advice

Product Details

Kirk 1 DRW Bedside 3205912 Walnut
Kirk 1 DRW Bedside 6793775 Oak

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

  • Keep children and animals away from the work area, small parts could choke if swallowed.
  • Make sure you have enough space to layout the parts before starting.
  • This product has been constructed to be used in the domestic environment only and not for commercial purposes.
  • Assemble the item as close to its final position (in the same room) as possible.
  • Assemble on a soft level surface to avoid damaging the unit or your floor.
  • We do not recommend the use of power drill/drivers for inserting screws as this could damage the unit. Only use hand screwdrivers.
  • Parts of the assembly will be easier with 2 people.
  • Dispose of all packaging carefully and responsibly.

Care and Maintenance

  • Only clean using a damp cloth and mild detergent. Do not use abrasive cleaners.
  • Use a dry cloth to clean the product, furniture polish is not recommended.
  • From time to time check that there are no loose screws, nuts or bolts. If there are please re-tighten.
  • This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Additional Guidance

  • Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts.
  • Regularly check and ensure that all bolts and fittings are tightend properly.
  • Maximum loading weight 27kg.
  • This product is compliant EN14749,BS4875-7.
  • Any additional or replacement parts are obtained from the manufacturer.

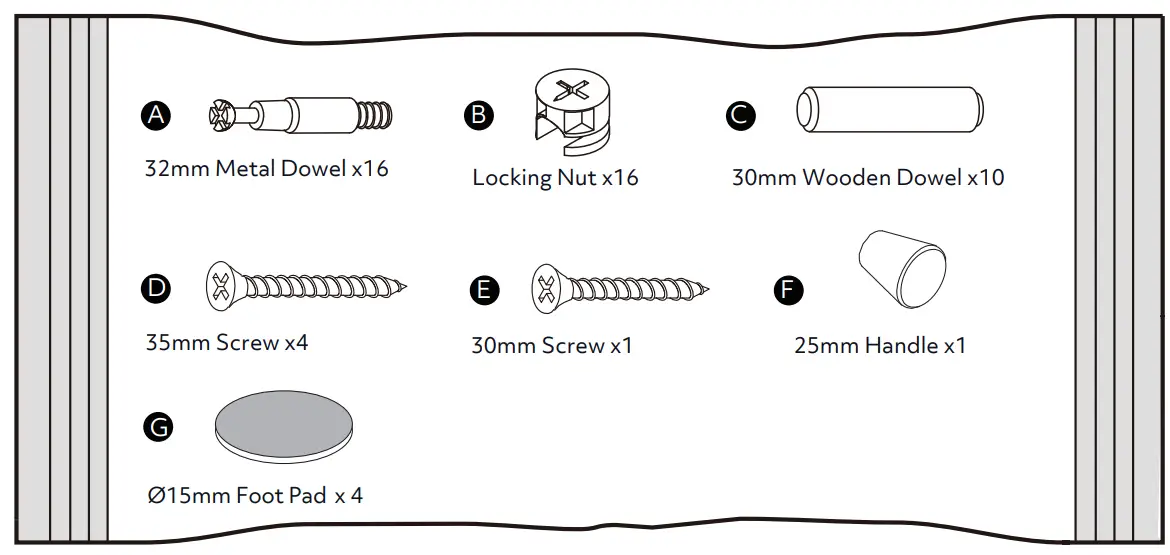

Fittings

  • Bag1

Tools required

  • Phillips screwdriver (small & medium)
  • Phillips screwdriver (small & medium)

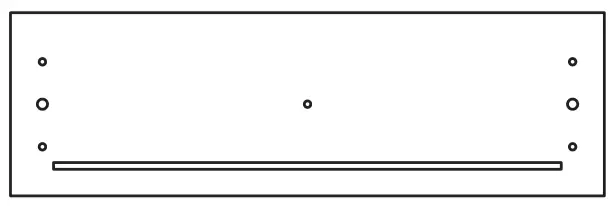

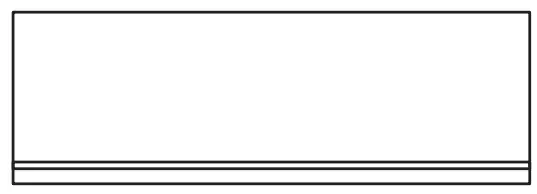

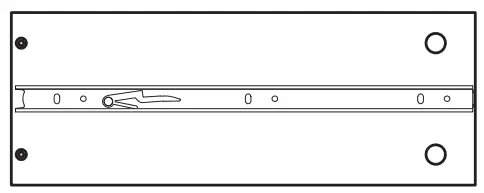

Panels

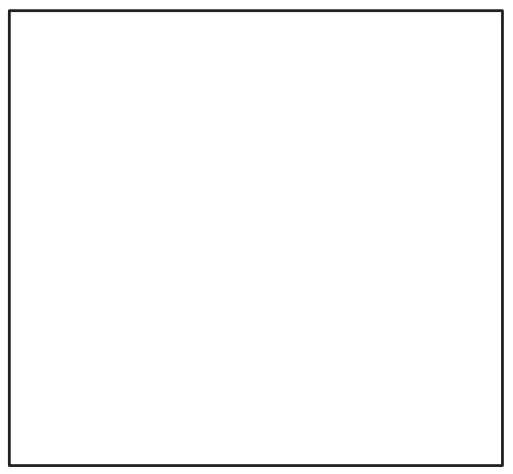

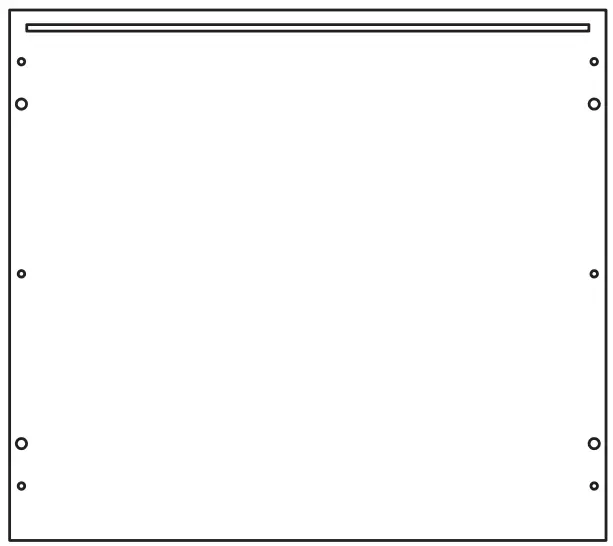

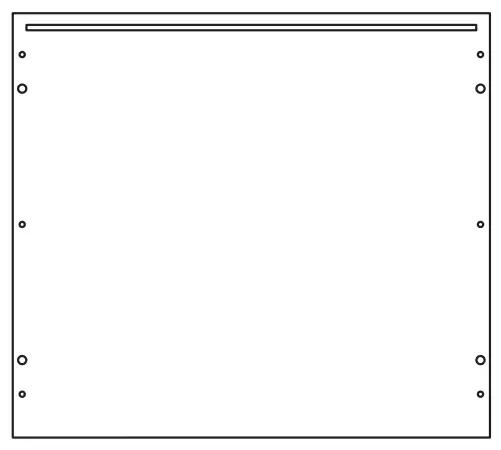

  1. Top Panel x1 (450 x 400mm)

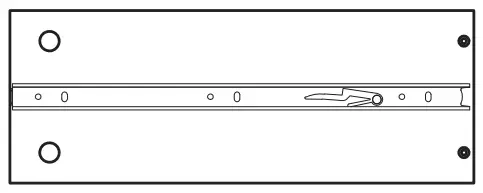

  2. Side Panel x2 (380 x 144mm)
  3. Bottom Panel x1 ( 450 x 400m m)

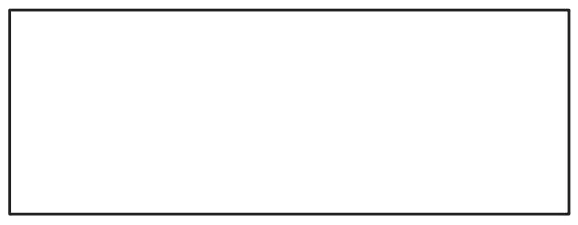

  4. Back Panel x1 (422 x 154mm)
  5. Drawer Front x1 (448 x 138mm)
  6. Left Side Drawer x1 (350 x 130mm)
  7. Right Side Drawer x1 (350 x 130mm)
  8. Drawer Back x1 (362 x 130mm)
  9. Drawer Bottom Panel x1 (372x 343mm)

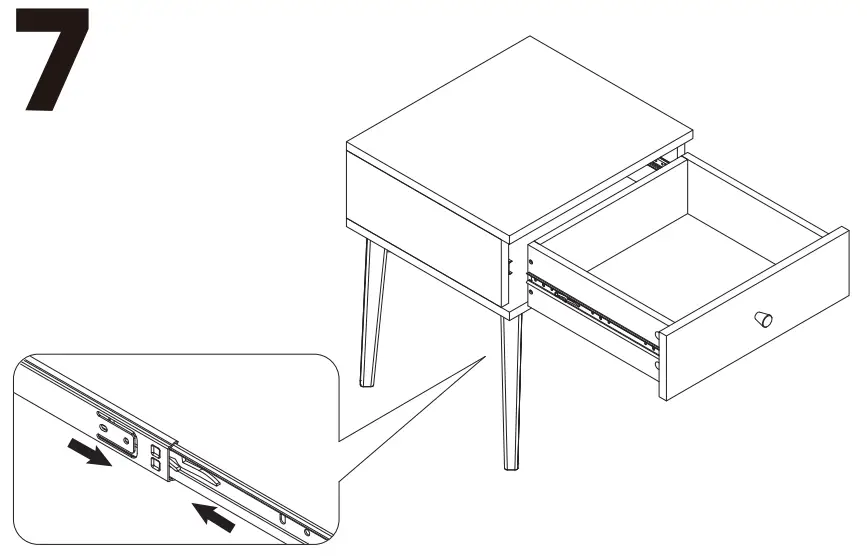

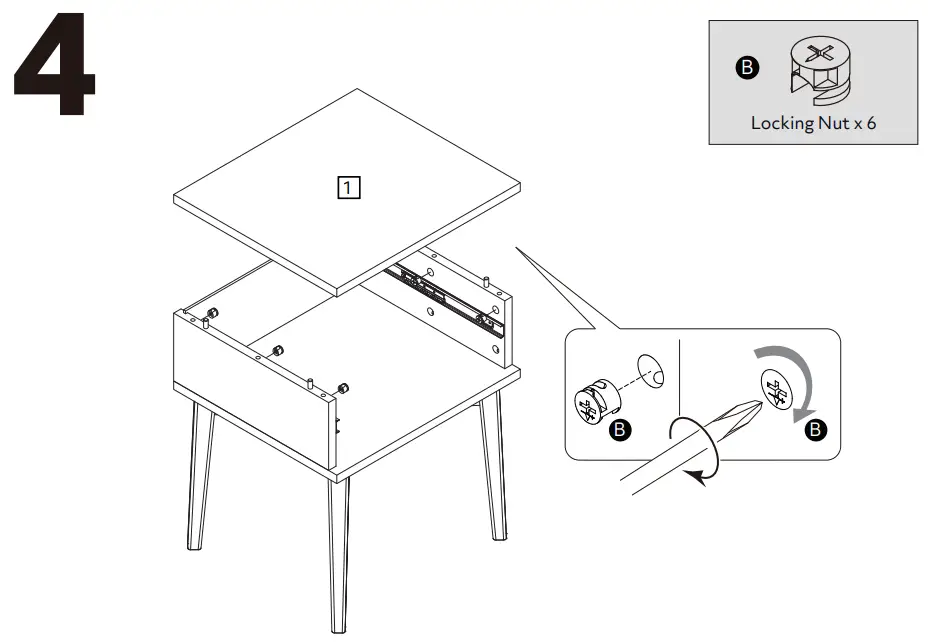

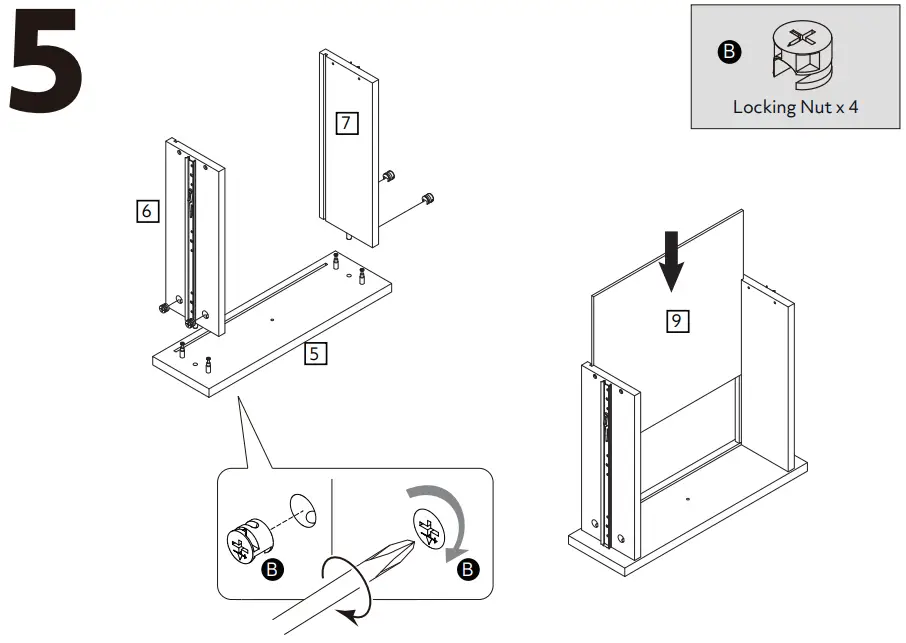

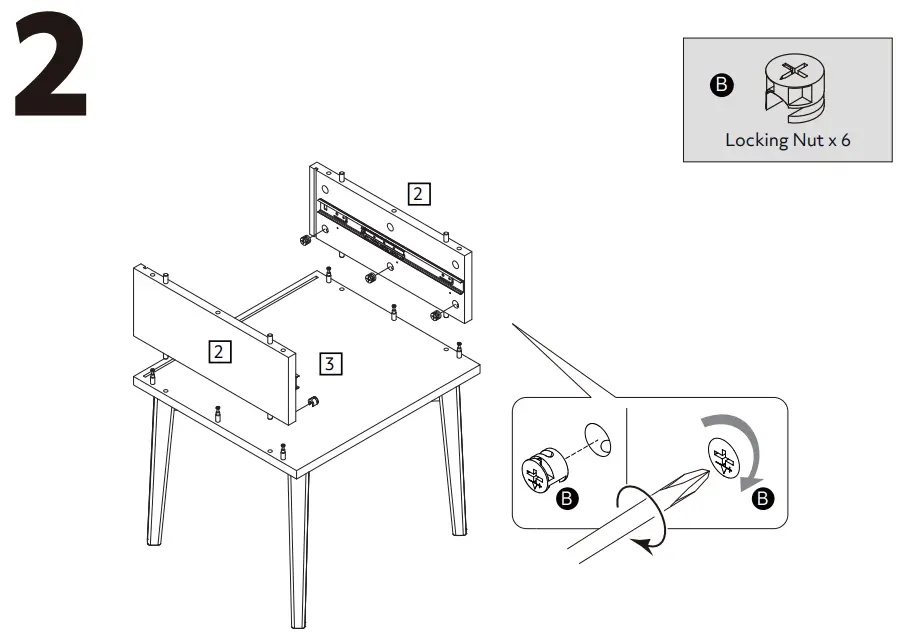

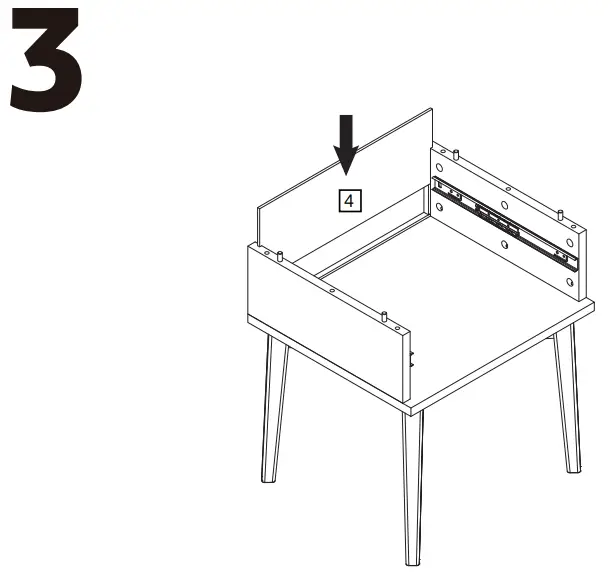

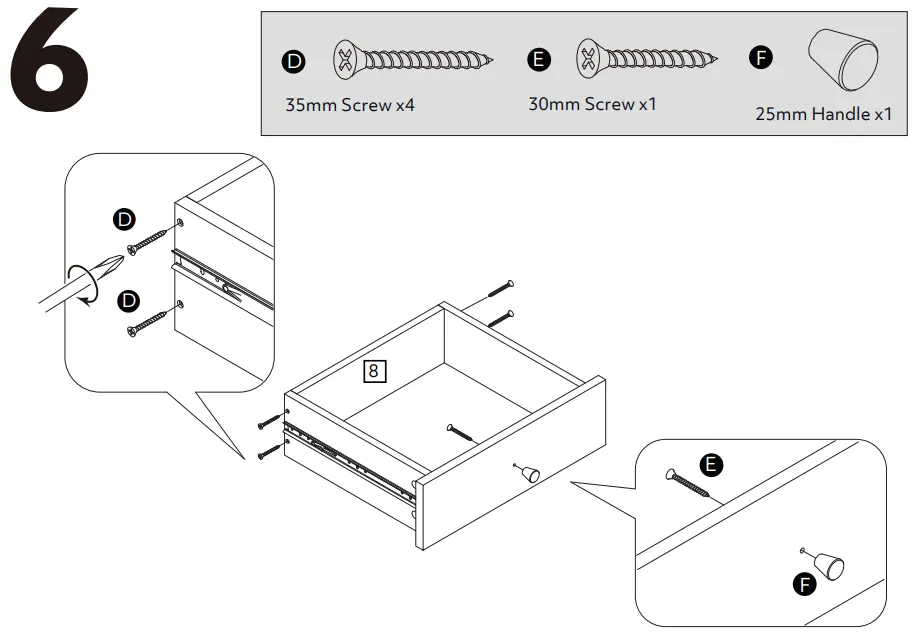

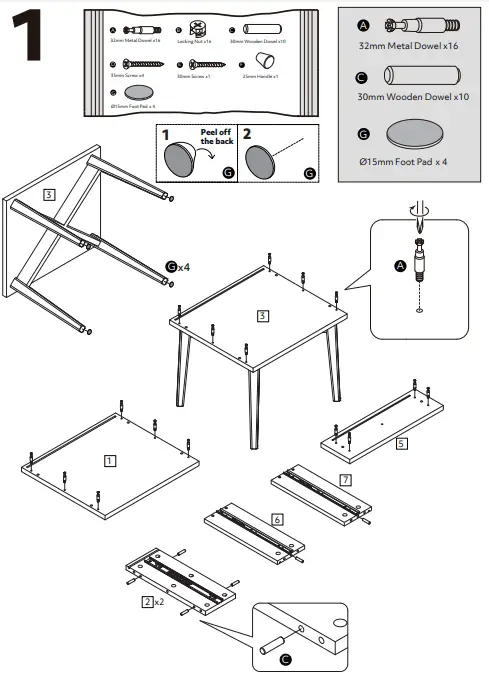

Assembly Instruction

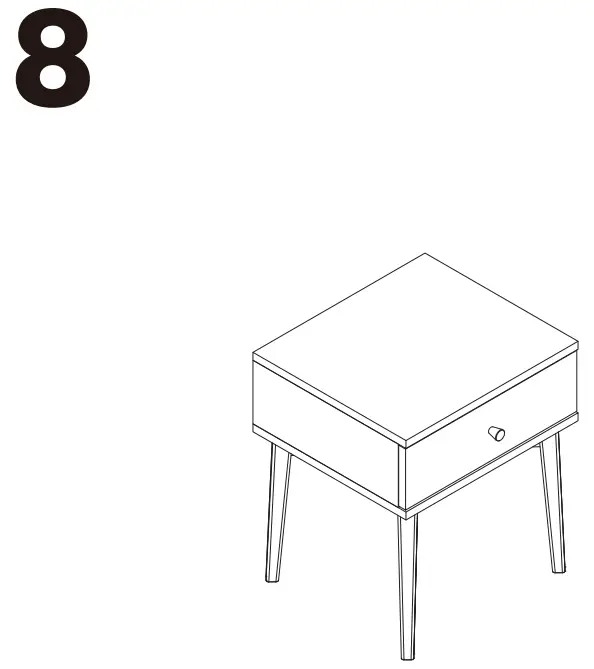

Assembly is complete.
