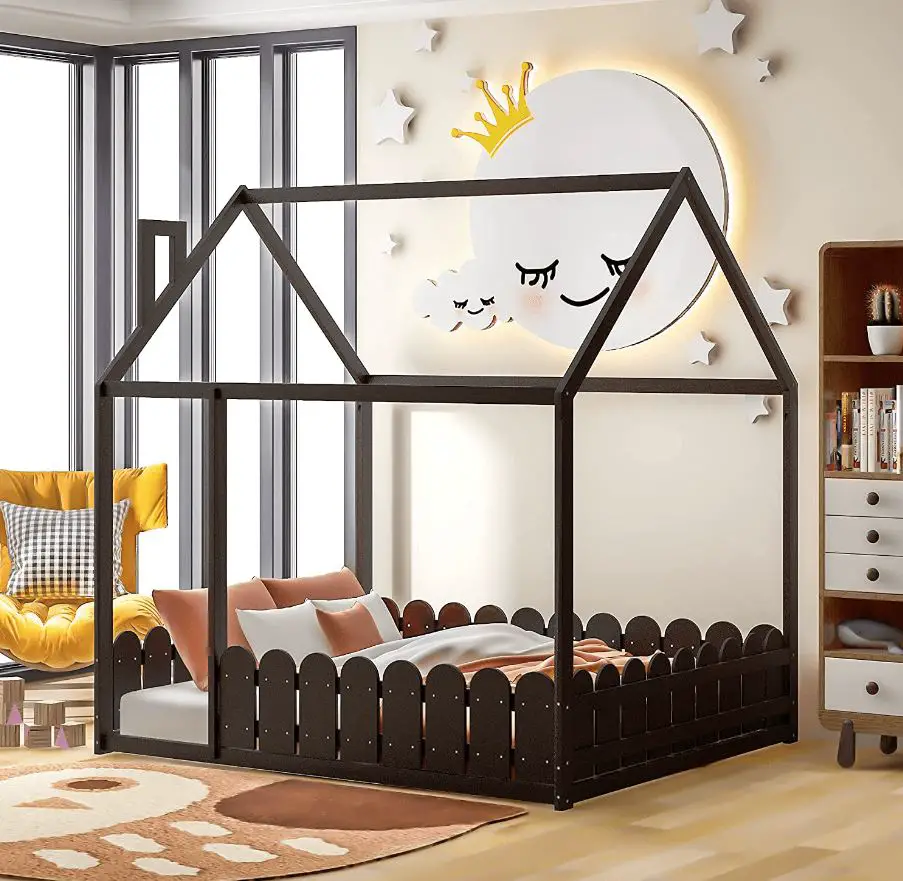

VAIS HOME 27974 Tutti Montessorian Mini Bed
PRODUCT: MINI BED TINY MONTESSORIANA TUTTI – 21A
ATTENTION
This package contains small parts, keep away from children until the product is fully assembled. Must be assembled by an adult! Use screwdriver with Philips head. The instructions are generic, the figures may vary. Keep all parts and components out of the reach of children.

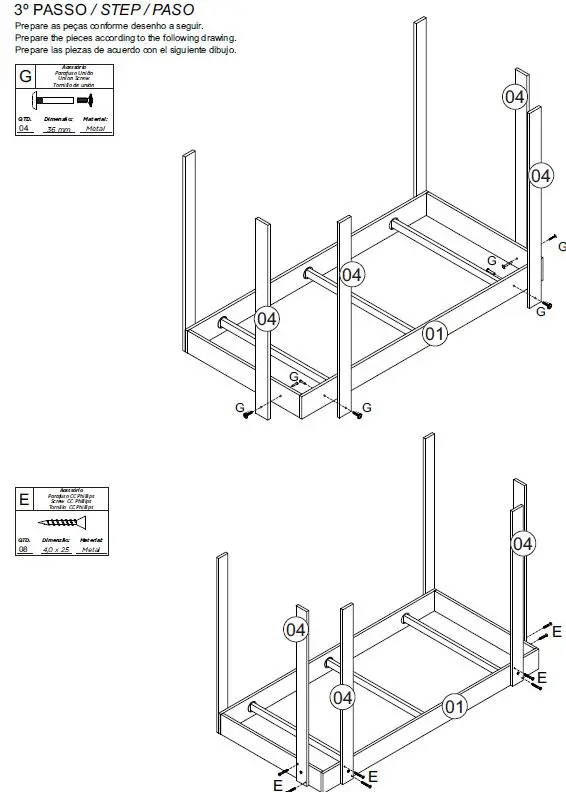

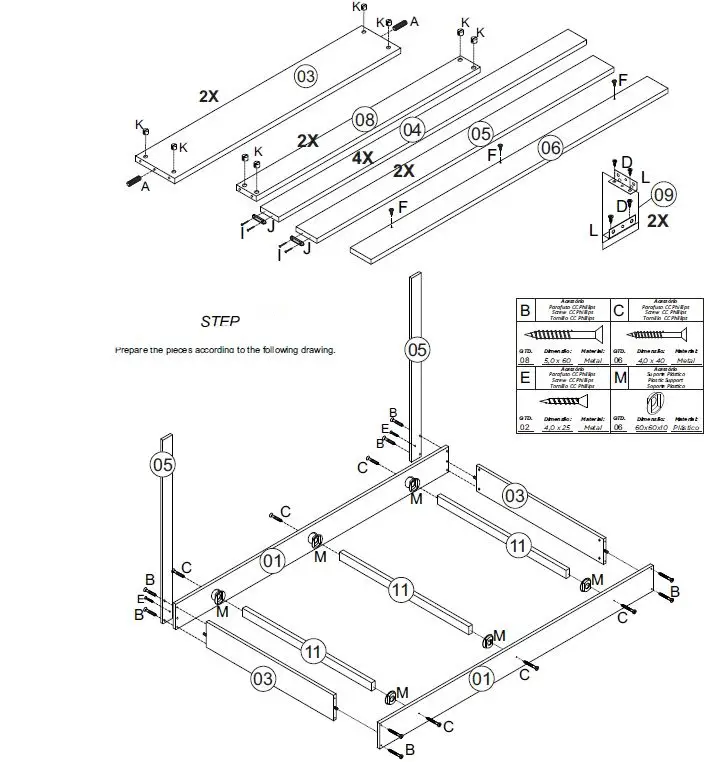

Prepare the pieces according to the following drawing.
ATTENTION

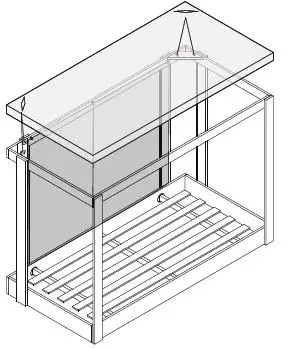

Pass the rod through the fabric opening to position it on the bed. Place the towers on Tower rods.
PRODUCT ASSEMBLY

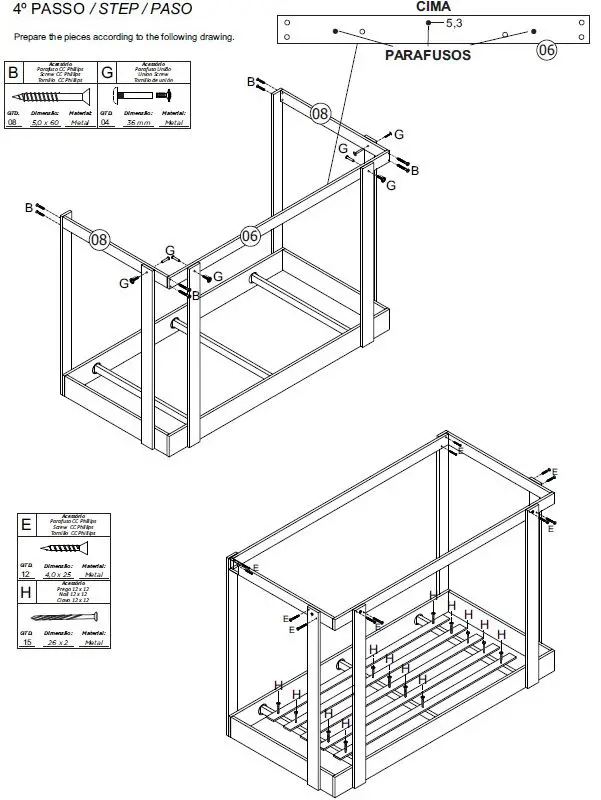

Prepare the pieces according to the following drawing.

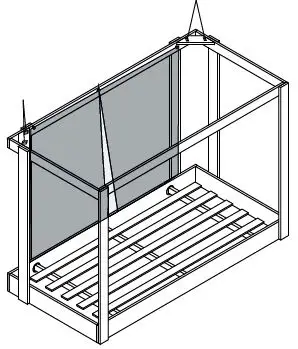

Pass the top hoop through the top seam channel leaving it in a circle shape. Repeat the same process with the lower hoop passing through the channel of the lower seam.
CURTAIN ASSEMBLY
Place the fabrics on the screws according to the alignment of the hooks found on the fabric pieces.

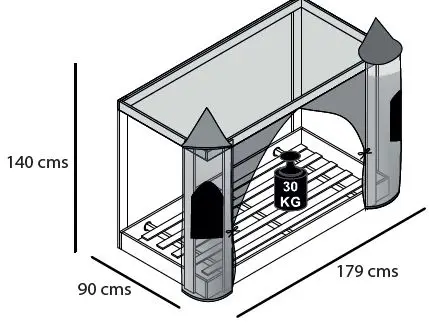

SUPPORTED WEIGHT/ASSEMBLED PRODUCT DIMENSIONS

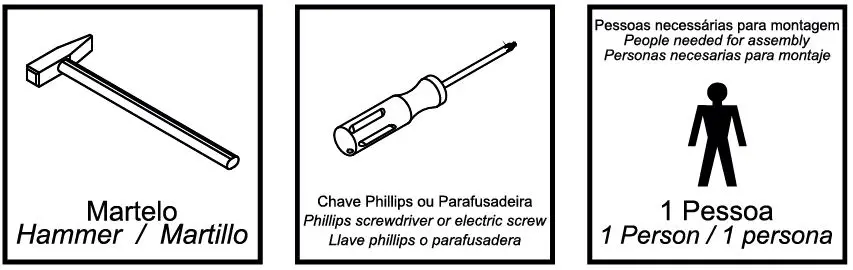

TOOLS REQUIRED
IMPORTANT TIPS
- Read all instructions before beginning assembly
- Separate and store the identification label
- Confim the volumes and quantities of parts described in the manual.
- Identify and separate the parts and accessories.
- The assembly of the product should be done on a clean and flat surface. We recommend using the package itselfto cover the floor to prevent product damage.
- Resenve free area forproduct assembly.
- Avoid impacts and contact with sharp objects.

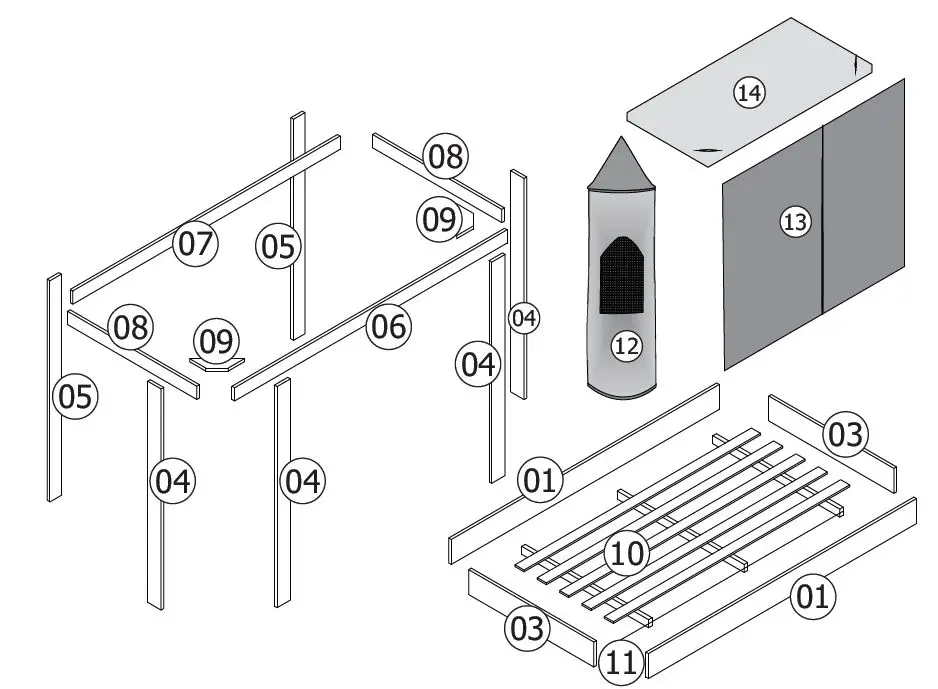

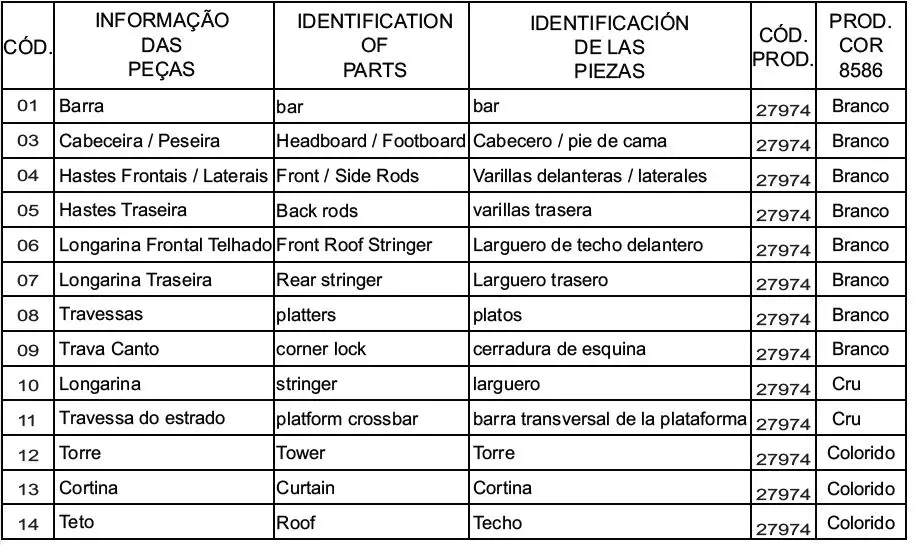

IDENTIFICATION OF PARTS

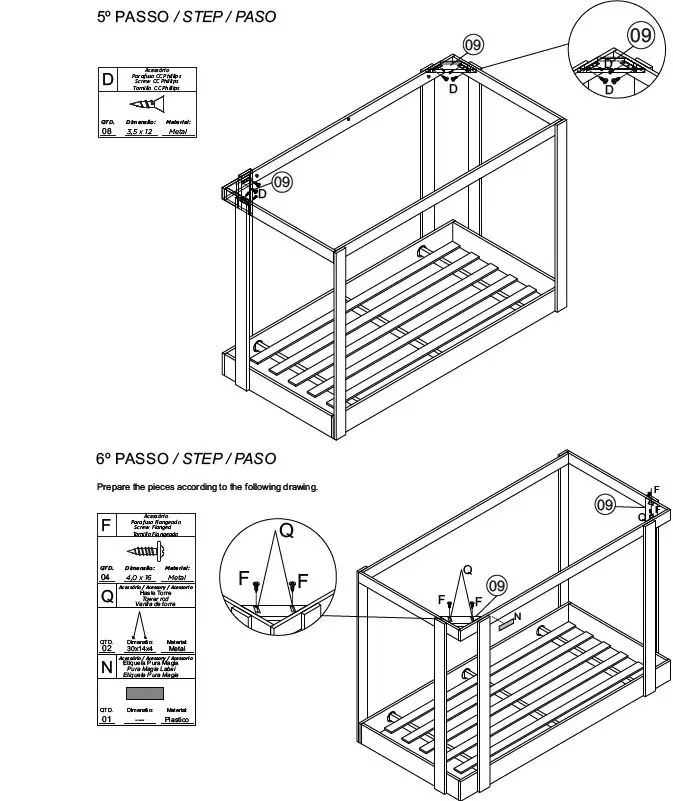

Prepare the pieces according to the following drawing.
Prepare the pieces according to the following drawing.
TECHNICAL ASSISTANCE
When request the technical assistance, inform the number of the piece name and color of the product and also the batch manufacturing date that is stamped on the piece n°10.

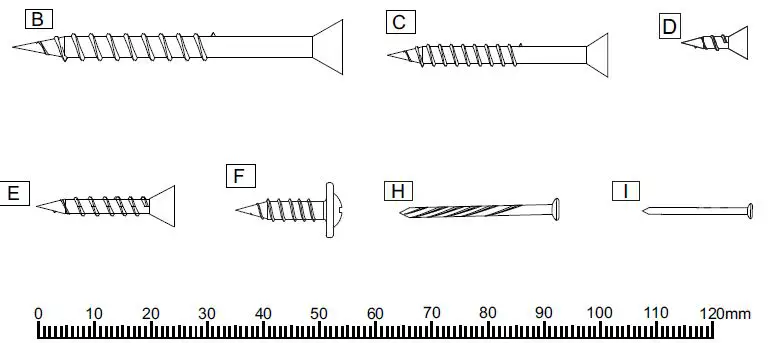

HARDWARE
PRODUCT ASSEMBLY
ASSEMBLY

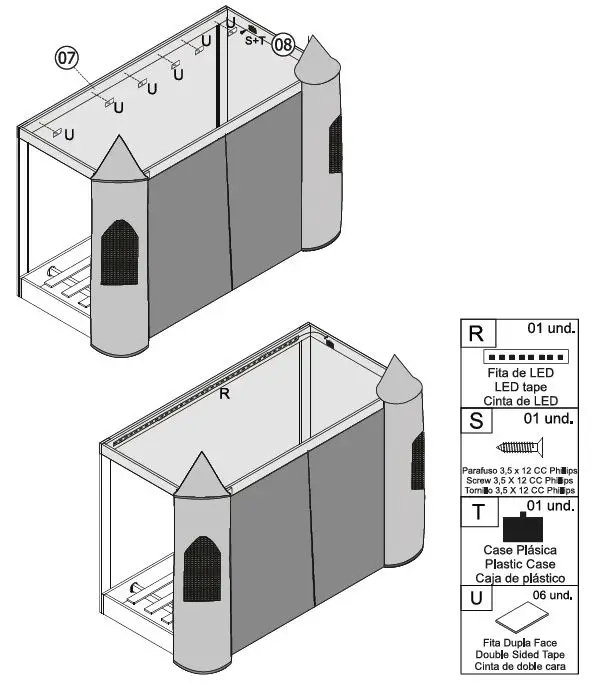

Fix the double-sided tape ‘U’ on the piece ’07, and fix the case T with S’ on the piece ’08’;After glue the LED on part “07;Then put the battery on the LED, and store the battery in the case.
