INSTRUCTION MANUAL
29335 – SOPHIA CHILD 088 BED – 22A
29335 Sophia Child 008 Bed
1 ‘Adult
Necessary people for assembly
Tools needed ( not inclued)
 |  |  |  |
| hammer | Screwdriver | Slot Key | Phillips Key |
SAFETY INFORMATION
- This package contains small parts, keep away from children until the product is assembled .
- The instructions are generic , the figures may vary.
- Read all instructions carefully before starting assembly.
- Separate and store the ID tag.
- Check if the volumes and quantities of pieces described in the manual are correct.
- Identify the pieces and separate accessories.
- The assembly of the product shall be made on a clean and flat surface. We recommend using the package itself to cover the floor in order not to damage the product.
- Reserve a specific area to assembly the product.
- Avoid shocks and contact with sharp objects.
- Do not expose the furniture to excessive heat (direct sunlight), or high humidity.
- For cleaning use a dry soft cloth or slightly moistened with water.
Do not use cleaning agents or abrasives

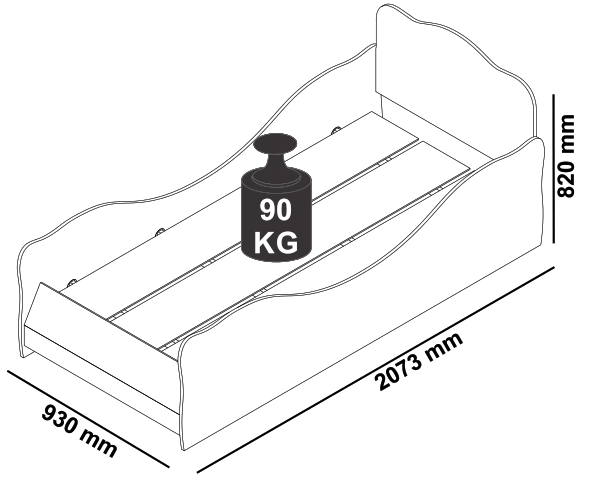

SUPPORTED WEIGHT / DIMENSIONS ASSEMBLED PRODUCT

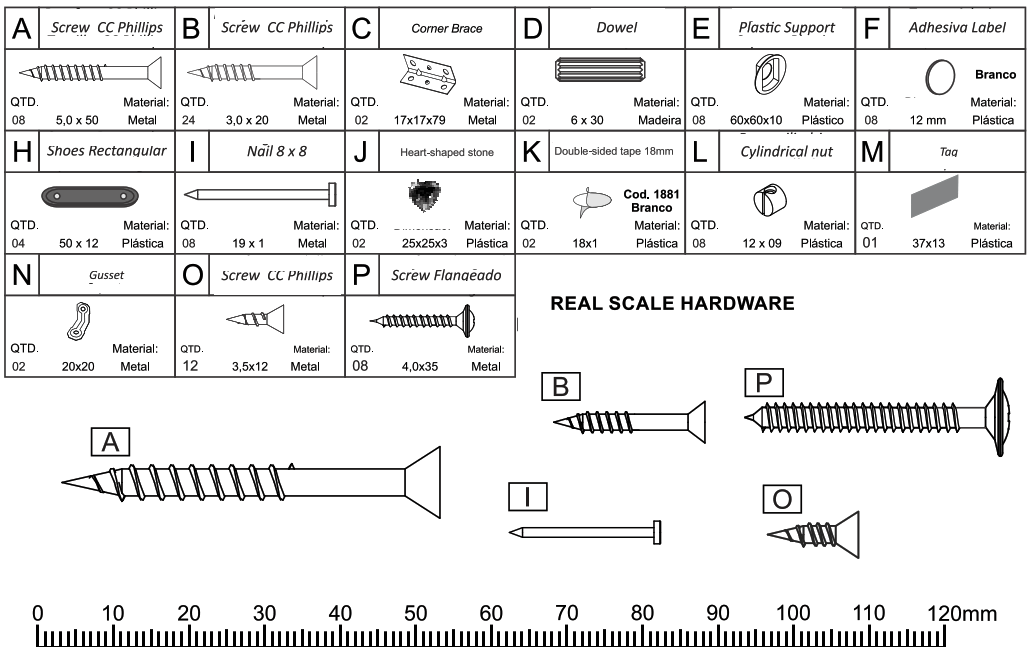

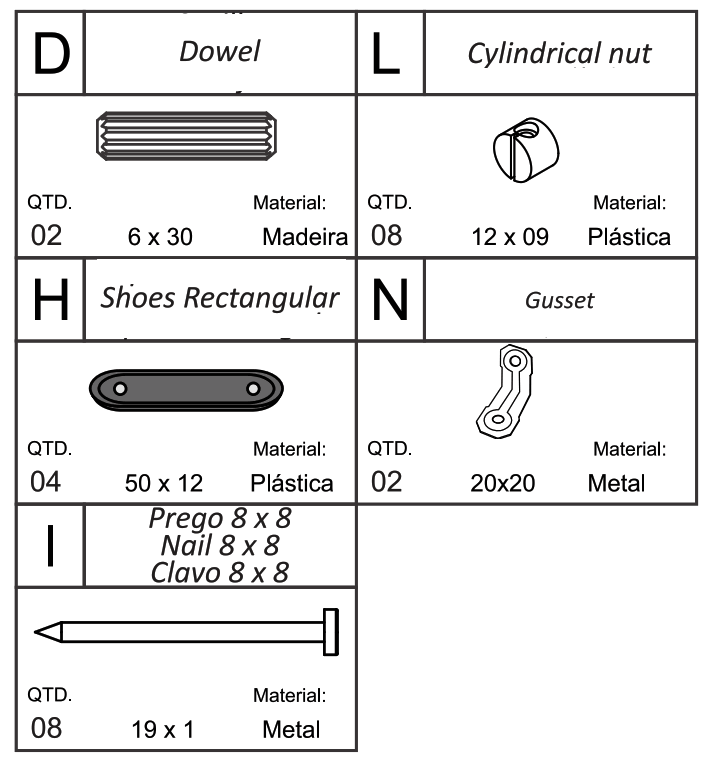

HARDWARE

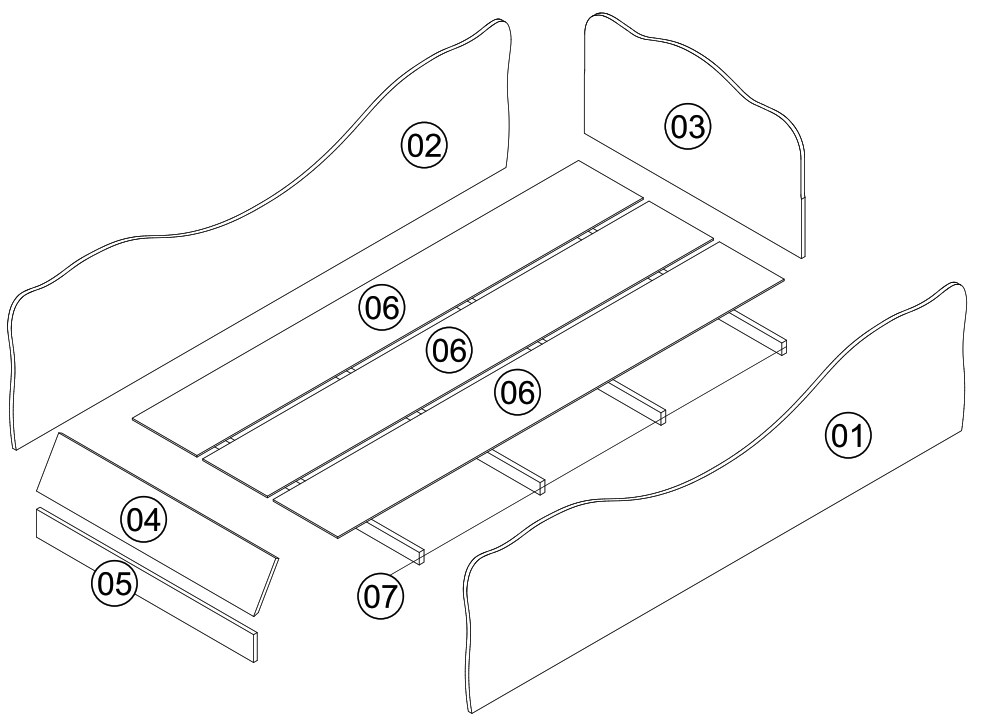

IDENTIFICATION OF PARTS
| COD. | COD Pea | IDENTIFICATION OF PARTS | COR 1881 | MEDIDAS (mm) | MAT. | |||
| QTD | COMP | LARG | ESP | |||||
| 29335 | 1 | Right side | White | 1 | 2073 | 542 | 15 | MDF |
| 29335 | 2 | left side | White | 1 | 2073 | 542 | 15 | MDF |
| 29335 | 3 | Headboard | White | 1 | 900 | 516 | 15 | MDF |
| 29335 | 4 | Upper footboard | White | 1 | 900 | 187 | 15 | MDF |
| 29335 | 5 | Bottom Peeler | White | 1 | 900 | 100 | 15 | MDF |
| 29335 | 6 | base of the platform | CRU | 3 | 1850 | 268 | 6 | MDF |
| 29335 | 7 | Traverse of the platform | CRU | 4 | 910 | 45 | 20 | EUCALIPTO |
TECHNICAL ASSISTANCE
When request the technical assistance, please inform the number of the piece name and color of the product and also the batch manufacturing date, that is stamped on the piece n° 06.

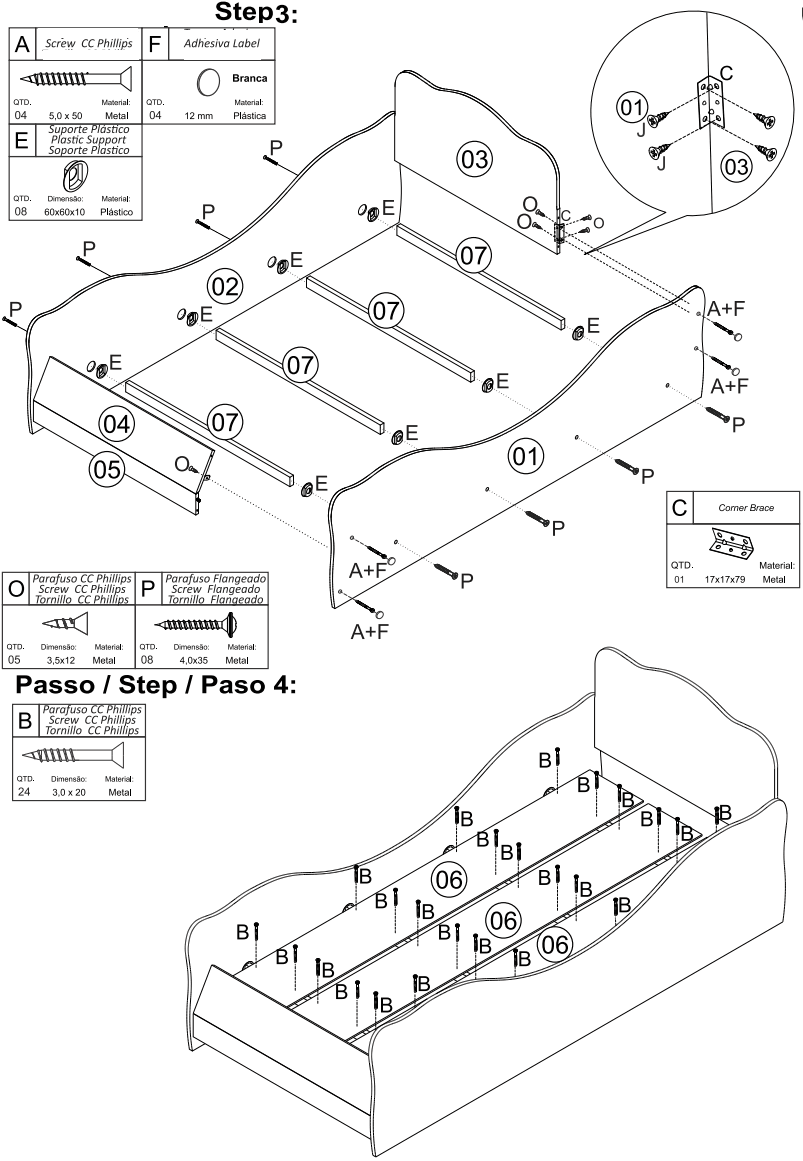

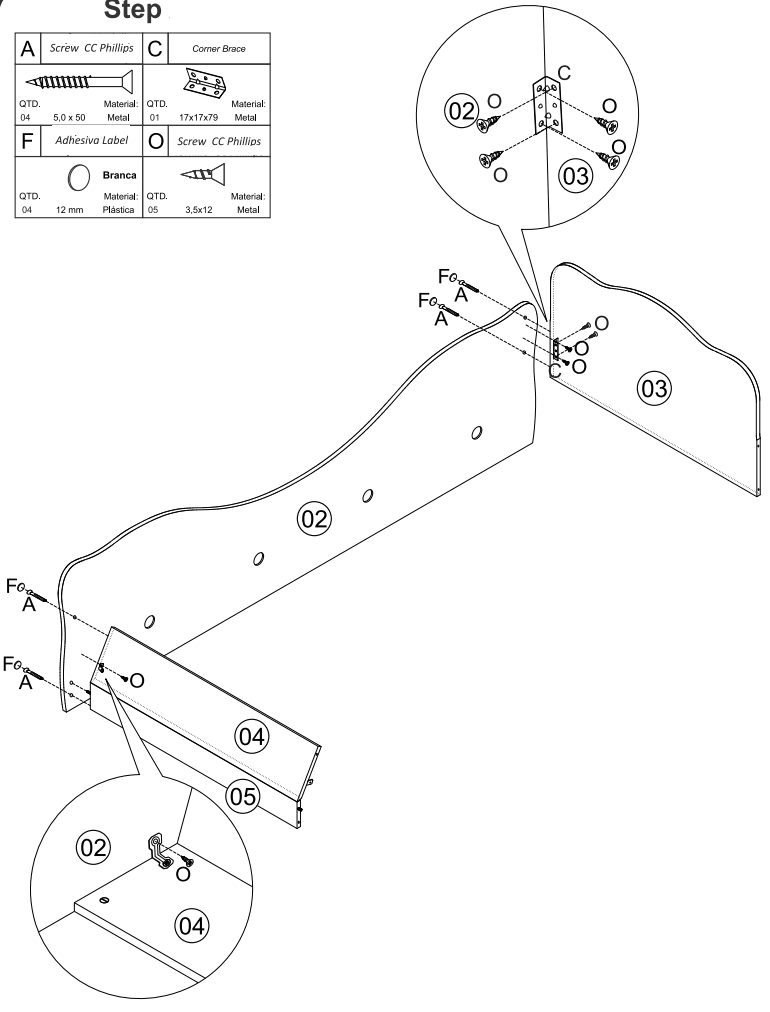

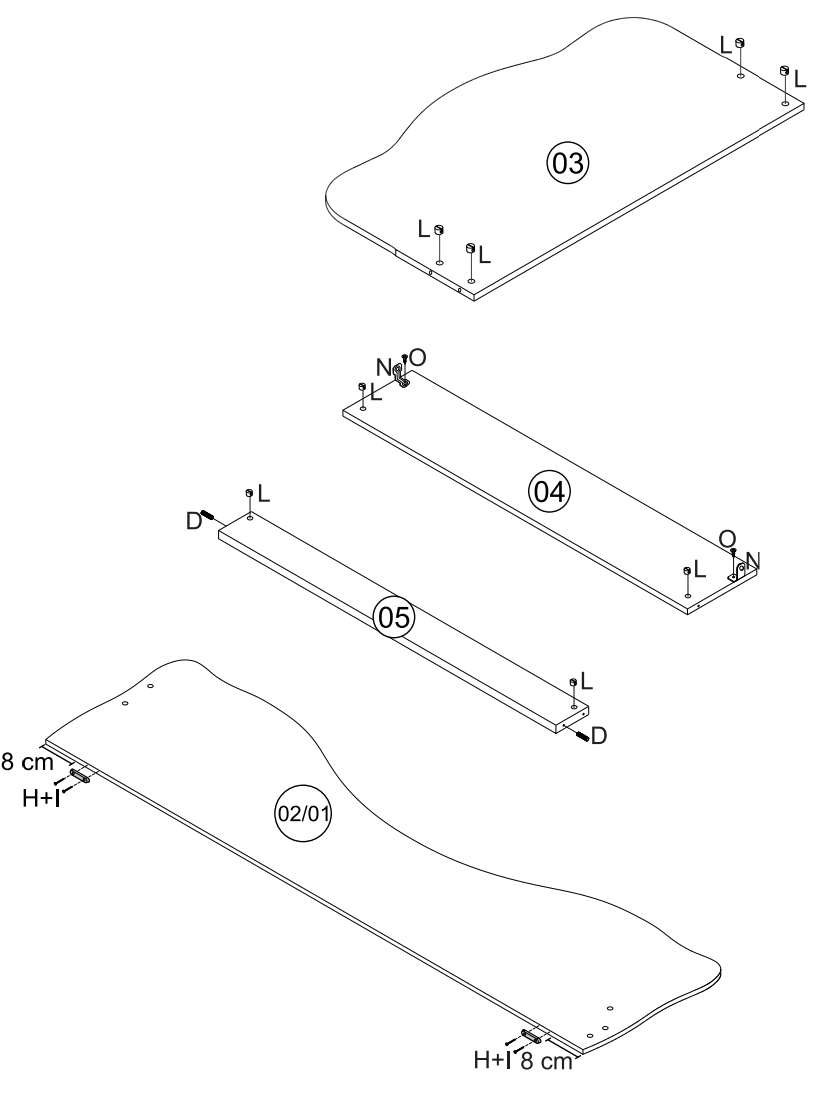

PRODUCT ASSEMBLY
Step
– Make the assemblies as indicated in the steps below.
Step
Step
| J Hert 8ha | K Double-slded tape 18mm | K |  |
 QTD 02 Material:25x25x3 |  Cod. 1881 Branco Matertal02 18×1 | J | |
