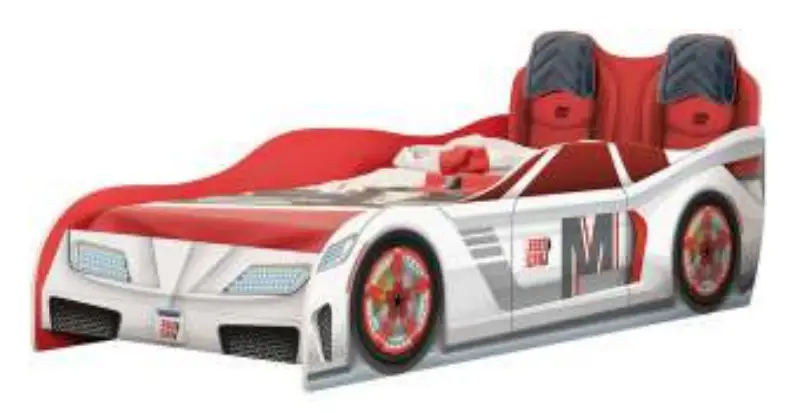

Moveis Estrela 29331 Fast Car Child 008 Bed 22a Instruction Manual

29331 Fast Car Child 008 Bed 22A
Instruction Manual

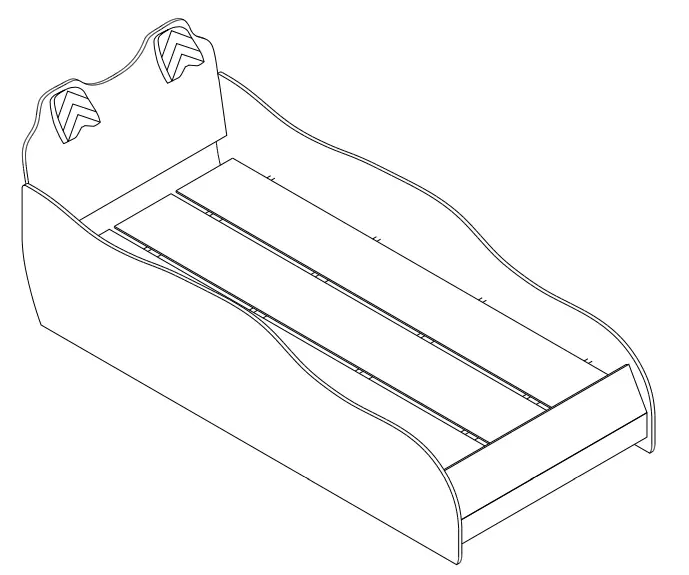

29331 Fast Car Child 008 Bed 22A

Necessary people for assembly
1 ‘Adult

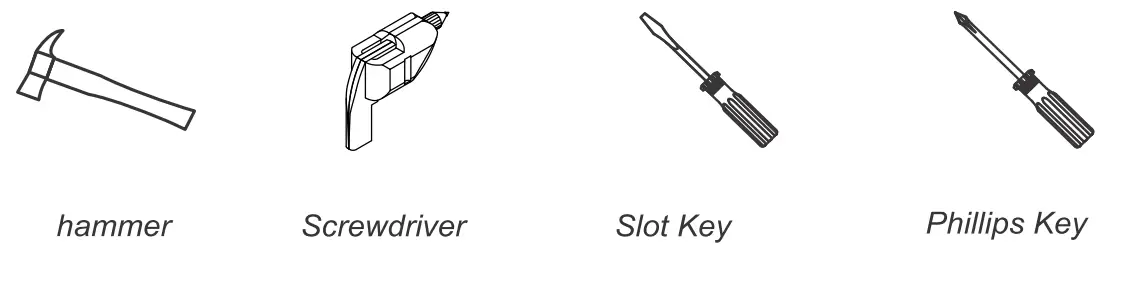

Tools needed (not inclued)

SAFETY INFORMATION

1. This package contains small parts, keep away from children until the product is assembled.
2. The instructions are generic, the figures may vary.
3. Read all instructions carefully before starting assembly.
4. Separate and store the ID tag.
5. Check if the volumes and quantities of pieces described in the manual are correct.
6. Identify the pieces and separate accessories.
7. The assembly of the product shall be made on a clean and flat surface. We recommend using the package itself to cover the floor in order not to damage the product.
8. Reserve a specific area to assembly the product.
9. Avoid shocks and contact with sharp objects.
10. Do not expose the furniture to excessive heat (direct sunlight), or high humidity.
11. For cleaning use a dry soft cloth or slightly moistened with water.
    Do not use cleaning agents or abrasives

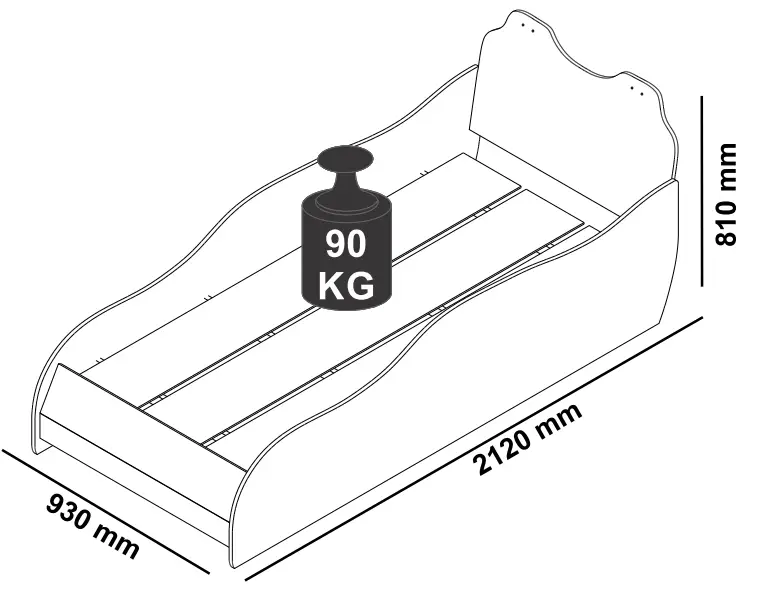

SUPPORTED WEIGHT / DIMENSIONS ASSEMBLED PRODUCTHARDWARE

A. Screw CC Philos.	B. Screw CC Phillips	C. Cooma Nove	D. Dowel	E. Plastic ‘Support	F. Adhesiva Label
QTD.  Dimensdo: Materlal 08      5,0 x 50       Metal	QTD.   Dimensdo:   Materlal 24         3,0x 20           Metal	QTD.   Dimensdo:  Materlal: 02         17x17x79     Metal	QTD.   Dimensdo:  Materlal: 02        6×30           Madelra	QTD. Dimensdo: Materlal: 08      60x60x10    Plastleo	QTD. Dimensdo: Materlal: 08   12mm       Plastica
G. Shoes Rectangular	H. Nail 8×8	I. Screw Flangeado	J. Screw CC Phillips	K. Cylindrical nut	L. Tag
QTD.  Dimensdo: Materlal 04    50×12    Plastica	QTD.  Dimensdo: Materlal 08    19×1     Metal	QTD.  Dimensdo: Materlal 08   40×35    Metal	QTD.  Dimensdo: Materlal 12 35×12 Metal 0	QTD.  Dimensdo: Materlal 8 12×09 Plastica	QTD.  Dimensdo: Materlal 01 37×13 Plastica
M. Soporte	N. pilicw
QTD.  Dimensdo: Materlal 02  20×20  Metal	QTD.  Dimensdo: Materlal 02  190×230×40 Tecido

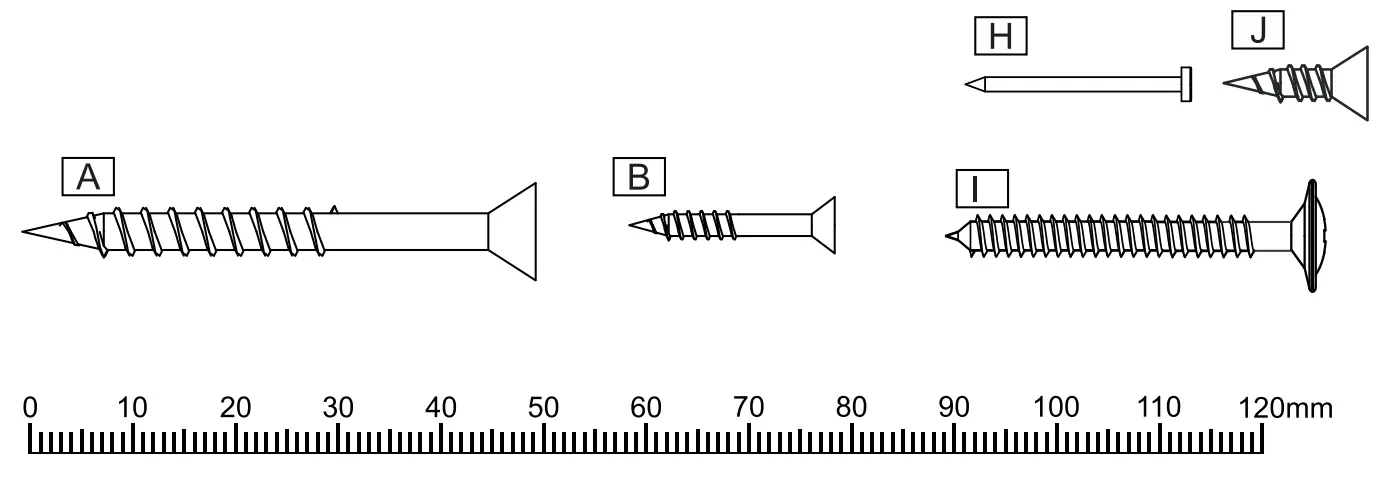

REAL SCALE HARDWARE

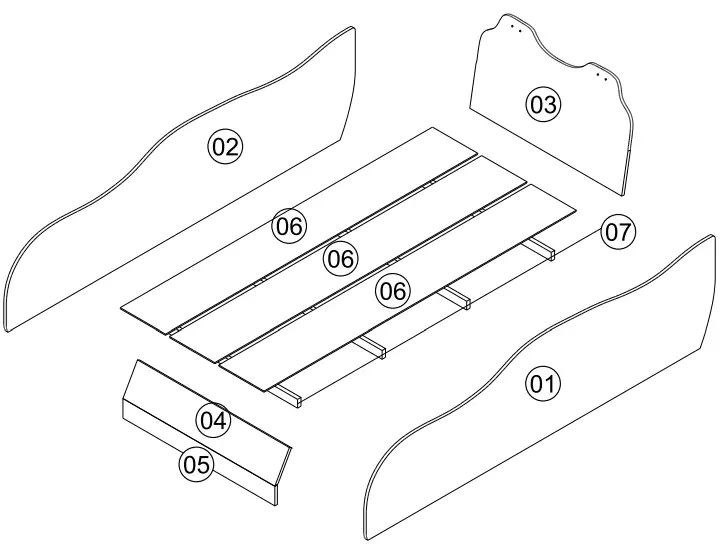

IDENTIFICATION OF PARTS

TECHNICAL ASSISTANCE
When request the technical assistance, please inform the number of the piece name and color of the product and also the batch manufacturing date, that is stamped on the piece n° 06.
PRODUCT ASSEMBLY
Step  1

• Make the assemblies as indicated in the steps below.

D. Dowel	K. Cylindrical nut
QTD. Dimensao: Material 02   6×30    Madeira	QTD. Dimensao: Materia 08   12×09    Plastica
G. Shoes Rectangular	M. Gusset
QTD. Dimensao: Material 4  50×12   Plastica	QTD. Dimensao: Material 02 20×20 Metal
H. Nail 8×8
QTD. Dimensao: Material 08 19×1 Metal

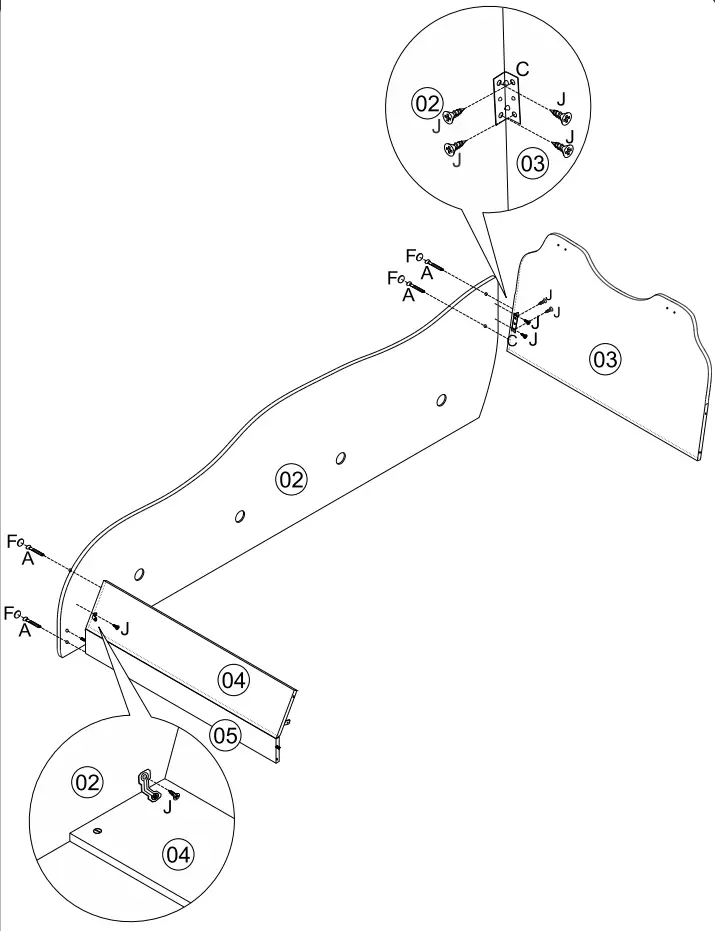

Step 2

A. Screw CCPhillips	C. Comer Brace
QTD. Dimensic: Material: 04 = 50×50 Metal	QTD. Dimensdo: Material: 01 17x17x46 = Metal
F. Adhesiva Label	J. Sere Ce Philos
QTD. Dimensdo: Material: 04 12mm Plastica	QTD. Dimensdo: Material: 05 -3,5×12 Metal

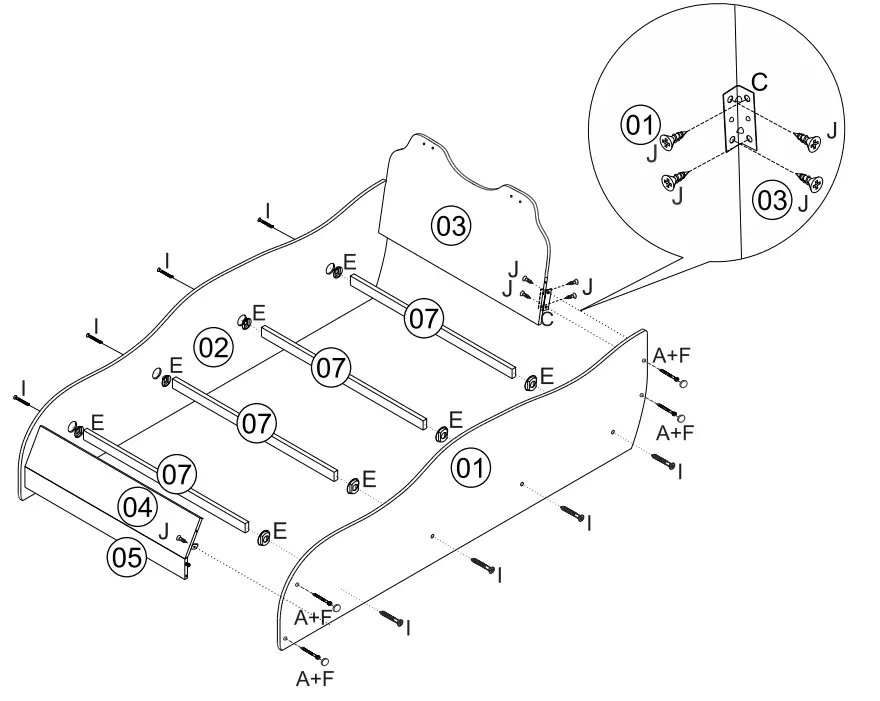

Step 3

C. Comer Brace

QTD. Dimensdo: Material: 01    17×17×46   Metel

F. Adhesiva Labef	E. Screw CC Phillips	A. Screw CC Phillips
QTD.  Dimenstic: Material: 04  12mm Plastica	QTD.  Dimenstic: Material: 05   35×12   Metal	QTD.  Dimenstic: Material: 04 5,0×50 Metel
E. Plastic Support	I. Screw Flangeado
QTD.  Dimenstic: Material: 08  60×60×10  Plastico	QTD.  Dimenstic: Material: 08 4,0×35 Metal

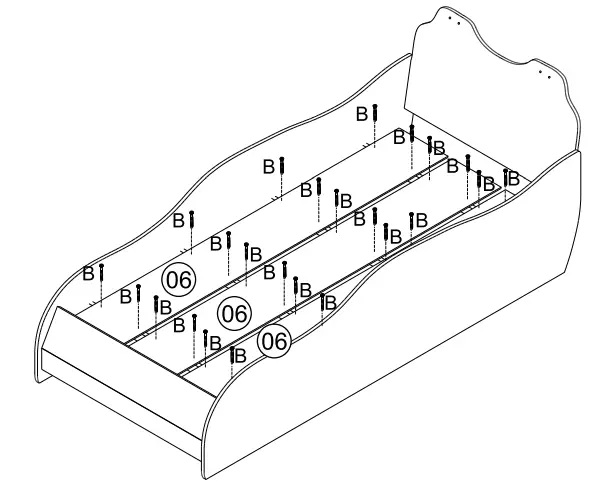

Step 4

B. Screw CC Phillips

QTD. Dimensdo: Material: 24 3,0x 20 Metal

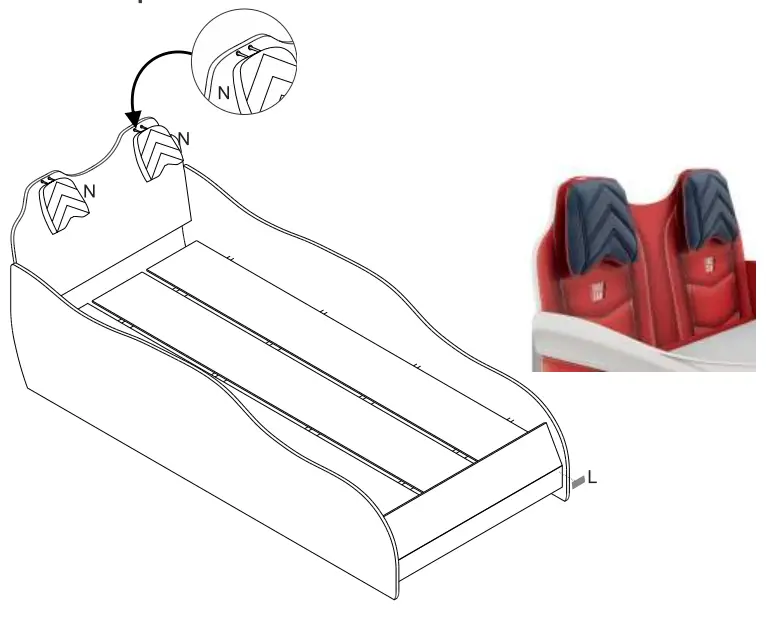

Step 5
PASS THE ROPES L  THROUGH THE HOLES

N. Pillow	L. Tag
QTD. Dimenséo: Material: 02 190x230x40 _Tecido	QTD. Dimenséo: Material: 01 37×13 Plastica

Avenida Maracana, 4244 – Parque Industrial
Arapongas – PR – Brasil
Fone: +55 (43) 3274-8800
www.moveisestrela.com.br
