HENN 939621 Mint Candy Mini Bed Crib
I02-10 Branco

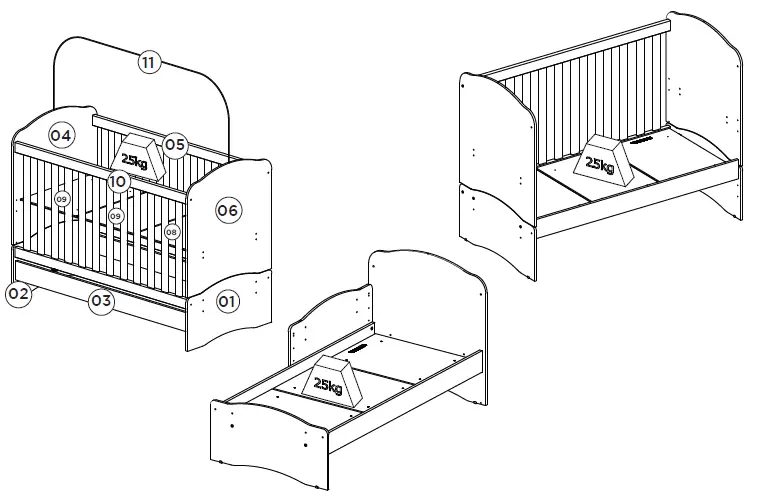

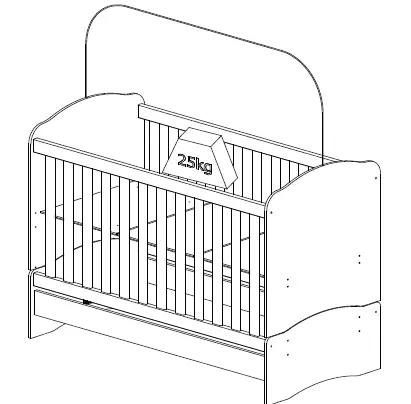

Recommended maximum weight with distributed load.

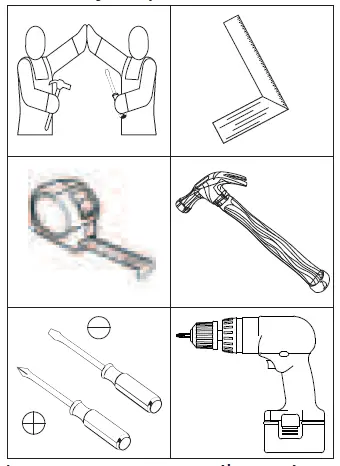

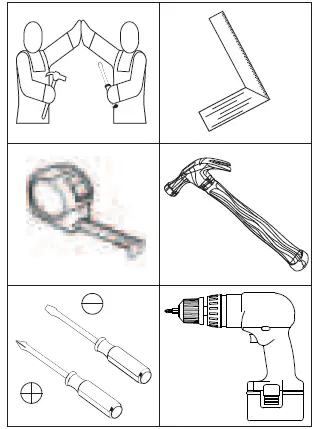

Assembly Requirements
Images for illustration only
NOTICE
To clean your furniture, use a dry or wet cloth, and do not use chemicals that may damage your product.
ASSEMBLY SYSTEM
The products’ assembly system works according to the increasing order of the indicated numbers.
For example: 01, 02, 03, 04 … to the end of the as-seemly.
WARNING READ WITH ATTENTION AND SAVE FOR EVENTUAL CONSULTATIONS
- Warnings: Do not position or use the product near open flame and other sources of heat such as electric heaters, gas heaters or other sources as the material is flammable.
- Do not use the crib if any part is broken, torn or missing. Use only replacement parts recommended by the manufacturer.
- Do not leave any object in or near the crib that may serve as a foothold or risk of suffocation, choking or strangulation, such as ropes, blinds / curtain cords, protectors, cushions, toys, wires and cables of electrical appliances.
- Never use more than one mattress in the crib.
- Small children may not play, unattended, in the vicinity of a crib.
- Caution: when the child is able to climb the crib, it can no longer be used by this child, as this crib was built for use by children with motor ability to sit, kneel and / or get up alone but not yet able to climb the crib.
- For cribs with more than one function, not subject to regulation: This product complies with regulations for baby cribs, and its other functions are not subject to regulation.
- This crib can not be altered, either in its structure or in its adornments, because risks to the child’s safety can be generated.
- The length and width of the mattress used with the crib must comply with the specifications of this Manual.
- Guidelines: The Brazilian Society of Pediatrics advises to place the baby to sleep on his belly up, as it reduces the risk of sudden death by 70%. We recommend talking to your child’s pediatrician for more information.
- Only use the crib when fully assembled in accordance with the instructions in the Instruction Manual and after making sure that your locking systems are properly engaged.
- The crib must be placed on a horizontal floor.
- For cribs with adjustable base height: The lowest position is the safest and the base should always be used in this position as soon as the baby is old enough to sit.
- When there are detachable supporting devices to support the crib base above its lowest position: Before the crib is used in its lowest position, the devices used to support the crib in the highest positions should be removed.
- The mounting connections must always be tightened properly and checked regularly, throughout the use of the crib, and retightened as necessary.
- If any part of the crib breaks or is defective, you should look for expert technical assistance and no home repairs.
- Guidelines for the thickness of the mattress, which may be given in the following ways:
- The length and width of the mattress used with the crib shall be such that it is never possible to form a space greater than 30 mm between the sides or ends and the mattress.
- The thickness of the mattress shall be such that the inner height (from the mattress surface to the upper edge of the cradle frame) is at least 480 mm in the lowest position of the cradle base and at least 180 mm in the highest position of the cradle of the crib.
- When a marking is used on the crib to indicate the maximum thickness of the mattress: The marking on the crib indicates the maximum thickness of the mattress to be used with the crib.
- Recommendation on the minimum size of mattress to be used with the crib. For the Mint Bullet Mini Bed Crib, the use of a 1,30 m ± 0.5 cm mattress is recommended length, 60 cm ± 0,5 cm wide and 12 cm ± 0,5 cm high, with a minimum density of 18 kg / m³ ± 2,0 kg / m³ (D18).
THE INMETRO REGISTRATION AND THE CONFORMITY IDEN-TIFICATION SEAL REFER ONLY TO THE CRIB

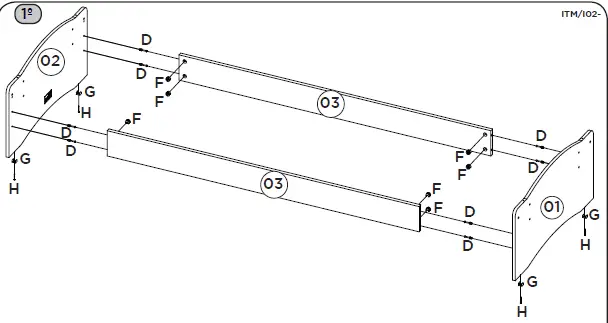

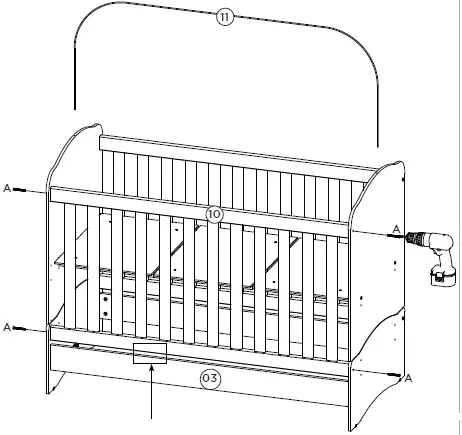

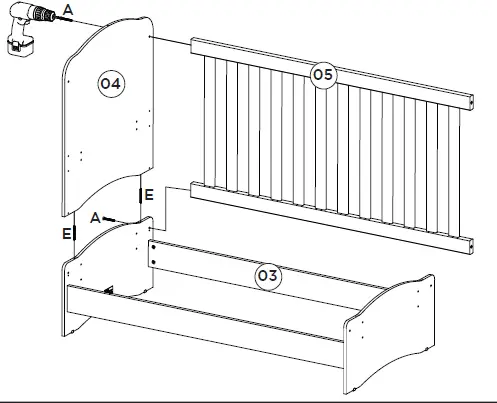

In order not to compromise the structure of the cradle, the space between parts (03) and (05) can not be less than 20mm and greater than 23mm.

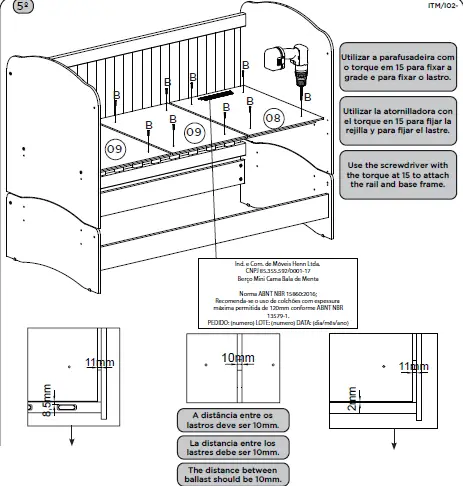

Use the screwdriver with the torque at 15 to attach the rail and base frame.
- For the higher option the distance between the end base frame to the sides should be 11mm.
- The end base frames (08) and (09) must be 8,5mm from the fixed rail (05).
- For the lower option the distance between the end base frame to the sides should be 11mm.
- In order not to compromise the structure of the cradle, the space between parts (03) and (10) can not be less than 20mm and greater than 23mm.
Use the screwdriver with the torque at 15 to attach the rail and base frame.
In order not to compromise the structure of the cradle, the space between parts (03) and (10) can not be less than 20mm and greater than 23mm.

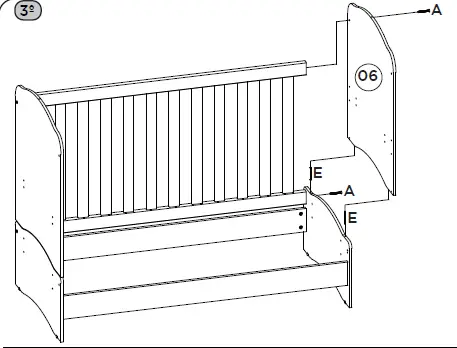

Completed crib assembling
For the Mini Mint Bed Cradle, the base ballast can not be removed from the structural beam for transportation, storage and / or function change purr-poses.

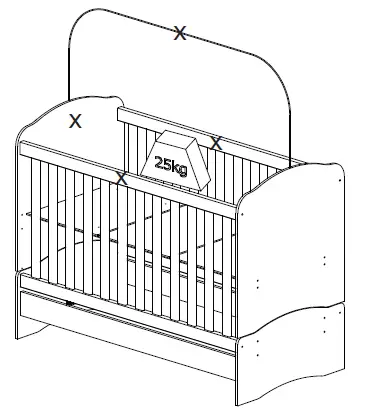

To assemble the crib bed, remove the parts marked with “x” and the remaining parts should be used for assembly it.

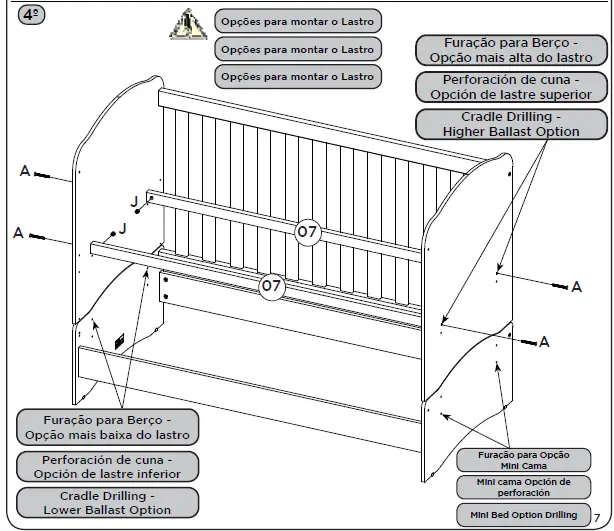

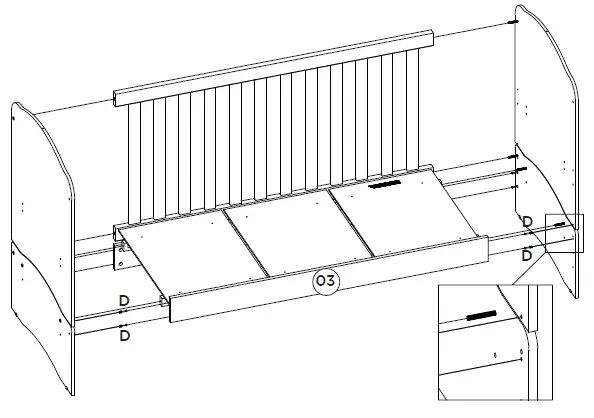

Mounting the bed crib option
HENN-939621-Mint-Candy-Mini-Bed-Crib-26

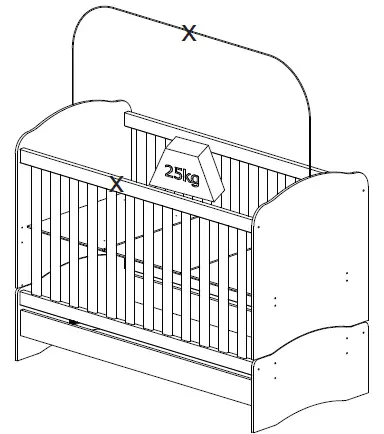

To assemble the mini bed, remove the parts marked with “X” and the remaining parts should be used to assemble the mini bed.
Mount the mini bed option.

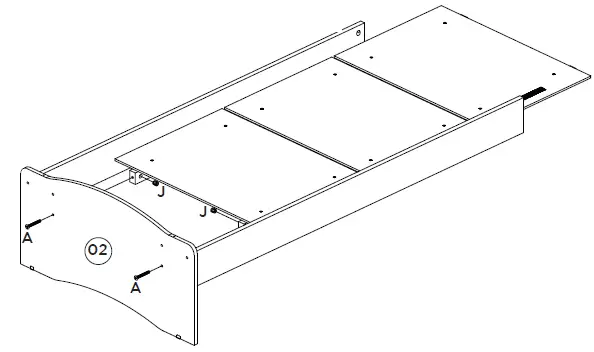

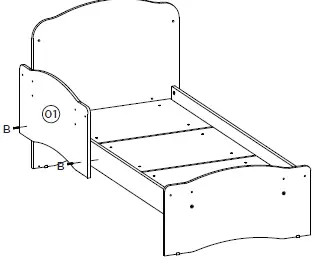

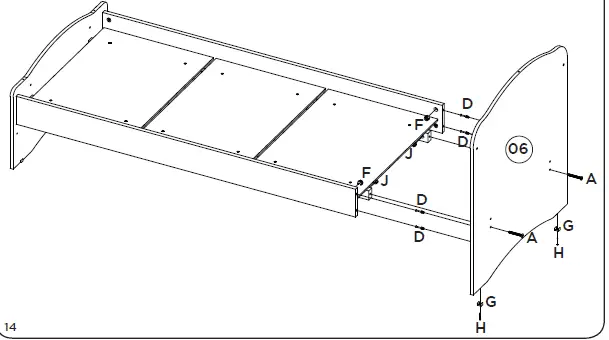

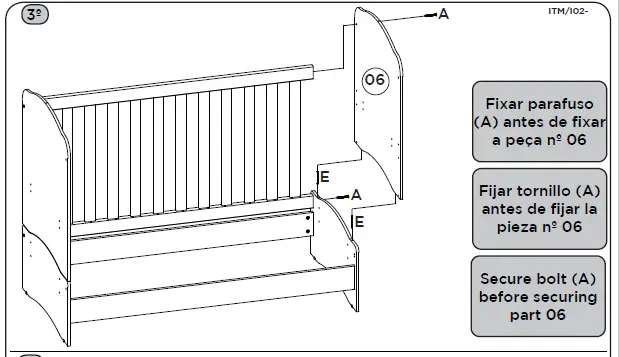

To install the Mini Bed it is necessary to use the parts nº 02 for the assembly of the footboard and the parts nº 06 for the assembly of the headboard.
For fixing the lower side (01) on the structural cross member (03) drills must be made.

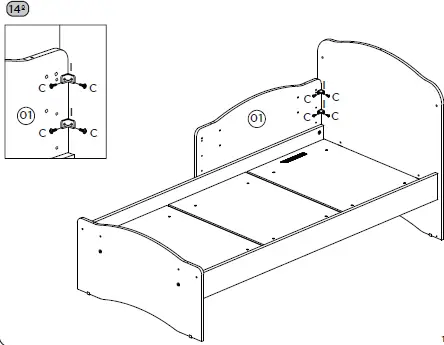

Attaching the bracket (I).
List of parts
| Item | Box | Qty | Description | Size (measurements) (mm) |
| 01 | 1/1 | 01 | Lateral side | 680x340x12 |
| 02 | 1/1 | 01 | Lateral side with tag | 680x340x12 |
| 03 | 1/1 | 02 | Structural Frame | 1301x110x15 |
| 04=06 | 1/1 | 01 | Upper Lateral | 705x680x12 |
| 05=10 | 1/1 | 01 | Fixed Rail | 1300x670x25 |
| 06=04 | 1/1 | 01 | Upper Lateral | 705x680x12 |
| 07 | 1/1 | 02 | Crib Frame | 1301x36x22 |
| 08 | 1/1 | 01 | Larges base Frame with seal | 595x420x6 |
| 09 | 1/1 | 02 | 6mm Largest Base Frame | 595x420x6 |
| 10=05 | 1/1 | 01 | Fixed Rail | 1300x670x25 |
| 11 | 1/1 | 01 | 1320mm mosquito net support | 1320mm |

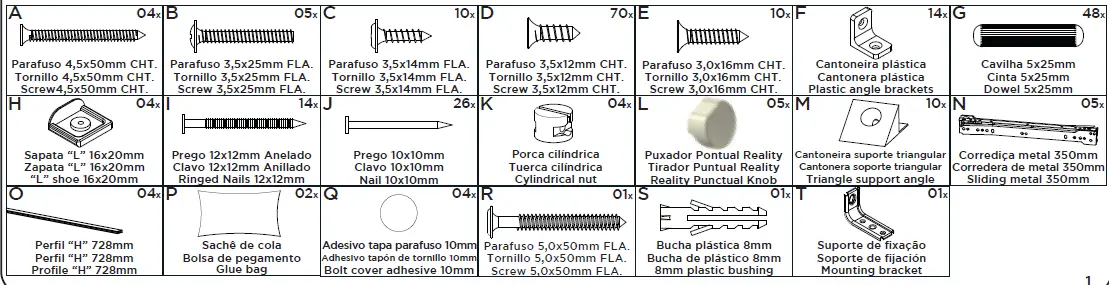

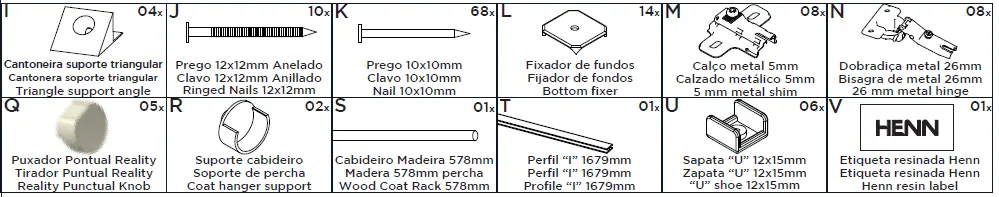

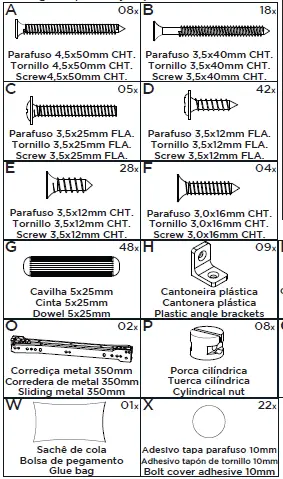

Hardware
Assembly Requirements
Images for illustration only

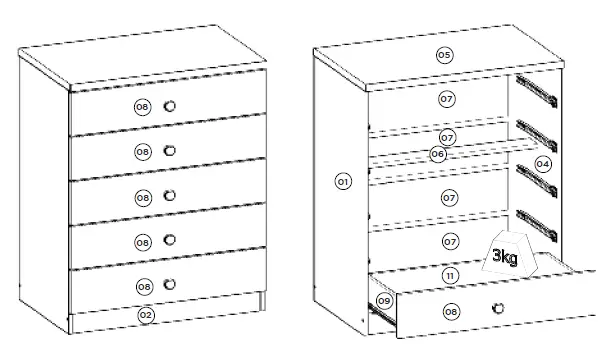

Recommended maximum weights with evenly distributed.

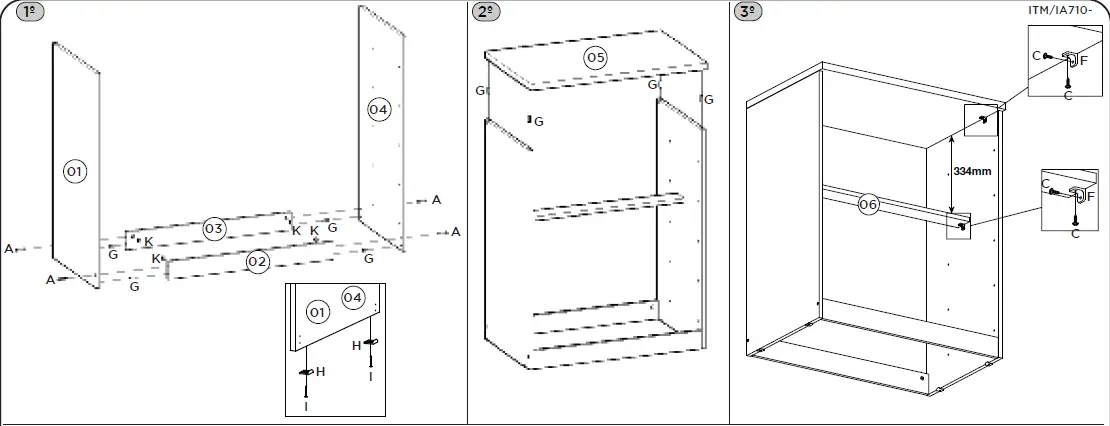

List of parts
| Item | Box | Qty | Description | Size (measurements) (mm) |
| 01 | 1/1 | 01 | Left side | 899x375x15 |
| 02 | 1/1 | 01 | Front skirting | 718x73x12 |
| 03 | 1/1 | 01 | Rear skirting | 718x73x12 |
| 04 | 1/1 | 01 | Right side | 899x375x15 |
| 05 | 1/1 | 01 | Top | 750x395x25 |
| 06 | 1/1 | 01 | Structural Strut | 718x68x15 |
| 07 | 1/1 | 05 | Raw background | 737x165x3 |
| 08 | 1/1 | 05 | Front of drawer | 746x160x15 |
| 09 | 1/1 | 10 | Side of drawer | 350x110x12 |
| 10 | 1/1 | 05 | Drawer bottom | 680x361x3 |
| 11 | 1/1 | 05 | Rear lath | 693x110x12 |
Recommended maximum weights with evenly distributed.
NOTICE
To clean your furniture, use a dry or wet cloth, and do not use chemicals that may damage your product.
ASSEMBLY SYSTEM
The products’ assembly system works according to the in-creasing order of the indicated numbers. For example: 01, 02, 03, 04 … to the end of the assembly.
Hardware

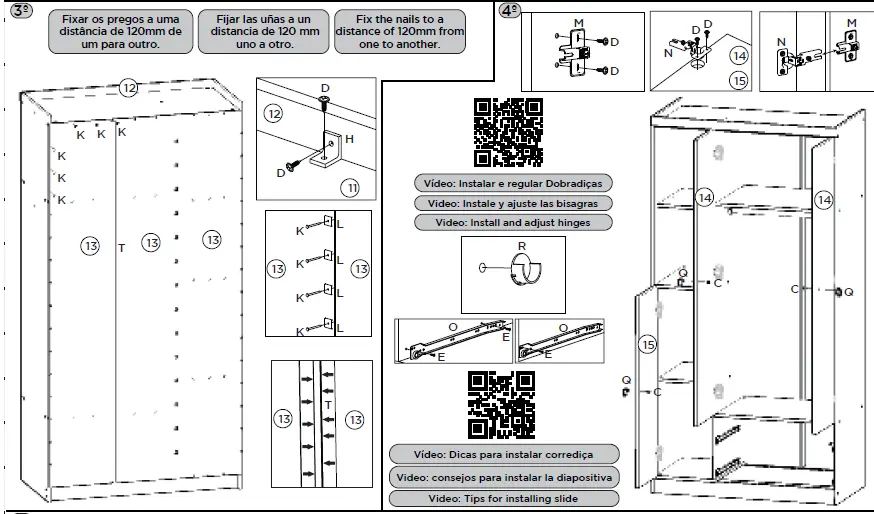

Indispensable to fi x the product on the wall, not the placement of these attachment fittings (C, R, S and T) may allow the product to turn, causing an accident.

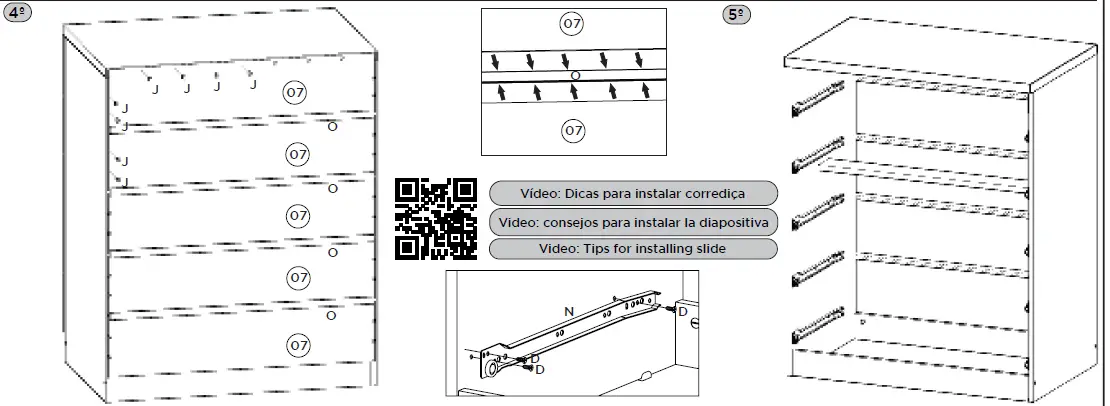

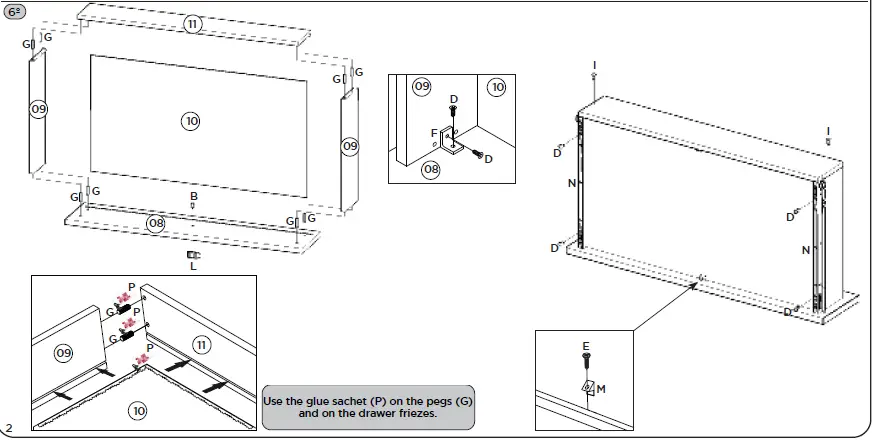

Use the glue sachet (P) on the pegs (G) and on the drawer friezes.
WARDROBE 3 DOORS 2 DRAWERS BALA DE MENTA
Branco
Assembly Requirements
Images for illustration only
NOTICE
To clean your furniture, use a dry or wet cloth, and do not use chemicals that may damage your product.
ASSEMBLY SYSTEM
The products’ assembly system works according to the increasing order of the indicated numbers.
For example: 01, 02, 03, 04 … to the end of the assembly.
Hardware

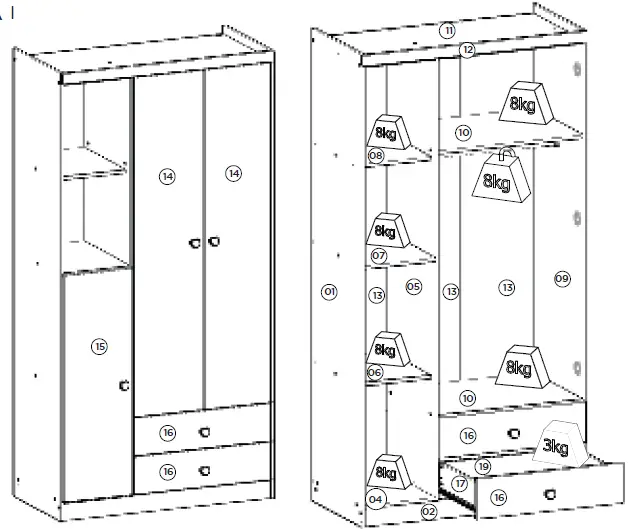

Recommended maximum weights with evenly distributed.

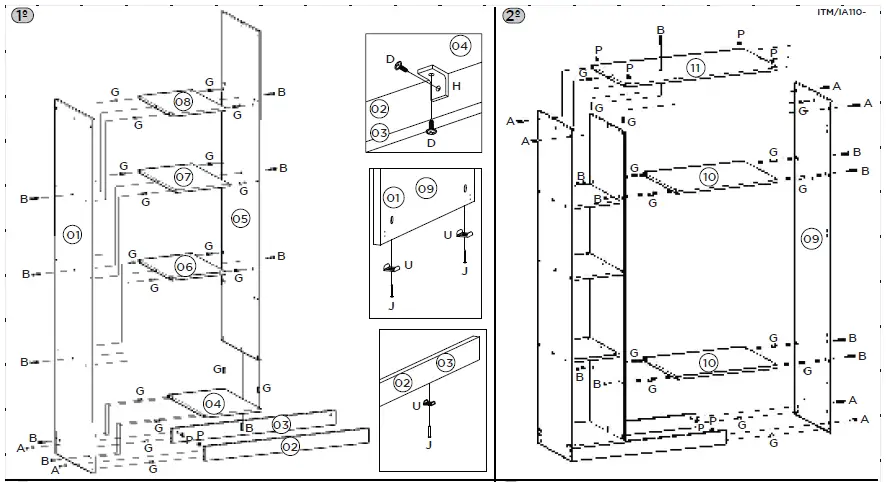

List of parts

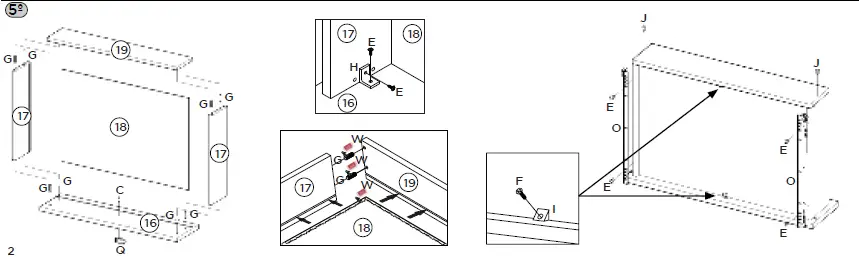

| List of parts | Size (measurements) (mm) | |||
| Item | Box | Qty | Description | |
| 01 | 1/1 | 01 | Left side | 1800x380x12 |
| 02 | 1/1 | 01 | Front baseboard | 885x70x12 |
| 03 | 1/1 | 01 | Rear baseboard | 885x70x12 |
| 04 | 1/1 | 01 | Base | 380x301x12 |
| 05 | 1/1 | 01 | Division | 1671x380x12 |
| 06 | 1/1 | 01 | Bottom Shelf | 350x289x12 |
| 07 | 1/1 | 01 | Central Shelf | 445x289x12 |
| 08 | 1/1 | 01 | Small Shelf | 350x289x12 |
| 09 | 1/1 | 01 | Right side | 1800x380x12 |
| 10 | 1/1 | 584x380x12 | ||
| 11 | 1/1 | 01 | Top | 885x380x12 |
| 12 | 1/1 | 01 | Hat | 907x39x15 |
| 13 | 1/1 | 03 | Bottom | 1694x300x3 |
| 14 | 1/1 | 02 | Door | 1366x295x15 |
| 15 | 1/1 | 01 | Door Minor | 910x295x15 |
| 16 | 1/1 | 02 | Front of drawer | 592x152x15 |
| 17 | 1/1 | 04 | Side of drawer | 350x110x12 |
| 18 | 1/1 | 546x361x3 | ||
| 19 | 1/1 | 02 | Rear lath | 559x110x12 |
| List of parts | Size (measurements) (mm) | |||
| Item | Box | Qty | ||
| 01 | 1/1 | 01 | Left side | 1800x380x12 |
| 02 | 1/1 | 01 | Front baseboard | 885x70x12 |
| 03 | 1/1 | 01 | Rear baseboard | 885x70x12 |
| 04 | 1/1 | 01 | Base | 380x301x12 |
| 05 | 1/1 | 01 | Division | 1671x380x12 |
| 06 | 1/1 | 01 | Bottom Shelf | 350x289x12 |
| 07 | 1/1 | 01 | Central Shelf | 445x289x12 |
| 08 | 1/1 | 01 | Small Shelf | 350x289x12 |
| 09 | 1/1 | 1800x380x12 | ||
| 10 | 1/1 | 02 | Shelf | 584x380x12 |
| 11 | 1/1 | 01 | Top | 885x380x12 |
| 12 | 1/1 | 01 | Hat | 907x39x15 |
| 13 | 1/1 | 03 | Bottom | 1694x300x3 |
| 14 | 1/1 | 02 | Door | 1366x295x15 |
| 15 | 1/1 | 01 | Door Minor | 910x295x15 |
| 16 | 1/1 | 02 | Front of drawer | 592x152x15 |
| 17 | 1/1 | 04 | Side of drawer | 350x110x12 |
| 18 | 1/1 | 02 | Drawer bottom | 546x361x3 |
| 19 | 1/1 | 02 | Rear lath | 559x110x12 |
