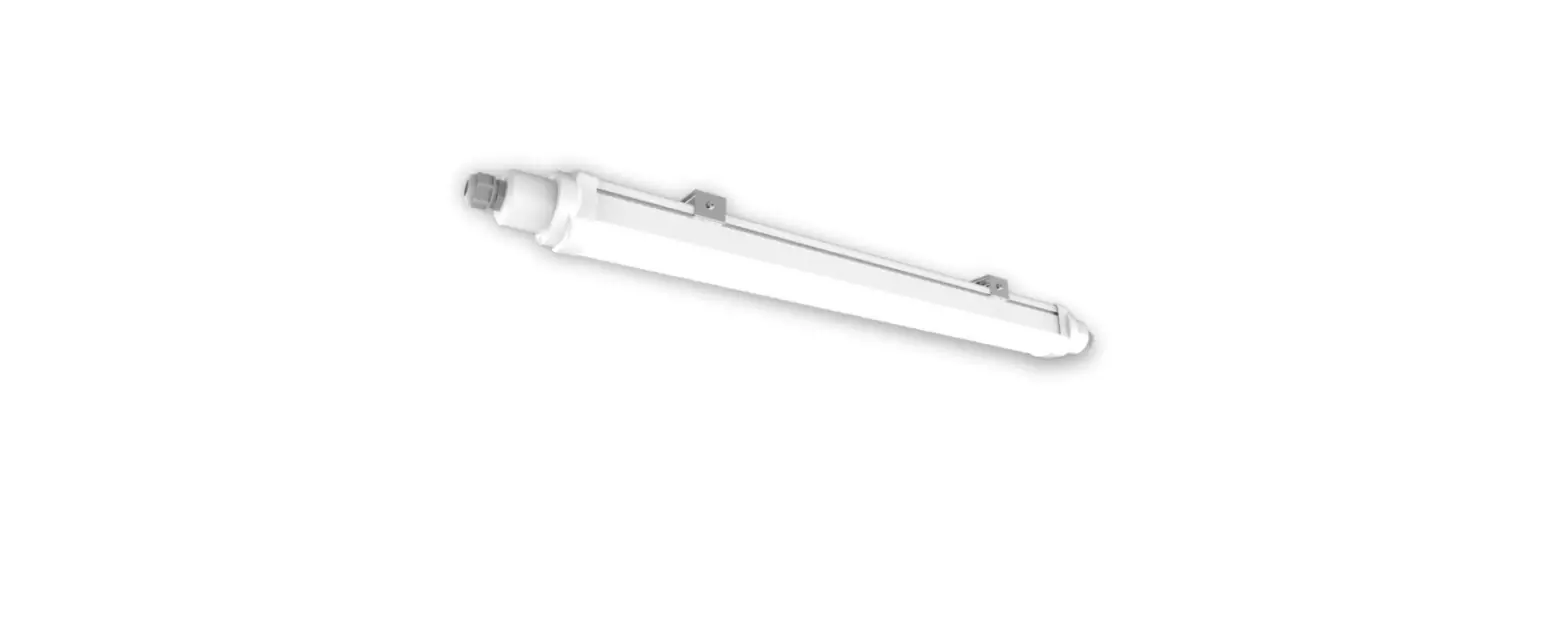

JADEMAR LIGHTING JVTC SERIES Continuous Run Vapor Tight

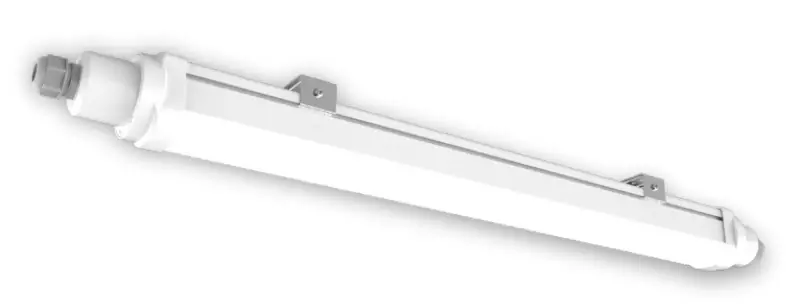

PRODUCT DESCRIPTION
The JVTC Series of Vapor Tight fixtures are a highly durable and robust series of Tri-Proof lights designed for production areas, parking facilities and any other area of application where harsh conditions have to be countered. Its polycarbonate housing is cast from a single mold and therefore absolutely dust and waterproof.
Its Ingress Protection rating of IP69K assures that it can truly be used indoor and outdoor under all conditions. Improved end-caps featuring a rotary knob system allow for tool-free wiring and assure a very fast and almost effortless installation of the Continuous Run series. A massive internal aluminum core provides stability and assures good thermal conditions for up to 480pcs of 0.5W SMD2835 chips as well as the internal isolated power driver. This modern and efficient Tri-Proof light is available in 40W and 60W wattage.
STANDARD FEATURES
Construc on and Materials
- Polycarbonate Housing is cast in a single mold (cover cannot be removed)
- Internal Aluminum Housing and Stainless Steel Mounting Clips

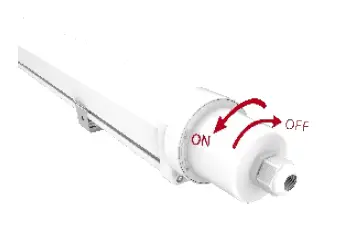

- Rotary knob for tool-free wiring and fast installation

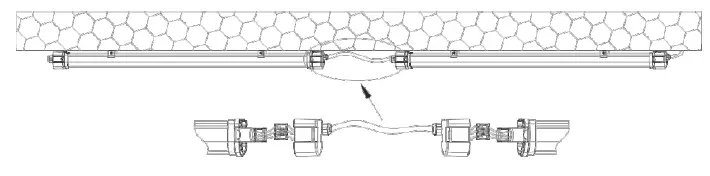

- Single installation or as continuous line
- 5FT Power Cord
- P68 Cable Gland
- Standard surface mounting bracket
Optical System
- 120° Light Distribution
Electrical System
- Input Power: 40W / 60W
- Input Voltage: 100-277VAC 50/60Hz
- Efficacy: 130 lm/W on average
- Power Factor: >0.90
- CRI: >80
- Operating Temp: -22°F to 113°F (-30°C to 45°C)
- Total Harmonic Distortion: <15%
- Integral Surge Protection: L/N-PE: 4kV, L-N: 4kV
Dimming and Controls
- Non-Dimming Standard
Certifications and Compliance
- UL Listed
- Ingress Protection: IP65 & IP69K Suitable for Wet Locations
- RoHS compliant
- Meets FCC Part 15, Subpart B, Class A limits for conducted and radiated Emissions
- Lifetime Based on TM21: L70 @ 163,000Hrs / L80 @ 141,000Hrs / L90 @ 127,000Hrs
PERFORMANCE SUMMARY
| Input Power | 40W / 60W |
| Max Dimensions | 47.2″ X 2.4″ X 2.4″ |
| Efficacy | 130 lm/W |
| CRI | 80 CRI Standard |
| CCT | 5000K |
| Input Voltage | 100-277VAC |
| Dimming & Control | Non-Dimming Standard |
| Ingress Protection | IP69K Rated (Dust & Waterproof) |
| Mounting | Surface Mount Standard |
| Lifetime Based on TM21 | L70 @ 163,000Hrs L80 @ 141,000Hrs L90 @ 127,000Hrs |
| Limited Warranty | 10 Years |

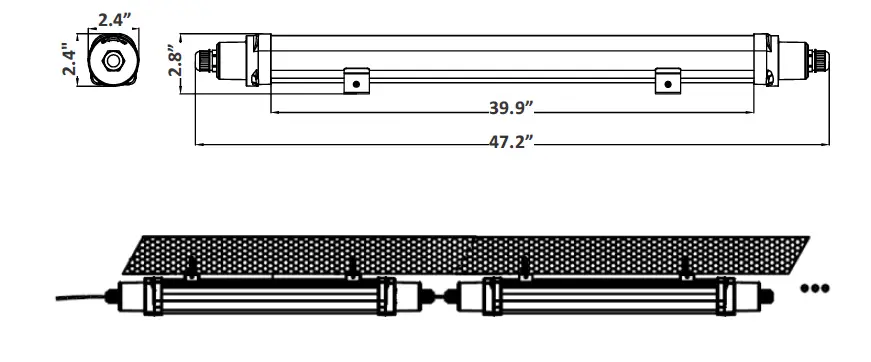

PRODUCT DIMENSIONS
OPTIONAL FEATURES
- 10FT or 16FT Power Cord Options
- EM15 & EM20 Emergency Battery Pack Options
SPECIFICATION SUBMITTAL DETAIL
| Project Name/Type: | Date: | |
| Catalog/Part #: |
JVTC SERIES CONTINUOUS RUN TRI-PROOF IP69K & IK10 RATED VAPOR TIGHT SERIES
ORDERING INFORMATION / EXAMPLE: JVTC4-40W-50K
| Product | Input Voltage | CCT/Color Temp. | CRI | Light Distribution | Dimming | Lens Type | Other Options |
| JVTC4-40W JVTC4-60W | Blank (100-277VAC) |
50K (5000K) | Blank (80 CRI) | Blank (120-Degree) | Blank (Non-Dimming) Standard | Blank (Diffused/Frosted) | Blank (5FT Power Cord) Standard PWC10 (10FT Power Cord) PWC16 (16FT Power Cord) |
FIELD INSTALLED OPTIONS
| EM15 | Field installed EM15 battery back-up |
| EM20 | Field installed EM20 battery back-up |
LUMEN PERFORMANCE AND ELECTRICAL DATA
| Model Number | JVTC4-40W | JVTC4-60W |
| Maximum Dimensions | 47.2″ x 2.8″ x 2.4″ | 47.2″ x 2.8″ x 2.4″ |
| Input Power | 40W | 60W |
| Efficacy (lm/W) | 138 | 137 |
| Initial Lumens (lm) | 5486.9 | 8406.3 |
| CCT | 5000K | 5000K |
| Input Voltage | 100-277VAC | |
| CRI | >80 | |
| THD @ 120VAC | ≤15% | |
| Power Factor | >0.9 | |
| Ingress Protection | IP69K for Wet Locations | |
| Integral Surge Protection | L/N-PE: 4kV, L-N: 4kV | |
| Maximum Weight | 4.08 lbs. (1.85 kgs) | 4.08 lbs. (1.85 kgs) |
| Certifications & Compliance | UL Listed / FCC / RoHS | |
| Standard Control Specification | Non-Dimming | |
| Construction | Aluminum PCB / Rust Corrosion Mounting Clips / Polycarboante Housing in Cast Single Mold / Waterproof and Dustproof End-Caps | |
| Light Distribution | 120° | |
| Working Temp | -22°F to 113°F (-30°C to 45°C) | |
| Lifetime Based on TM21 | L70 @ 163,000Hrs / L80 @ 141,000Hrs / L90 @ 127,000Hrs | |
| Limited Warranty | 10 Yrs. | |
The maximum number of quantity for linkable installation:
(linkable version is not available for 8FT Model)
| Wattage | Voltage | Quantity |
| 40W | 120V AC | 36 PCS |
| 230V AC | 70 PCS | |
| 277V AC | 84 PCS | |
| 60W | 120V AC | 18 PCS |
| 230V AC | 35 PCS | |
| 277V AC | 42 PCS |

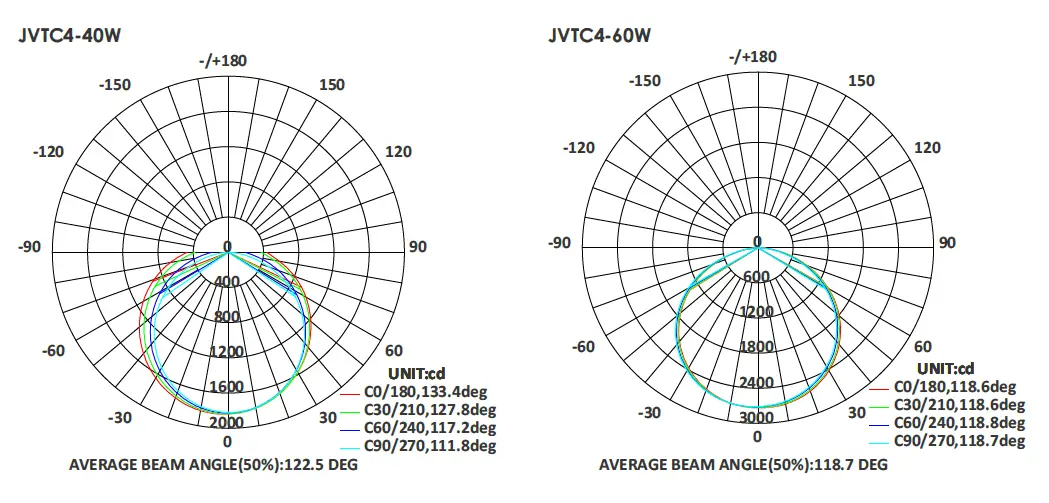

PHOTOMETRY
