Rigid Bodies
User Guide

Contents hide

1 Introducing Vicon Rigid Bodies kits

2 What’s included

3 Head and hands kit

4 Assemble the straps

5 Documents / Resources

6 Related Posts

Introducing Vicon Rigid Bodies kits

Vicon Rigid Bodies enable you to track and measure people and objects using fixed, accurate markers. You can be up and running quickly with an easy-to-apply, comfortable-to-wear set of rigid bodies for six-degrees-of-freedom tracking of human body segments or objects.
A predefined model for each recommended unique cluster means no subject calibration, and the kit is compatible with Vicon Tracker.

Kit options
Three Rigid Bodies kits are available, depending on your tracking needs:

Full body kit
Hands and head kit
Object kit

This guide describes what you need to get started using any of these kits.
Custom sizes are available as special order items.
Full body kit
Human tracking for ergonomics applications

What’s included

This kit provides 14 rigid body plates with straps for human tracking for ergonomics applications.
Note: If required, you can also order a clip-on frame suitable for stereoscopic glasses.

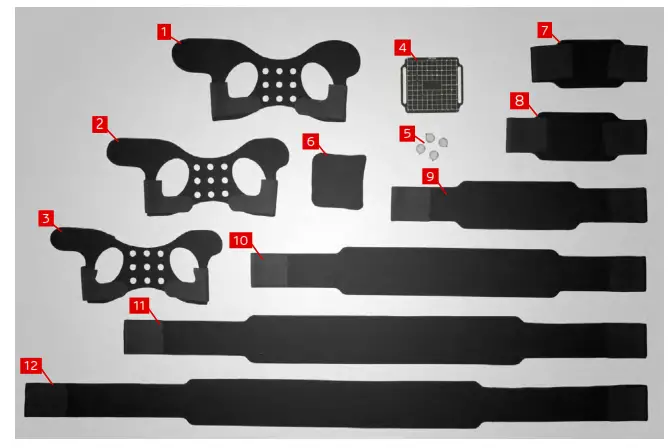

Image	Part	Quantity	Part #
1	Large hand strap	2	AYY002A
2	Medium hand strap	2	AYY003A
3	Small hand strap	2	AYY004A
4	Rigid Body plate	14	AYE001A
5	Markers	61	ZZY005AC
6	Foam pocket	14	AYY016A
7	Lower arm strap	2	AYY006A
8	Upper arm/lower leg/foot strap 1	6	AYY014A
9	Upper leg strap	2	AYY005A
10	Small pelvis/chest strap	2	AYY010A
11	Medium pelvis/chest strap	2	AYY009A
12	Large pelvis/chest strap	2	AYY008A

The upper arm, lower leg and foot straps are identical

Head and hands kit

Human tracking for virtual environment applications

What’s included

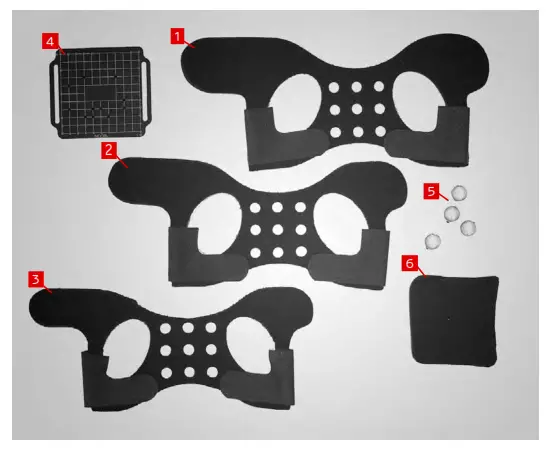

Image	Part	Quantity	Part #
1	Large Hand Strap	2	AYY002A
2	Medium Hand Strap	2	AYY003A
3	Small Hand Strap	2	AYY004A
4	Rigid Body Plate	2	AYE001A
5	Markers	10	ZZY005AC
6	Foam pocket	2	AYY016A

This kit provides two rigid body plates with straps to suit human tracking for Virtual Environment applications that require tracking of a single subject’s head and hands.
Note: If required, you can order a clip-on frame suitable for stereoscopic glasses.
Object kit
Object tracking for robot or unmanned aerial vehicles (UAV)

What’s included

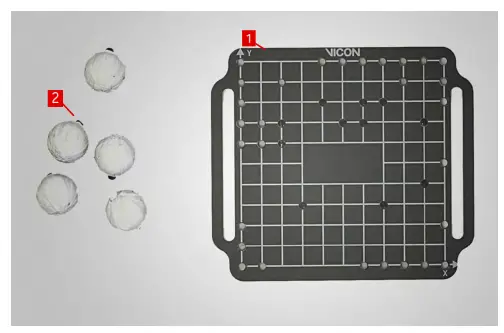

Image	Part	Quantity	Part #
1	Rigid Body Plate	1	AYE001A
2	Markers	5	ZZY005AC

This kit provides one rigid body plate with five markers for attaching to robots or unmanned aerial vehicles (UAV).

Assemble the straps

Before attaching the straps you need to assemble them.

Determine which size strap you need for each body part by trying on the straps and adjusting the VELCRO ®closures.
Attach the foam pads to each rigid body plate.
Attach the rigid body plates to each strap.

Attach the straps

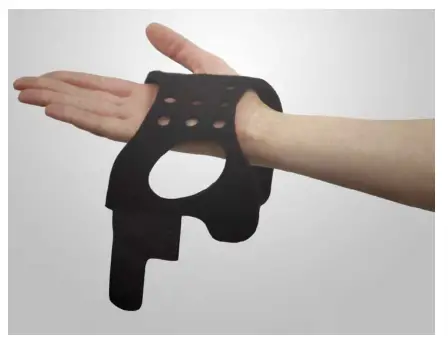

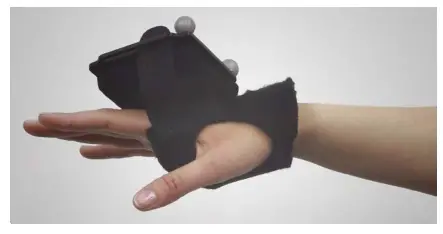

When you have assembled the straps, you can place them on the subject.
Note: The hand straps may be used on either hand. See the image in Assemble the straps above.

Attach a strap to each body part as required.
Adjust the VELCRO® closure to tighten or loosen each strap.

Recommended arrangement of markers
The table (right) provides the recommended arrangement of markers on the rigid body plates.
This arrangement will help maximize the effectiveness of marker tracking.
Note: To identify the rigid body plates, attach a sticker to the middle of each plate. You can name or rename the object in the Vicon Tracker software to match the identification on the rigid body.

	X	Y
Object 1	0 56 04 56	0 0 42 70
Object 2	0 56 0 56	0 0 49 63
Object 3	0 70 0 70	0 0 42 56
Object 4	0 63 0 63	0 0 42 49
Object 5	0 70 0 70	0 0 49 63
Object 6	0 49 0 49	0 0 42 70
Object 7	0 63 0 63	0 0 56 70
Object 8	0 70 14 56	0 0 49 63
Object 9	0 42 7 63	0 0 49 70
Object 10	0 49 14 70	0 0 42 63
Object 11	0 49 28 70	0 0 56 70
Object 12	0 70 7 49	0 0 42 70
Object 13	0 63 14 49	7 0 49 56
Object 14	7 56 0 42	0 0 70 49
Object 15	0 70 04 35	0 0 49 70
Object 16	0 56 04 42	0 0 49 70
Object 17	0 56 14 56	14 0 63 63
Object 18	0 0 63 49	0 49 28 70
Object 19	0 0 70 35	0 63 14 49
Object 20	0 70 28 70	0 0 70 63

Vicon Motion Systems
Washing the straps and pads Vicon Rigid Body straps are manufactured using high-quality nylon that is built to last. Routine care and maintenance will ensure the highest performance from the straps and extend their useful lifespan.
Caution: This product contains Neoprene. If you exhibit signs of allergic contact dermatitis, please stop using it immediately.
Note: This product does not contain Latex.

For pads, remove the foam from the pouch before washing.
Hand washes or spot clean only in cold water (40°F/4°C) using a mild detergent.
Allow to air dry.
Do not tumble dry, iron, or dry clean.
Do not use fabric softener.

© Copyright 2011–2015 Vicon Motion Systems Limited. All rights reserved.
User Guide — Revision 2.0 September 2015
For use with Vicon Rigid Bodies
Vicon Motion Systems Limited reserves the right to make changes to the information in this document without notice. Companies, names, and data used in examples are fictitious unless otherwise noted. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, by photocopying or recording, or otherwise without the prior written permission of Vicon Motion Systems Ltd.
Vicon® is a registered trademark of OMG plc. Vicon Blade™, Vicon Bonita™, Vicon Nexus™, Vicon Rigid Bodies™, Vicon Tracker™ and Vicon Vantage™ are trademarks of OMG plc.
VELCRO® is a registered trademark of Velcro Industries B. V. Other product and company names herein may be the trademarks of their respective owners.
Vicon Motion Systems is an OMG plc company.
Email: [email protected] Web: www.vicon.com

Contact Vicon
To order parts for your Vicon Rigid Bodies kit(s), please contact Vicon.
Note: For marker replacement, please specify the thread count.
