ME-100 Series E Advanced Ergonomics Kits
User Guide
Thank you!
Thank you for purchasing a Mark-10 Series E Ergonomics Kit. Please read through this Quick Start Guide and the complete force gauge User’s Guide before using this kit.
IMPORTANT SAFETY CONSIDERATIONS
Force gauges are sensitive instruments that must be treated with care. Please review the yellow safety information card included in the box, as well as the safety information provided in the User’s Guide prior to operating the gauge.

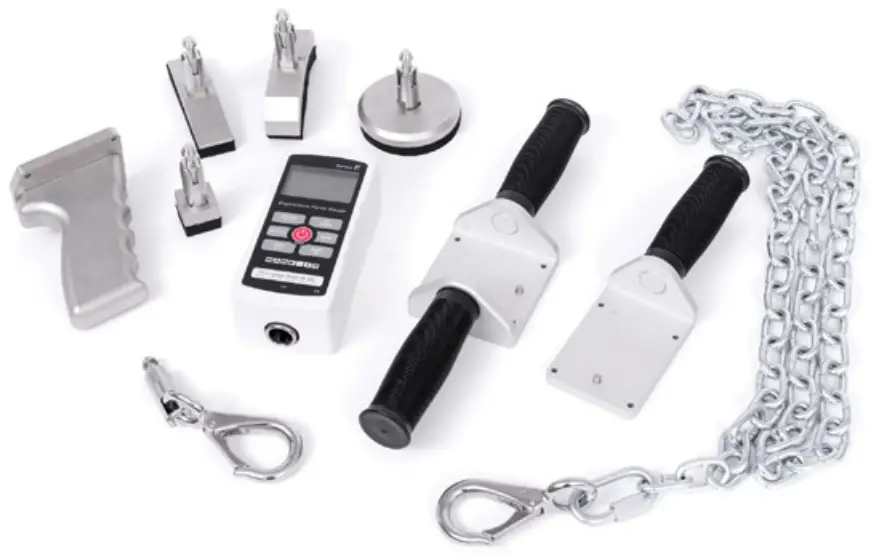

LIST OF INCLUDED ITEMS:
| Qty. | Part No. | Description | EKE (Advanced Kit) | EKE | (Professional Kit) | |||||
| -100-1 | -200-1 | -500-1 | -100-2 | -200-2 | -500-2 | |||||
| 1 | ME-100 | Ergonomics force gauge, 100 Biff | ✓ | – | – | ✓ | – | – | ||
| 1 | ME-200 | Ergonomics force gauge, 200 If | – | ✓ | – | – | ✓ | – | ||
| 1 | ME-500 | Ergonomics force gauge, 500 If | – | – | ✓ | – | ✓ | |||
| 1 | 08-1022 | AC adapter body with US, EU, UK, oars prong | ✓ | |||||||
| 1 | AC1118 | Battery (inside the gauge) | ✓ | |||||||
| 1 | AC1111 | USB cable, type micro B to A | ✓ | |||||||
| 4 | 10-1023 | Thumb screw, #6-32 | ✓ | |||||||
| 1 | E1002 | Padded attachment, square | – | ✓ | ||||||
| 1 | E1003 | Padded attachment, rectangular | ✓ | |||||||
| 1 | E1004 | Padded attachment, curved | ✓ | |||||||
| 1 | E1005 | Padded attachment, circular | – | ✓ | ||||||
| 1 | E1006 | Snap Hook | ✓ | |||||||
| 1 | E1007 | Chain / hook assembly | – | ✓ | ||||||
| 1 | E1008 | Single handle grip | – | ✓ | ||||||
| 1 | E1009 | Double handle grip | ✓ | |||||||
| 1 | E1010 | Pistol grip | – | ✓ | ||||||
| 1 | E1000 | Carrying case, small | ✓ | – | ||||||
| 1 | E1001 | Carrying case, large | – | ✓ | ||||||
INSTALLING ACCESSORIES
Double and Single Handles

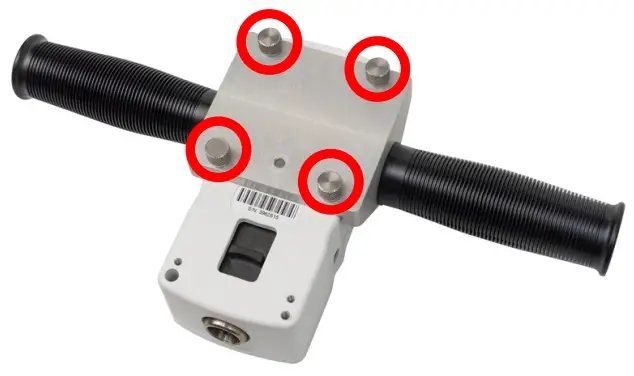

Attach the force gauge to the double handle grip (AC1003) or single handle grip (AC1003-1) by mating the male dowel pin in the cradle to the corresponding hole in the rear of the force gauge housing.
Then, fasten the gauge to the cradle with four included thumb screws (10-1023), as shown at left.
Attachments

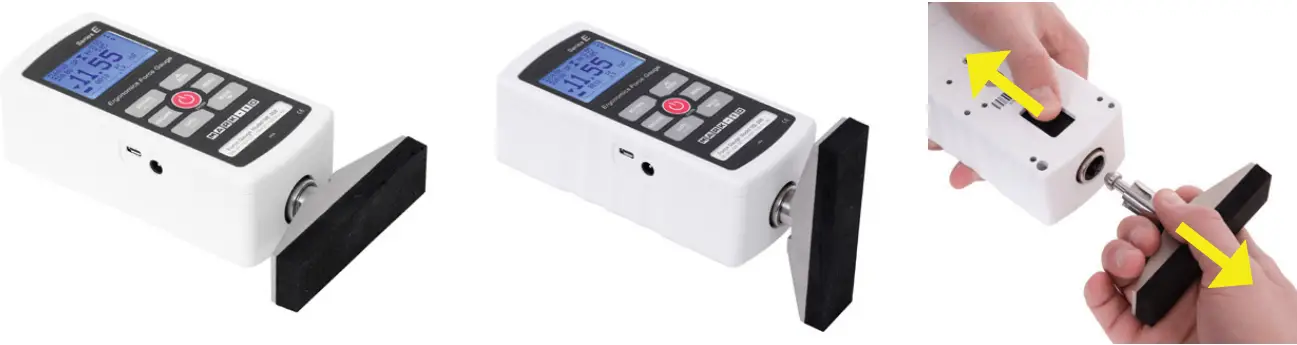

Ergonomics attachments (E1002 – E1010) are mounted to the gauge’s receptacle via the Click-Lock® mechanism. Line up the attachment with the receptacle and press until a click occurs. The attachment may be inserted in 90° or 180° orientations as shown below. To release the the attachment, pull back on the lever in the rear of the housing, as shown below:
POWER
Press the button to power on the gauge. Press and hold to power off. The gauge is powered either by the internal rechargeable battery or an AC adapter/charger. The battery will last approximately 7 hours with the backlight turned on, and 24 hours with the backlight turned off before recharging is necessary.
INSTALLING MESUR® SOFTWARE
MESUR® Lite
www.mark-10.com/mesur-lite-download-form/
Free basic data acquisition application, for data tabulation and exporting to Excel.
MESUR® gauge
www.mark-10.com/mesur-gauge-download-form/
Data tabulation, graphing, analysis, and reporting, with user-configurable start and stop triggers and other tools. Compatible with all Mark-10 instruments. Free 90-day evaluation.
USB driver
www.mark-10.com/downloads/software-downloads/Mark-10-USB-Driver.zip
For Mark-10 instruments and the model RSU100 RS-232 to USB converter. Required for communication with a PC. Follow the installation instructions provided in the user’s guide.
PC requirements
Compatible with PCs running Microsoft Windows 7 or later. Minimum monitor resolution is 1108 x 758.
A USB or RS-232C serial port is required. If USB communication is required, install the Mark-10 USB driver.
LITERATURE & SOFTWARE DOWNLOADS
 |  |
| User’s Guide www.mark-10.com/downloads/product-downloads/manualSeriesE.pdf | Download user’s guides, data sheets, software, solid models, and more. www.mark-10.com/resources |
Mark-10 Corporation
11 Dixon Avenue
Copiague, NY 11726
888-MARK-TEN
Tel: 631-842-9200
[email protected]
www.mark-10.com
