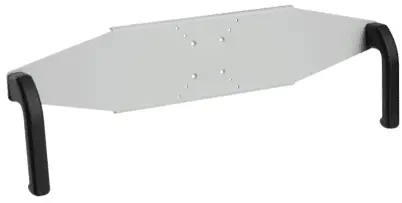

innovative 8409 Ergonomic Monitor Handle Set Instruction Manual

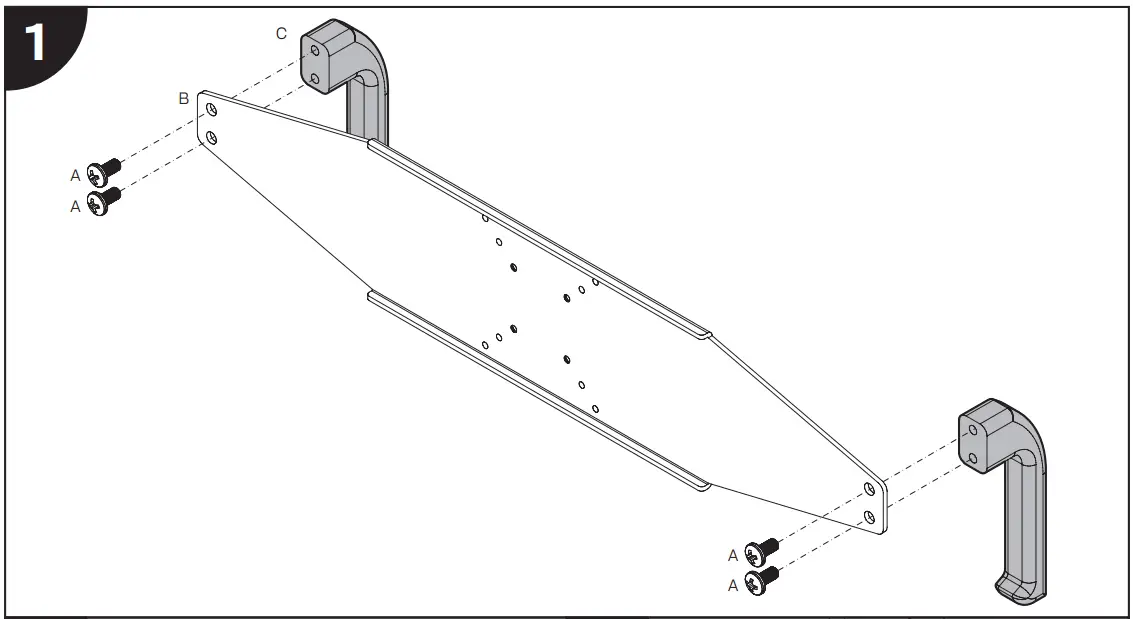

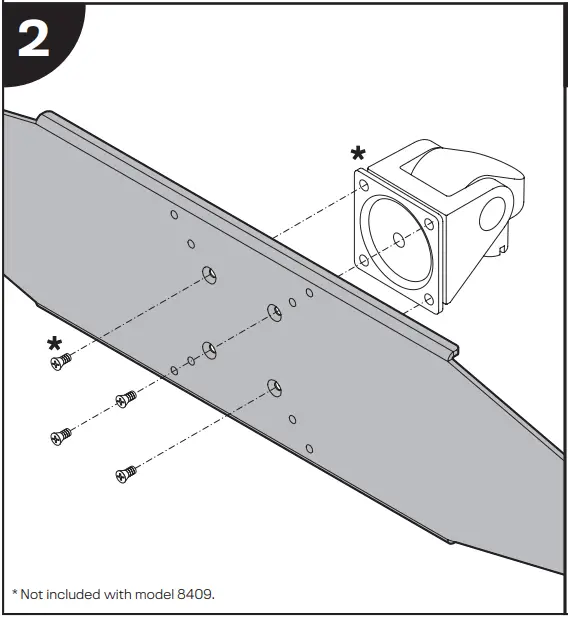

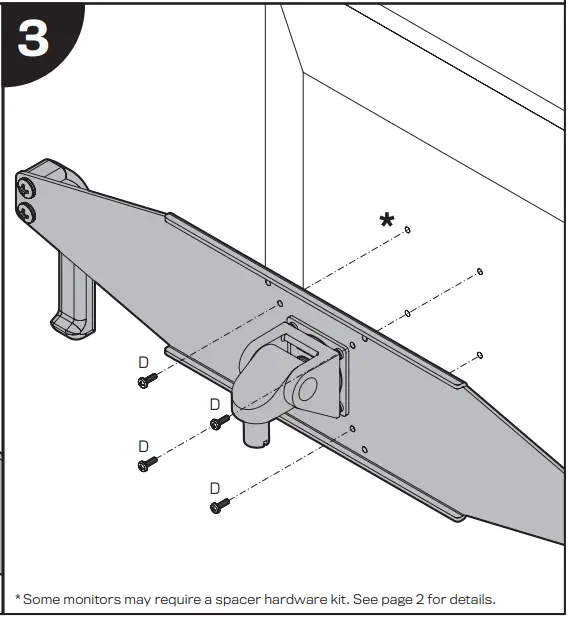

Installation Instructions
Parts List
| ITEM | DESCRIPTION / PART NO | QUANTITY |
A | M8-1.25 x 16mm Phillips Pan Head Screw 4 709214 | 4 |

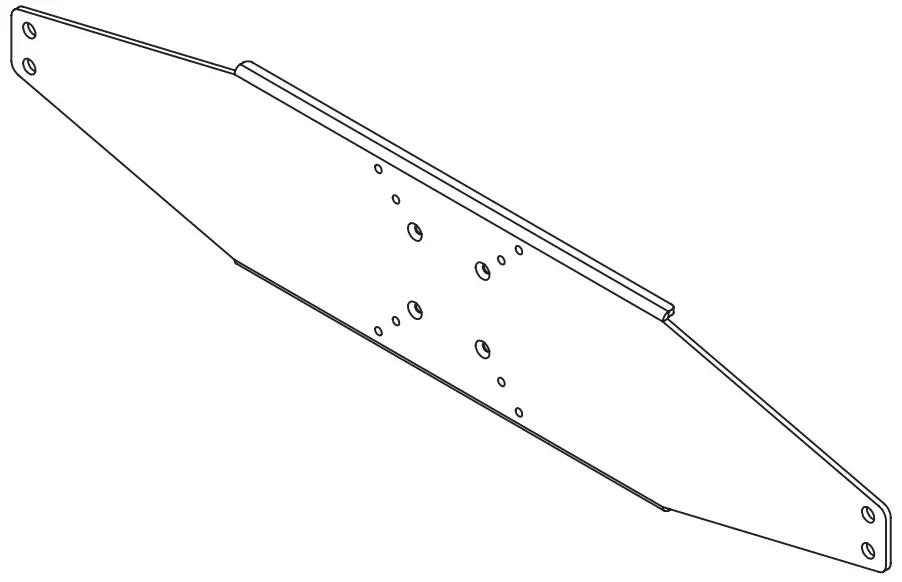

B | Small Handle Set Monitor Plate 1 109075 | 1 |

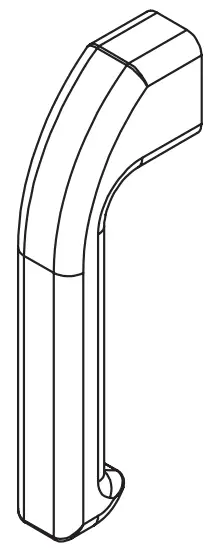

C | Heavy Duty Aluminum Handle 2 704034 | 2 |
D | M4 x 12mm Phillips Pan Head Screw 702096 | 1 (4-pack) |

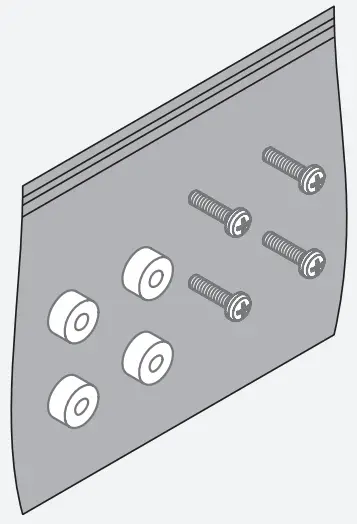

OPTIONAL SPACER KITS

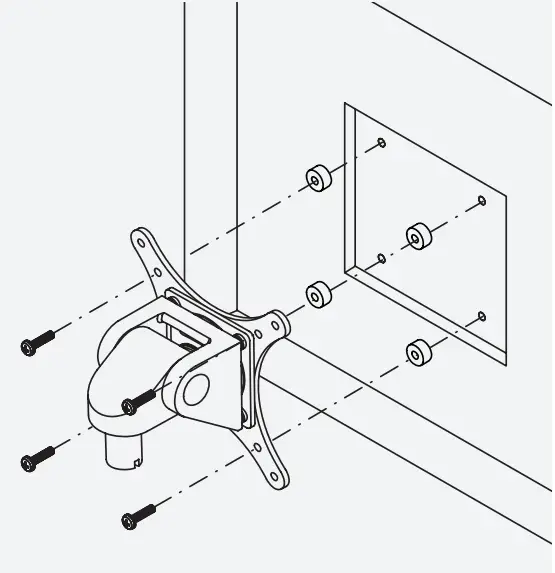

| OPTIONAL SPACER KITS | In some cases, the mounting surface on your monitor may be recessed further than permitted by VESA® standards. As a result, a spacer kit may be required | |

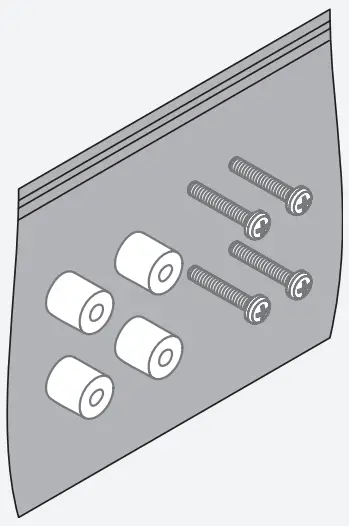

 |  25″ Spacer Hardware Kit (4) .25″ Spacers (4) M4 x 18mm Phillips Pan Head Screws Order # P404923-B |  5″ Spacer Hardware Kit (4) .5″ Spacers (4) M4 x 25mm Phillips Pan Head Screws Order # P404923-C |
Innovative Ergonomic Solutions
800 524 2744
[email protected]
team-ies.com
