WEEE Number: 80133970
INSTALLATION INSTRUCTIONS

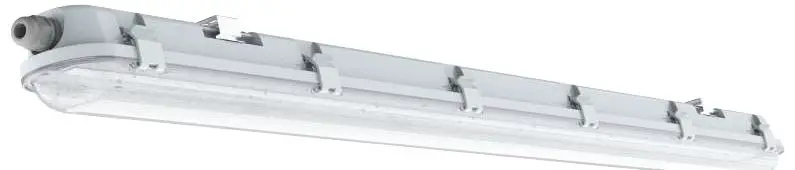

LED WATERPROOF
SINGLE UNIT INSTALLATION INSTRUCTIONS

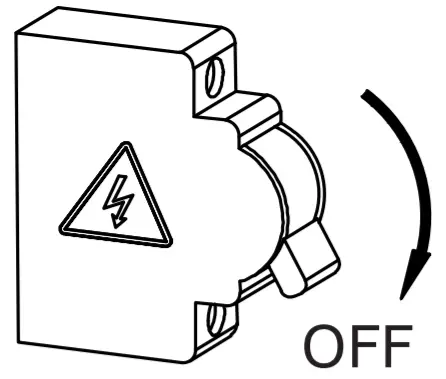

| STEP 1: Switch OFF the power before starting the installation. | STEP 2: Fix the mounting brackets onto the ceiling using screws and an expansion plug(included). Please refer to table 1 for installing the mounting bracket distance points. |
 |  |

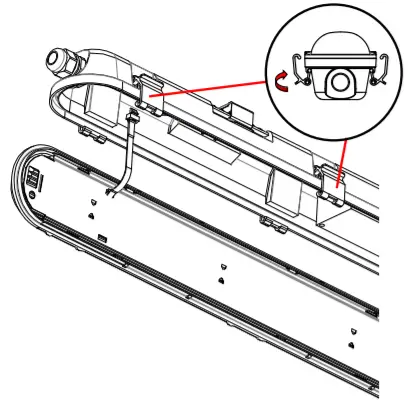

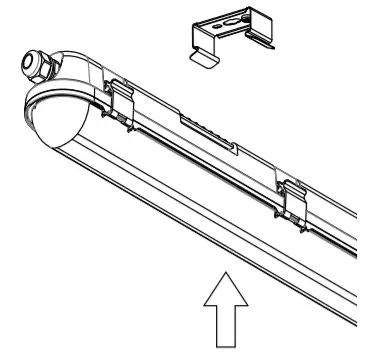

| STEP 3: Mount waterproof lamp onto the mounting brackets. | STEP 4: Open the side clips of waterproof fitting and open the diffuser as shown in the diagram. |
 |  |

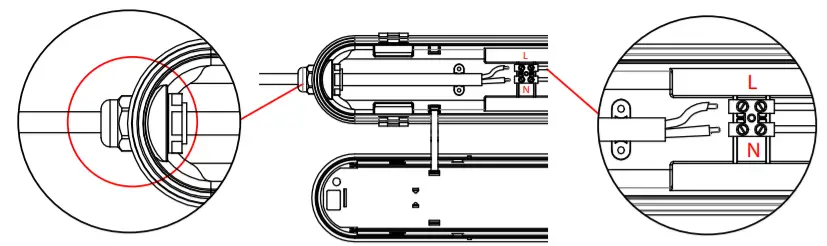

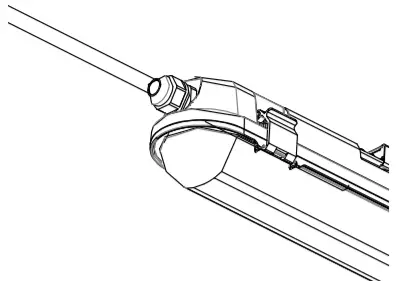

| STEP 5: Fasten the waterproof connector clockwise. Insert the cable through the waterproof connector and wire it into the terminal block [L(Live) & N(Neutral)]. | |
 WATERPROOF CONNECTOR | |

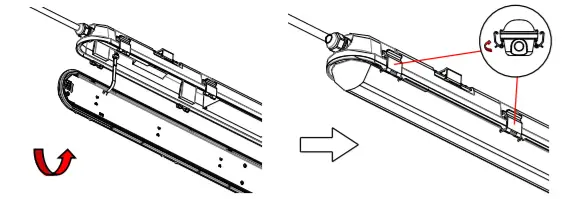

| STEP 6: Install the diffuser to the waterproof fitting and close the clips. | |
 | |
| STEP 7: Wire the waterproof fitting to the main power supply. Ensure to use waterproof terminal block [not included]. | STEP 8: Switch ON the power to test the light. |
 |  |
MULTIPLE (LINKABLE) UNITS INSTALLATION INSTRUCTIONS
Note: Please refer to the model number and max linkable units which can be linked together. Based on the max linkable units select the max
waterproof fittings which you would like to connect.
| STEP 1: Switch OFF the power before starting the installation. | STEP 2: Fix the mounting brackets onto the ceiling using screws and an expansion plug(included). Please refer to table 1 for installing the mounting bracket distance points. |
 |  |
| STEP 3: Mount waterproof lamp onto the mounting brackets. | STEP 4: Open the side clips of waterproof fitting and open the diffuser as shown in the diagram. |
 | |

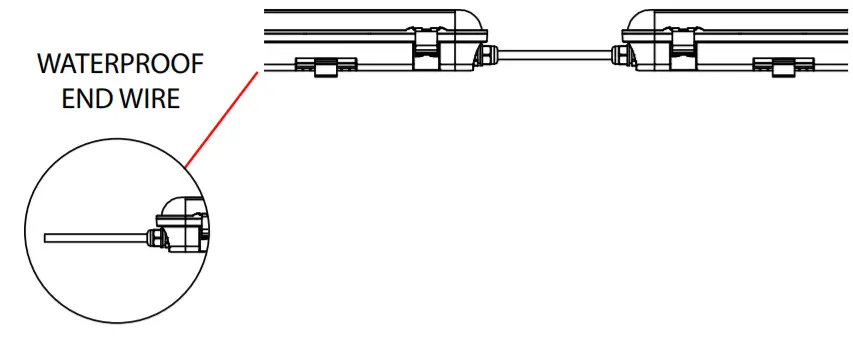

| STEP 5: Wiring 1st waterproof fitting from both the ends – Fasten the waterproof connector clockwise from the first end and insert the cable through the waterproof connector and wire into the terminal block from one end [L(Live) & N(Neutral)]. | |
| WATERPROOF CONNECTOR | |

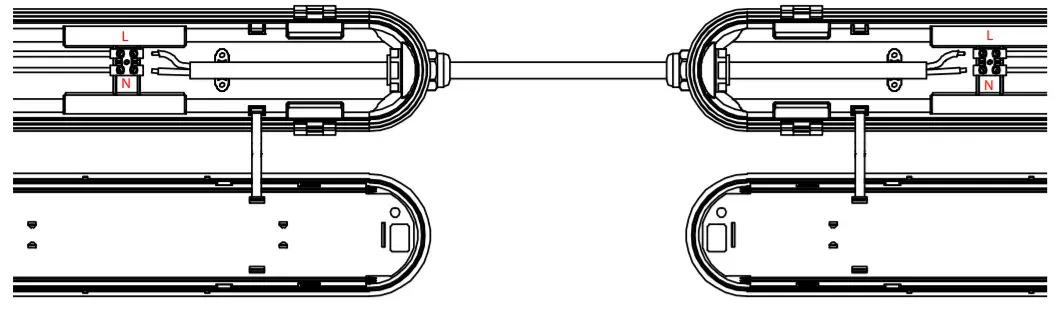

| STEP 6: Fasten the waterproof connector from another end of the waterproof fitting and insert the wire into the terminal block. Using the same cable fasten the waterproof connector of the 2nd waterproof fitting and wire into the terminal block. | |
 | |

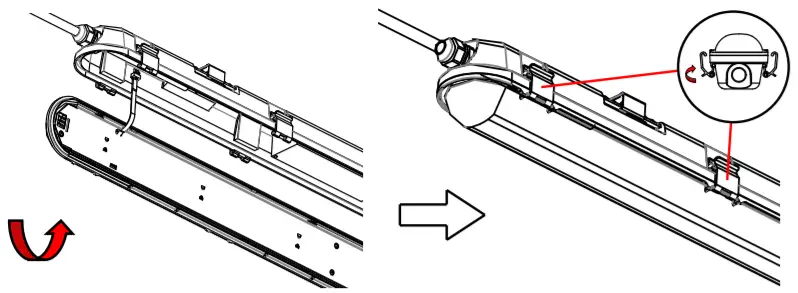

| STEP 7: Install the diffuser to the waterproof fitting and close the clips. | STEP 8: Wire the waterproof fitting to the main power supply. Ensure to use waterproof terminal block [not included]. STEP 9: Switch ON the power to test the light. |
 |  |
TECHNICAL DATA:
| MODEL | WATTS | LUMENS | CRI | PF | BEAM ANGLE | DIMENSION | INPUT POWER | CLIPS TYPE | MAX CONNECTABLE UNITS |
| VT-60018 | 18W | 2160LM | >80 | >0.9 | 120° | 600x72x78mm | AC: 200-240V, 50/60Hz | ABS CLIP | 20 UNITS |
| VT-120036 | 36W | 4320LM | >80 | >0.9 | 120° | 1200x72x78mm | AC: 200-240V, 50/60Hz | ABS CLIP | 10 UNITS |
| VT-150048 | 48W | 5760LM | >80 | >0.9 | 120° | 1500x72x78mm | AC: 200-240V, 50/60Hz | ABS CLIP | 8 UNITS |
| VT-120136-T | 36W | 4320LM | >80 | >0.9 | 120° | 1200x72x78mm | AC: 200-240V, 50/60Hz | SS CLIP | 10 UNITS |
| VT-150148-T | 48W | 5760LM | >80 | >0.9 | 120′ | 1500x72x78mm | AC: 200-240V, 50/60Hz | SS CLIP | 8 UNITS |
INTRODUCTION & WARRANTY
Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING!
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
- Installation must be performed by a qualified electrician.
This marking indicates that this product should not be disposed of with other household wastes.
Caution, risk of electric shock.

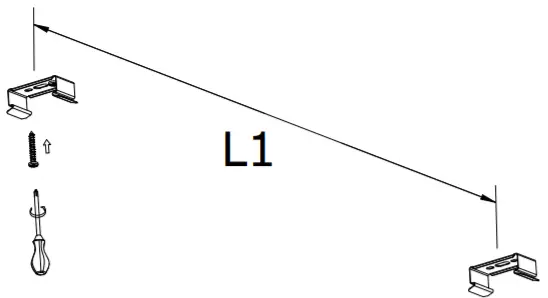

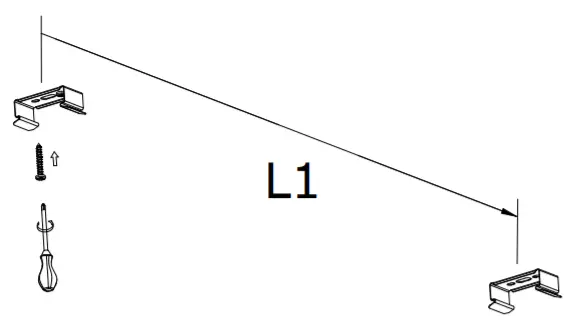

TABLE 1
| MODEL | L1 |
| VT-60018 | 290+40mm |
| VT-120036 | 830+40mm |
| VT-150048 | 1090+40mm |
| VT-120136-T | 830+40m m |
| VT-150148-T | 1090+40m m |
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: [email protected]
FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST
DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
TAC.EU
