Legrand 0 488 20 Lighting Management Wall Mounting Instructions

0 488 20/22
Lighting Management Wall Mounting
Instructions Manual

0 488 20 Lighting Management Wall Mounting

	0 488 20	0 488 22
	27 V=	27 V=
	12 mA	17 mA
	-5°C / +45°C	-5°C / +45°C
	PIR	PIR / ULTRASONIC
	500 lux	500 lux
	15 mn	15 mn

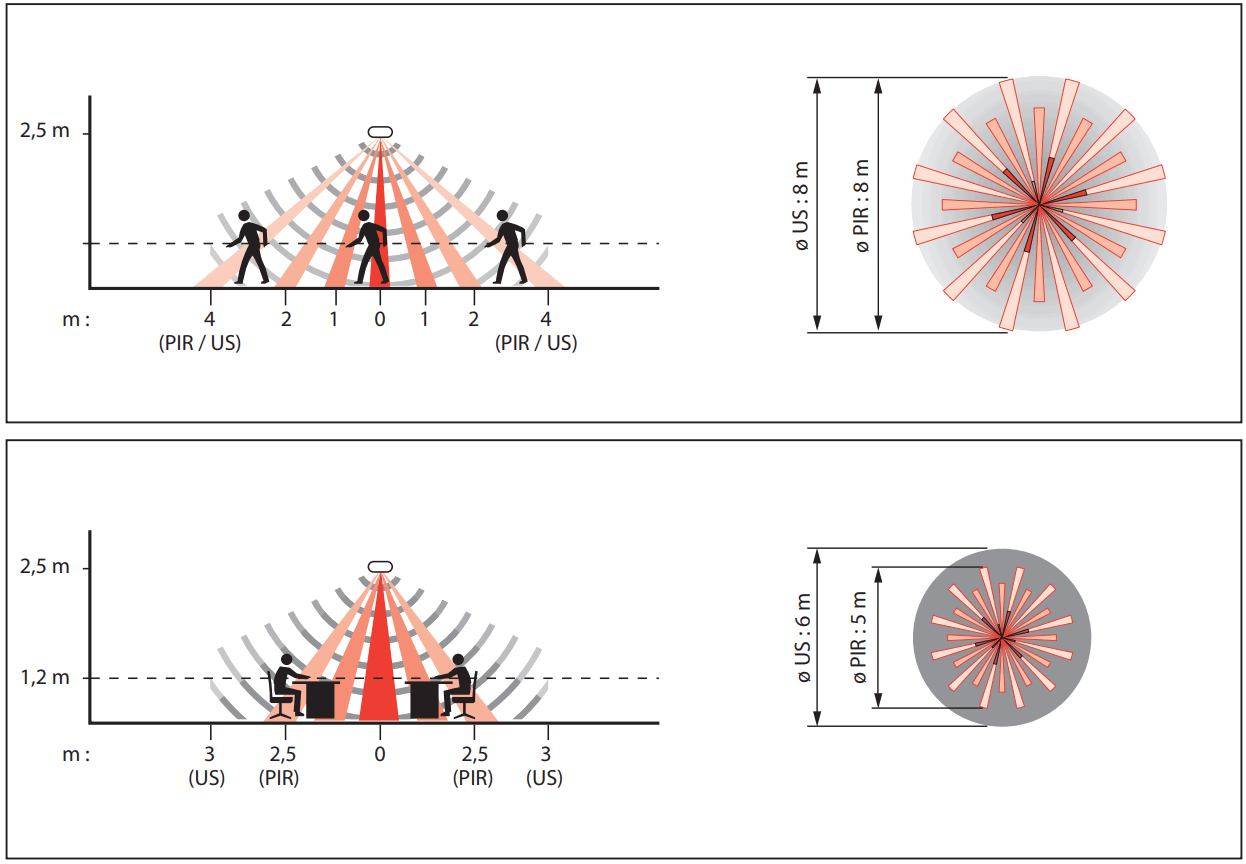

	Ø 8 m	Ø 8 m

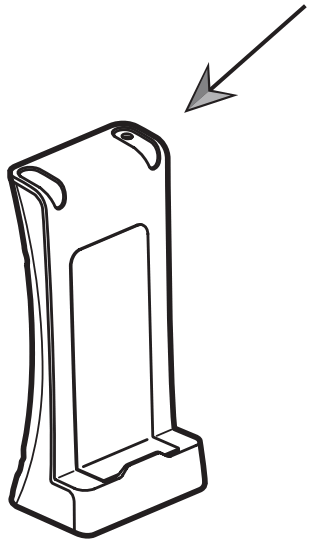

• Cat. No(s) 0 882 40 : Configuration tool
• On first use: Download the Legrand Close Up app from Apple Store or Play Storehttp://r.diadeoo.com/1BbB
• For more information about setting parameters, refer to the data sheet for the configuration gateway Cat. No. 0 882 40.

	5 – 1275 lux
	30 sec – 255 h 59 min 59 sec
	25% – 50% – 75% -100%

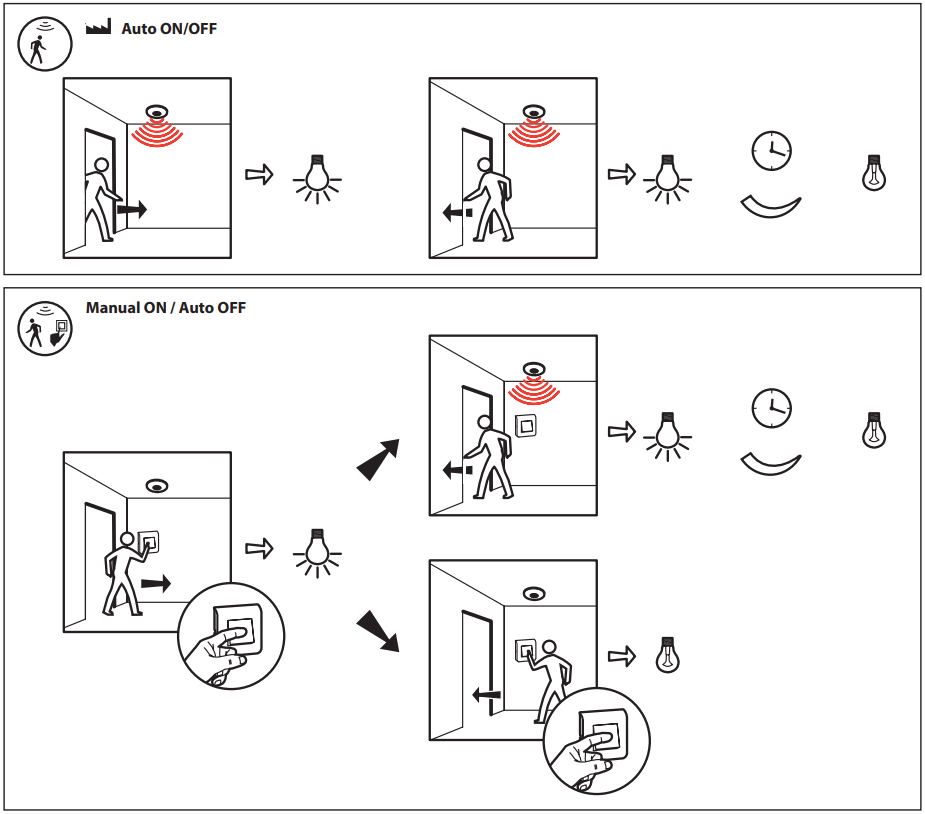

Mode	Auto- Manual

LE02817AE
