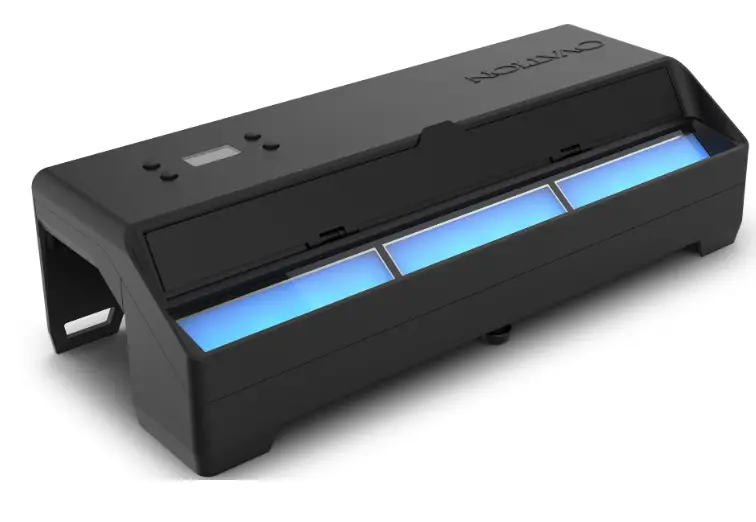

CHAUVET PROFESSIONAL OVATION CYC 3 FC Professional Brings Sleekness to Cyc Lights

About This Guide

The Ovation CYC 3 FC Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 7.55 ft (2.3 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.
DO NOT open this product. It contains no user-serviceable parts.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
DO NOT look at the light source when the product is on.
CAUTION: This product’s housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
USE a safety cable when mounting this product overhead.
DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it (IP20).
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
ONLY connect this product to a grounded and protected circuit.
In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.
The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

OvationCYC3FC
Seetronic Powerkon IP65 power cord
2 omega brackets with mounting hardware
Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

Disconnect the product from power.
Using a flat head screwdriver, unscrew the fuse holder cap from the housing.
Remove blown fuse and replace with a good fuse of the same type and rating.
Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation CYC 3 FC will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation CYC 3 FC uses a 5-pin DMX data connection for its DMX personalities: 1Ch, 3Ch, 5Ch, 7Ch, 10Ch, 12Ch, 13Ch, 16Ch, 17Ch, 33Ch, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation CYC 3 FC uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation CYC 3 FC supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

USB Software Update

The Ovation CYC 3 FC allows for software update through USB using the built-in USB port. To update the software using USB flash drive, do the following:

Power on the fixture and plug the flash drive into the USB port.
Once the flash drive has been detected, the message â€œUpgrade Firmwareâ€ will be displayed. Press <ENTER>.
1. If a different message appears on the display, search for the updated software in the Menu (Updated Firmware) and select from Only This Unit, Multiple Units, or Other Fixture Type. A list of the updated software files will be displayed.
Select the file that needs to be uploaded. The message â€œAre you sure?â€ will be displayed. Press <ENTER>.
If the selected file is correct, the upgrade will be completed. Restart the fixture.
1. If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.

The “Other Fixture Type” option can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03).

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

Mounting Diagram

Virtual Color Wheel

The Ovation CYC 3 FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming.
The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture can be adjusted to more closely replicate familiar industry-standard colors. A chart is available at www.chauvetprofessional.com to compare Chauvet’s premixed colors with popular gel colors. This chart is for comparison purposes only and is not an assertion that Chauvet’s premixed colors match any of the gel colors listed.

Virtual Color Wheel Chart

DMX Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ó 005	––	000	000	000	000	000
006 ó 013	C3050 – Md Yellow	233	163	020	123	255
014 ó 021	C3040 – Lt Yellow	224	158	047	255	231
022 ó 028	C3240 – Amb Yellow	180	060	000	245	255
029 ó 035	C2340 – VLt Amber	245	107	081	255	213
036 ó 043	C2040 – Lt Amber	230	130	062	255	155
044 ó 051	C2050 – Md Amber	255	000	025	255	194
052 ó 059	C2060 – Dk Amber	255	000	024	255	150
060 ó 067	C1050 – Lt Red	255	037	027	030	038
068 ó 075	C1080 – Md Red	255	004	017	000	000
076 ó 083	C1020 – NC Pink	238	135	129	255	255
084 ó 091	C1030 – Md Pink	255	131	120	255	195
092 ó 099	C1630 – Dk Pink	255	165	123	255	210
100 ó 107	C1250 – Md Red Amber	255	000	041	195	055
108 ó 115	C1060 – Dk Red Amber	255	000	045	120	030
116 ó 121	C1650 – Magenta	255	050	115	255	115
122 ó 130	C6170 – Dk Magenta	255	035	117	000	000
131 ó 138	C6020 – Lt Lavender	127	122	142	251	255
139 ó 146	C5030 – Lt Blue	000	255	197	100	255
147 ó 154	C5020 – VLt Blue	158	255	189	000	255
155 ó 162	C5430 – Lt Blue 2	000	255	180	000	243
163 ó 170	C5070 – Blue	043	255	210	043	036
171 ó 178	C5050 – Md Blue	000	255	218	000	181
179 ó 186	C5060 – Dk Blue	000	210	206	000	118
187 ó 194	C5690 – Indigo	065	000	210	040	055
195 ó 202	C5080 – VDk Blue	000	203	230	000	040
203 ó 210	C5081 – VDk Blue2	040	199	240	000	045
211 ó 218	C4370 – Yel Green	027	255	028	016	104
219 ó 226	C4070 – Green	049	255	055	120	090
227 ó 234	C4550 – Turquoise	060	230	109	000	245
235 ó 242	C4560 – Aqua	020	240	126	036	255
243 ó 250	C4570 – Blue Green	000	255	079	030	053
251 ó 255	––	000	000	000	000	000

Note: The colors above are simulated renditions of the color output produced compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.

Color Temperature Chart

DMX Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Lime Value
000 ó 005	––	000	000	000	000	000
006 ó 025	2800K	172	110	037	255	255
026 ó 050	3000K	156	126	044	255	255
051 ó 075	3200K	144	142	049	255	255
076 ó 100	3500K	128	159	062	255	255
101 ó 125	4000K	096	183	073	255	255
126 ó 150	4500K	084	209	091	255	255
151 ó 175	5000K	074	221	109	255	255
176 ó 200	5600K	064	244	126	255	255
201 ó 225	6000K	059	255	137	255	255
226 ó 250	6500K	050	255	148	255	255
251 ó 255	––	000	000	000	000	000

The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode by pressing: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER>. This passcode cannot be changed and must be used whenever prompted.

Menu Map

Refer to the Ovation CYC 3 FC product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels				Description
DMX Address	001–512*				Selects starting address (*highest channel restricted to personality chosen)
DMX Channel	1Ch	Virtual Color Wheel		_ _ _ _ _ _	1-channel: dimmer, See Virtual Color Wheel Chart
		Color Temperature		_ _ _ _ _ _	See Color Temperature Chart
		Manual Color Mixer	Red	000–255	Combine red, green, blue, amber, and lime to make custom color (0–100%)
			Green
			Blue
			Amber
			Lime
	3Ch				3-channel: Dimmer, virtual color wheel, color temperature
	5Ch				5-channel: RGBAL
	7Ch				7-channel: Dimmer, RGBAL, strobe
	10Ch				10-channel: 16-bit dimmer, RGBAL, strobe, virtual color wheel, color temperature
	12Ch				12-channel: Dimmer, RGBAL, strobe, virtual color wheel, color temperature, auto programs, auto speed, control
	13Ch				13-channel: 16-bit dimmer, 16-bit RGBAL, strobe
	16Ch				16-channel: 16-bit dimmer, 16-bit RGBAL, strobe, virtual color wheel, color temperature, control
	17Ch				17-channel: Dimmer, 3-cell RGBAL, strobe
	33Ch				17-channel: 16-bit dimmer, 16-bit 3-cell RGBAL, strobe
	HSV				3-channel: HSV control
Virtual Color Wheel	Virtual Color Wheel	C3050 – Md Yellow		Dimmer 000–255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C3040 – Lt Yellow
		C3240 – Amb Yellow
		C2340 – VLt Amber
		C2040 – Lt Amber
		C2050 – Md Amber
		C2060 – Dk Amber
		C1050 – Lt Red
		C1080 – Md Red
		C1020 – NC Pink
		C1030 – Md Pink

Main Level	Programming Levels			Description
Virtual Color Wheel (cont.)	Virtual Color Wheel (cont.)	C1630 – Dk Pink	Dimmer 000–255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart section for specific values.
		C1250 – Md Red Amber
		C1060 – Dk Red Amber
		C1650 – Magenta
		C6170 – Dk Magenta
		C6020 – Lt Lavender
		C5030 – Lt Blue
		C5020 – VLt Blue
		C5430 – Lt Blue 2
		C5070 – Blue
		C5050 – Md Blue
		C5060 – Dk Blue
		C5690 – Indigo
		C5080 – VDk Blue
		C5081 – VDk Blue 2
		C4370 – Yel Green
		C4070 – Green
		C4550 – Turquoise
		C4560 – Aqua
		C4570 – Blue Green
	Color Temperature	2800K	Dimmer 000–255	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Chart section for specific values.
		3000K
		3200K
		3500K
		4000K
		4500K
		5000K
		5600K
		6000K
		6500K
	Manual Color Mixer	Red	000–255	Combine red, green, blue, amber, and lime to make a custom color (0–100%)
		Green
		Blue
		Amber
		Lime
	Color X-Fade Speed	Off		Virtual Color Wheel cross-fade off
		X-Fade Speed 1		Virtual Color Wheel cross-fade speed, fast (1) to slow (4)
		X-Fade Speed 2
		X-Fade Speed 3
		X-Fade Speed 4
Auto Show	Auto 1	001–100		Selects automatic programs and auto program speed
	Auto 2
	Auto 3
	Auto 4
	Auto 5
Red Shift	On			Turns on or off Red Shift (amber LEDs imitate lamp when dimming)
	Off

Main Level	Programming Levels				Description
Master/Slave	Master				Master mode
	Slave				Slave mode
Dimmer Curve	S Curve				Set the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off				Linear dimmer
	Dimmer 1				Fast dimmer curve
	Dimmer 2				Medium dimmer curve
	Dimmer 3				Slow dimmer curve
White Balance	Off				Uses factory default white setting
	Manual	Red		125–255	Sets red LED maximum value
		Green			Sets green LED maximum value
		Blue			Sets blue LED maximum value
		Amber			Sets amber LED maximum value
		Lime			Sets lime LED maximum value
LED Frequency	600Hz				Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Back Light	10S				Turns off display backlight after 10 seconds of inactivity
	30S				Turns off display backlight after 30 seconds of inactivity
	2Min				Turns off display backlight after 2 minutes of inactivity
	Always On				Display backlight always on
Information	Fixture Hours		_ _ _ H		Shows total product hours
	LED Hours		_ _ _ H		Shows total LED hours
	Version		V_._		Shows installed software version
	UID		_ _ _ _ _ _ _ _ _ _ _ _		Shows product UID
Temperature	Temp A		_ _ °C		Shows current product temperatures
	Temp B		_ _ °C
	Temp C		_ _ °C
Upgrade Firmware	Only This Fixture	_ _ _ _ _ _.CHL			Selects an update file for this product, or shows “No such file!”
		…
	Multiple Fixture	_ _ _ _ _ _.CHL			Selects an update file for this and connected Ovation CYC 3 FC products, or shows “No such file!”
		…
	Other Fixture Type	_ _ _ _ _ _.CHL			Selects an update file for other connected products, or shows “No such file!”
		…
Factory Reset	No				Reset to factory defaults
	Yes

DMX Values HSV

Channel	Function	Value	Percent/Setting
1	Hue	000 ó 255	0–100%
2	Saturation	000 ó 255	0–100%
3	Value	000 ó 255	0–100%

33Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Dimmer Fine	000 ó 255	0–100%
3	Red 1	000 ó 255	0–100%
4	Red Fine 1	000 ó 255	0–100%
5	Green 1	000 ó 255	0–100%
6	Green Fine 1	000 ó 255	0–100%
7	Blue 1	000 ó 255	0–100%
8	Blue Fine 1	000 ó 255	0–100%
9	Amber 1	000 ó 255	0–100%
10	Amber Fine 1	000 ó 255	0–100%
11	Lime 1	000 ó 255	0–100%
12	Lime Fine 1	000 ó 255	0–100%
13	Red 2	000 ó 255	0–100%
14	Red Fine 2	000 ó 255	0–100%
15	Green 2	000 ó 255	0–100%
16	Green Fine 2	000 ó 255	0–100%
17	Blue 2	000 ó 255	0–100%
18	Blue Fine 2	000 ó 255	0–100%
19	Amber 2	000 ó 255	0–100%
20	Amber Fine 2	000 ó 255	0–100%
21	Lime 2	000 ó 255	0–100%
22	Lime Fine 2	000 ó 255	0–100%
23	Red 3	000 ó 255	0–100%
24	Red Fine 3	000 ó 255	0–100%
25	Green 3	000 ó 255	0–100%
26	Green Fine 3	000 ó 255	0–100%
27	Blue 3	000 ó 255	0–100%
28	Blue Fine 3	000 ó 255	0–100%
29	Amber 3	000 ó 255	0–100%
30	Amber Fine 3	000 ó 255	0–100%
31	Lime 3	000 ó 255	0–100%
32	Lime Fine 3	000 ó 255	0–100%
33	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast

17Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Red 1	000 ó 255	0–100%
3	Green 1	000 ó 255	0–100%
4	Blue 1	000 ó 255	0–100%
5	Amber 1	000 ó 255	0–100%
6	Lime 1	000 ó 255	0–100%
7	Red 2	000 ó 255	0–100%
8	Green 2	000 ó 255	0–100%
9	Blue 2	000 ó 255	0–100%
10	Amber 2	000 ó 255	0–100%
11	Lime 2	000 ó 255	0–100%
12	Red 3	000 ó 255	0–100%
13	Green 3	000 ó 255	0–100%
14	Blue 3	000 ó 255	0–100%
15	Amber 3	000 ó 255	0–100%
16	Lime 3	000 ó 255	0–100%
17	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast

16Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Dimmer Fine	000 ó 255	0–100%
3	Red	000 ó 255	0–100%
4	Red Fine	000 ó 255	0–100%
5	Green	000 ó 255	0–100%
6	Green Fine	000 ó 255	0–100%
7	Blue	000 ó 255	0–100%
8	Blue Fine	000 ó 255	0–100%
9	Amber	000 ó 255	0–100%
10	Amber Fine	000 ó 255	0–100%
11	Lime	000 ó 255	0–100%
12	Lime Fine	000 ó 255	0–100%
13	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast
14	Virtual Color Wheel	000 ó 255	See the Virtual Color Wheel Chart
15	Color Temperature	000 ó 255	See the Color Temperature Chart

Channel	Function	Value	Percent/Setting
		000 ó 007	No function
		008 ó 015	Dimmer reset
		016 ó 023	Red shift on
		024 ó 031	Red shift off
		032 ó 039	S-curve dimmer
		040 ó 047	Linear dimmer
		048 ó 055	Square dimmer curve
		056 ó 063	Inverse square dimmer curve
16	Control (hold for 3 seconds)	064 ó 071 072 ó 079 080 ó 087	Dimmer speed mode OFF Dimmer speed 1 (fastest) Dimmer speed 2
		088 ó 095	Dimmer speed 3 (slowest)
		096 ó 127	Reserved for future use
		128 ó 135	Virtual Color Wheel cross-fade off
		136 ó 143	Virtual Color Wheel cross-fade speed 1 (fastest)
		144 ó 151	Virtual Color Wheel cross-fade speed 2
		152 ó 159	Virtual Color Wheel cross-fade speed 3
		160 ó 167	Virtual Color Wheel cross-fade speed 4 (slowest)
		168 ó 255	Reserved for future use

13Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Dimmer Fine	000 ó 255	0–100%
3	Red	000 ó 255	0–100%
4	Red Fine	000 ó 255	0–100%
5	Green	000 ó 255	0–100%
6	Green Fine	000 ó 255	0–100%
7	Blue	000 ó 255	0–100%
8	Blue Fine	000 ó 255	0–100%
9	Amber	000 ó 255	0–100%
10	Amber Fine	000 ó 255	0–100%
11	Lime	000 ó 255	0–100%
12	Lime Fine	000 ó 255	0–100%
13	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast

12Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Red	000 ó 255	0–100%
3	Green	000 ó 255	0–100%
4	Blue	000 ó 255	0–100%
5	Amber	000 ó 255	0–100%
6	Lime	000 ó 255	0–100%
7	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast
8	Virtual Color Wheel	000 ó 255	See the Virtual Color Wheel Chart
9	Color Temperature	000 ó 255	See the Color Temperature Chart
10	Auto Program	000 ó 010 011 ó 060 061 ó 110 111 ó 160 161 ó 210 211 ó 255	No function Auto 1 Auto 2 Auto 3 Auto 4 Auto 5 (Auto 1–4)
11	Auto Speed	000 ó 255	Auto speed, slow to fast
12	Control (hold for 3 seconds)	000 ó 007 008 ó 015 016 ó 023 024 ó 031 032 ó 039 040 ó 047 048 ó 055 056 ó 063 064 ó 071 072 ó 079 080 ó 087 088 ó 095 096 ó 127 128 ó 135 136 ó 143 144 ó 151 152 ó 159 160 ó 167 168 ó 255	No function Dimmer reset Red shift on Red shift off S-curve dimmer Linear dimmer Square dimmer curve Inverse square dimmer curve Dimmer speed mode OFF Dimmer speed 1 (fastest) Dimmer speed 2 Dimmer speed 3 (slowest) Reserved for future use Virtual Color Wheel cross-fade off Virtual Color Wheel cross-fade speed 1 (fastest) Virtual Color Wheel cross-fade speed 2 Virtual Color Wheel cross-fade speed 3 Virtual Color Wheel cross-fade speed 4 (slowest) Reserved for future use

10Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Dimmer Fine	000 ó 255	0–100%
3	Red	000 ó 255	0–100%
4	Green	000 ó 255	0–100%
5	Blue	000 ó 255	0–100%
6	Amber	000 ó 255	0–100%
7	Lime	000 ó 255	0–100%
8	Strobe	000 ó 010 011 ó 255	No function Strobe, slow to fast
9	Virtual Color Wheel	000 ó 255	See the Virtual Color Wheel Chart
10	Color Temperature	000 ó 255	See the Color Temperature Chart

7Ch

5Ch

Channel	Function	Value	Percent/Setting
1	Red	000 ó 255	0–100%
2	Green	000 ó 255	0–100%
3	Blue	000 ó 255	0–100%
4	Amber	000 ó 255	0–100%
5	Lime	000 ó 255	0–100%

3Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100%
2	Virtual Color Wheel	000 ó 255	See the Virtual Color Wheel Chart
3	Color Temperature	000 ó 255	See the Color Temperature Chart

1Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ó 255	0–100% (color set through menu)

Contact Us

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

Address: 5200 NW 108th Ave. Voice: (844) 393-7575
Sunrise, FL 33351 Fax: (954) 756-8015
Voice: (954) 577-4455 Email: [email protected]
Fax: (954) 929-5560
Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com
U.K.
Address: Unit 1C Email: [email protected]
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110
Address: Stokstraat 18 Email: [email protected]
9770 Kruishoutem
Belgium Website: www.chauvetprofessional.eu
Voice: +32 9 388 93 97
