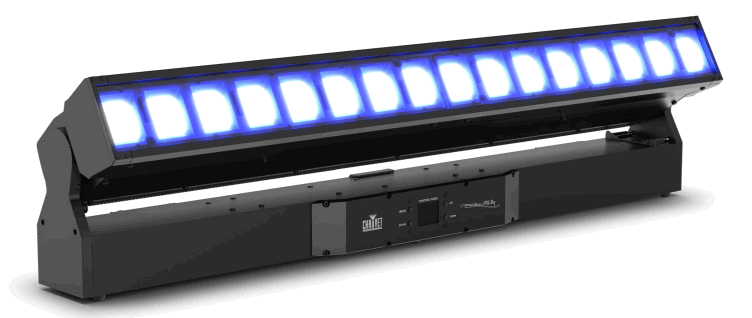

COLORado PXL Bar 16 Lighting
User Guide
About This Guide
The COLORado PXL Bar 16 Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.
LIMITED WARRANTY
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlightincLeu/warrantv-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.
Safety Notes
These Safety Notes include important information about installation, use, and maintenance.
- DO NOT open this product. It contains no user-serviceable parts.
- DO NOT look at the light source when the product is on.
- DO NOT leave any flammable material within 20 cm of this product while operating or connected to power.
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
- DO NOT connect this product to a dimmer or rheostat.
- DO NOT submerge this product. Temporary outdoor operation is fine (IP65).
- Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:
- Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
- Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
- Locations that are prone to flooding or being buried in snow.
- Other areas where the product will be subject to extreme radiation or caustic substances.
- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product’s housing may be hot when lights are operating.
- USE a safety cable when mounting this product overhead.
- ONLY connect this product to a grounded and protected circuit.
- ONLY use the hanging/mounting bracket to carry this product.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- The product is not intended for permanent installation.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
- The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3 m) is not expected.
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent
- The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. The luminaire is intended for professional use only.
FCC Compliance
This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.
What is Included
- COLORado PXL Bar 16
- Seetronic Powerkon IP65 power cord
- 2 Omega bracket with mounting hardware
- Quick Reference Guide
AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100-240 V-, 50/60 Hz. Power Linking It is possible to link up to 0 COLORado PXL Bar 16 products at 100 V, 0 products at 120 V, 3 products at 208 V, 3 products at 230 V, or 3 products at 240 V. Never exceed this number. Power-linking cables can be purchased separately.
AC Plug
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live | Black | Brown | Yellow/Brass |
| AC Neutral | White | Blue | Silver |
| AC Ground | Green/Yellow | Green/Yellow | Green |
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Signal Connection
The COLORado PXL Bar 16 can be linked to a controller or controller software using a DMX connection, an Ethernet connection, or both. If using other Art-NetTM, sACN, or Kling-Net -compatible products with the COLORado PXL Bar 16, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Control Personalities
The COLORado PXL Bar 16 uses DMX, Art-NetTM, sACN, and Kling-Net for its control personalities:
| Single Mode | Dual Mode Movement | Dual Mode Pixels |
| Basic (20 channels) | Basic (8 channels) | Basic (48 channels) |
| Standard (84 channels) | Standard (20 channels) | Standard (64 channels) |
| Advanced (154 channels) | Advanced (26 channels) | Advanced (128 channels) |
| Tour (186 channels) | Uses DMX, Art-Net™, or sACN | Uses DMX, Art-Net™, sACN, or Kling-Net |
| Uses DMX, Art-Net™, or sACN |
DMX Connection
The COLORado PXL Bar 16 will work with a DMX controller using a 5-pin IP-rated DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The COLORado PXL Bar 16 supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
Art-NetTm Connection
Art-Net”‘ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Amphenol XLR Net RJ45 connection over a large network. An Art-Net T”^ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-NetTm for best results. Art-Net”‘ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN-compatible network.
Kling-Net Connection
Kling-Net is a network protocol that allows autoconfiguration of display devices using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.
- For smooth-running operation, ArKaos Kling-Net requires a gigabit (1,000 Mbps) Ethernet card and network router.
- ArKaos Kling-Net will only run Standard Pixels or Basic Pixels mode.
Master/Slave Connection
The COLORado PXL Bar 16 uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.
Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

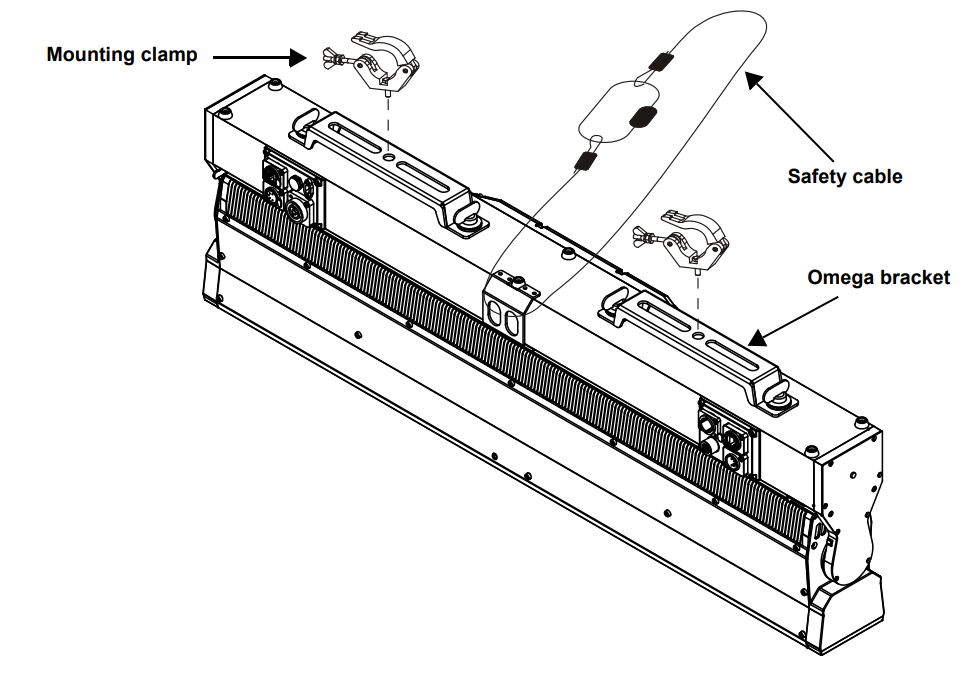

Mounting Diagram
Control Panel Description
| Button | Function |
| <MENU> | Exits from the current menu or function |
| <ENTER> | Enables the currently displayed menu or sets the currently selected value into the selected function |
| <UP> | Navigates upwards through the menu list or increases the numeric value when in a function |
| <DOWN> | Navigates downwards through the menu list or decreases the numeric value when in a function |
Menu Map
Refer to the COLORado PXL Bar 16 product page on www.chauvetprofessional.com for the latest menu map.
| Programming Levels | Description | |||||
| Address | Address Main Level | |||||
| Address | Single Control | DMX | Personality | Basic | Sets the DMX personality (see Control Personalities) | |
| Standard | ||||||
| Advanced | ||||||
| Tour | ||||||
| Start Address | 0–512 | Sets the DMX starting address | ||||
| ArtNet | Personality | Basic | Sets the Art-Net™ personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Tour | ||||||
| Start Address | 0–512 | Sets the Art-Net™ starting address | ||||
| Universe | 0–255 | Sets the Art-Net™ universe | ||||
|
sACN | Personality | Basic | Sets the sACN personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Tour | ||||||
| Start Address | 0–512 | Sets the sACN starting address | ||||
| Universe | 0–255 | Sets the sACN universe | ||||
| Dualol | Movement | DMX | Personality | Basic | Sets the DMX personality (see Control Personalities) | |
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the DMX starting address | ||||
| ArtNet | Personality | Basic | Sets the Art-Net™ personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the Art-Net™ starting address | ||||
| Universe | 0–255 | Sets the Art-Net™ universe | ||||
| sACN | Personality | Basic | Sets the sACN personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the sACN starting address | ||||
| Universe | 0–255 | Sets the sACN universe | ||||
| Pixels | DMX | Personality | Basic | Sets the DMX personality (see Control Personalities) | ||
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the DMX starting address | ||||
| ArtNet | Personality | Basic | Sets the Art-Net™ personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the Art-Net™ starting address | ||||
| Universe | 0–255 | Sets the Art-Net™ universe | ||||
| sACN | Personality | Basic | Sets the sACN personality (see Control Personalities) | |||
| Standard | ||||||
| Advanced | ||||||
| Start Address | 0–512 | Sets the sACN starting address | ||||
| Universe | 0–255 | Sets the sACN universe | ||||
| KlingNet | Personality | Basic | Sets the Kling-Net personality (see Control Personalities) | |||
| Standard | ||||||
| Main Level | Programming Levels | Description | |||
| Run Mode | Auto Test | Auto test all functions | |||
| Manual Test | Tilt | 000–255 | Manually control and test all settings through the control panel | ||
| P/T Speed | |||||
| Red | |||||
| Green | |||||
| Blue | |||||
| White | |||||
| CTC | |||||
| Color | |||||

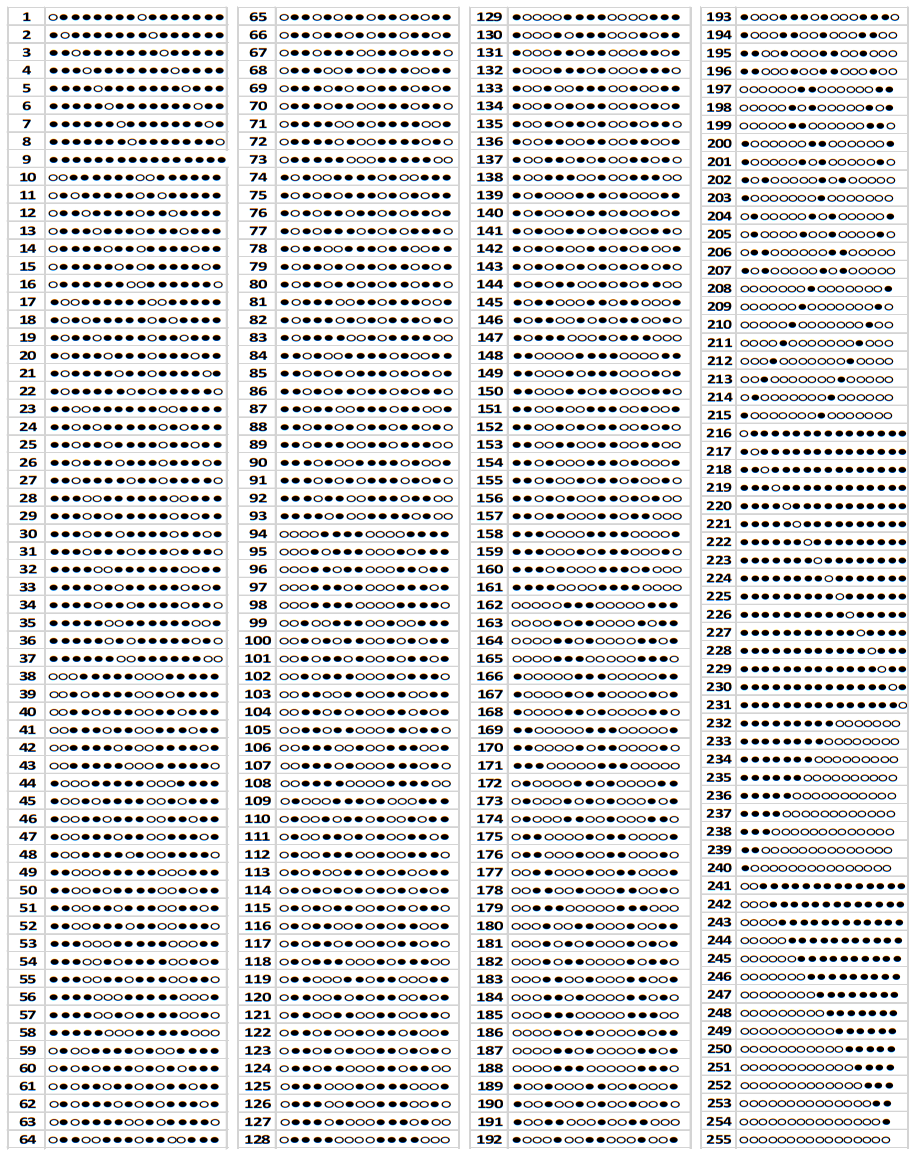

| Pattern | |||||
| LED Macro | |||||
| LED Ma. Speed | |||||
| LED Ma. Fade | |||||
| Background | |||||
| Background Dim. | |||||
| Dimmer | |||||
| Shutter | |||||
| Function | |||||

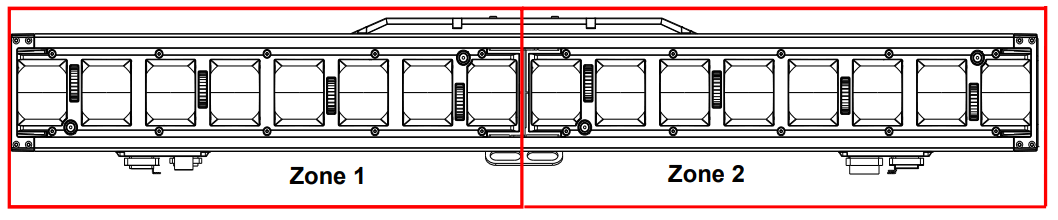

| Zoom1 | |||||
| Zoom2 | |||||
| Setup | Network Settings | IP Mode | Manual | Manually sets IP address | |
| DHCP | Network sets IP address | ||||
| Static | Product sets IP address | ||||
| IP | IP Byte 1–4 | 000–255 | Sets IP address in manual mode | ||
| SMK | SubMask 1–4 | 000–255 | Sets Subnet Mask in manual mode | ||
| Tilt Reverse | NO | Normal tilt | |||
| YES | Reversed tilt | ||||
| Tilt Function | NO | Enables/disables tilt | |||
| YES | |||||
| Zoom Reverse | NO | Normal zoom | |||
| YES | Reversed zoom | ||||
| Screen Reverse | NO | Normal display | |||
| YES | Inverted display | ||||
| AUTO | Automatic display orientation | ||||
| Tilt Angle | 200 | 200° tilt range | |||
| 180 | 180° tilt range | ||||
| 60 | 60° tilt range | ||||
| BL. O. P/T Move | NO | Do not blackout while tilt | |||
| YES | Blackout while tilt | ||||
| Backlight Timer | 30S | Display turns off after 30 seconds | |||
| 1M | Display turns off after 1 minute | ||||
| 5M | Display turns off after 5 minutes | ||||
| ON | Display stays on | ||||
| Loss of Data | Hold | Holds last signal received | |||
| Close | Blacks out fixture | ||||
| Fans | Auto | Fan speed according to product temperature | |||
| Full | Fan speed set on high | ||||
| ECO | Quiet mode | ||||
| Defrost Fan | OFF | Activate defrost fan | |||
| ON | Deactivate defrost fan | ||||
| C Mixing Mode | RGBW | RGBW mode (additive) | |||
| CMY | CMY mode (subtractive) | ||||
| Main Level | Programming Levels | Description | |||
| Setup | Dimmer Curve | Linear Square I Squa SCurve | Set the dimmer curve | ||
| Dimmer Speed | Smooth Fast | Set the dimmer speed | |||
| PWM Option | 600Hz 1200Hz 2000Hz 4000Hz 6000Hz 15000Hz | Sets the Pulse Width Modulation frequency | |||
| Cell Order | 1–16 | Light activates from left to right | |||
| 16–1 | Light activates from right to left | ||||
| Calibrated White | ON | Default light output temperature set to 7500K | |||
| OFF | Deactivates calibrated white setting | ||||
| Custom | Adjust light output temperature using White Balance setting | ||||
| White Balance | Red | 000–255 | Sets red LED maximum value | ||
| Green | Sets green LED maximum value | ||||
| Blue | Sets blue LED maximum value | ||||
| White | Sets white LED maximum value | ||||
| Preset Select | PRESET A PRESET B PRESET C | Recorded preset menu options | |||
| Preset Sync | NO | Allows recorded preset menu options to be transferred to other COLORado PXL Bar 16 in the DMX daisy chain | |||
| YES | |||||
| USB Update | NO | Enables/disables updating by USB | |||
| YES | |||||
| Reset Function | Tilt | NO |
Reset individual functions or all functions from startup | ||
| YES | |||||
| Zoom | NO | ||||
| YES | |||||
| All | NO | ||||
| YES | |||||
| Factory Settings | NO | Reset to factory default settings | |||
| YES | |||||
| Information | Firmware Version | V_ | Shows firmware version | ||
| Running Mode | _ _ _ | Shows current running mode | |||
| Address | _ _ _ | Shows current starting address | |||
| Temperature | _ _ _ | Shows current product temperature in °C | |||
| Fixture Time | _ _ _ _ _ | Shows number of hours product has been powered on | |||
| LED Hours | _ _ _ _ _ | Shows total hours the LED has been powered on | |||
| ArtNet Info | Ip | _ _ _._ _ _._ _ _._ _ _ | Shows current IP address | ||
| SubMask | _ _ _._ _ _._ _ _._ _ _ | Shows current Subnet Mask | |||
| MAC | _ _._ _._ _._ _._ _._ _ | Shows current MAC address | |||
| Device UID | _ _ _ _ _ | Shows product UID | |||
| Fan Information | Head Fan 1–10 | _ _ _ _ | Shows speed of head fans 1–10 in rpm | ||
| Defrost Fan 1–2 | _ _ _ _ | Shows speed of defrost fans 1–2 in rpm | |||
| Base Fan 1–2 | _ _ _ _ | Shows speed of base fans 1–2 in rpm | |||
DMX Values
Single Control: Tour Mode (186CH) / Advanced Mode (154CH) / Standard Mode (84CH) / Basic Mode (20CH)
| 20 CH | 84 CH | 154 CH | 186 CH | Function | Value | Percent/Setting | ||
| 1 | 1 | 1 | 1 | Tilt | 000 | 255 | 0–100% | |
| 2 | 2 | 2 | 2 | Fine tilt | 000 | 255 | 0–100% | |
| 3 | 3 | 3 | 3 | Tilt speed | 000 | 255 | 0–100% | |
| 4 | 4 | 4 | 4 | CTC | 000 001 255 | No function Color temperature, 1900–2700 K | ||
| 5 | 5 | 5 | 5 | Color | 000 | 255 | see Color Chart | |
| 6 | 6 | 6 | 6 | Patterns (see Patterns) | 000 001 255 | No function Pattern 1–255 | ||
| 7 | 7 | 7 | 7 | LED macro | 000 | 255 | see LED Macro | |
| 8 | 8 | 8 | 8 | LED macro speed | 000 127128 129 255 | Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise | ||
| 9 | 9 | 9 | 9 | LED macro delay | 000 | 255 | Fast to slow | |
| 10 | 10 | 10 | 10 | Background color | 000 | 255 | see Color Chart | |
| 11 | 11 | 11 | 11 | Background color dimmer | 000 | 255 | 0–100% | |
| – | – | 12 | 12 | Background color fine dimmer | 000 | 255 | 0–100% | |
| 12 | 12 | 13 | 13 | Dimmer | 000 | 255 | 0–100% | |
| – | – | 14 | 14 | Fine dimmer | 000 | 255 | 0–100% | |
| 13 | 13 | 15 | 15 | Strobe | 000 | 255 | see Strobe Settings | |
| 14 | 14 | 16 | 16 | Zoom 1 (see Zoom Zones) | 000 | 255 | Zoom in to zoom out (Zone 1) | |
| 15 | 15 | 17 | 17 | Zoom 2 (see Zoom Zones) | 000 | 255 | Zoom in to zoom out (Zone 2) | |
| 16 | 16 | 18 | 18 | Control | 000 | 255 | see Control Settings | |
| 17 | 17 | 19 | 19 | Main red | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 20 | 20 | Main fine red | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 18 | 18 | 21 | 21 | Main green | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 22 | 22 | Main fine green | 000 ó | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 19 | 19 | 23 | 23 | Main blue | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 24 | 24 | Main fine blue | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 20 | 20 | 25 | 25 | Main white | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 26 | 26 | Main fine white | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 27 | Dimmer 1 | 000 | 255 | 0–100% | |
| – | – | – | 28 | Fine dimmer 1 | 000 | 255 | 0–100% | |
| – | 21 | 27 | 29 | Red 1 | Cyan 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 28 | 30 | Fine red 1 | Fine cyan 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 22 | 29 | 31 | Green 1 | Magenta 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 30 | 32 | Fine green 1 | Fine magenta 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 23 | 31 | 33 | Blue 1 | Yellow 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 32 | 34 | Fine blue 1 | Fine yellow 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 24 | 33 | 35 | White 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 34 | 36 | Fine white 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 37 | Dimmer 2 | 000 | 255 | 0–100% | |
| – | – | – | 38 | Fine dimmer 2 | 000 | 255 | 0–100% | |
| – | 25 | 35 | 39 | Red 2 | Cyan 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 36 | 40 | Fine red 2 | Fine cyan 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 26 | 37 | 41 | Green 2 | Magenta 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 38 | 42 | Fine green 2 | Fine magenta 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 27 | 39 | 43 | Blue 2 | Yellow 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 40 | 44 | Fine blue 2 | Fine yellow 2 | 000 | 255 | |
| 20 CH | 84 CH | 154 CH | 186 CH | Function | Value | Percent/Setting | ||
| – | 28 | 41 | 45 | White 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 42 | 46 | Fine white 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 47 | Dimmer 3 | 000 | 255 | 0–100% | |
| – | – | – | 48 | Fine dimmer 3 | 000 | 255 | 0–100% | |
| – | 29 | 43 | 49 | Red 3 | Cyan 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 44 | 50 | Fine red 3 | Fine cyan 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 30 | 45 | 51 | Green 3 | Magenta 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 46 | 52 | Fine green 3 | Fine magenta 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 31 | 47 | 53 | Blue 3 | Yellow 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 48 | 54 | Fine blue 3 | Fine yellow 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 32 | 49 | 55 | White 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 50 | 56 | Fine white 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 57 | Dimmer 4 | 000 | 255 | 0–100% | |
| – | – | – | 58 | Fine dimmer 4 | 000 | 255 | 0–100% | |
| – | 33 | 51 | 59 | Red 4 | Cyan 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 52 | 60 | Fine red 4 | Fine cyan 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 34 | 53 | 61 | Green 4 | Magenta 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 54 | 62 | Fine green 4 | Fine magenta 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 35 | 55 | 63 | Blue 4 | Yellow 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 56 | 64 | Fine blue 4 | Fine yellow 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 36 | 57 | 65 | White 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 58 | 66 | Fine white 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 67 | Dimmer 5 | 000 | 255 | 0–100% | |
| – | – | – | 68 | Fine dimmer 5 | 000 ó | 255 | 0–100% | |
| – | 37 | 59 | 69 | Red 5 | Cyan 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 60 | 70 | Fine red 5 | Fine cyan 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 38 | 61 | 71 | Green 5 | Magenta 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 62 | 72 | Fine green 5 | Fine magenta 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 39 | 63 | 73 | Blue 5 | Yellow 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 64 | 74 | Fine blue 5 | Fine yellow 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 40 | 65 | 75 | White 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 66 | 76 | Fine white 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 77 | Dimmer 6 | 000 | 255 | 0–100% | |
| – | – | – | 78 | Fine dimmer 6 | 000 | 255 | 0–100% | |
| – | 41 | 67 | 79 | Red 6 | Cyan 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 68 | 80 | Fine red 6 | Fine cyan 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 42 | 69 | 81 | Green 6 | Magenta 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 70 | 82 | Fine green 6 | Fine magenta 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 43 | 71 | 83 | Blue 6 | Yellow 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 72 | 84 | Fine blue 6 | Fine yellow 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 44 | 73 | 85 | White 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 74 | 86 | Fine white 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 87 | Dimmer 7 | 000 | 255 | 0–100% | |
| – | – | – | 88 | Fine dimmer 7 | 000 | 255 | 0–100% | |
| – | 45 | 75 | 89 | Red 7 | Cyan 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 76 | 90 | Fine red 7 | Fine cyan 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 46 | 77 | 91 | Green 7 | Magenta 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 78 | 92 | Fine green 7 | Fine magenta 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 47 | 79 | 93 | Blue 7 | Yellow 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 80 | 94 | Fine blue 7 | Fine yellow 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 20 CH | 84 CH | 154 CH | 186 CH | Function | Value | Percent/Setting | ||
| – | 48 | 81 | 95 | White 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 82 | 96 | Fine white 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 97 | Dimmer 8 | 000 | 255 | 0–100% | |
| – | – | – | 98 | Fine dimmer 8 | 000 | 255 | 0–100% | |
| – | 49 | 83 | 99 | Red 8 | Cyan 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 84 | 100 | Fine red 8 | Fine cyan 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 50 | 85 | 101 | Green 8 | Magenta 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 86 | 102 | Fine green 8 | Fine magenta 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 51 | 87 | 103 | Blue 8 | Yellow 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 88 | 104 | Fine blue 8 | Fine yellow 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 52 | 89 | 105 | White 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 90 | 106 | Fine white 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 107 | Dimmer 9 | 000 | 255 | 0–100% | |
| – | – | – | 108 | Fine dimmer 9 | 000 | 255 | 0–100% | |
| – | 53 | 91 | 109 | Red 9 | Cyan 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 92 | 110 | Fine red 9 | Fine cyan 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 54 | 93 | 111 | Green 9 | Magenta 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 94 | 112 | Fine green 9 | Fine magenta 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 55 | 95 | 113 | Blue 9 | Yellow 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 96 | 114 | Fine blue 9 | Fine yellow 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 56 | 97 | 115 | White 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 98 | 116 | Fine white 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 117 | Dimmer 10 | 000 | 255 | 0–100% | |
| – | – | – | 118 | Fine dimmer 10 | 000 | 255 | 0–100% | |
| – | 57 | 99 | 119 | Red 10 | Cyan 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 100 | 120 | Fine red 10 | Fine cyan 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 58 | 101 | 121 | Green 10 | Magenta 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 102 | 122 | Fine green 10 | Fine magenta 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 59 | 103 | 123 | Blue 10 | Yellow 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 104 | 124 | Fine blue 10 | Fine yellow 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 60 | 105 | 125 | White 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 106 | 126 | Fine white 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 127 | Dimmer 11 | 000 | 255 | 0–100% | |
| – | – | – | 128 | Fine dimmer 11 | 000 | 255 | 0–100% | |
| – | 61 | 107 | 129 | Red 11 | Cyan 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 108 | 130 | Fine red 11 | Fine cyan 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 62 | 109 | 131 | Green 11 | Magenta 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 110 | 132 | Fine green 11 | Fine magenta 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 63 | 111 | 133 | Blue 11 | Yellow 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 112 | 134 | Fine blue 11 | Fine yellow 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 64 | 113 | 135 | White 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 114 | 136 | Fine white 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 137 | Dimmer 12 | 000 | 255 | 0–100% | |
| – | – | – | 138 | Fine dimmer 12 | 000 | 255 | 0–100% | |
| – | 65 | 115 | 139 | Red 12 | Cyan 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 116 | 140 | Fine red 12 | Fine cyan 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 66 | 117 | 141 | Green 12 | Magenta 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 118 | 142 | Fine green 12 | Fine magenta 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 67 | 119 | 143 | Blue 12 | Yellow 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 120 | 144 | Fine blue 12 | Fine yellow 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 20 CH | 84 CH | 154 CH | 186 CH | Function | Value | Percent/Setting | ||
| – | 68 | 121 | 145 | White 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 122 | 146 | Fine white 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 147 | Dimmer 13 | 000 | 255 | 0–100% | |
| – | – | – | 148 | Fine dimmer 13 | 000 | 255 | 0–100% | |
| – | 69 | 123 | 149 | Red 13 | Cyan 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 124 | 150 | Fine red 13 | Fine cyan 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 70 | 125 | 151 | Green 13 | Magenta 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 126 | 152 | Fine green 13 | Fine magenta 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 71 | 127 | 153 | Blue 13 | Yellow 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 128 | 154 | Fine blue 13 | Fine yellow 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 72 | 129 | 155 | White 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 130 | 156 | Fine white 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 157 | Dimmer 14 | 000 | 255 | 0–100% | |
| – | – | – | 158 | Fine dimmer 14 | 000 | 255 | 0–100% | |
| – | 73 | 131 | 159 | Red 14 | Cyan 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 132 | 160 | Fine red 14 | Fine cyan 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 74 | 133 | 161 | Green 14 | Magenta 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 134 | 162 | Fine green 14 | Fine magenta 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 75 | 135 | 163 | Blue 14 | Yellow 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 136 | 164 | Fine blue 14 | Fine yellow 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 76 | 137 | 165 | White 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 138 | 166 | Fine white 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 167 | Dimmer 15 | 000 | 255 | 0–100% | |
| – | – | – | 168 | Fine dimmer 15 | 000 | 255 | 0–100% | |
| – | 77 | 139 | 169 | Red 15 | Cyan 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 140 | 170 | Fine red 15 | Fine cyan 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 78 | 141 | 171 | Green 15 | Magenta 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 142 | 172 | Fine green 15 | Fine magenta 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 79 | 143 | 173 | Blue 15 | Yellow 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 144 | 174 | Fine blue 15 | Fine yellow 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 80 | 145 | 175 | White 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 146 | 176 | Fine white 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | – | 177 | Dimmer 16 | 000 | 255 | 0–100% | |
| – | – | – | 178 | Fine dimmer 16 | 000 | 255 | 0–100% | |
| – | 81 | 147 | 179 | Red 16 | Cyan 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 148 | 180 | Fine red 16 | Fine cyan 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 82 | 149 | 181 | Green 16 | Magenta 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 150 | 182 | Fine green 16 | Fine magenta 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 83 | 151 | 183 | Blue 16 | Yellow 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 152 | 184 | Fine blue 16 | Fine yellow 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 84 | 153 | 185 | White 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| – | – | 154 | 186 | Fine white 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
Dual Control Movement: Advanced (26CH) / Standard (20CH) / Basic (8CH)
| 8CH | 20CH | 26CH | Function | Value | Percent/Setting |
| 1 | 1 | 1 | Tilt | 000 255 | 0–100% |
| 2 | 2 | 2 | Fine tilt | 000 255 | 0–100% |
| 3 | 3 | 3 | Tilt speed | 000 255 | 0–100% |
| – | 4 | 4 | CTC | 000001 255 | No function Color temperature, 1900–2700 K |
| – | 5 | 5 | Color | 000 255 | see Color Chart |
| – | 6 | 6 | Patterns (see Patterns) | 000001 255 | No function Pattern 1–255 |
| – | 7 | 7 | LED macro | 000 255 | see LED Macro |
| – | 8 | 8 | LED macro speed | 000 127128129 255 | Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise |
| – | 9 | 9 | LED macro delay | 000 255 | Fast to slow |
| – | 10 | 10 | Background color | 000 255 | see Color Chart |
| – | 11 | 11 | Background color dimmer | 000 255 | 0–100% |
| – | – | 12 | Background color fine dimmer | 000 255 | 0–100% |
| 4 | 12 | 13 | Dimmer | 000 255 | 0–100% |
| – | – | 14 | Fine dimmer | 000 255 | 0–100% |
| 5 | 13 | 15 | Strobe | 000 255 | see Strobe Settings |
| 6 | 14 | 16 | Zoom 1 (see Zoom Zones) | 000 255 | Zoom in to zoom out (Zone 1) |
| 7 | 15 | 17 | Zoom 2 (see Zoom Zones) | 000 255 | Zoom in to zoom out (Zone 2) |
| 8 | 16 | 18 | Control | 000 255 | see Control Settings |
| – | 17 | 19 | Red | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 20 | Fine red | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 18 | 21 | Green | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 22 | Fine green | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 19 | 23 | Blue | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 24 | Fine blue | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 20 | 25 | White | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | – | 26 | Fine white | 000 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
Dual Control Pixels: Advanced (128CH)
| Channel | Function | Value | Percent/Setting | ||
| 1 | Red 1 | Cyan 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 2 | Fine red 1 | Fine cyan 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 3 | Green 1 | Magenta 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 4 | Fine green 1 | Fine magenta 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 5 | Blue 1 | Yellow 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 6 | Fine blue 1 | Fine yellow 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 7 | White 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 8 | Fine white 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 9 | Red 2 | Cyan 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 10 | Fine red 2 | Fine cyan 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 11 | Green 2 | Magenta 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 12 | Fine green 2 | Fine magenta 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 13 | Blue 2 | Yellow 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 14 | Fine blue 2 | Fine yellow 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 15 | White 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 16 | Fine white 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 17 | Red 3 | Cyan 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 18 | Fine red 3 | Fine cyan 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 19 | Green 3 | Magenta 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 20 | Fine green 3 | Fine magenta 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 21 | Blue 3 | Yellow 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 22 | Fine blue 3 | Fine yellow 3 | 000 ó | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 23 | White 3 | 000 ó | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 24 | Fine white 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 25 | Red 4 | Cyan 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 26 | Fine red 4 | Fine cyan 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 27 | Green 4 | Magenta 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 28 | Fine green 4 | Fine magenta 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 29 | Blue 4 | Yellow 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 30 | Fine blue 4 | Fine yellow 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 31 | White 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 32 | Fine white 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 33 | Red 5 | Cyan 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 34 | Fine red 5 | Fine cyan 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 35 | Green 5 | Magenta 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 36 | Fine green 5 | Fine magenta 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 37 | Blue 5 | Yellow 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 38 | Fine blue 5 | Fine yellow 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 39 | White 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 40 | Fine white 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 41 | Red 6 | Cyan 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 42 | Fine red 6 | Fine cyan 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 43 | Green 6 | Magenta 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 44 | Fine green 6 | Fine magenta 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 45 | Blue 6 | Yellow 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 46 | Fine blue 6 | Fine yellow 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 47 | White 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 48 | Fine white 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 49 | Red 7 | Cyan 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 50 | Fine red 7 | Fine cyan 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| Channel | Function | Value | Percent/Setting | ||
| 51 | Green 7 | Magenta 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 52 | Fine green 7 | Fine magenta 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 53 | Blue 7 | Yellow 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 54 | Fine blue 7 | Fine yellow 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 55 | White 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 56 | Fine white 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 57 | Red 8 | Cyan 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 58 | Fine red 8 | Fine cyan 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 59 | Green 8 | Magenta 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 60 | Fine green 8 | Fine magenta 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 61 | Blue 8 | Yellow 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 62 | Fine blue 8 | Fine yellow 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 63 | White 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 64 | Fine white 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 65 | Red 9 | Cyan 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 66 | Fine red 9 | Fine cyan 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 67 | Green 9 | Magenta 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 68 | Fine green 9 | Fine magenta 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 69 | Blue 9 | Yellow 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 70 | Fine blue 9 | Fine yellow 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 71 | White 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 72 | Fine white 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 73 | Red 10 | Cyan 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 74 | Fine red 10 | Fine cyan 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 75 | Green 10 | Magenta 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 76 | Fine green 10 | Fine magenta 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 77 | Blue 10 | Yellow 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 78 | Fine blue 10 | Fine yellow 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 79 | White 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 80 | Fine white 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 81 | Red 11 | Cyan 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 82 | Fine red 11 | Fine cyan 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 83 | Green 11 | Magenta 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 84 | Fine green 11 | Fine magenta 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 85 | Blue 11 | Yellow 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 86 | Fine blue 11 | Fine yellow 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 87 | White 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 88 | Fine white 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 89 | Red 12 | Cyan 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 90 | Fine red 12 | Fine cyan 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 91 | Green 12 | Magenta 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 92 | Fine green 12 | Fine magenta 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 93 | Blue 12 | Yellow 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 94 | Fine blue 12 | Fine yellow 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 95 | White 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 96 | Fine white 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 97 | Red 13 | Cyan 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 98 | Fine red 13 | Fine cyan 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 99 | Green 13 | Magenta 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 100 | Fine green 13 | Fine magenta 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 101 | Blue 13 | Yellow 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| Channel | Function | Value | Percent/Setting | ||
| 102 | Fine blue 13 | Fine yellow 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 103 | White 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 104 | Fine white 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 105 | Red 14 | Cyan 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 106 | Fine red 14 | Fine cyan 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 107 | Green 14 | Magenta 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 108 | Fine green 14 | Fine magenta 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 109 | Blue 14 | Yellow 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 110 | Fine blue 14 | Fine yellow 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 111 | White 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 112 | Fine white 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 113 | Red 15 | Cyan 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 114 | Fine red 15 | Fine cyan 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 115 | Green 15 | Magenta 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 116 | Fine green 15 | Fine magenta 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 117 | Blue 15 | Yellow 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 118 | Fine blue 15 | Fine yellow 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 119 | White 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 120 | Fine white 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 121 | Red 16 | Cyan 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 122 | Fine red 16 | Fine cyan 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 123 | Green 16 | Magenta 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 124 | Fine green 16 | Fine magenta 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 125 | Blue 16 | Yellow 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 126 | Fine blue 16 | Fine yellow 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 127 | White 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 128 | Fine white 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
Dual Control Pixels: Standard (64CH) / Basic (48CH)
| 48CH | 64CH | Function | Value | Percent/Setting | ||
| 1 | 1 | Red 1 | Cyan 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 2 | 2 | Green 1 | Magenta 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 3 | 3 | Blue 1 | Yellow 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 4 | White 1 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 4 | 5 | Red 2 | Cyan 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 5 | 6 | Green 2 | Magenta 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 6 | 7 | Blue 2 | Yellow 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 8 | White 2 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 7 | 9 | Red 3 | Cyan 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 8 | 10 | Green 3 | Magenta 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 9 | 11 | Blue 3 | Yellow 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 12 | White 3 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 10 | 13 | Red 4 | Cyan 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 11 | 14 | Green 4 | Magenta 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 12 | 15 | Blue 4 | Yellow 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 16 | White 4 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 13 | 17 | Red 5 | Cyan 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 14 | 18 | Green 5 | Magenta 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 15 | 19 | Blue 5 | Yellow 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 20 | White 5 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 16 | 21 | Red 6 | Cyan 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 17 | 22 | Green 6 | Magenta 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 18 | 23 | Blue 6 | Yellow 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 24 | White 6 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 19 | 25 | Red 7 | Cyan 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 20 | 26 | Green 7 | Magenta 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 21 | 27 | Blue 7 | Yellow 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 28 | White 7 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 22 | 29 | Red 8 | Cyan 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 23 | 30 | Green 8 | Magenta 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 24 | 31 | Blue 8 | Yellow 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 32 | White 8 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 25 | 33 | Red 9 | Cyan 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 26 | 34 | Green 9 | Magenta 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 27 | 35 | Blue 9 | Yellow 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 36 | White 9 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 28 | 37 | Red 10 | Cyan 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 29 | 38 | Green 10 | Magenta 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 30 | 39 | Blue 10 | Yellow 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 40 | White 10 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 31 | 41 | Red 11 | Cyan 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 32 | 42 | Green 11 | Magenta 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 33 | 43 | Blue 11 | Yellow 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 44 | White 11 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 34 | 45 | Red 12 | Cyan 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 35 | 46 | Green 12 | Magenta 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 36 | 47 | Blue 12 | Yellow 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 48 | White 12 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 37 | 49 | Red 13 | Cyan 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 38 | 50 | Green 13 | Magenta 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 48CH | 64CH | Function | Value | Percent/Setting | ||
| 39 | 51 | Blue 13 | Yellow 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 52 | White 13 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 40 | 53 | Red 14 | Cyan 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 41 | 54 | Green 14 | Magenta 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 42 | 55 | Blue 14 | Yellow 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 56 | White 14 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 43 | 57 | Red 15 | Cyan 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 44 | 58 | Green 15 | Magenta 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 45 | 59 | Blue 15 | Yellow 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 60 | White 15 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
| 46 | 61 | Red 16 | Cyan 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 47 | 62 | Green 16 | Magenta 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| 48 | 63 | Blue 16 | Yellow 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% |
| – | 64 | White 16 | 000 | 255 | RGBW Mode: 0–100% / CMY Mode: 100–0% | |
Color Chart
| Value | Percent/Setting | |||
| 000 | No function | |||
| 001 002 | White 2700K R = 156 | G = 118 | B = 0 | W = 63 |
| 003 004 | White 3200K R = 156 | G = 141 | B = 5 | W = 89 |
| 005 006 | White 4200K R = 156 | G = 141 | B = 14 | W = 255 |
| 007 008 | White 5600K R = 156 | G = 207 | B = 54 | W = 255 |
| 009 010 | White 8000K R = 130 | G = 255 | B = 96 | W = 255 |
| 011 | Blue R = 0 | G = 0 | B = 255 | W = 0 |
| 012 048 | + Green R = 0 | G = 0–255 | B = 255 | W = 0 |
| 049 | Cyan R = 0 | G = 255 | B = 255 | W = 0 |
| 050 086 | – Blue R = 0 | G = 255 | B = 255–0 | W = 0 |
| 087 | Green R = 0 | G = 255 | B = 0 | W = 0 |
| 088 124 | + Red R = 0–255 | G = 255 | B = 0 | W = 0 |
| 125 | Yellow R = 255 | G = 255 | B = 0 | W = 0 |
| 126 162 | – Green R = 255 | G = 255–0 | B = 0 | W = 0 |
| 163 | Red R = 255 | G = 0 | B = 0 | W = 0 |
| 164 200 | + Blue R = 255 | G = 0 | B = 0–255 | W = 0 |
| 201 | Magenta R = 255 | G = 0 | B = 255 | W = 0 |
| 202 238 | – Red R = 255–0 | G = 0 | B = 255 | W = 0 |
| 239 | Blue R = 0 | G = 0 | B = 255 | W = 0 |
| 240 247 | Color fade, fast to slow | |||
| 248 255 | Color snap, fast to slow | |||
Strobe Settings
| Value | Percent/Setting | Value | Percent/Setting |
| 000 019 | Off | 145 149 | On |
| 020 024 | On | 150 164 | Random strobe 0–100%, fast to slow |
| 025 064 | Strobe, fast to slow | 165 169 | On |
| 065 069 | On | 170 184 | Pulse strobe, fast to slow |
| 070 084 | Strobe 100–0%, fast to slow | 185 189 | On |
| 085 089 | On | 190 204 | Random pulse strobe, fast to slow |
| 090 104 | Strobe 0–100%, fast to slow | 205 209 | On |
| 105 ó 109 | On | 210 224 | Strobe 0–100–0%, fast to slow |
| 110 124 | Random strobe, fast to slow | 225 229 | On |
| 125 129 | On | 230 244 | Random pulse strobe, fast to slow |
| 130 144 | Random strobe 100–0%, fast to slow | 245 255 | On |
Control Settings
| Value | Percent/Setting | Value | Percent/Setting |
| 000 009 | No function | 082 084 | Cell order 1-16 |
| 010 014 | Blackout on tilt | 085 089 | Cell order 16-1 |
| 015 019 | Reserved for future use | 090 094 | Tilt reverse |
| 020 024 | RGBW (additive) color-mixing mode | 095 099 | Reserved for future use |
| 025 029 | CMY (subtractive) color-mixing mode | 100 104 | Tilt reverse disable |
| 030 039 | Reserved for future use | 105 119 | Reserved for future use |
| 040 044 | Defrost fan on | 120 124 | Fan ECO |
| 045 049 | Defrost fan off | 125 129 | Fan full |
| 050 054 | Reserved for future use | 130 134 | Fan auto |
| 055 059 | Tilt reset | 135 139 | Dimmer fast |
| 060 064 | Zoom reset | 140 144 | Dimmer smooth |
| 065 069 | Reserved for future use | 145 149 | Linear |
| 070 074 | Reset all | 150 154 | Square |
| 075 | PWM 600HZ | 155 159 | i Squa |
| 076 | PWM 1200HZ | 160 164 | SCurve |
| 077 | PWM 2000 HZ | 165 169 | White mode |
| 078 | PWM 4000 HZ | 170 174 | Full mode |
| 079 | PWM 6000 HZ | 175 239 | Color Macros HTP on |
| 080 | PWM 15000 HZ | 240 247 | Color Macros HTP off |
| 081 | Reserved for future use | 248 255 | Reserved for future use |
LED Macro
| Value | Percent/Setting | Value | Percent/Setting |
| 000 015 | No function | 136 137 | Auto color macro 38 |
| 016 017 | Color-controllable macro 1 | 138 139 | Auto color macro 39 |
| 018 019 | Color-controllable macro 2 | 140 141 | Auto color macro 40 |
| 020 021 | Color-controllable macro 3 | 142 143 | Auto color macro 41 |
| 022 023 | Color-controllable macro 4 | 144 145 | Auto color macro 42 |
| 024 025 | Color-controllable macro 5 | 146 147 | Auto color macro 43 |
| 026 027 | Color-controllable macro 6 | 148 149 | Auto color macro 44 |
| 028 029 | Color-controllable macro 7 | 150 151 | Auto color macro 45 |
| 030 031 | Color-controllable macro 8 | 152 153 | Auto color macro 46 |
| 032 033 | Color-controllable macro 9 | 154 155 | Auto color macro 47 |
| 034 035 | Color-controllable macro 10 | 156 157 | Auto color macro 48 |
| 036 037 | Color-controllable macro 11 | 158 159 | Auto color macro 49 |
| 038 039 | Color-controllable macro 12 | 160 161 | Auto color macro 50 |
| 040 ó 041 | Color-controllable macro 13 | 162 163 | Auto color macro 51 |
| 042 043 | Color-controllable macro 14 | 164 165 | Auto color macro 52 |
| 044 045 | Color-controllable macro 15 | 166 167 | Auto color macro 53 |
| 046 047 | Color-controllable macro 16 | 168 169 | Auto color macro 54 |
| 048 049 | Color-controllable macro 17 | 170 171 | Auto color macro 55 |
| 050 051 | Color-controllable macro 18 | 172 173 | Auto color macro 56 |
| 052 053 | Color-controllable macro 19 | 174 175 | Auto color macro 57 |
| 054 055 | Color-controllable macro 20 | 176 177 | Auto color macro 58 |
| 056 057 | Color-controllable macro 21 | 178 179 | Auto color macro 59 |
| 058 059 | Color-controllable macro 22 | 180 181 | Auto color macro 60 |
| 060 061 | Color-controllable macro 23 | 182 183 | Auto color macro 61 |
| 062 063 | Color-controllable macro 24 | 184 185 | Auto color macro 62 |
| 064 065 | Color-controllable macro 25 | 186 187 | Auto color macro 63 |
| 066 067 | Color-controllable macro 26 | 188 189 | Auto color macro 64 |
| 068 069 | Color-controllable macro 27 | 190 ó 191 | Auto color macro 65 |
| 070 071 | Color-controllable macro 28 | 192 193 | Auto color macro 66 |
| 072 ó 073 | Color-controllable macro 29 | 194 195 | Auto color macro 67 |
| 074 075 | Color-controllable macro 30 | 196 197 | Auto color macro 68 |
| 076 ó 077 | Color-controllable macro 31 | 198 199 | Auto color macro 69 |
| 078 079 | Color-controllable macro 32 | 200 201 | Auto color macro 70 |
| 080 081 | Color-controllable macro 33 | 202 203 | Auto color macro 71 |
| 082 083 | Color-controllable macro 34 | 204 205 | Auto color macro 72 |
| 084 085 | Color-controllable macro 35 | 206 207 | Auto color macro 73 |
| 086 087 | Color-controllable macro 36 | 208 255 | Auto color macro 74 (main macro) |
| 088 135 | Color-controllable macro 37 (main macro) | ||
Zoom Zones
Patterns
| General Information | Technical Support |
| Chauvet World Headquarters | |
| Address: 5200 NW 108th Ave. Sunrise, FL 33351 Voice: (954) 577-4455 Fax: (954) 929,5560 Toll Free: (800) 762-1084 | Voice: (844) 393-7575 Fax: (954) 756-8015 Email: [email protected] Website: www.chauvetorofessional.com |
| Chauvet U.K. | Email: [email protected] Website: www.chauveturofessional.eu |
| Address: Unit 1C Brookhill Road Industrial Estate Pinxton, Nottingham, UK NG16 6NT Voice: +44 (0) 1773 511115 Fax: +44 (0) 1773 511110 | |
| Chauvet Benelux | Email: [email protected] Website: www.chauveturofessional.eu |
| Address: Stokstraat 18 9770 Kruishoutem Belgium Voice: +32 9 388 93 97 | |
| Chauvet France | Email: [email protected] Website: www.chauveturofessional.eu |
| Address: 3, Rue Ampere 91380 Chilly-Mazarin France Voice: +33 1 78 85 33 59 | |
| Chauvet Germany | Email: [email protected] Website: www.chauveturofessional.eu |
| Address: Bruno str 11 28759 Germany Voice: +49 421 62 60 20 | |
| Chauvet Mexico | Email: [email protected] Website: www.chauvetorofessional.mx
|
| Address: An de las Partidas 34 – 3B (Entrance by Calle 2) Zona Industrial Lerma Lerma, Edo. de Mexico, CP 52000 Voice: +52 (728) 690-2010 |
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
