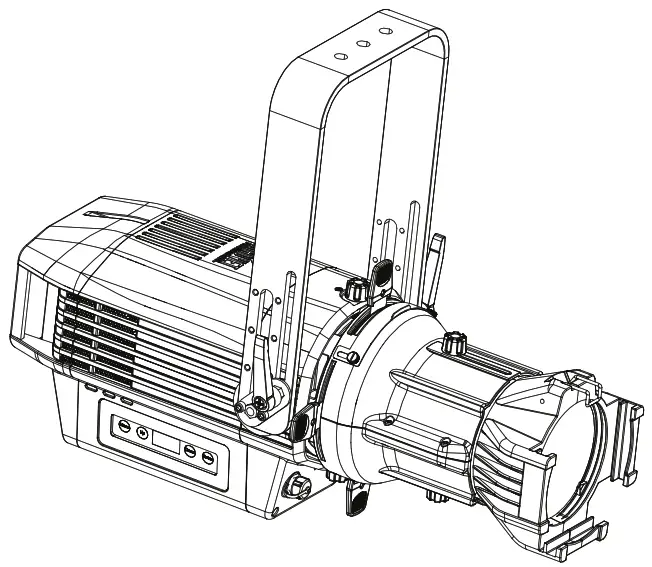

Chauvet Professional Ovation Reve E3 Ip User Guide (+ PDF)

Quick Reference Guide

* Lens tubes sold separately
Model ID: OVATIONREVEE3IP

About This Guide
The Ovation Rêve E-3 IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

Contents hide

1 LIMITED WARRANTY

2 Documents / Resources

3 Related Posts

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and
Germany: www.chauvetlighting.eu/warranty-registration/.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, the customer must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives the customer specific legal rights. The customer may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany, and Mexico. For warranty terms in other countries, please consult a local distributor.
Safety Notes

The luminaire is intended for professional use only.
DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
DO NOT submerge this product (IP65). Regular outdoor operation is fine.
DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
CAUTION: This product’s housing may be hot when the lights are operating.
CAUTION: When transferring product from extreme temperature environments, (e.g., a cold truck to a warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
USE a safety cable when mounting this product overhead.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket to carry this product.
Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.
In the event of a serious operating problem, stop using immediately.

FCC Compliance
This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

Contact
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact a distributor to request support or return a
product. Refer to Contact Us at the end of this QRG for contact information.
What is Included

Ovation Rêve E-3 IP
Seetronic Powerkon power cord
Soft-focus filter
Ovation metal gobo holder
Quick Reference Guide

AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
It is possible to link up to 3 Ovation Rêve E-3 IP products at 100 V, 4 products at 120 V, 8 products at 208 V or 230 V, or 9 products at 240 V. Never exceed this number. Power-linking cords can be purchased separately.
AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via a breaker or by unplugging it.
DMX Linking
The Ovation Rêve E-3 IP will work with a DMX controller using a 3- and 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
DMX Connection
The Ovation Rêve E-3 IP uses a 3- and 5-pin DMX data connection for its DMX personalities: 1Ch, 5Ch, 6Ch, 8Ch, 12Ch, 14Ch1, 14Ch2, 18Ch, and HSV. See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The Ovation Rêve E-3 IP uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check with the manufacturer or the DMX controller’s User Manual, as not all DMX controllers have this capability. The Ovation Rêve E-3 IP supports the RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
USB Software Update
The Ovation Rêve E-3 IP allows for software updates through USB using the built-in USB port. To update the software using a USB flash drive, do the following:

Power on the fixture and plug the flash drive into the USB port.
Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press <ENTER>.
• If a different message appears on the display, search for the updated software in the Main Menu (Update Firmware) and select from Only This Unit, Multiple Units, or Other Fixture Type. A list of the software update files will be displayed.
Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press <ENTER>.
If the selected file is correct, the upgrade will be completed. Restart the fixture.
• If the selected file is incorrect, the upgrade will fail, and the display will go back to the main interface. Repeat steps 1-3 using the correct file.

The .chl format file needs to be placed in the OVATION folder in the USB flash drive.
The “Other Fixture Type” option can only be selected for connected products compatible with Upload 03 (the first 2 digits of the item code must be 03).
Lens Tubes
The following lens tubes are available for purchase:

19°, 26°, 36°, and 50° with gel frame (6.25 in/159 mm accessories)
5° zoom gel frame (14 in/356 mm)
10° zoom gel frame (12 in/304 mm)
14°, 15–30°, and 25°–50° zoom gel frame (7.5 in/191 mm accessories)

Soft Focus Filter
The Ovation Rêve E-3 IP comes with a soft focus filter. To keep the soft focus filter in good condition:

• Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and eventually warp.
• When placing the filter in the holder, follow the orientation direction printed on the filter.
• When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected onto the filter, causing it to warp and potentially adhere to the shutter blades.

If there is a protective film on the soft-focus filter, it must be removed before use. The filter is in a holder in the metal gobo slot.

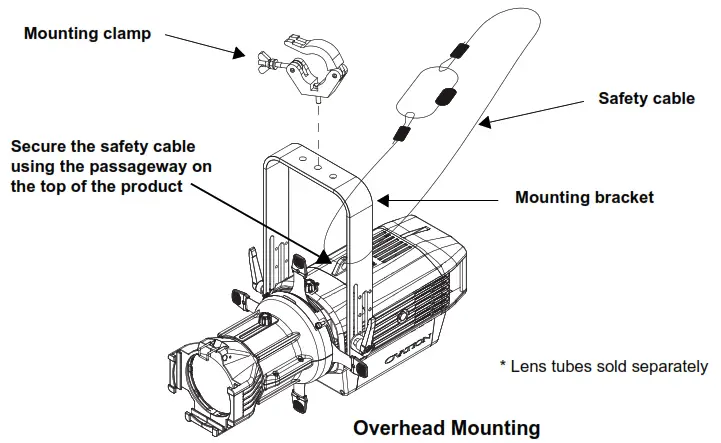

Mounting
Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps can support the weight of the product. For the Chauvet line of mounting clamps, go to: http://trusst.com/productcategory/truss-clamps/.

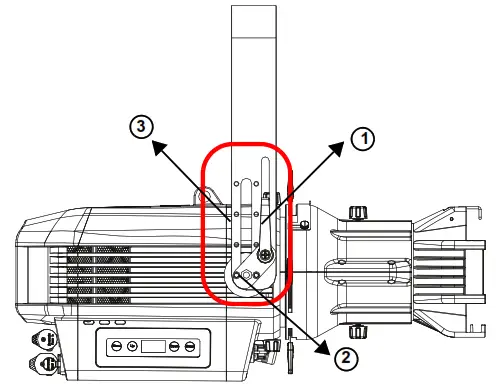

Product Mounting DiagramAdjustable Yoke
The Ovation Rêve E-3 IP comes with an adjustable yoke for mounting in low-clearance areas. To modify the height of the yoke, do the following:

Loosen the bracket adjustment knobs on both sides of the fixture.
On each side of the fixture, remove the two screws and loosen the bolt attaching the plate to the mounting bracket.
Using the screw holes as a guide, adjust the position of the mounting bracket to achieve the desired height of the yoke.
Put the screws back in place, and tighten the bolts and the bracket adjustment knobs.

Virtual Color Wheel
The Ovation Rêve E-3 IP includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. The DMX values used to mix these colors are provided below. The overall intensity of the Ovation fixture can be adjusted to more closely replicate familiar industry-standard colors. A chart is available on www.chauvetprofessional.com to compare Chauvet’s premixed colors with popular gel colors. This chart is for comparison purposes only and is not an
assertion that Chauvet’s premixed colors match any of the gel colors listed.
Virtual Color Wheel Chart

DMX Channel Value	Display Readout	Red Value	Green Value	Blue Value	Amber Value	Mint Value
000 ⇔ 005	—	—	—	—	—	—
006 ⇔ 013	C3050 – Md Yellow	255	225	0	255	37
014 ⇔ 021	C3040 – Lt Yellow	255	177	3	255	37
022 ⇔ 028	C3240 – Amb Yellow	255	220	0	255	0
029 ⇔ 035	C2340 – VLt Amber	195	0	15	255	57
036 ⇔ 043	C2040 – Lt Amber	255	0	11	255	61
044 ⇔ 051	C2050 – Md Amber	255	53	0	255	17
052 ⇔ 059	C2060 – Dk Amber	255	8	0	255	17
060 ⇔ 067	C1050 – Lt Red	255	0	3	14	0
068 ⇔ 075	C1080 – Md Red	255	0	2	0	0
076 ⇔ 083	C1020 – NC Pink	255	75	62	255	73
084 ⇔ 091	C1030 – Md Pink	255	75	57	255	41
092 ⇔ 099	C1630 – Dk Pink	218	77	57	255	61
100 ⇔ 107	C1250 – Md Red Amber	255	0	9	168	0
108 ⇔ 115	C1060 – Dk Red Amber	255	5	9	36	0
116 ⇔ 121	C1650 – Magenta	255	3	62	255	12
122 ⇔130	C6170 – Dk Magenta	255	0	55	0	0
131⇔ 138	C6020 – Lt Lavender	255	220	93	255	44
139 ⇔ 146	C5030 – Lt Blue	0	255	159	112	78
147 ⇔ 154	C5020 – VLt Blue	0	215	145	196	65
155 ⇔ 162	C5430 – Lt Blue2	0	215	132	52	92
163 ⇔ 170	C5070 – Blue	0	195	188	0	19
171 ⇔ 178	C5050 – Md Blue	0	163	190	0	68
179 ⇔ 186	C5060 – Dk Blue	0	128	193	0	38
187 ⇔ 194	C5690 – Indigo	53	9	255	0	0
195 ⇔ 202	C5080 – VDk Blue	7	84	116	0	0
203 ⇔ 210	C5081 – VDk Blue2	11	82	139	0	0
211 ⇔ 218	C4370 – Yel Green	0	255	2	25	0
219 ⇔ 226	C4070 – Green	0	255	9	0	175
227 ⇔ 234	C4550 – Turquoise	0	255	87	96	255
235 ⇔ 242	C4560 – Aqua	0	255	98	44	255
243 ⇔ 250	C4570 – Blue Green	0	255	26	8	0
251 ⇔ 255	—	—	—	—	—	—

Note: The colors above are simulated renditions of the color output produced compared with other similar incandescent products. Chauvet makes no guarantee of the color output accuracy.
Color Temperature Chart

Color Temperature	Red Value	Green Value	Blue Value	Amber Value	Mint Value
2800K	253	0	25	255	145
2900K	253	3	28	255	153
3000K	251	5	33	255	161
3100K	248	7	36	255	169
3200K	245	9	45	255	173
3300K	242	13	47	255	182
3400K	237	22	53	255	185
3500K	230	30	58	255	185
3600K	225	40	64	255	185
3700K	221	48	70	255	185
3800K	220	48	74	255	197
3900K	220	50	79	255	203
4000K	210	58	84	255	203
4100K	205	63	88	255	203
4200K	199	68	95	255	204
4300K	189	69	98	255	204
4400K	183	71	103	255	204
4500K	174	78	107	255	204
4600K	170	80	112	255	204
4700K	166	89	119	255	204
4800K	164	98	123	255	203
4900K	163	100	129	255	205
5000K	163	103	137	255	206
5100K	163	108	142	255	208
5200K	163	116	147	255	208
5300K	163	118	156	255	210
5400K	162	122	162	255	216
5500K	162	124	166	255	224
5600K	162	127	172	255	229
5700K	159	127	177	255	231
6000K	158	134	192	241	231
6500K	152	152	206	225	231
7000K	144	157	224	218	231
7500K	127	172	238	218	231
8000K	122	175	245	200	231

The color temperatures above are simulated renditions of the color output produced compared with a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy.
Color Temperature DMX Chart

DMX Channel	Color Temperature	DMX Channel	Color Temperature	DMX Channel	Color Temperature
000 ⇔ 005	No function	084 ó 090	3900–4000K	168 ⇔174	5100–5200K
006 ⇔ 013	2800–2900K	091 ó 097	4000–4100K	175 ⇔181	5200–5300K
014 ⇔ 020	2900–3000K	098 ó 104	4100–4200K	182 ⇔ 188	5300–5400K
021 ⇔ 027	3000–3100K	105 ó 111	4200–4300K	189 ⇔195	5400–5500K
028 ⇔ 034	3100–3200K	112 ó 118	4300–4400K	196 ⇔202	5500–5600K
035 ⇔ 041	3200–3300K	119 ó 125	4400–4500K	203⇔209	5600–5700K
042 ⇔ 048	3300–3400K	126 ó 132	4500–4600K	210 ⇔216	5700–6000K
049 ⇔ 055	3400–3500K	133 ó 139	4600–4700K	217⇔223	6000–6500K
056 ⇔ 062	3500–3600K	140 ó 146	4700–4800K	224⇔ 230	6500–7000K
063 ⇔ 069	3600–3700K	147 ó 153	4800–4900K	231 ⇔237	7000–7500K
070 ⇔ 076	3700–3800K	154 ó 160	4900–5000K	238 ⇔ 244	7500–8000K
077 ⇔ 083	3800–3900K	161 ó 167	5000–5100K	245⇔255	8000K

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function
<FOCUS>	Sets fixture into Focus Mode, which takes the unit to full power for easy focusing without changing any other fixture settings. Press again to release from Focus Mode.

Menu Map
Refer to the Ovation Rêve E-3 IP product page on www.chauvetprofessional.com for the latest menu map.

Main Level	Programming Levels				Description
DMX Address	001–512*				Selects DMX address (*highest channel restricted to personality chosen)
DMX Channel	1Ch		Virtual Color Wheel		1-channel: dimmer
			Color Temperature
			Manual Color Mixer
	5Ch				5-channel: dimmer, virtual color wheel (VCW), color temperature, hue, gobo rotator
	6Ch				6-channel: red, green, blue, amber, mint, gobo rotator
	8Ch				8-channel: dimmer, RGBAM, strobe, gobo rotator
	12Ch				12-channel: 16-bit dimmer, RGBAM, strobe, VCW, color temperature, hue, gobo rotator
	14Ch1				14-channel: dimmer, RGBAM, strobe, VCW, color temperature, hue, auto programs, auto speed, control, gobo rotator
	14Ch2				14-channel: 16-bit dimmer, 16-bit RGBAM, strobe, gobo rotator
	18Ch				18-channel: 16-bit RGBAM and dimmer, strobe, VCW, color temperature, hue, control, gobo rotator
	HSV				4-channel: hue, saturation, value, gobo rotator
Virtual Color Wheel	Virtual Color Wheel	C3050 – Md Yellow C3040 – Lt Yellow C3240 – Amb Yellow C2340 – VLt Amber C2040 – Lt Amber C2050 – Md Amber C 2060 – Dk Amber C1050 – Lt Red C1080 – Md Red C1020 – NC Pink C1030 – Md Pink C1630 – Dk Pink C1250 – Md Red Amber C1060 – Dk Red Amber C1650 – Magenta C6170 – Dk Magenta C6020 – Lt Lavender C5030 – Lt Blue C5020 – VLt Blue C5430 – Lt Blue 2 C5070 – Blue C5050 – Md Blue C5060 – Dk Blue C5690 – Indigo C5080 – VDk Blue C5081 – VDk Blue 2		Dimmer 000–255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart for specific values.

Main Level	Programming Levels				Description
Virtual Color Wheel	Virtual Color Wheel	C4370 – Yel Green C4070 – Green C4550 – Turquoise C4560 – Aqua C4570 – Blue Green		Dimmer 000–255	Virtual Color Wheel simulates the output of each gel color. Refer to the Virtual Color Wheel Chart for specific values.
	Color Temperature	2800K 2900K 3000K 3100K 3200K 3300K 3400K 3500K 3600K 3700K 3800K 3900K 4000K 4100K 4200K 4300K 4400K 4500K 4600K 4700K 4800K 4900K 5000K 5100K 5200K 5300K 5400K 5500K 5600K 5700K 6000K 6500K 7000K 7500K 8000K	Dimmer	0–255	Preset white color temperatures. Emulates a tungsten lamp at the specified color temperature. Refer to the Color Temperature Chart for specific values.
			Hue	-25–25
	Manual Color Mixer	Red Green Blue Amber Mint		000–255	Combines red, green, blue, amber, and mint to make a custom color (0–100%)
	Color X- Fade Speed	Off			Turns off the fade transition between colors
		X-Fade Speed 1			Creates fade transition between colors when using colors in the Virtual Color Wheel or Color Temperature chart, from fast (X-Fade Speed 1) to slow (X-Fade Speed 4)
		X-Fade Speed 2
		X-Fade Speed 3
		X-Fade Speed 4
Auto Show	Auto 1–5		1–100		Selects automatic programs and auto program speed
Red Shift	On				Mimics halogen lamp dimming
	Off
Gobo Rotator	000–255				Controls the gobo rotator

Main Level	Programming Levels				Description
Master/Slave	Master				Receives DMX signal from the DMX controller (master)
	Slave				Receives DMX signal from the master unit
Dimmer Curve	S-Curve Linear Square Inverse Square				Sets the dimmer curve
Dimmer Mode	Off				Linear dimmer
	Dimmer 1–3				Dimming curves, from fast (Dimmer 1) to slow (Dimmer 3)
Color Calibration	Off				Deactivates color calibration
	User Calibration	Red		125–255	Sets red LED maximum value
		Green			Sets green LED maximum value Sets blue LED maximum value Sets the amber LED maximum value
		Blue
		Amber
		Mint			Sets mint LED maximum value
	Factory Calibration				Uses factory default white setting
LED Frequency	600Hz 1200Hz 2000Hz 4000Hz 6000Hz 25KHz				Sets the PWM output frequency
Fan Mode	Auto				Sets the fan to auto mode
	On				Sets the fan to always on
	Off				Sets the fan to always off
	Silent				Sets the fan to silent
Back Light	10S				Turns off the display backlight after 10 seconds of inactivity
	30S				Turns off the display backlight after 30 seconds of inactivity
	2Min				Turns off display backlight after 2 minutes of inactivity
	Always On				The display backlight always on
Gobo Power	On Off				Enables/disables gobo power output
Information	Fixture Hours		_ _ _ _H		Shows the total hours the product has been powered on
	LED Hours		_ _ _ _H		Shows the total hours the LED has been powered on
	Version		V_._		Shows the current firmware version
	UID		_ _ _ _ _ _ _ _ _ _ _ _		Shows product UID
Update Firmware	Only This Unit		_ _ _ _ _ _.CHAT		Selects an update file for this product, or show “No such file!”
			…
	Multiple Units		_ _ _ _ _ _.CHAT		Selects an update file for this and connected Ovation Rêve E-3 IP products, or show “No such file!”
			…
	Other Fixture Type		_ _ _ _ _ _.CHAT		Selects an update file for other connected products, or shows “No such file!”
			…
Factory Reset	No				Resets settings to factory default
	Yes

WARNING: When operating in Fan Mode: Off and Fan Mode: Silent, the fixture will become hotter to the touch than when using other fan modes. Use proper protective equipment to prevent burns. Keep a safe distance from flammable objects.
NOTICE: When operating in Fan Mode: Off and Fan Mode: Silent, the output of the fixture will be reduced and will not reach the same levels as when using other fan modes.
DMX Values HSV

Channel	Function	Value	Percent/Setting
1	Hue	000 ⇔255	0–100%
2	Saturation	000 ⇔255	0–100%
3	Value	000 ⇔255	0–100%
		000 ⇔127	Index
4	Gobo rotator	128 ⇔ 190 191 ⇔192	Clockwise rotation, fast to slow Stop
		193 ⇔255	Counterclockwise rotation, slow to fast

18Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000⇔255	0–100%
2	Dimmer fine	000⇔255	0–100%
3	Red	000 ⇔255	0–100%
4	Red fine	000 ⇔255	0–100%
5	Green	000⇔255	0–100%
6	Green fine	000 ⇔255	0–100%
7	Blue	000 ⇔255	0–100%
8	Blue fine	000 ⇔255	0–100%
9	Amber	000 ⇔255	0–100%
10	Amber fine	000 ⇔255	0–100%
11	Mint	000⇔255	0–100%
12	Mint fine	000⇔255	0–100%
13	Strobe	000 ⇔010 011⇔255	No function Strobe, slow to fast
14	Virtual color wheel	000⇔255	Refer to Virtual Color Wheel Chart
15	Color temperature	000⇔255	Refer to Color Temperature DMX Chart
16	Hue	000⇔000 001⇔255	0 -25–25
17	Control (hold for 3 seconds)	000⇔007 008⇔015 016⇔023 024⇔031 032⇔039 040⇔047 048⇔055 056⇔063 064⇔071 072⇔079 080 ⇔087 088⇔095 096⇔103 104⇔111 112⇔119 120⇔127 128⇔135 136⇔143 144⇔151 152⇔159 160⇔167 168⇔255	No function Dimmer reset Redshift on Redshift off S-curve dimmer Linear dimmer Square dimmer curve Inverse square dimmer curve Dimmer speed mode: OFF Dimmer speed 1 (fastest) Dimmer speed 2 Dimmer speed 3 (slowest) Fan auto Fan on Fan off Fan silent X-Fade Speed: OFF X-Fade Speed: 1 (fastest) X-Fade Speed: 2 X-Fade Speed: 3 X-Fade Speed: 4 (slowest) Reserved for future use
18	Gobo rotator	000 ⇔127 128⇔190 191 ⇔192 193 ⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

14Ch1

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔255	0–100%
2	Red	000⇔255	0–100%
3	Green	000⇔255	0–100%
4	Blue	000 ⇔255	0–100%
5	Amber	000⇔255	0–100%
6	Mint	000 ⇔ 255	0–100%
7	Strobe	000 ⇔ 010 011⇔255	No function Strobe, slow to fast
8	Virtual color wheel	000 ⇔255	Refer to Virtual Color Wheel Chart
9	Color temperature	000 ⇔255	Refer to Color Temperature DMX Chart
10	Hue	000 ⇔000 001 ⇔255	0 -25–25
11	Auto programs	000 ⇔ 010 011 ⇔ 060 061 ⇔110 111 ⇔160 161 ⇔210 211 ⇔ 255	No function Auto program 1 Auto program 2 Auto program 3 Auto program 4 Auto program 5
12	Auto speed	000 ⇔ 255	Auto speed, slow to fast
13	Control (hold for 3 seconds)	000⇔007 008 ⇔015 016 ⇔023 024⇔031 032 ⇔039 040⇔047 048 ⇔055 056 ⇔ 063 064 ⇔ 071 072 ⇔ 079 080 ⇔ 087 088 ⇔095 096 ⇔103 104⇔111 112⇔119 120⇔127 128 ⇔135 136⇔ 143 144 ⇔151 152 ⇔159 160 ⇔167 168 ⇔ 255	No function Dimmer reset Redshift on Redshift off S-curve dimmer Linear dimmer Square dimmer curve Inverse square dimmer curve Dimmer speed mode: OFF Dimmer speed 1 (fastest) Dimmer speed 2 Dimmer speed 3 (slowest) Fan auto Fan on Fan off Fan silent X-Fade Speed: OFF X-Fade Speed: 1 (fastest) X-Fade Speed: 2 X-Fade Speed: 3 X-Fade Speed: 4 (slowest) Reserved for future use
14	Gobo rotator	000 ⇔127 128 ⇔190 191 ⇔192 193⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

14Ch2

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Dimmer fine	000 ⇔255	0–100%
3	Red	000 ⇔255	0–100%
4	Red fine	000⇔255	0–100%
5	Green	000 ⇔ 255	0–100%
6	Green fine	000 ⇔255	0–100%
7	Blue	000 ⇔ 255	0–100%
8	Blue fine	000⇔255	0–100%
9	Amber	000 ⇔255	0–100%
10	Amber fine	000⇔255	0–100%
11	Mint	000 ⇔255	0–100%
12	Mint fine	000 ⇔ 255	0–100%
13	Strobe	000 ⇔010 011⇔255	No function Strobe, slow to fast
14	Gobo rotator	000 ⇔127 128 ⇔190 191 ⇔192 193 ⇔ 255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

12Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔255	0–100%
2	Dimmer fine	000 ⇔255	0–100%
3	Red	000 ⇔ 255	0–100%
4	Green	000 ⇔255	0–100%
5	Blue	000 ⇔255	0–100%
6	Amber	000 ⇔255	0–100%
7	Mint	000 ⇔255	0–100%
8	Strobe	000 ⇔ 010 011 ⇔ 255	No function Strobe, slow to fast
9	Virtual color wheel	000 ⇔ 255	Refer to Virtual Color Wheel Chart
10	Color temperature	000 ⇔ 255	Refer to Color Temperature DMX Chart
11	Hue	000 ⇔ 000 001 ⇔255	0 -25–25
12	Gobo rotator	000 ⇔127 128 ⇔190 191 ⇔192 193 ⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

8Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%
2	Red	000 ⇔255	0–100%
3	Green	000 ⇔ 255	0–100%
4	Blue	000⇔255	0–100%
5	Amber	000 ⇔255	0–100%
6	Mint	000⇔255	0–100%
7	Strobe	000⇔010 011 ⇔255	No function Strobe, slow to fast
8	Gobo rotator	000 ⇔127 128 ⇔190 191 ⇔192 193 ⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

6Ch

Channel	Function	Value	Percent/Setting
1	Red	000 ⇔ 255	0–100%
2	Green	000 ⇔255	0–100%
3	Blue	000⇔ 255	0–100%
4	Amber	000 ⇔ 255	0–100%
5	Mint	000 ⇔ 255	0–100%
6	Gobo rotator	000 ⇔ 127 128 ⇔ 190 191⇔192 193 ⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

5Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔255	0–100%
2	Virtual color wheel	000⇔255	Refer to Virtual Color Wheel Chart
3	Color temperature	000⇔ 255	Refer to Color Temperature DMX Chart
4	Hue	000 ⇔ 000 001 ⇔255	0 -25–25
5	Gobo rotator	000 ⇔127 128 ⇔190 191 ⇔192 193 ⇔255	Index Clockwise rotation, fast to slow Stop Counterclockwise rotation, slow to fast

1Ch

Channel	Function	Value	Percent/Setting
1	Dimmer	000 ⇔ 255	0–100%

General Information

Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave.
Sunrise, FL 33351
Voice: (954) 577-4455
Fax: (954) 929-5560
Technical Support
Toll Free: (800) 762-1084

Voice: (844) 393-7575
Fax: (954) 756-8015
Email: [email protected]
Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: +44 (0) 1773 511115
Fax: +44 (0) 1773 511110

Email: [email protected]
Website: www.chauvetprofessional.eu

Chauvet Europe BVBA

Address: Stokstraat 18
9770 Kruishoutem
Belgium
Voice: +32 9 388 93 97

Email: [email protected]
Website: www.chauvetprofessional.eu

Chauvet France

Address: 3, Rue Ampère
91380 Chilly-Mazarin
France
Voice: +33 1 78 85 33 59

Email: [email protected]
Website: www.chauvetprofessional.eu

Chauvet Germany

Address: Bruno-Bürgel-Str. 11
28759 Bremen
Germany
Voice: +49 421 62 60 20

Email: [email protected]
Website: www.chauvetprofessional.eu

Chauvet Mexico

Address: Av. de las Partidas 34 – 3B
(Entrance by Calle 2)
Zona Industrial Lerma
Lerma, Edo. de México, CP 52000
Voice: +52 (728) 690-2010

Email: [email protected]
Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

Ovation Rêve E-3 IP QRG Rev. 2

Chauvet Professional Ovation Reve E3 Ip User Guide

LIMITED WARRANTY

Documents / Resouces

Related Manuals
