Uline Fixed End Stops User Guide

ULINE Fixed End Stops

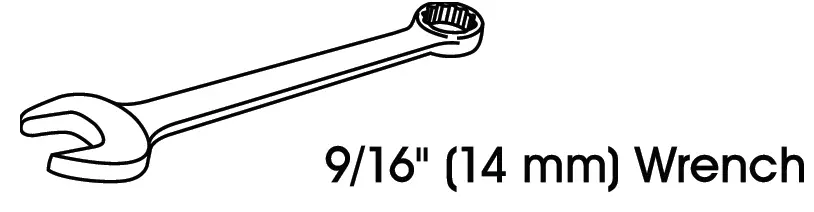

TOOL NEEDED

ASSEMBLY INSTRUCTIONS

1. Once conveyor is fully assembled, place end stop at the end of conveyor where packages will end.

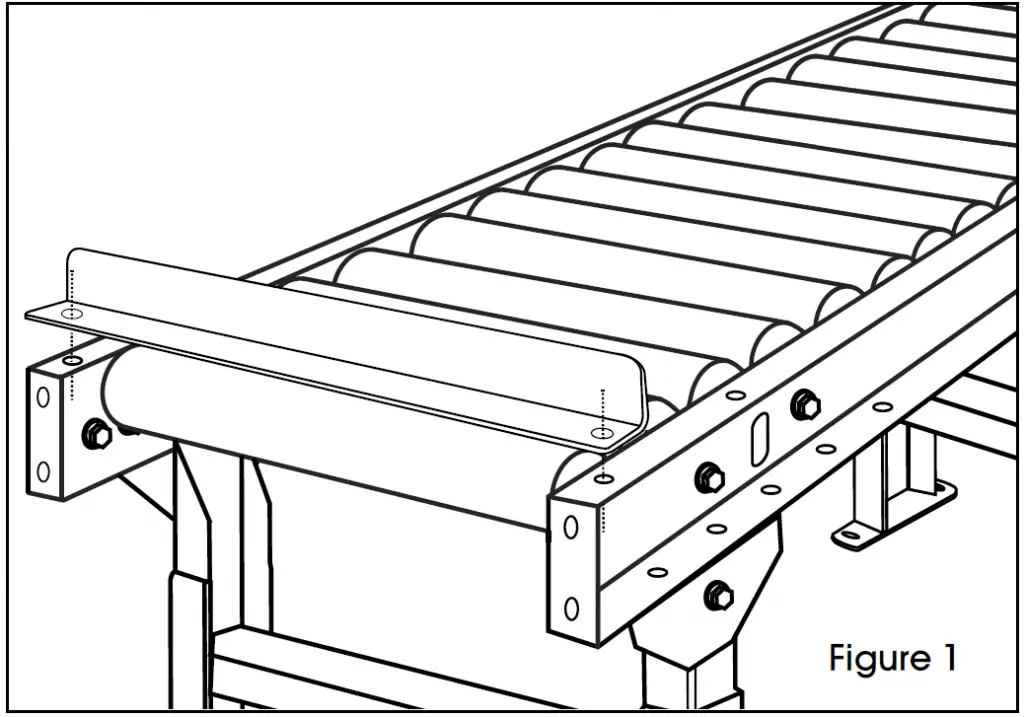

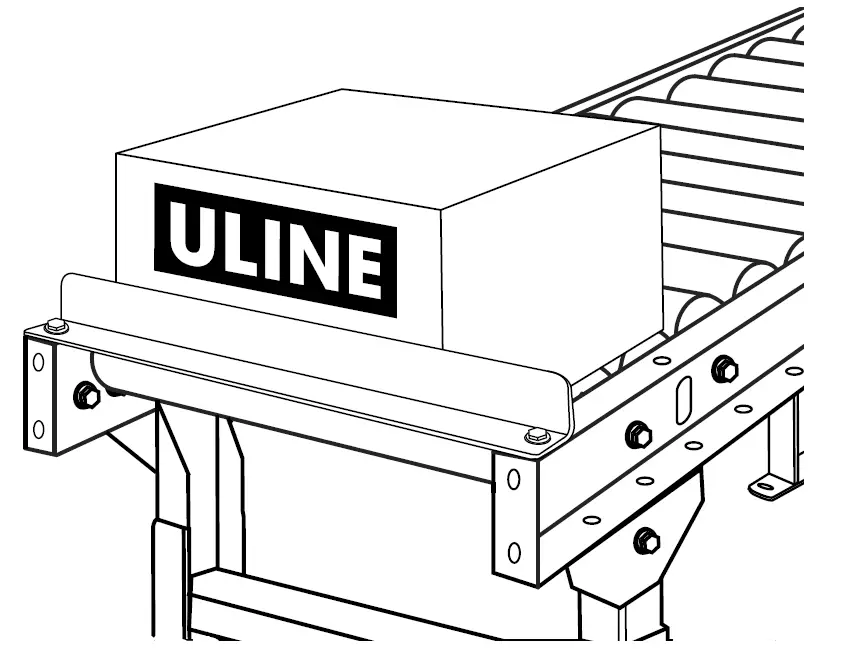

2. Line up holes on end stop with holes on end of conveyor. (See Figure 1)
3. Insert bolt through holes and secure with nut.
   Tighten nut and bolt fully. (See Figure 2)

NOTE: Use optional spacers to allow end stop to sit higher at conveyor end.
