HEAVY-DUTY GATE WHEEL
EPN-51821
Installation Instructions
Read all instructions prior to installing the product.
Refer to manufacturers’ safety instructions when operating any tools.
To register your product, please visit: barretteoutdoorliving.com
WARNING:
- Improper installation of this product can result in personal injury. Always wear safety goggles when cutting, drilling and assembling the product.
- Incorrect installation may cause harm to the gate or individual.
- Not pool code approved.
NOTICE:
- DO NOT attempt to assemble the kit if parts are missing or damaged.
- DO NOT return the product to the store, for assistance or replacement parts call: 1-800-336-2383.
TOOLS NEEDED:
| Gate | |
| Pencil | |
| Drill | |
| 7/32″ Drill Bit | |
| Nuts & U-bolts 2″ ID 5/16″ (if installing on round uprights) |

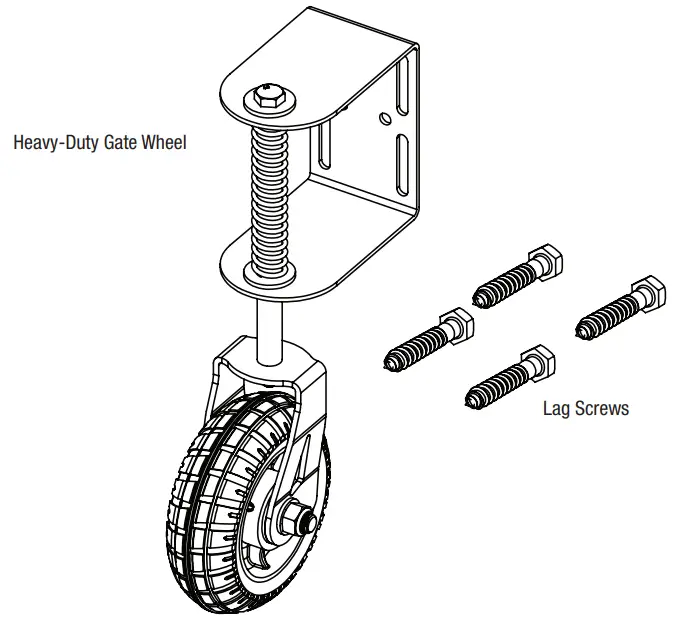

Component List:
| QTY | Description |
| 1 | Heavy-Duty Gate Wheel |
| 4 | 5/16″ Lag Screws |
To obtain and review a copy of the warranty please visit barretteoutdoorliving.com. You may also contact us at
1-800-336 2383 or email Cs.[email protected]
1.
Mark Location:
a. Position the gate wheel at the desired location.
b. Mark screw locations (Fig. 1).
2.
Installation:
a. Pre-drill with 7/32″ drill bit in 4 marked locations (Fig. 2).
b. Attach gate wheel bracket to the gate with provided screws (Fig. 3).
NOTE: If installing on a round chain link, U-bolts & nuts will need to be purchased separately and added to the gate wheel bracket.
Barrette Outdoor Living
545 Tilton Rd, Egg Harbor City, NJ. 08215
barretteoutdoorliving.com • (800) 336-2383
REV 3.21
