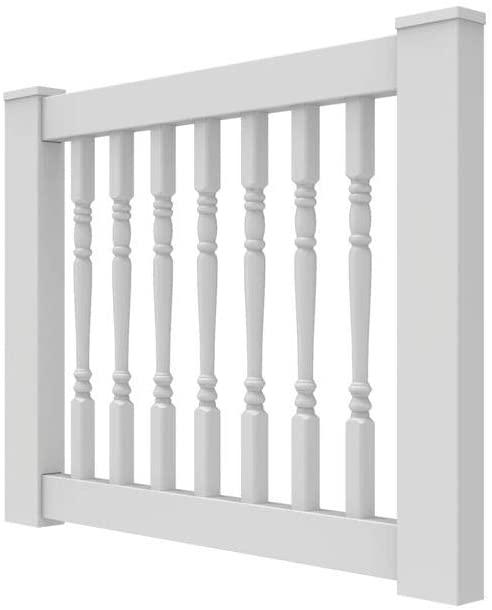

Barrettee B087QRTVXC Outdoor Living 73030537 T 42 Inch Vinyl Rail Gate Kit
Barrette Outdoor Living
545 Tilton Rd, Egg Harbor City, NJ. 08215
barretteoutdoorliving.com • (800) 336-2383
To register your product, please visit: barretteoutdoorliving.com
WARNING:
- Improper installation of this product can result in personal injury. Always wear safety goggles when cutting, drilling and assembling the product.
- Incorrect installation may cause harm to the gate or individual.
- Not pool code approved.
NOTICE:
- DO NOT attempt to assemble the kit if parts are missing or damaged.
- DO NOT return the product to the store, for assistance or replacement parts call: 1-800-336-2383.
Please read the instructions completely before assembling. Retain manual and your dated sales slip for future reference or warranty claims.
To obtain and review a copy of the warranty please visit: barretteoutdoorliving.com. You may also contact us at 1-800-336 2383 or email [email protected]
TOOLS NEEDED:
| Gate | 3/32″ Drill Bit | ||
| Safety Glasses | Pencil |
| Level | Phillips Driver Bit | ||
| Tape Measure |

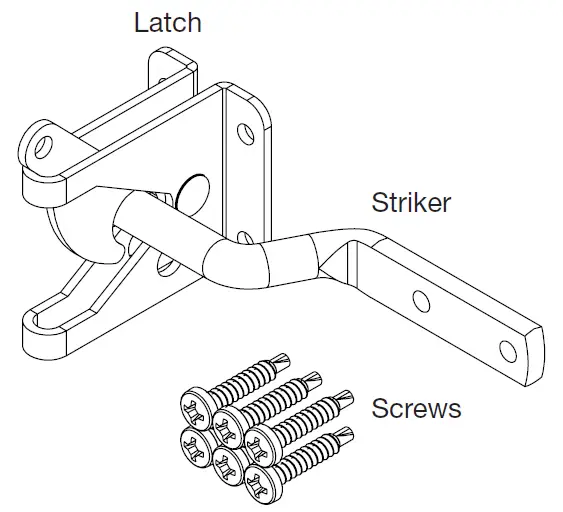

COMPONENT LIST
| QTY | Description |
| 1 | Latch |
| 1 | Striker |
| 6 | 1″ Square/Phillips Combo Screws |

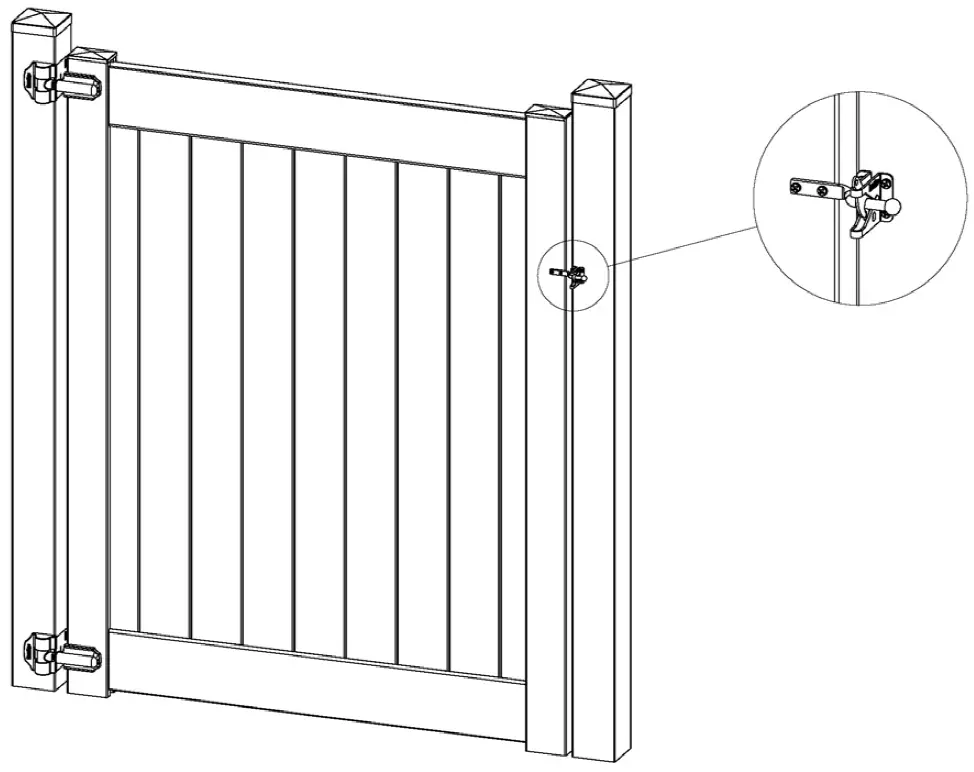

- Install Barrette Outdoor Living Gate Hinges before installing latch (Fig. 1).

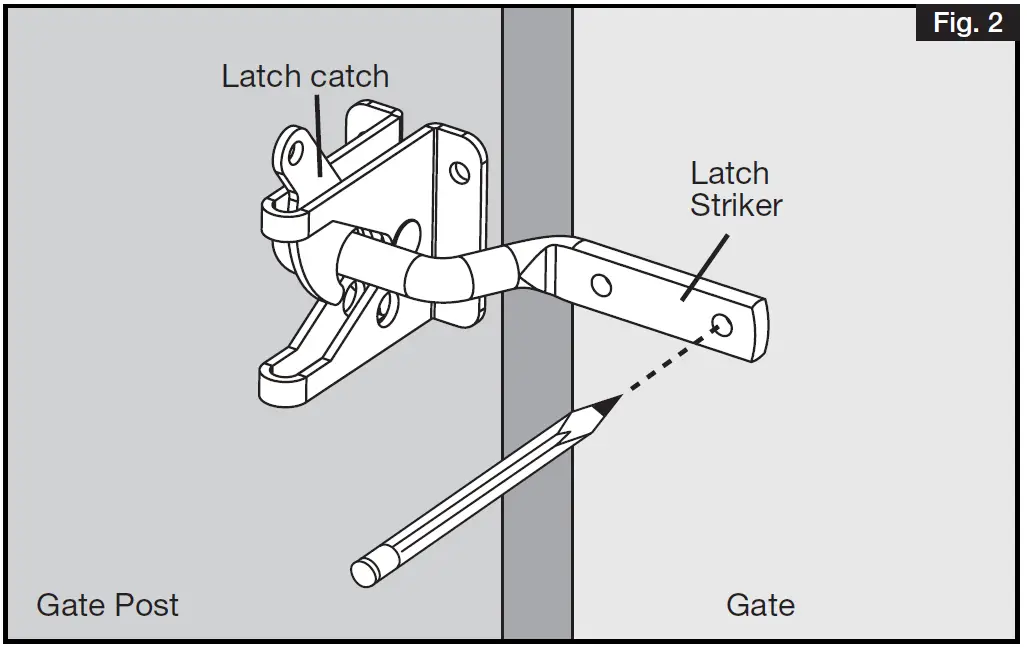

- Once hinges are installed and gate is aligned, mark pilot holes for latch on post and gate through screw holes. Then drill using 3/32″ bit (Fig. 2).

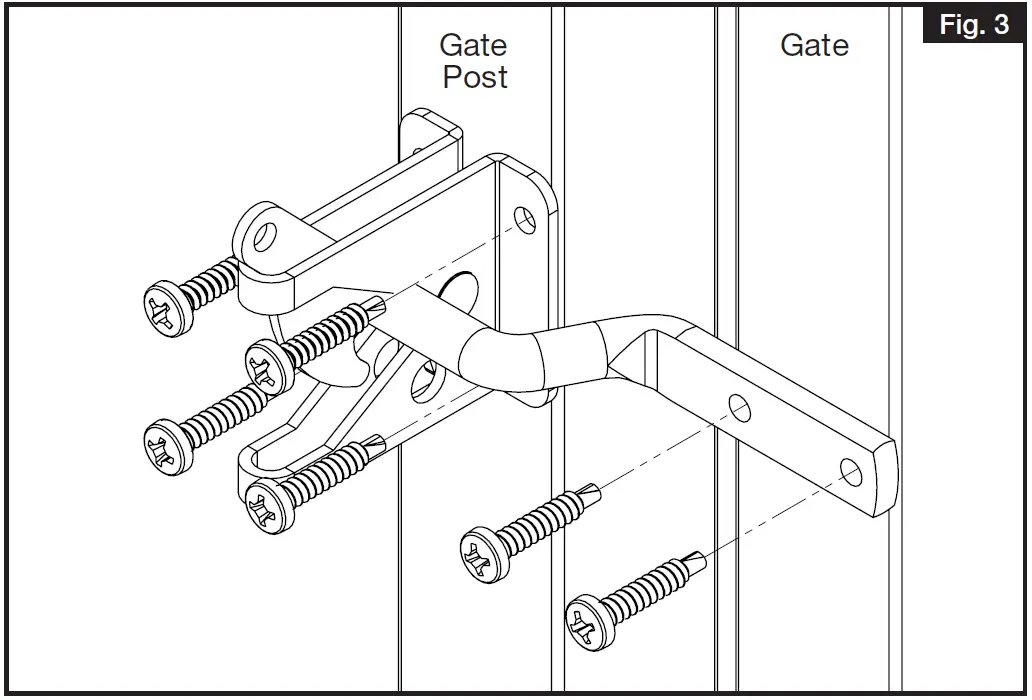

- Measure and install latch with six 1″ Square/Phillips combo screws. The latch striker is installed on the gate first and then install the latch catch onto the gate post (Fig. 3).
