FREEDOM 73045572 Horizontal Privacy Vinyl Gate Kit Instruction Manual

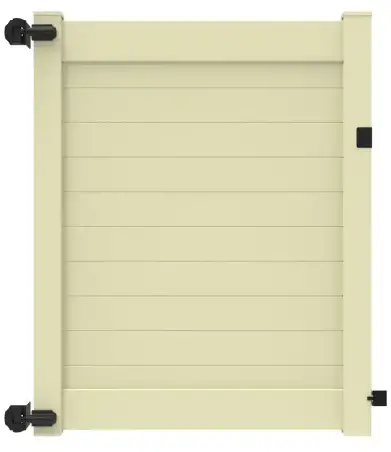

FREEDOM 73045572 Horizontal Privacy Vinyl Gate Kit

Introduction

Warning Icon Read all instructions prior to installing product.
Refer to manufacturers safety instructions when operating any tools.
To register your product, please visit:
freedomproduct.com

Warning Icon WARNING:

  • Improper installation of this product can result in personal injury. Always wear safety goggles when cutting, drilling and assembling the product.
  • Incorrect installation may cause harm to the gate or individual.
  • Check local building codes to determine pool-safe fencing options.
  • Do not allow children to play with the gate.
    NOTICE:
  • DO NOT attempt to assemble the kit if parts are missing or damaged.
  • DO NOT return the product to the store, for assistance or replacement parts call: 1-888-418-4400.

BEFORE YOU BEGIN:

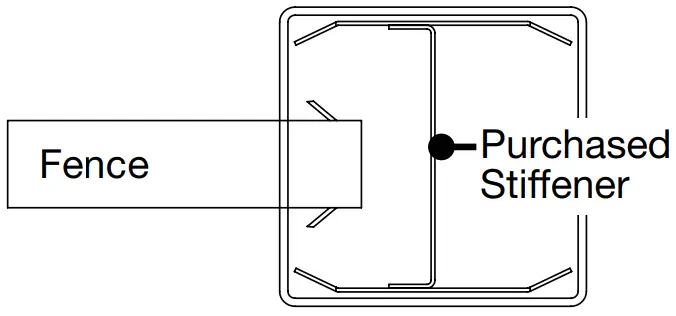

Vinyl gate posts require an internal support system for weight-bearing purposes therefore a post stiffener is required. Post stiffener needs to be purchased separately.
Top View

BEFORE YOU BEGIN: TOOLS/MATERIALS NEEDED:
Phillips Screwdriver
Safety Glasses
Line Level
Tape Measure
Drill
#2 Square Drive Bit
Gate Hardware (Latch)

NOTE: Components shown are for visual reference only and may not depict the exact style of your product. Please see product label for correct number of pieces.

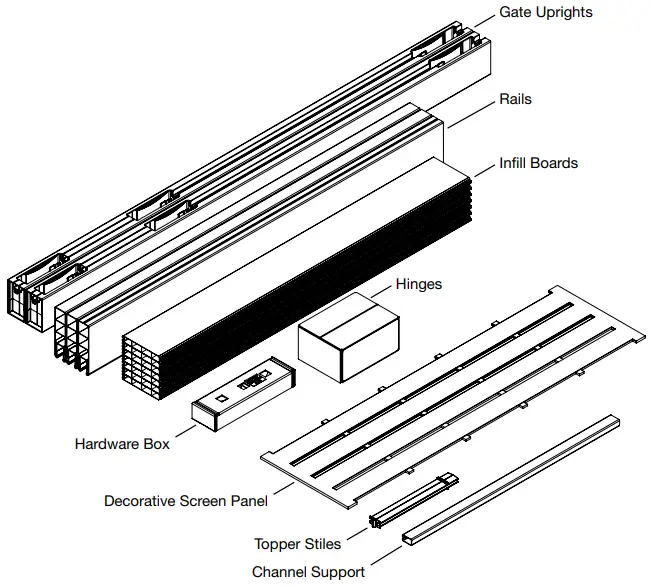

Horizontal Gate Kit Component list:

Description
Infill Boards
Top Rail
Middle Rail*
Bottom Rail
Gate Uprights
Upright Inserts
Upright Caps
Screws (For gate upright inserts)
Vinyl Cement
Hinges
Decorative Screen Panel Topper*
Topper Stiles*
Channel Support*

* Not included in all kits

Horizontal Gate Kit

To obtain and review a copy of the warranty please visit freedomproduct.com/warranty.
You may also contact us at 1-888-418-4400 or email [email protected]

Installation Instruction

Lay gate components on a smooth, flat and clean surface. Begin by arranging the rails in the correct orientations.

  1. For Full Privacy With Two Rails:

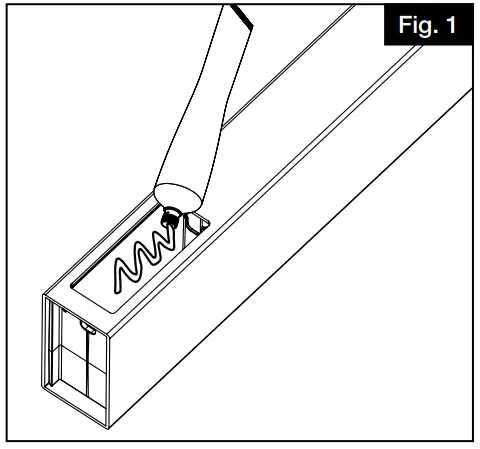

    • a. Apply provided vinyl cement to all inside surfaces of the uprights where the rails will be installed (Fig. 1).
      Installation Instruction

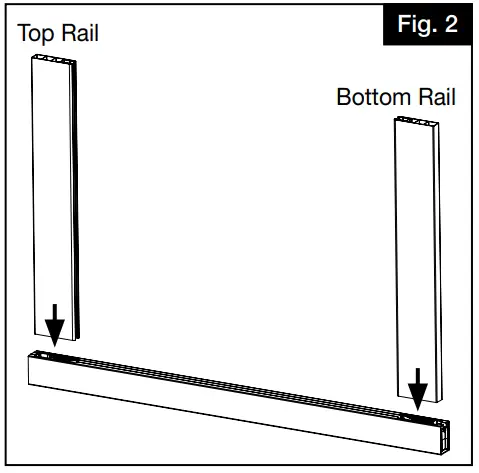

    • b. Install top and bottom rail in the orientation shown (Fig. 2).
      Installation Instruction

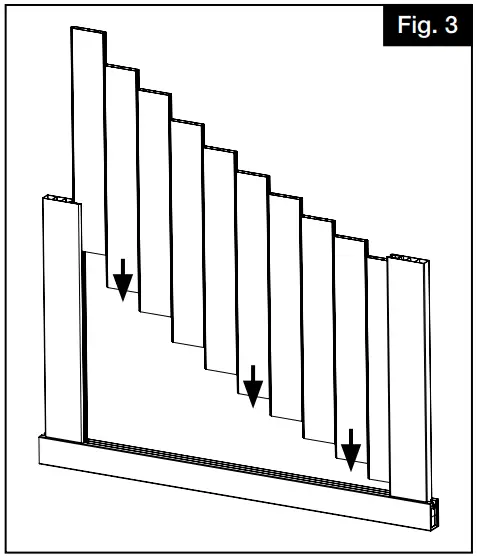

    • c. Install infill boards. The ends of the infill will fit inside the channel of the upright (Fig. 3).
      Installation Instruction

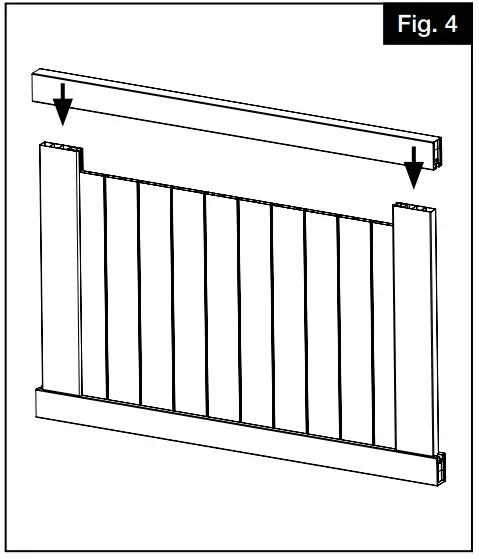

    • d. Add vinyl cement to second upright and install as shown (Fig. 4).
      Installation Instruction
  2. Full Privacy with Decorative Screen Panel Topper (3 rails)

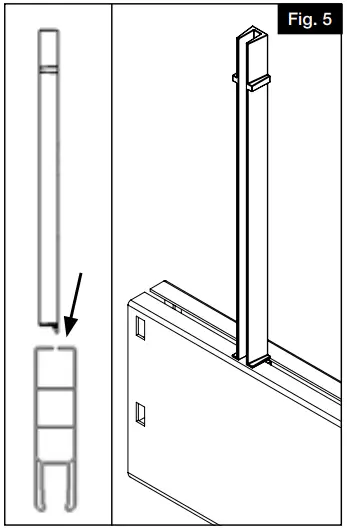

    • a. Turn stile sideways and insert arrow end into slit in rail (Fig. 5).
      Installation Instruction

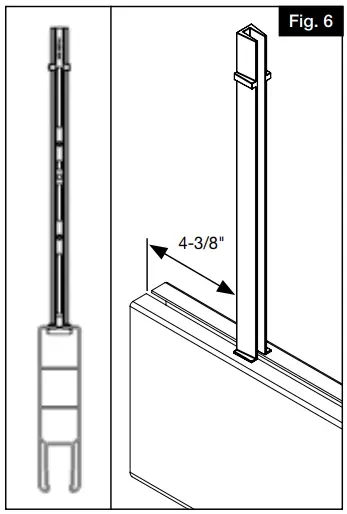

    • b. Rotate stile 90 degrees so the opening is facing the center of the rail. Be sure to leave about 4-3/8″ from the end of the rail (Fig. 6).
      Installation Instruction

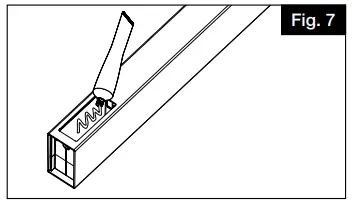

    • c. Apply provided vinyl cement to all inside surfaces of the uprights where the rails will be installed (Fig. 7).
      Installation Instruction

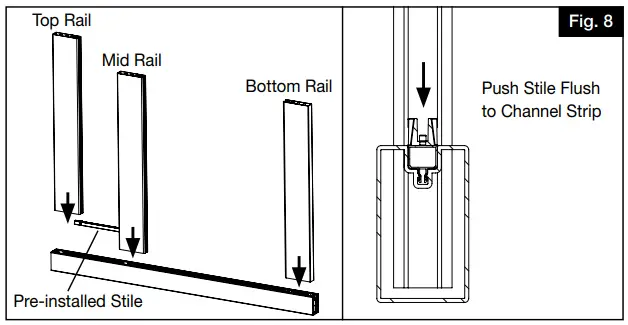

    • d. Install rails into upright in the orientation shown (Fig. 8).
      Installation Instruction
      NOTE: Mid-rail will have a slit in the top for the Decorative Screen Panel insert.

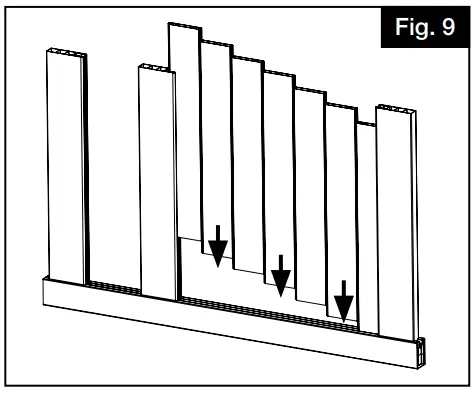

    • e. Install infill boards as shown. The ends of the infill will fit inside the channel of the upright (Fig. 9).
      Installation Instruction

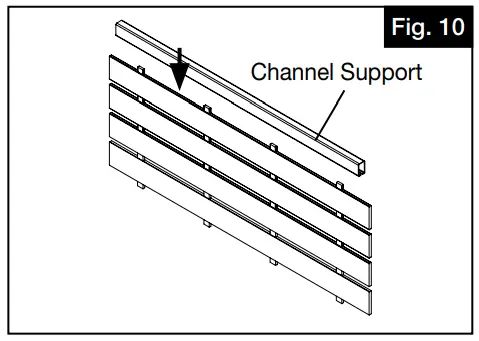

    • f. Attach channel support to the top of the Decorative Screen Panel (Fig. 10).
      Installation Instruction

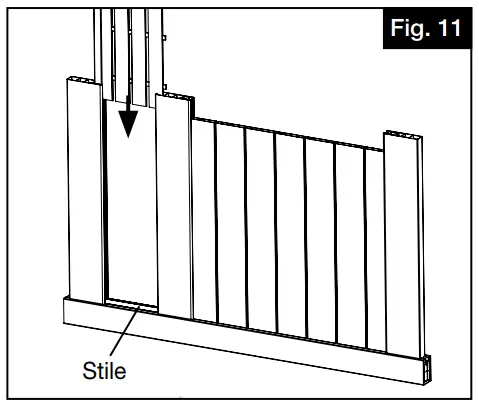

    • g. Then, slide Decorative Screen Panel with the channel support into the top of the rail and slide the bottom of the screen in the slit of the mid-rail (Fig. 11).
      Installation Instruction

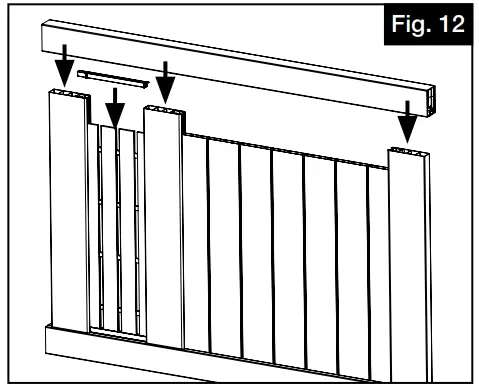

    • h. Install second topper stile between the top and bottom rails. Add vinyl cement to second gate upright and attach second upright (Fig. 12).
      Installation Instruction

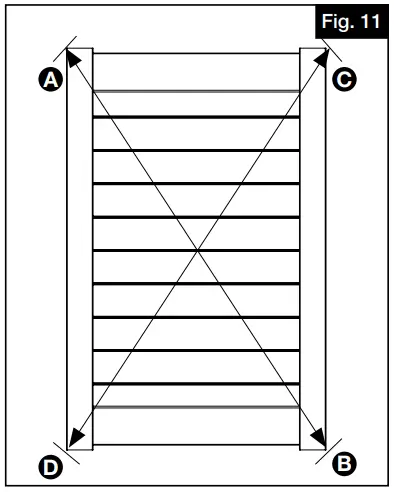

  3. Ensure gate is square. Measure diagonally from top of left corner rail (A) to bottom of right corner rail (B) and note the length. Then, measure diagonally from top of right corner rail (C) to bottom of left corner rail (D). Note the length. Make sure both measurements are the same before installing screws into uprights (Fig. 11).
    Installation Instruction

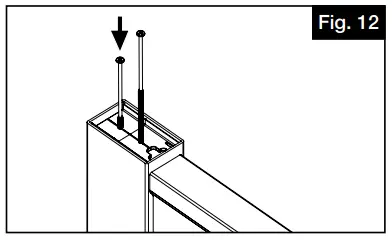

  4. Install two 6″ screws (provided) through each upright insert and into the rail using the molded grooves on the insert as a guide (Fig. 12).
    Installation Instruction

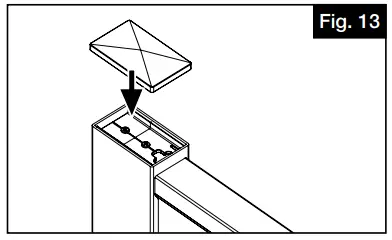

  5. Install upright caps onto the top of each upright with remaining vinyl cement (Fig. 13).
    Installation Instruction
  6. Attaching Hinge To The Upright:
    • a. Attaching the hinges to the inside of the gate will allow the gate to open inward. When attaching them to the outside, the gate will swing outward.

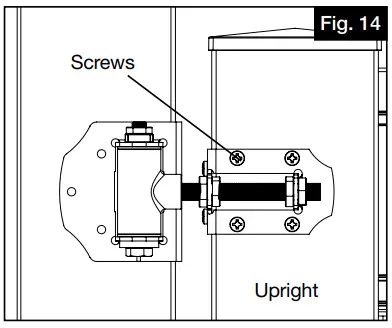

    • b. Mark and pre-drill 3 ⁄32″ pilot holes on top and bottom upright. Secure using six 11 ⁄2″ screws
      (provided with the hinge) to front and side of the upright (Fig. 14). Repeat for the bottom hinge.
      Installation Instruction

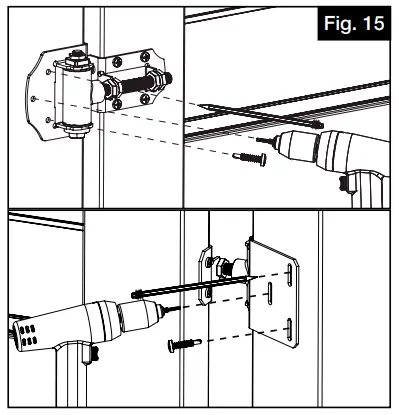

  7. Hold the gate level to the post, pre-drill holes with 3 ⁄32″ bit and secure with six 11 ⁄2″ screws to the post (Fig. 15). Repeat for the bottom hinge.
    Installation Instruction
    NOTE:

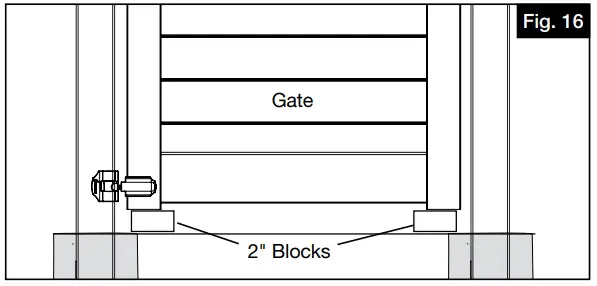

    Use 2″ blocks to align the gate with the fence and help hold the gate steady (Fig. 16).
    Installation Instruction

CUSTOMER SUPPORT

Barrette Outdoor Living
7830 Freeway Circle, Middleburg Heights, OH 44130
freedomproduct.com
(888) 418-4400
