Tp-link 5-port 10g Multi Gigabit Desktop Switch Installation Guide

Installation Guide
5-Port 10G Multi-Gigabit Desktop Switch

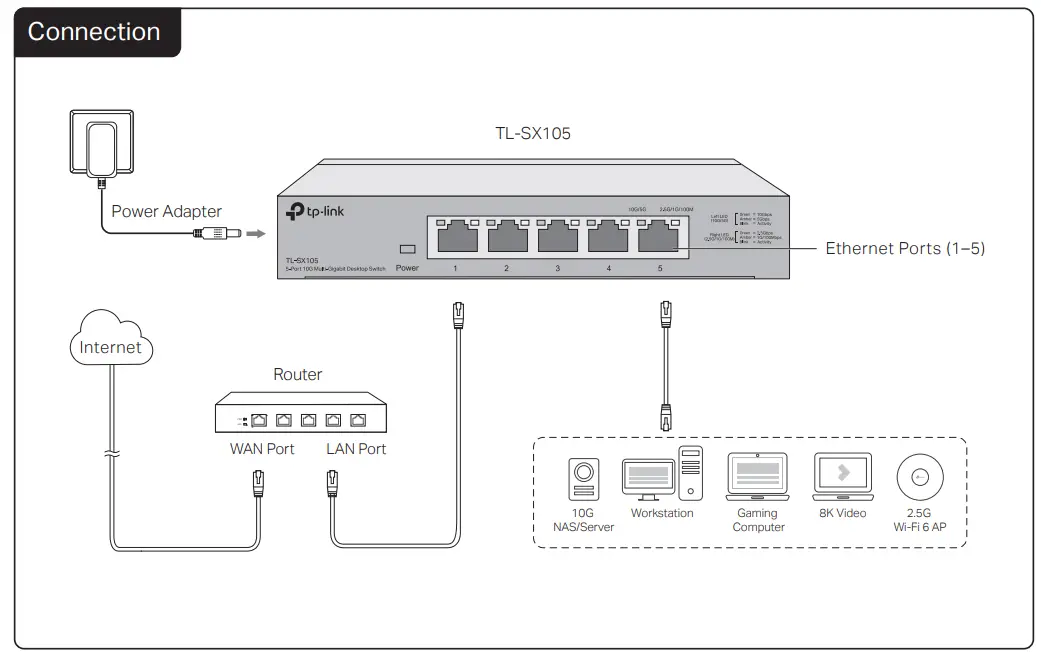

Panel Explanation

Power		Kensington Security Slot		Port
	On: Power on Off: Power off		Secure the lock (not provided) into the security slot to prevent the device from being stolen.	10G/5G 2.5G/1G/100M	When one of the LEDs is on/flashing: On: Connecting to a device but no activity. Flashing: Transmitting or receiving data. Left LED (10G/5G): Green: Running at 10 Gbps.Amber: Running at 5 Gbps.Right LED (2.5G/1G/100M): Green: Running at 2.5 Gbps. Amber: Running at 100/1000 Mbps.

Note:
The images in this guide are only for example and may not reflect your actual experience.

Specifications

General Specifications

Environmental and Physical Specifications

Safety Information

• Keep the device away from water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use a damaged charger or USB cable to charge the device.
• Do not use any other chargers other than those recommended.
• The adapter shall be installed near the equipment and shall be easily accessible.
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
• Use only power supplies which are provided by the manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.

Frequently Asked Questions (FAQ)

Q1. Why is the Power LED not lit?

The Power LED should be lit when the power system is working normally. If the Power LED is not lit, check as follows:
A1: Make sure the power adapter is connected to the switch with the power source properly.
A2: Make sure the voltage of the power supply meets the requirements of the input voltage of the switch.
A3: Make sure the power source is on.

Q2. Why are the right and left LEDs not lit when a device is connected to the corresponding port?

It is recommended that you check the following items:

A1: Make sure that the cable connectors are firmly plugged into the switch and the device.
A2: Make sure the connected device is turned on and works normally.
A3: Make sure the cable category and length meet the standards listed in General Specifications.

	To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
	For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
	If you have any suggestions or needs on the product guides, welcome to email [email protected].

EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
