Installation Guide
5/8/16-Port Gigabit Desktop Switch
LED Explanation
Power
On: Power on
Off: Power off

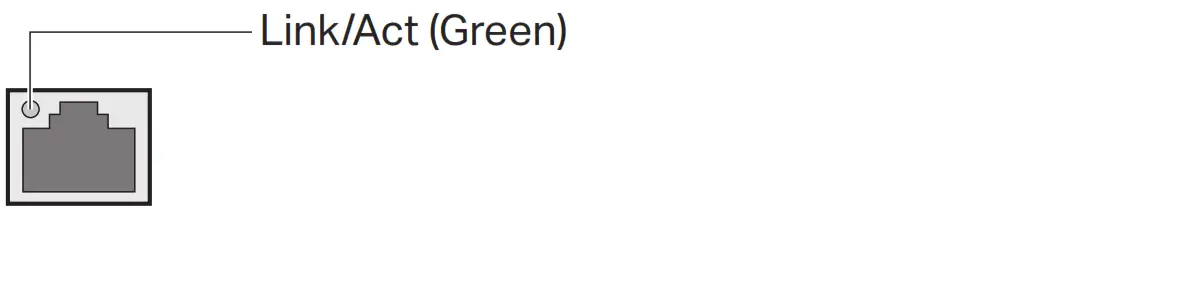

Link/Act (For TL-SG105/TL-SG105S/TL-SG108/TL-SG108S)
On: Running at 10/100/1000 Mbps
Flashing: Transmitting/receiving data
Off: No device is linked to the corresponding port

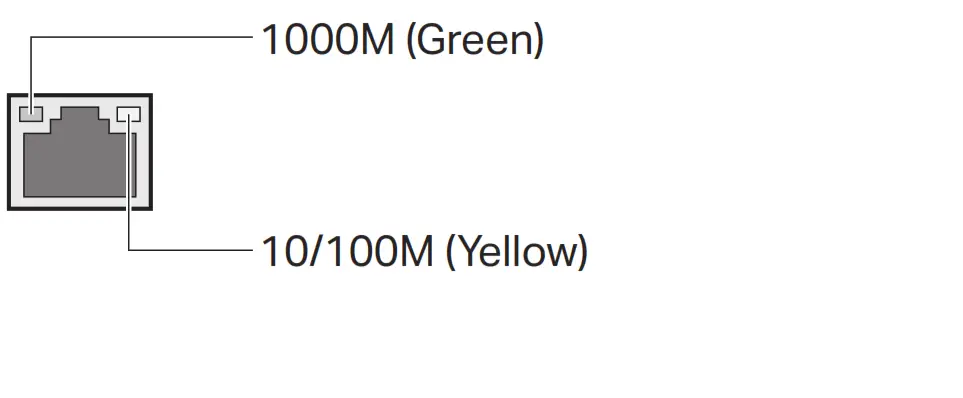

Link/Act (For TL-SG116)
On: Running at 1000 Mbps
Flashing: Transmitting/receiving data
On: Running at 10/100 Mbps
Flashing: Transmitting/receiving data
Note:
For simplicity, we will take TL-SG108 for example throughout this Guide.

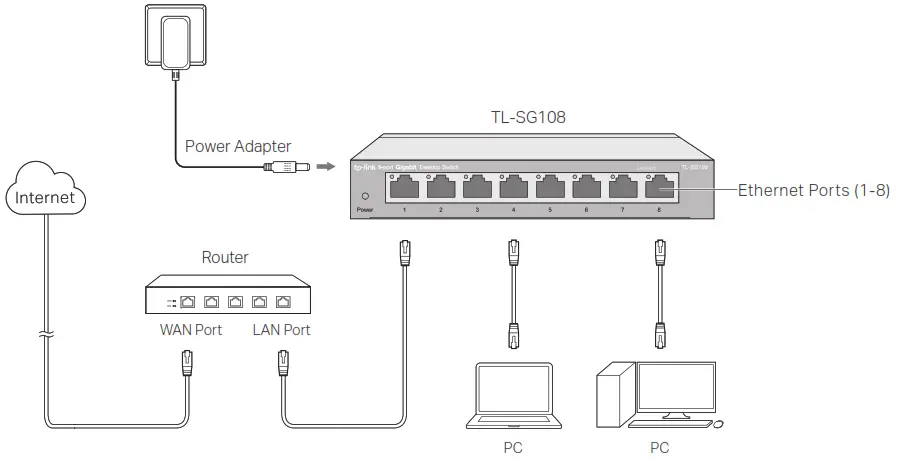

Connection
Specifications
General Specifications
| Standard | IEEE802.3, IEEE802.31. IEEE802.3u. IEEE802.3ab, IEEE802.3x. IEEE802.1p |
| Protocol | CSMA/CD |
| Data Transfer Rate | Ethernet: 10 Mbps (Half Duplex). 20 Mbps (Full Duplex) Fast Ethernet: 100 Mbps (Half Duplex). 200 Mbps (Full Duplex) Gigabit Ethernet: 2000 Mbps (Full Duplex) |
| Network Media (Cable) | 10Base-T: UTP category 3. 4. 5 cable (maximum 100 m) EIAMA-568 100 0 STP (maximum 100 m) 100Base-TX: UTP category 5. 5e cable (maximum 100 m) EIAMA-568 100 0 STP (maximum 100 m) 1000Base-T: UTP Category 5e cable (maximum 100 m) EIN11A-568 100 Q STP (maximum 100 m) |
| Interface | 5/8/16 10/100/1000 Mbps Auto-Negotiation RJ45 Ports |
| LED Indicators | Power. Link/Act LED |
| Advanced Features | IGMP Snooping. QoS (802.1p/DSCP Priority) |
| Transfer Method | Store-and-Forward |
| MAC Address Learning | Automatically learning, automatically aging |
| Frame Forward Rate | 10Base-T: 14881 pps/Port 100Base-TX: 148810pps/Port 1000Base-T: 1488095pps/Port |
| Wall Mountable | Yes |
| Distance Between Mounting Holes | TL-SG105/TL-SG105S: 39 mm TL-SG108/TL-SG1085: 94 mm TL-SG116: 200 mm |
Environmental and Physical Specifications
| Operating Temperature | 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F) |
| Storage Temperature | -40 ˚C to 70 ˚C (-40 ˚F to 158 ˚F) |
| Operating Humidity | 10% to 90%RH non-condensing |
| Storage Humidity | 5% to 90%RH non-condensing |
Safety Information
- Keep the device away from water, fire, humidity, or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Do not use a damaged charger or USB cable to charge the device.
- Do not use any other chargers than those recommended.
- The adapter shall be installed near the equipment and shall be easily accessible.
- Use only power supplies which are provided by the manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.
Frequently Asked Questions (FAQ)
Q1. The Power LED is not lit.
The Power LED should be lit when the power system is working normally. If the Power LED is not lit, check as follows:
A1: Make sure the power adapter is connected to the switch with the power source properly.
A2: Make sure the voltage of the power supply meets the requirements of the input voltage of the switch.
A3: Make sure the power source is ON.
Q2. The Link/Act LED is not lit when a device is connected to the corresponding port.
It is recommended that you check the following items:
A1: Make sure that the cable connectors are firmly plugged into the switch and the device.
A2: Make sure the connected device is turned on and works normally.
A3: The cable must be less than 100 meters long (328 feet).
To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome to email [email protected].
http://www.tp-lijk.com/support
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
© 2022 TP-Link 7106509649 REV6.0.3
