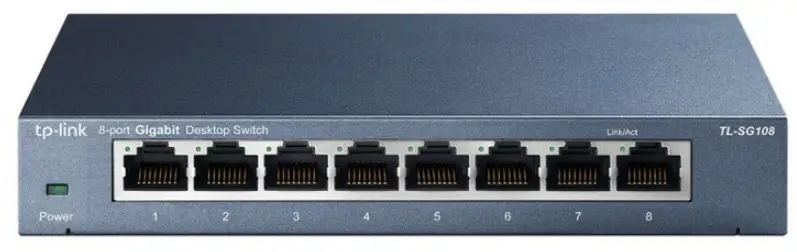

TP-Link TL-SG108 Port Gigabit Desktop Switch
Features
- Up to 2000Mbps full duplex bandwidth for high-speed data processing
- 8 10/100/1000Mbps Ethernet ports
- Innovative energy-efficient technology saves up to 72% of power consumption
- Plug and play design simplifies installation
- Advanced QoS feature guarantees the requirements of different bandwidth applications
- IEEE 802.3x low control provides reliable data transfer
- Auto-MDI/MDIX eliminates the need for crossover cables
- Auto-Negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Description
The TL-SG108 8-Port 10/100/1000Mbps desktop switch provides an easy way to expand your wired network. All 8 ports support Auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SG108 can process data at a rate of up to 2000Mbps making it an ideal choice for expanding your high-performance wired network. Moreover, with innovative energy-efficient technology, the TL-SG108 can save up to 72%of power consumption, making it an eco-friendly solution for your home or office network.
Specifications
| Interface | 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Protocol | CSMA/CD |
| Switching Features | Half and Full Duplex, MAC Address Learning, 16Gbps backplane bandwidth IEEE 802.1P QoS |
| Forwarding Rates | 10BASE-T: 14880pps/port; 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port |
| Data Rates | 10/100/1000Mbps at Half Duplex ; 20/200/2000Mbps at Full Duplex |
| LEDs | Power, Ethernet Ports(1, 2, 3, 4, 5, 6, 7, 8) |
| Transfer Method | Store and Forward |
| Power Supply | 9V 0.85A |
| Certifications | CE, FCC, RoHS |
| Dimensions (W x D x H) | 6.2 x 4.0 x 1.0 in. (158 x 100.7 x 25.4 mm) |
|
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |

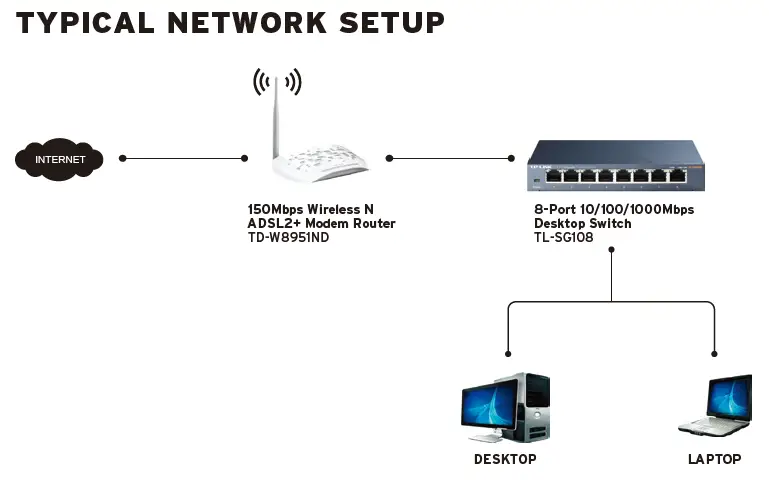

Diagram
Package
- 8-Port 10/100/1000Mbps Desktop Switch
- TL-SG108
- User Guide
- Power Adapter
