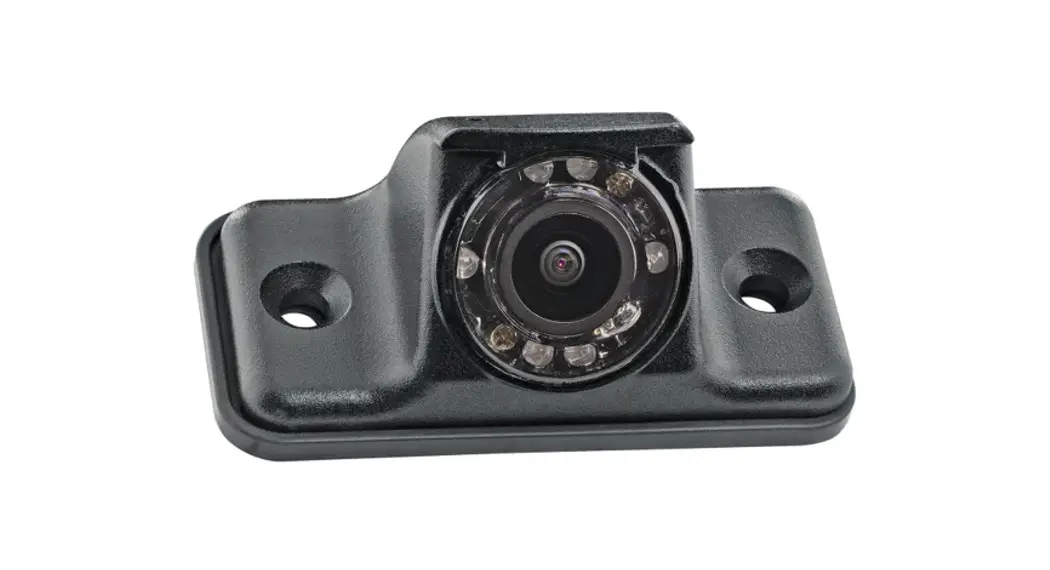

asa ELECTRONICS NTSC SYSTEM VCAHD140LB2 User Manual
VCAHD140LB2 Features:
- High Performance CMOS Sensor
- IR LED Low Light Enhancement
- Compliance with SAE and DOT regulations
- Waterproof (IP67)
- Compact Size
Specifications
| Mounting Type | External Type |
| Image Sensor | 1/3 CMOS |
| Resolution | 700 TV Lines |
| Min Illumination | 0 Lux (with IR LED ON) |
| Waterproof Rate | IP67 |
| View Angle | 115(H), 90(V), 150(D) |
| Dimension | 396.3(W) * 35.6(H) * 56.6 mm 15.54(W) * 1.39(H) * 2.22(D) Inch |
| Working Temperature | -20C ~ +75C |
| Weight | Approx. 0.5kg/1.10lbs |
Gasket Dimensions
