CE01TV User Manual
Cable Series
User Manual
CE01TV
Model: CE01TV

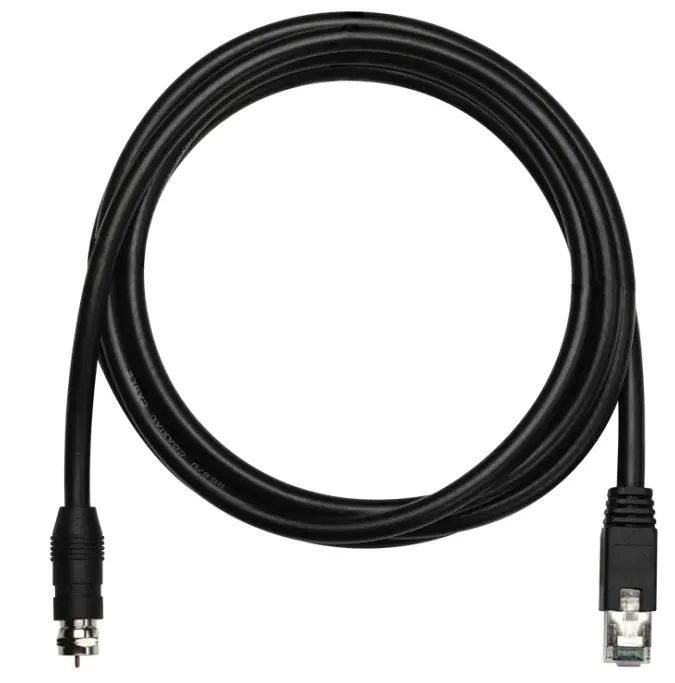

CATV CAT5e Extender (2pcs/1set, 2.4Ghz 30M, 900Mhz: 50M)
Smart Cabling & Transmission Corp.
Introduction
coax cable, which replaces coaxial cables and uses Cat5e UTP cables to carry the signals. The extender allows broadband CATV equipment to integrate into structured cabling systems and add CATV equipment to any convenient modular wall outlet. It’s a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, and even private homes…
Features
- CATV, VHF, VHF, and FM signals over a CAT5e cable.
- No external power is required.
- Supports bandwidth at 40Mhz to 2.4Ghz.
- Signal extension up to 100M.
- Workable with CATV, satellite receivers, RF splitter, and amplifier..

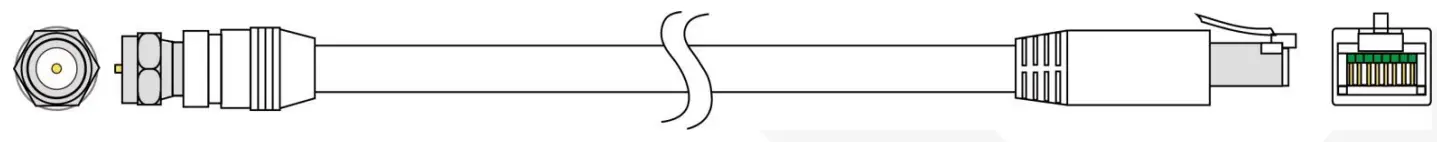

Panel View

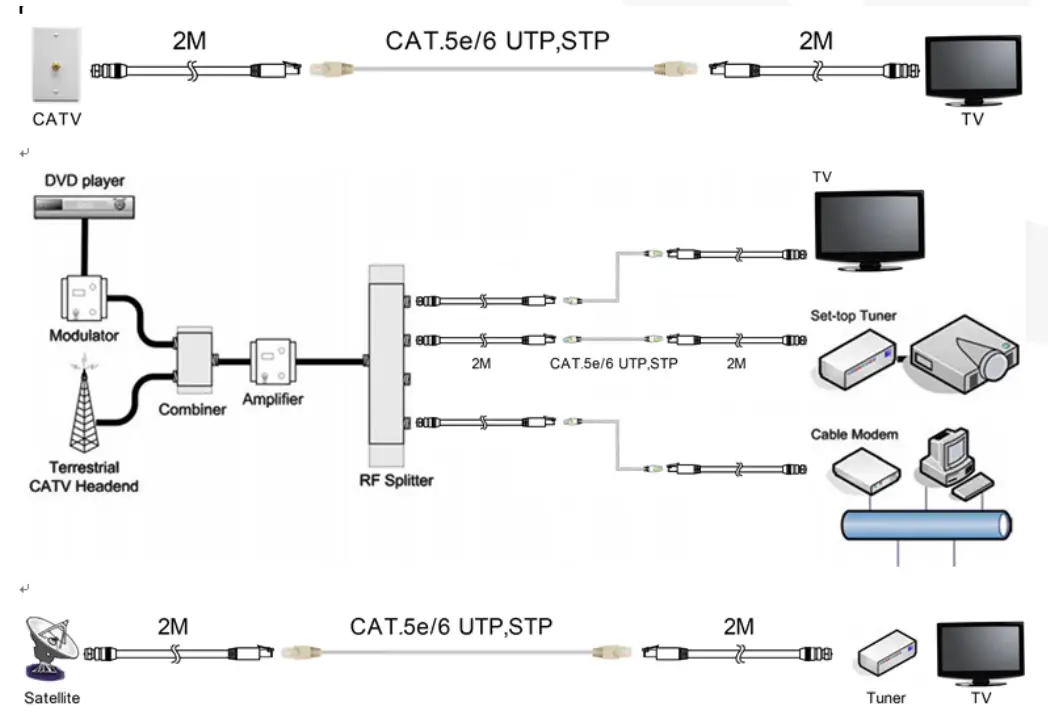

Installation View
Cable
Link Cable recommends usinga high-quality Cat.5e. UTP, STP or CAT6 UTP cable.
Transmission Range
Max. distance up to 100M.
The following distance chart reference may differ based on cable quality and input/output signal level.
| Cable | Distance | Application Range | Frequency | Remark |
| CAT.Se UTP | 100 M | CATV 2 – 6 ; 95 – 99 ; 14 – 22 | 54 -174 MHz | Working with an amplifier could increase the application range and working distance. |
| CAT.Se UTP | 80 M | CATV 7 -13 ; 23 – 36 | 174 – 300 MHz | |
| CAT.Se UTP | 50 M | CATV 37 – 94 | 300 – 648 MHz | |
| CAT.Se UTP | 30 M | CATV 100 -158 | 648 -1002 MHz | |
| Satellite signal | 1002 – 2200 MHz |

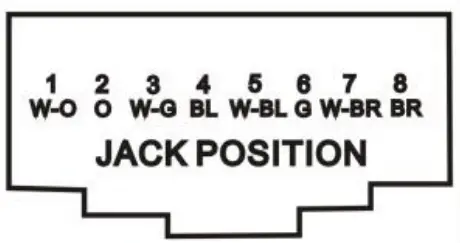

RJ45 Pin Define
Using Standard EIA/TIA 568B
| RJ45 Jack | ||
| PIN | Color | Function |
| 1 | W-0 | X |
| 2 | 0 | X |
| 3 | W-G | X |
| 4 | BL | X |
| 5 | W-BL | X |
| 6 | G | X |
| 7 | W-BR | Signal (-) |
| 8 | BR | Signal 01 |
Caution
The wiring must be away from any equipment with an electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power cable.
Specification
| ITEM NO. | CE01TV |
| Support | |
| Video Bandwidth | 40 MHz to 2.4 GHz |
| 3dB Bandwidth | 40 MHz to 1 GHz |
| Max. Transmission Distance | 100M |
| Insert Loss | <3 dB @ 40 to 1GHz |
| Return Loss | >18 dB @ 40 to 1GHz |
| CMRR | -20dB or Higher |
| Ports & Interfaces | |
| Video Input/ Output | 1 x RG6 Male BNC (75Ω@1MHz) |
| Link Interface | 1 x RJ45 (24AWG, 100Ω) |
| Ambient Temperature | |
| Operation | 0 to 55℃ |
| Storage | -20 to 85℃ |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 14.2 x 15.6 x 2000mm |
| Weight | 135g |
