CVM-E3-MINI-MC-WiEth Three Phase Power Analyser
Installation Guide

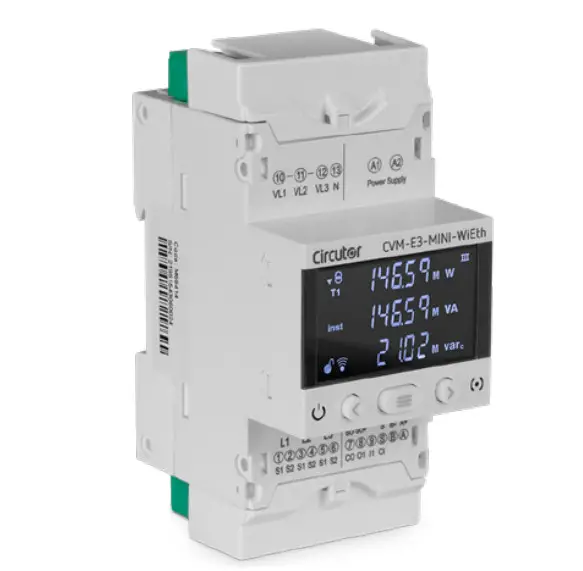

CVM-E3-MINI-ITF-WiEth

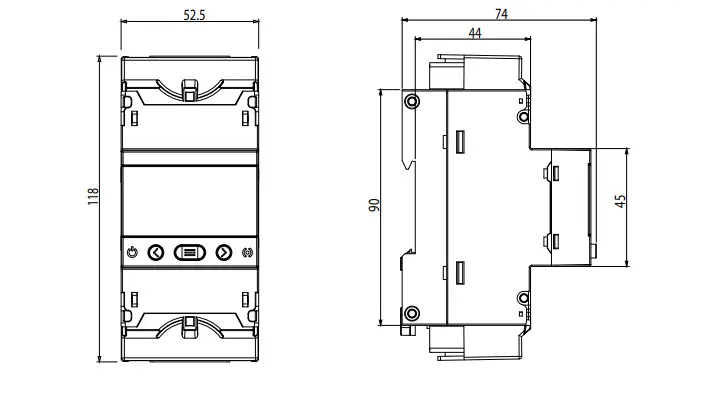

Dimensions
Connections

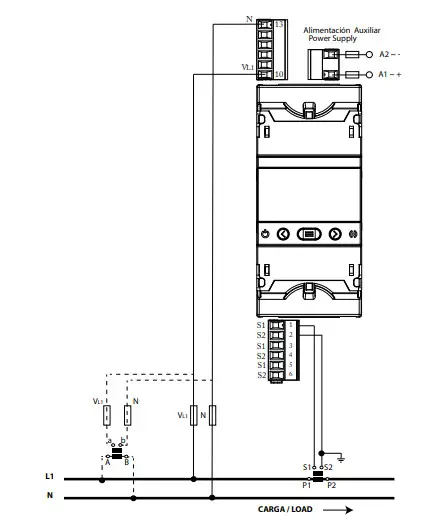

2-wire Single-phase network (Neutral)
2-wire Single-phase network Phase – Phase

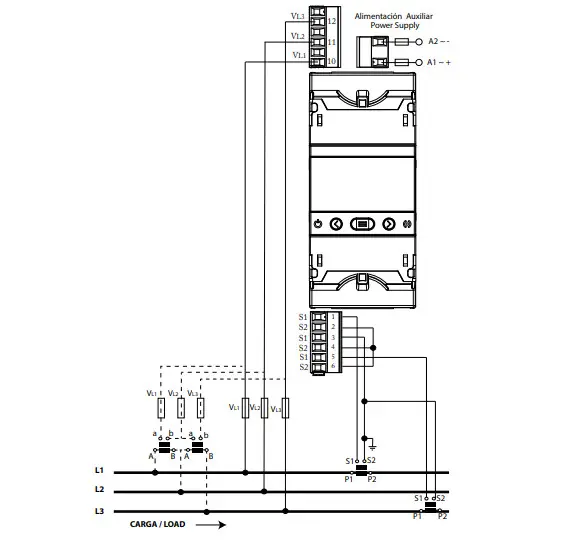

3-wire three-phase network (ARON)

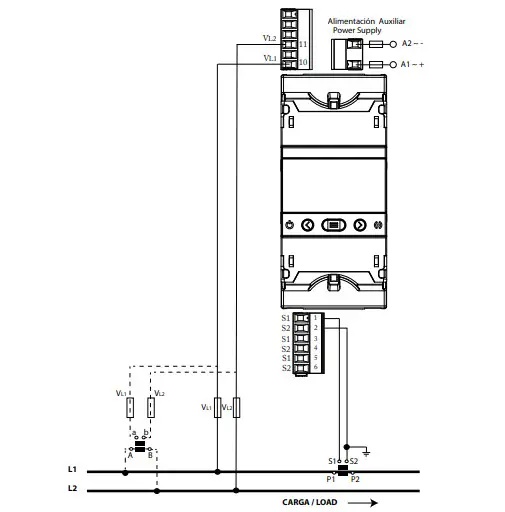

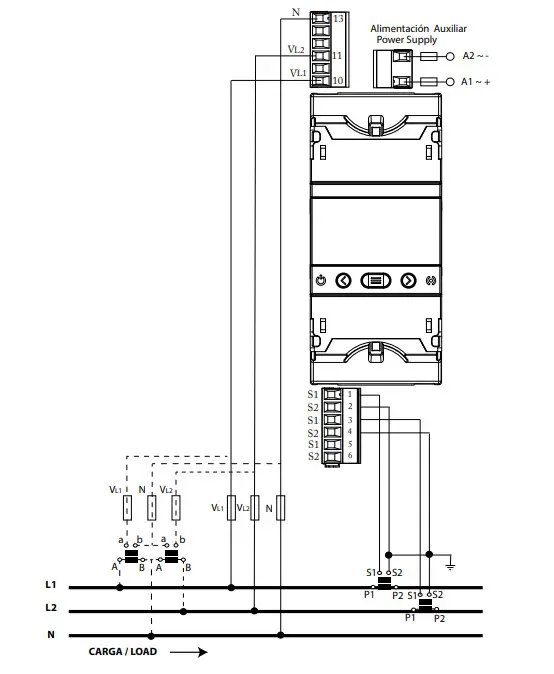

3-wire two-phase network

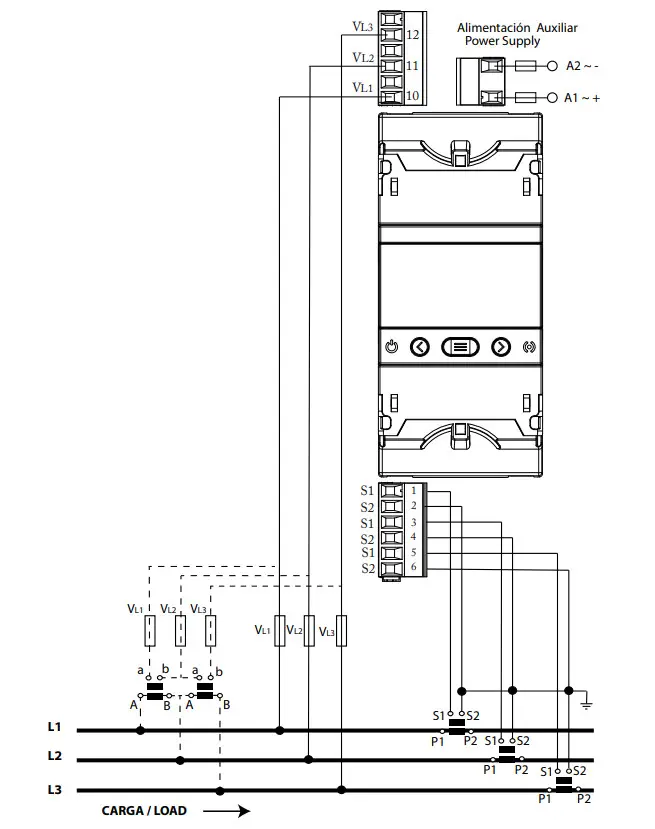

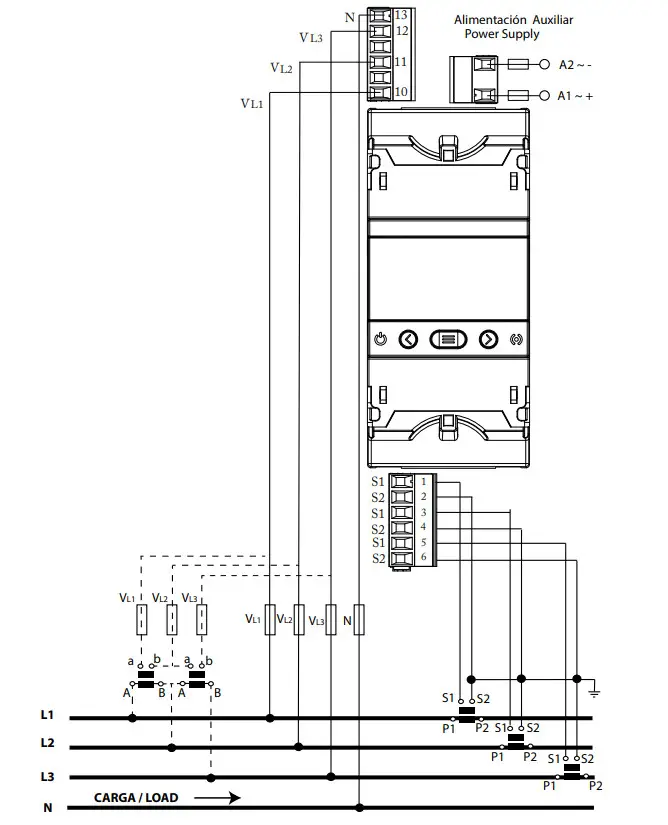

4-wire three-phase network
3-wire three-phase network
This manual is a CVM-E3-MINI-ITF-with installation guide. For further information, please download the full manual from the CIRCUTOR website: www.circutor.com
IMPORTANT!
The device must be disconnected from its power supply sources (power supply and measurement) before undertaking any installation, repair or handling operations on the unit’s connections.
Contact the after-sales service if you suspect that there is an operational fault in the device.
The device has been designed for easy replacement in case of malfunction.
The manufacturer of the device is not responsible for any damage resulting from failure by the user or installer to heed the warnings and/or recommendations set out in this manual, nor for damage resulting from the use of non-original products or accessories or those made by other manufacturers.
DESCRIPTION
The CVM-E3-MINI-WiEth device measures calculate and display the main electrical parameters of the following networks: single phase, two-phase, with and without neutral, balanced three-phase, with ARON measurements, or unbalanced.
The measurement will be taken in RMS with the three AC voltage inputs and three current inputs.
CVM-E3-MINI-ITF-WiEth, indirect current measurement with /5A or /1A transformers.
INSTALLATION
The device must be installed on an electric panel or enclosure, attached to a DIN rail (IEC 60715).
IMPORTANT!Take into account that when the device is connected, the terminals may be hazardous to the touch, and opening the covers or removing elements may provide access to parts that are dangerous to the touch. Do not use the device until it is fully installed.
The device must be connected to a power circuit that is protected with gl (IEC 269) or M-type fuses with a rating of 0.5 to 2 A. It must be fitted with a circuit breaker or equivalent device, in order to be able to disconnect the device from the power supply network. The power and voltage measuring circuit must be connected with cables that have a minimum cross-section of 1mm 2.
The secondary line of the current transformer will have a minimum cross-section of 2.5 mm 2.
It’s mandatory to connect the current transformer to the ground, see Connections.
The temperature rating of insulation of wires connected to the devices will be at a minimum of 62ºC
Technical features
| AC Power supply | |
| Rated voltage | 100 … 240 V ~ ± 10% |
| Frequency | 50 … 60 Hz |
| Consumption | 4 … 5.2 VA |
| Installation category | CAT III 300 V |
| DC Power supply | |
| Rated voltage | 100 … 240 V ± 10% |
| Consumption | 2.5 … 2.8 W |
| Installation category | CAT III 300 V |
| Voltage measurement circuit | |
| Rated voltage (Un) | 300 V F-N / Ph-N, 520 V F-F / Ph-Ph |
| Voltage measurement margin | 5 … 120% Un |
| Frequency measurement margin | 45 … 65 Hz |
| Input impedance | 400 kΩ |
| Min. voltage measurement (Start) | 11 V F-N / Ph-N |
| Installation category | CAT III 300V |
| Current measurement circuit | CVM-E3-MINI-ITF-WiEth |
| Rated current (In) | …/5A o …/1A |
| Current measurement margin | 2 … 120% In |
| Min. current measurement (I start) | 0.2% In |
| Consumption | 0.9 VA |
| Installation category | CAT III 300V |
| Measurement accuracy | |
| Voltage measurement | 0.5% ± 1 dígito/digit |
| Current measurement | 0.5% ± 1 dígito/digit |
| Frequency measurement | 0.50% |
| Active power measurement | 0.5% ± 2 dígitos/digits |
| Reactive power measurement | 1% ± 2 dígitos/digits |
| Active energy measurement | Clase 1 / Class 1 Clase 0.5 / Class 0.5 |
| Reactive energy measurement | Clase 2 / Class 2 |
| Ethernet communication | |
| Type | Ethernet 10BaseT – 100BaseTX auto detectable / self-detectable |
| Connector | RJ45 |
| Protocol | Modbus TCP – Web server – MQTT (2) |
| Connection mode to Network | DHCP ON/OFF (ON or defect / by default) |
| Wi-Fi communication | |
| Band | 2.4 GHz (Rango /Range : 2.4 … 2.5 GHz) |
| Standard | IEEE 802.11 b / g , IEEE 802.11 n (hasta / up to 150 Mbps) |
| Max. Output power | IEEE 802.11 b : 20 dBm IEEE 802.11 n : 14 dBm |
| Bluetooth® communication | |
| Protocols | Bluetooth v4.2 BR/EDR and BLE specification |
| Radio | NZIF receiver with –97 dBm sensitivity Class-1, class-2 and class-3 transmitter Adaptive Frequency Hopping (AFH) |
| User interface | |
| Display | LCD Custom COG de alto contraste / high contrast |
| Keyboard | 3 teclas/keys |
| LED | 2 LED |
| Environmental features | |
| Operating temperature | -10ºC … +50ºC |
| Storage temperature | -30ºC … +80ºC |
| Relative humidity (non-condensing) | 5 … 95% |
| Maximum altitude | 2000 m |
| Protection degree | IP30, Frontal / Front : IP40 |
| Mechanical Features | |
| Dimensions | 52.5x118x74 mm |
| Weight | 275 g. |
| Enclosure | Self-extinguishing V0 plastic |
| Attachment | Carril DIN / DIN rail (1) |
- Minimum recommended distance between DIN rails: 150 mm.
- Consult.
Note: Device images are for illustrative purposes only and may differ from the actual device.
| Key | |
 | Short keystroke: |
| Previous screen | |
| Long keystroke (2 s): | |
| Display of minimum value | |
 | Short keystroke: |
| Next screen. | |
| Long keystroke (2 s): | |
| Display of maximum value | |
 | Short keystroke: |
| Jump between different profiles ( analyzer, e3) | |
| Accessing the programming menu | |
 | Long keystroke (2 s): |
| Display of the Maximum Demand | |
 | Long keystroke (2 s): |
| Unlocks the active alarm | |
 | Long keystroke (2 s): |
| screen device information | |
 | Long keystroke (2 s): |
| Ethernet – Wi-Fi communications screens | |

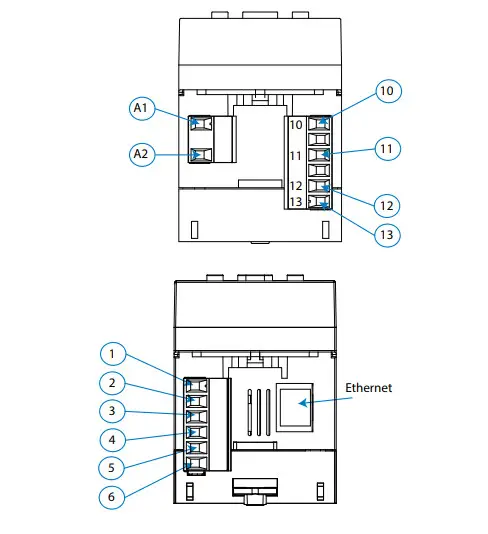

Terminal connections designations
| Al | — +, Auxiliary power supply |
| A2 | — -, Auxiliary power supply |
| 10 | VL1, Ll voltage input |
| 11 | VL2, L2 voltage input |
| 12 | VL3, L3 voltage input |
| 13 | N, Neutral voltage input |
| 1 | Sl, Ll current input |
| 2 | S2, Ll current input |
| 3 | 51, L2 current input |
| 4 | S2, L2 current input |
| 5 | 51, L3 current input |
| 6 | S2, L3 current input |
| Ethernet | Ethernet connection |
