Tands B-1460-smb, B-1460-rmb Easyinstall Hose Reel Cabinet Series Installation Guide

T&S RELIABILITY BUILT IN”

Installation and Maintenance Instructions
Easy Install
HOSE REEL CABINET SERIES

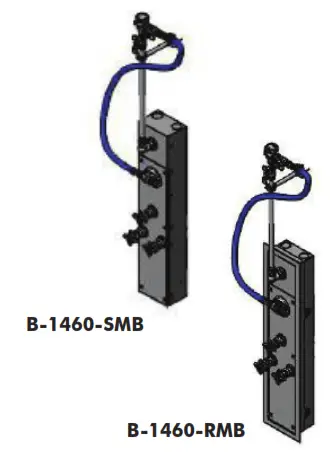

B-1460-SMB, B-1460-RMB EasyInstall Hose Reel Cabinet Series

Limited One Year Warranty
(Commercial Applications)
T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its option, repair and/or replace it. To obtain warranty service, products must be returned to…..
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transportation charges of the product to T&S and the return of repaired or replaced product to the purchaser are the responsibility of the purchaser. Repair and/ or replacement shall be made within a reasonable time after receipt by T&S of the returned product. This warranty does not cover items which have received secondary fi nishing or have been altered or modifi ed after purchase, or for defects caused by physical abuse to or misuse of the product, or shipment of the products.
Any express warranty not provided herein, and any remedy for Breach of Contract which might arise, is hereby excluded and disclaimed. Any implied warranties of merchantability or fi tness for a particular purpose are limited to one year in duration. Under no circumstance shall T&S be liable for loss of use or any special consequential cost, expenses or damages. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Specifi c rights under this warranty and other rights vary from state to state. Attention California Residents:
WARNING This product can expose you to chemicals including Lead, Chromium (hexavalent compounds) and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

P/N:098-020941-45
DATE:03-15-22
DRAWN: TED
CHECKED: JRM 03-24-22
APPROVED: JHB 03-25-22

EasyInstall Hose Reel Cabinet Series

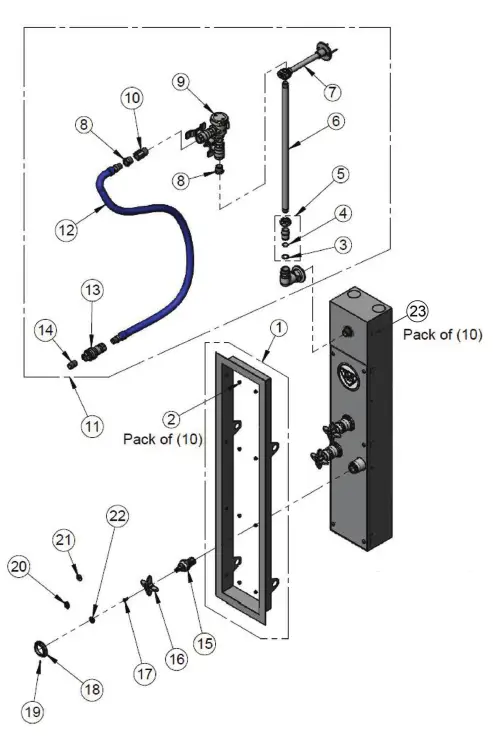

Recessed Mount Cabinet Assembly

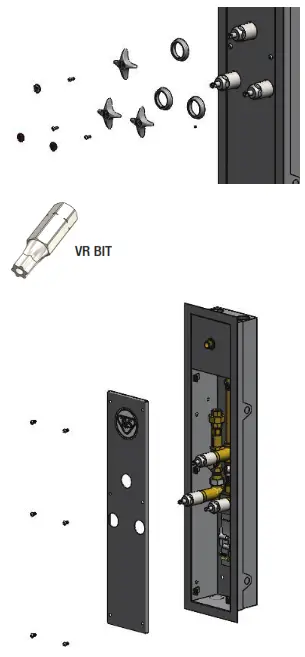

STEP A:

1. Remove indexes, screws, and handles from cabinet.
2. Remove slip fl anges by loosening the set screw (do not remove from fl ange).
3. Un-tape VR Bit from top of cabinet and unscrew the (6) door screws and remove door.

FOR RECESSED MOUNT MODELS:

1. Complete rough-in so mixing valve will be 56” from fl oor.

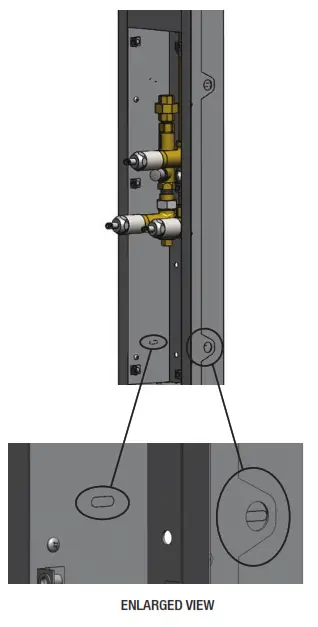

2. Punchout oval side wall tabs (2 per side).
3. Use the side oval holes and screw cabinet into appropriate supports with appropriate fasteners.
4. Finish assembly of 0RK-SK & hose reel.
5. Connect inlet supplies and check for leaks.
6. Reverse STEP A to re-assemble.

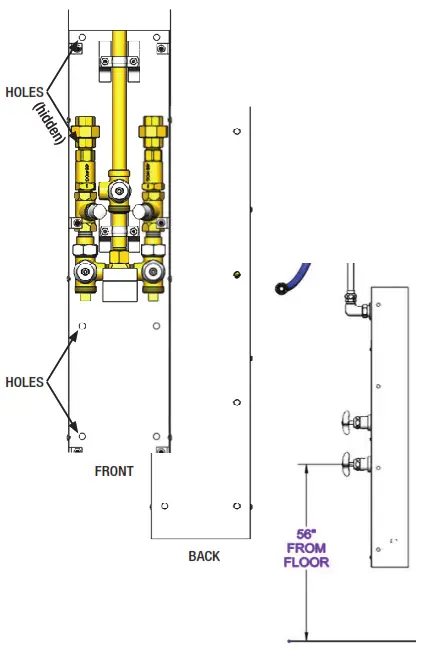

FOR SURFACE MOUNT MODELS:

1. Place cabinet so mixing valve is 56” from fl oor.
2. Using 6 of the 8 holes, use appropriate fasteners & washers to mount to wall. Two of the middle set of holes will be blocked depending on bottom or top inlet supplies.
3. Finish assembly of 0RK-SK & hose reel.
4. Connect inlet supplies and check for leaks.
5. Reverse STEP A. to re-assemble.
