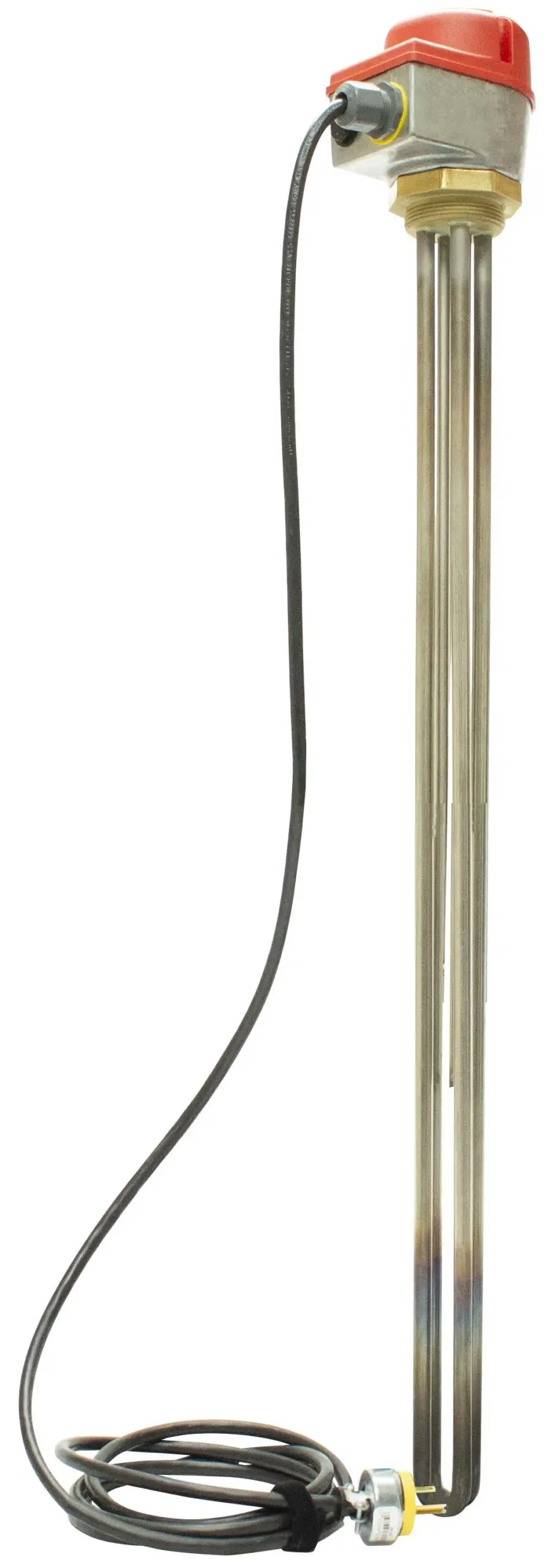

BriskHeat TOTE TANK/Ibc Immersion Heaters
Features & Benefits
- Maximum thermal efficiency — twice the heat-up rate compared to standard wrap-around heaters*
- Easy installation/universal fit —screws directly into top of tank
- Adjustable control
- Grounded for safety
- Ideal for non-acidic materials
Specifications
- Voltage: 120 or 240 VAC
- Wattage: 1500
- Flange Connection Type: 2 in (51 mm) NPS bushing adapter included
- Immersion Length: 34 in (864 mm) with bottom 18 in (457 mm) heated
- Temperature Range: Up to 167°F (75°C)
- Temperature Display: 3-digit digital
- Heater Construction: Incoloy 840
- Environmental Operating Range: 41 to 122°F (5 to 50°C) Controller IP Rating: IP55
- Accuracy: 0.2°F (0.1°C)
- Alarm: High-limit visual at 180°F (82°C)
- Power Cord:10 ft (3 m) long
- 120V includes standard 3-prong plug (NEMA 5-15)
- 240V includes bare wire leads
Caution: The heating element should be fully submerged and should not be used with highly-concentrated acids
*When paired with insulator
Ordering Information
| Part No. | Voltage | Temperature Display Units | Wattage | Length in (mm) |
| TTI120 | 120 | °F | 1500 | 34 (864) |
| TTI240 | 240 | °F | 1500 | 34 (864) |
| TTI240C | 240 | °C | 1500 | 34 (864) |
- Other sizes and styles of immersion heaters are available upon request.
- Get even faster heat-ups when used with a BriskHeat® Wet-area IBC Heaters & Insulators.
Screws directly onto top of tank – cap adapter provides a universal fit and easy installation
