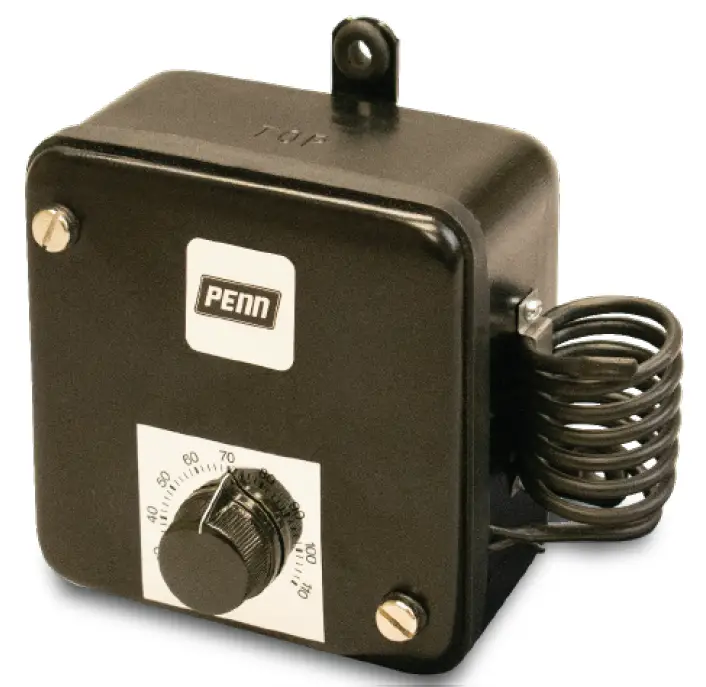

BriskHeat TB261N Temperature Controllers and Sensors
Features & Benefits
- Controls based on ambient conditions
- Suitable for outdoor use
- Manually set desired temperature
Specifications
- Voltage: Up to 277 VAC
- Maximum Amp Load: 22 amps
- Temperature Control Range: 20°F to 110°F
- Temperature Display Unit: °F only
- Sensor Type: Corrosion resistant vinyl-coated ambient sensing bulb and capillary
- Hysteresis: 3°F (1.6°C)
- Power Connection: Single pole double throw (SPDT) contacts
- Environmental Exposure Operating Range: -40°F to 160°F (-40°C to 71°C)
- Enclosure Dimensions: 5.25 in x 6 in x 3.4 in (133 mm x 152 mm x 86 mm)
Ordering Information
| Part No. | Volts | Amps | Range |
| TB261N-110 | Up to 277 | 22 | 20°F to 110°F (-7°C to 43°C) |

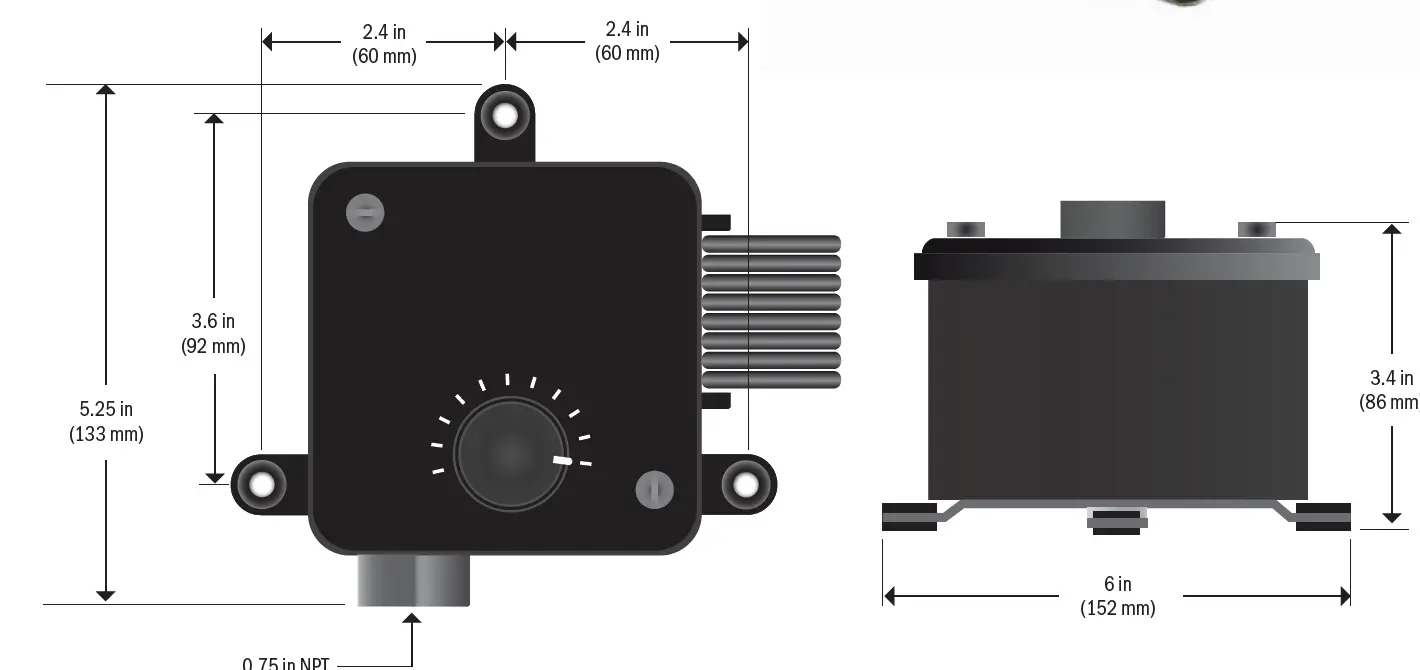

Dimension
